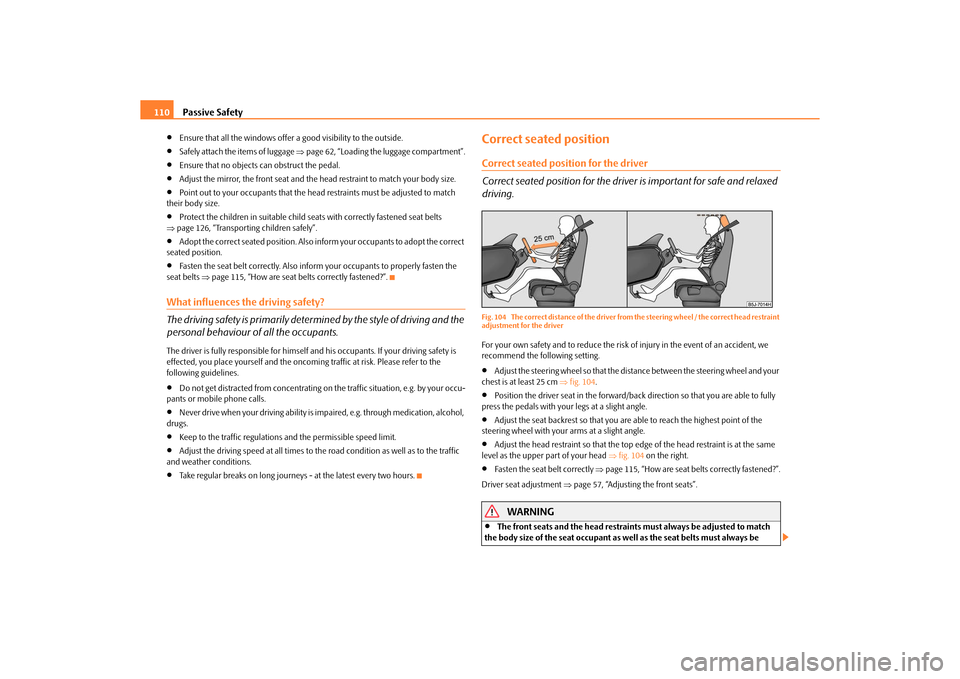

Passive Safety
110

Ensure that all the windows offer a good visibility to the outside.

Safely attach the items of luggage page 62, “Loading the luggage compartment”.

Ensure that no objects can obstruct the pedal.

Adjust the mirror, the front seat and the head restraint to match your body size.

Point out to your occupants that the head restraints must be adjusted to match
their body size.

Protect the children in suitable child seats with correctly fastened seat belts
 page 126, “Transporting children safely”.

Adopt the correct seated position. Also in form your occupants to adopt the correct
seated position.

Fasten the seat belt correctly. Also inform your occupants to properly fasten the
seat belts page 115, “How are seat belts correctly fastened?”.
What influences the driving safety?
The driving safety is primarily determined by the style of driving and the
personal behaviour of all the occupants.The driver is fully responsible for himself an d his occupants. If your driving safety is
effected, you place yourself and the oncomi ng traffic at risk. Please refer to the
following guidelines.
Do not get distracted from concentrating on the traffic situation, e.g. by your occu-
pants or mobile phone calls.

Never drive when your driving ability is impaired, e.g. through medication, alcohol,
drugs.

Keep to the traffic regulations and the permissible speed limit.

Adjust the driving speed at all times to the road condition as well as to the traffic
and weather conditions.

Take regular breaks on long journe ys - at the latest every two hours.
Correct seated positionCorrect seated position for the driver
Correct seated position for the driver is important for safe and relaxed
driving.Fig. 104 The correct distance of the driver from the steering wheel / the correct head restraint
adjustment for the driverFor your own safety and to reduce the risk of injury in the event of an accident, we
recommend the following setting.
Adjust the steering wheel so that the distance between the steering wheel and your
chest is at least 25 cm fig. 104 .

Position the driver seat in the forward/back direction so that you are able to fully
press the pedals with your legs at a slight angle.

Adjust the seat backrest so that you are able to reach the highest point of the
steering wheel with your arms at a slight angle.

Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head fig. 104 on the right.

Fasten the seat belt correctly page 115, “How are seat belts correctly fastened?”.
Driver seat adjustment page 57, “Adjusting the front seats”.
WARNING

The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
s16g.4.book Page 110 Wednesda y, February 10, 2010 3:53 PM

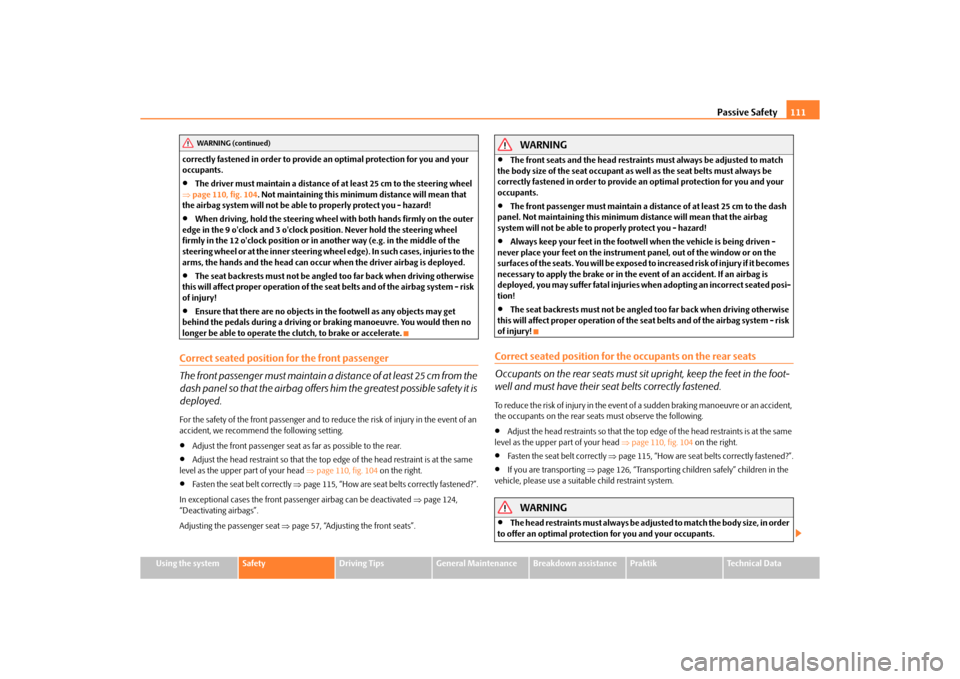

Passive Safety111
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
correctly fastened in order to provide an optimal protection for you and your
occupants.

The driver must maintain a distance of
at least 25 cm to the steering wheel
 page 110, fig. 104 . Not maintaining this minimum distance will mean that
the airbag system will not be able to properly protect you - hazard!

When driving, hold the st eering wheel with both hands firmly on the outer
edge in the 9 o'clock and 3 o'clock po sition. Never hold the steering wheel
firmly in the 12 o'clock position or in another way (e.g. in the middle of the
steering wheel or at the inner steering wheel edge). In such cases, injuries to the
arms, the hands and the head can occur when the driver airbag is deployed.

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!

Ensure that there are no objects in the footwell as any objects may get
behind the pedals during a driving or braking manoeuvre. You would then no
longer be able to operate the clutch, to brake or accelerate.
Correct seated position for the front passenger
The fro n t p assen ger must mai n tai n a d i stan ce of a t l ea st 25 c m from th e
dash panel so that the airbag offers him the greatest possible safety it is
deployed.For the safety of the front passenger and to reduce the risk of injury in the event of an
accident, we recommend the following setting.
Adjust the front passenger seat as far as possible to the rear.

Adjust the head restraint so that the top edge of the head restraint is at the same
level as the upper part of your head page 110, fig. 104 on the right.

Fasten the seat belt correctly page 115, “How are seat belts correctly fastened?”.
In exceptional cases the front pass enger airbag can be deactivated page 124,
“Deactivating airbags”.
Adjusting the passenger seat  page 57, “Adjusting the front seats”.
WARNING

The front seats and the head restraints must always be adjusted to match
the body size of the seat occupant as well as the seat belts must always be
correctly fastened in order to provide an optimal protection for you and your
occupants.

The front passenger must maintain a distance of at least 25 cm to the dash
panel. Not maintaining this minimum distance will mean that the airbag
system will not be able to properly protect you - hazard!

Always keep your feet in the footwel l when the vehicle is being driven -
never place your feet on the instrument panel, out of the window or on the
surfaces of the seats. You will be exposed to increased risk of injury if it becomes
necessary to apply the brake or in the ev ent of an accident. If an airbag is
deployed, you may suffer fatal injuries wh en adopting an incorrect seated posi-
tion!

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!
Correct seated position for the occupants on the rear seats
Occupants on the rear seats must sit upright, keep the feet in the foot-
well and must have their se at belts correctly fastened.To reduce the risk of injury in the event of a sudden braking manoeuvre or an accident,
the occupants on the rear seats must observe the following.
Adjust the head restraints so that the top edge of the head restraints is at the same
level as the upper part of your head page 110, fig. 104 on the right.

Fasten the seat belt correctly page 115, “How are seat belts correctly fastened?”.

If you are transporting page 126, “Transporting children safely” children in the
vehicle, please use a suitable child restraint system.
WARNING

The head restraints must always be adjusted to match the body size, in order
to offer an optimal protection for you and your occupants.
WARNING (continued)
s16g.4.book Page 111 Wednesda y, February 10, 2010 3:53 PM

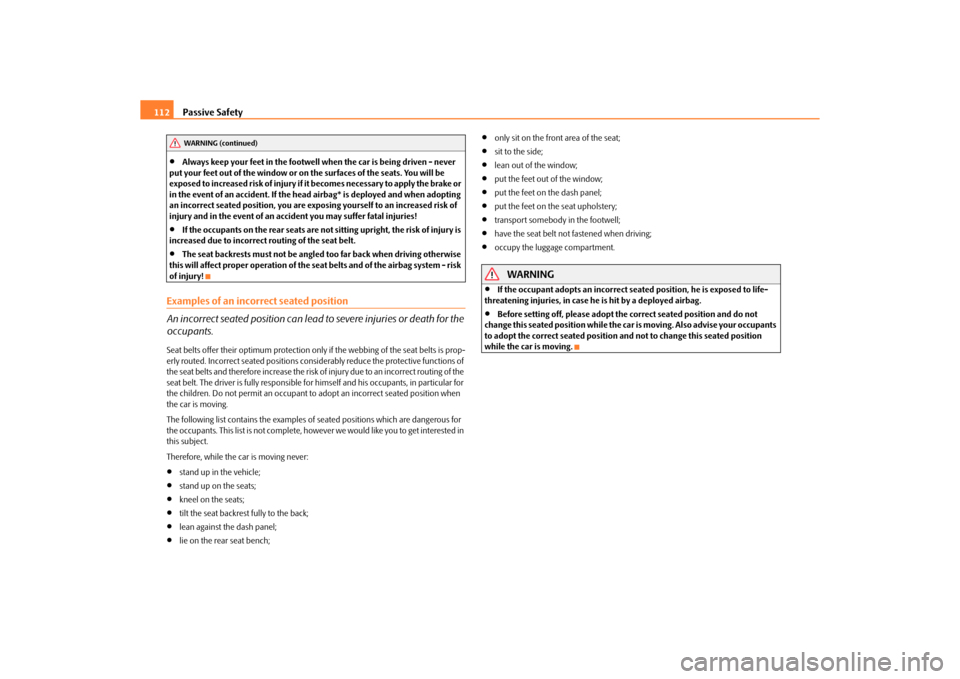

Passive Safety
112

Always keep your feet in the footwell when the car is being driven - never
put your feet out of the window or on the surfaces of the seats. You will be
exposed to increased risk of injury if it becomes necessary to apply the brake or
in the event of an accident. If the head airbag* is deployed and when adopting
an incorrect seated position, you are exposing yourself to an increased risk of
injury and in the event of an acci dent you may suffer fatal injuries!

If the occupants on the rear seats are not sitting upright, the risk of injury is
increased due to incorrect routing of the seat belt.

The seat backrests must not be angled too far back when driving otherwise
this will affect proper operation of the se at belts and of the airbag system - risk
of injury!
Examples of an incorrect seated position
An incorrect seated position can lead to severe injuries or death for the
occupants.Seat belts offer their optimum protection only if the webbing of the seat belts is prop-
erly routed. Incorrect seated positions considerably reduce the protective functions of
the seat belts and therefore increase the risk of injury due to an incorrect routing of the
seat belt. The driver is fully responsible for himself and his occupants, in particular for
the children. Do not permit an occupant to adopt an incorrect seated position when
the car is moving.
The following list contains the examples of seated positions which are dangerous for
the occupants. This list is not complete, howe ver we would like you to get interested in
this subject.
Therefore, while the car is moving never:
stand up in the vehicle;

stand up on the seats;

kneel on the seats;

tilt the seat backrest fully to the back;

lean against the dash panel;

lie on the rear seat bench;

only sit on the front area of the seat;

sit to the side;

lean out of the window;

put the feet out of the window;

put the feet on the dash panel;

put the feet on the seat upholstery;

transport somebody in the footwell;

have the seat belt not fastened when driving;

occupy the luggage compartment.
WARNING

If the occupant adopts an incorrect seated position, he is exposed to life-
threatening injuries, in case he is hit by a deployed airbag.

Before setting off, please adopt the correct seated position and do not
change this seated position while the car is moving. Also advise your occupants
to adopt the correct seated position and not to change this seated position
while the car is moving.
WARNING (continued)
s16g.4.book Page 112 Wednesda y, February 10, 2010 3:53 PM

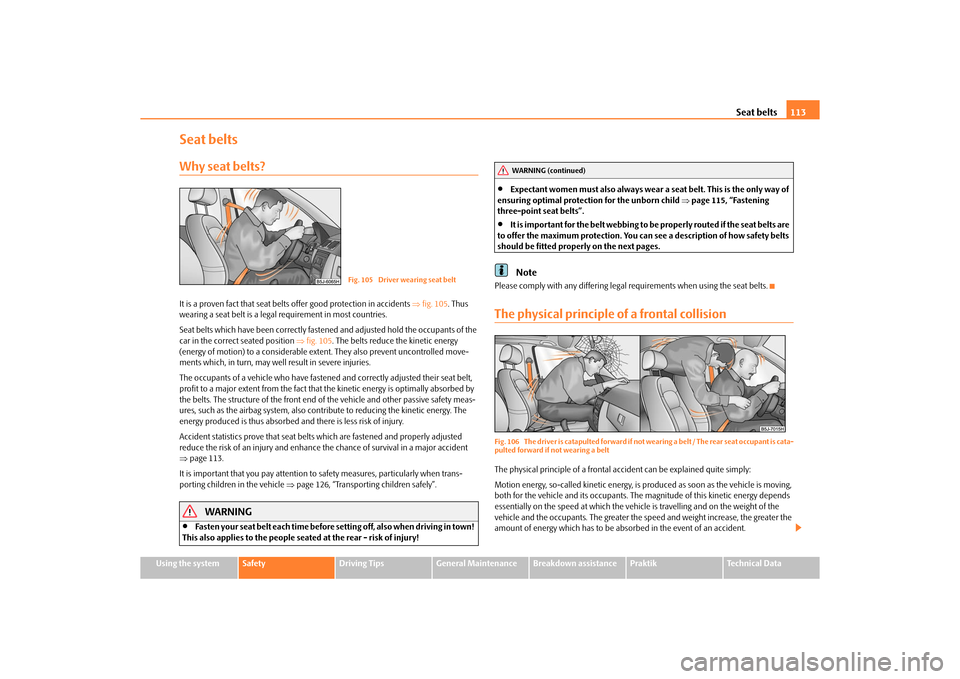

Seat belts113
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
Seat beltsWhy seat belts?It is a proven fact that seat belt s offer good protection in accidents fig. 105 . Thus
wearing a seat belt is a legal requirement in most countries.
Seat belts which have been correctly fasten ed and adjusted hold the occupants of the
car in the correct seated position fig. 105 . The belts reduce the kinetic energy
(energy of motion) to a considerable exte nt. They also prevent uncontrolled move-
ments which, in turn, may well result in severe injuries.
The occupants of a vehicle who have fastened and correctly adjusted their seat belt,
profit to a major extent from the fact that the kinetic energy is optimally absorbed by
the belts. The structure of the front end of the vehicle and other passive safety meas-
ures, such as the airbag system, also cont ribute to reducing the kinetic energy. The
energy produced is thus absorbed and there is less risk of injury.
Accident statistics prove that seat belts which are fastened and properly adjusted
reduce the risk of an injury and enhance the chance of survival in a major accident
 page 113.
It is important that you pay attention to safety measures, particularly when trans-
porting children in the vehicle page 126, “Transporting children safely”.
WARNING

Fasten your seat belt each time before setting off, also when driving in town!
This also applies to the people seated at the rear - risk of injury!

Expectant women must also always wear a seat belt. This is the only way of
ensuring optimal protection for the unborn child page 115, “Fastening
three-point seat belts”.

It is important for the belt webbing to be properly routed if the seat belts are
to offer the maximum protection. You can see a description of how safety belts
should be fitted properly on the next pages.Note
Please comply with any differing legal requirements when using the seat belts.The physical principle of a frontal collisionFig. 106 The driver is catapulted forward if not wearing a belt / The rear seat occupant is cata-
pulted forward if not wearing a beltThe physical principle of a frontal a ccident can be explained quite simply:
Motion energy, so-called kinetic energy, is produced as soon as the vehicle is moving,
both for the vehicle and its occupants. The magnitude of this kinetic energy depends
essentially on the speed at which the vehicl e is travelling and on the weight of the
vehicle and the occupants. The greater the speed and weight increase, the greater the
amount of energy which has to be ab sorbed in the event of an accident.
Fig. 105 Driver wearing seat belt
WARNING (continued)
s16g.4.book Page 113 Wednesda y, February 10, 2010 3:53 PM

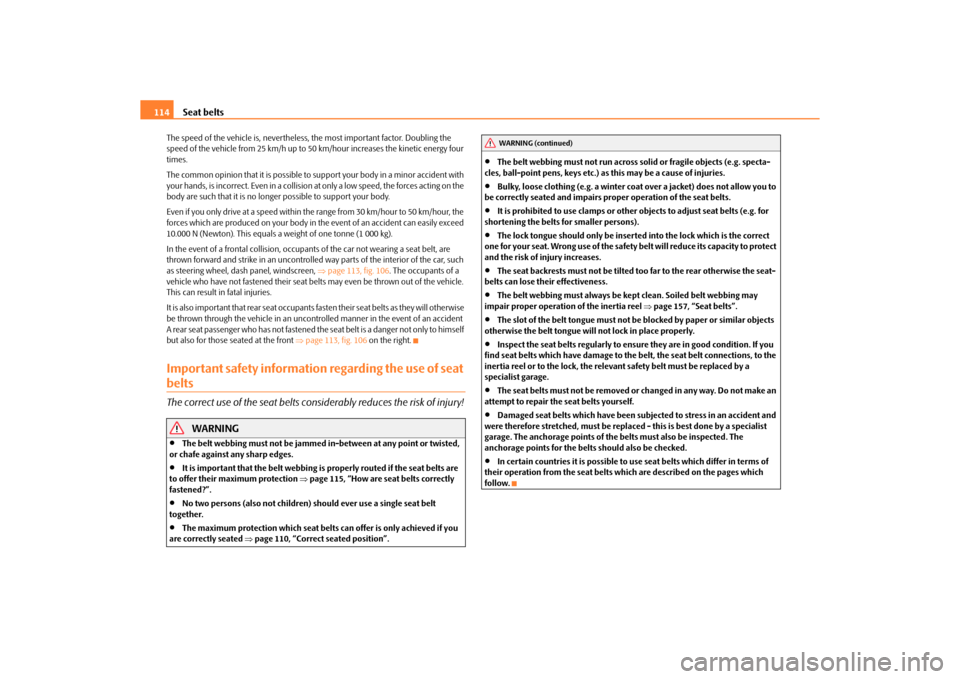

Seat belts
114
The speed of the vehicle is, nevertheless, the most important factor. Doubling the
speed of the vehicle from 25 km/h up to 50 km/hour increases the kinetic energy four
times.
The common opinion that it is possible to su pport your body in a minor accident with
your hands, is incorrect. Even in a collision at only a low speed, the forces acting on the
body are such that it is no longer possible to support your body.
Even if you only drive at a speed within the range from 30 km/hour to 50 km/hour, the
forces which are produced on your body in the event of an accident can easily exceed
10.000 N (Newton). This equals a weight of one tonne (1 000 kg).
In the event of a frontal collision, occupant s of the car not wearing a seat belt, are
thrown forward and strike in an uncontrolled way parts of the interior of the car, such
as steering wheel, da sh panel, windscreen, page 113, fig. 106 . The occupants of a
vehicle who have not fastened their seat belts may even be thrown out of the vehicle.
This can result in fatal injuries.
It is also important that rear seat occupants fasten their seat belts as they will otherwise
be thrown through the vehicle in an uncontr olled manner in the event of an accident
A rear seat passenger who has not fastened the s eat bel t i s a dang er not o nl y to hims elf
but also for those seated at the front page 113, fig. 106 on the right.Important safety information regarding the use of seat beltsThe correct use of the seat belts cons iderably reduces the risk of injury!
WARNING

The belt webbing must not be jammed in-between at any point or twisted,
or chafe against any sharp edges.

It is important that the belt webbing is properly routed if the seat belts are
to offer their maximum protection page 115, “How are seat belts correctly
fastened?”.

No two persons (also not children) should ever use a single seat belt
together.

The maximum protection which seat belts can offer is only achieved if you
are correctly seated page 110, “Correct seated position”.

The belt webbing must not run across solid or fragile objects (e.g. specta-
cles, ball-point pens, keys etc.) as this may be a cause of injuries.

Bulky, loose clothing (e.g. a winter coat over a jacket) does not allow you to
be correctly seated and impairs proper operation of the seat belts.

It is prohibited to use clamps or other objects to adjust seat belts (e.g. for
shortening the belts for smaller persons).

The lock tongue should only be inserted into the lock which is the correct
one for your seat. Wrong use of the safety belt will reduce its capacity to protect
and the risk of injury increases.

The seat backrests must not be tilted too far to the rear otherwise the seat-
belts can lose their effectiveness.

The belt webbing must always be ke pt clean. Soiled belt webbing may
impair proper operation of the inertia reel  page 157, “Seat belts”.

The slot of the belt tongue must not be blocked by paper or similar objects
otherwise the belt tongue will not lock in place properly.

Inspect the seat belts regula rly to ensure they are in good condition. If you
find seat belts which have damage to the belt, the seat belt connections, to the
inertia reel or to the lock, the relevant safety belt must be replaced by a
specialist garage.

The seat belts must not be removed or changed in any way. Do not make an
attempt to repair the seat belts yourself.

Damaged seat belts which have been subjected to stress in an accident and
were therefore stretched, must be replaced - this is best done by a specialist
garage. The anchorage points of the belts must also be inspected. The
anchorage points for the belts should also be checked.

In certain countries it is possible to use seat belts which differ in terms of
their operation from the seat belts which are described on the pages which
follow.WARNING (continued)
s16g.4.book Page 114 Wednesda y, February 10, 2010 3:53 PM

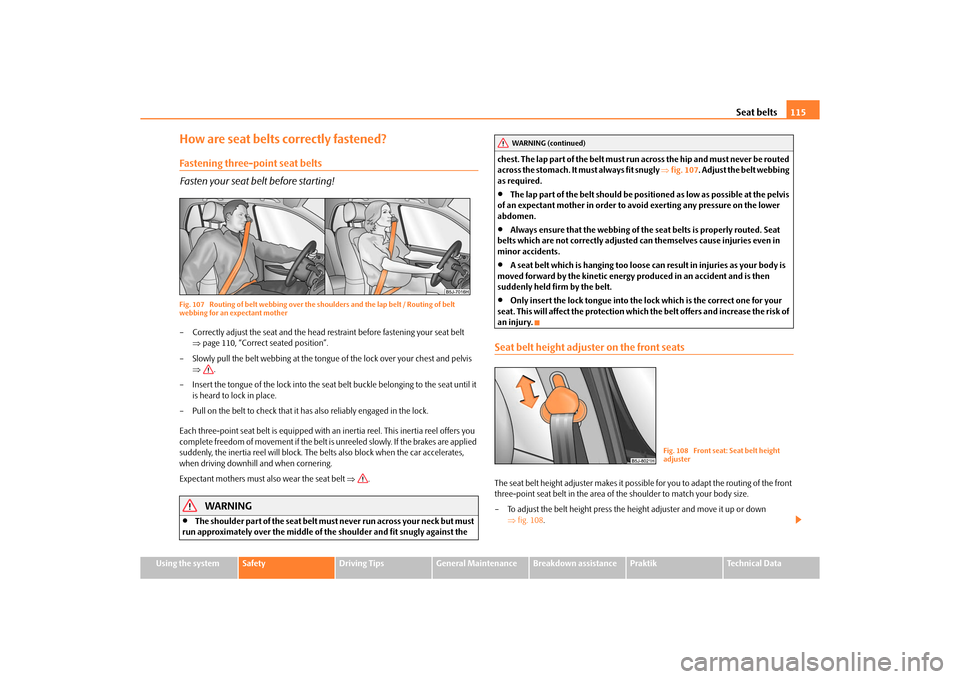

Seat belts115
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
How are seat belts correctly fastened?Fastening three-point seat belts
Fasten your seat belt before starting!Fig. 107 Routing of belt webbing over the sh oulders and the lap belt / Routing of belt
webbing for an expectant mother– Correctly adjust the seat and the head restraint before fastening your seat belt
page 110, “Correct seated position”.
– Slowly pull the belt webbing at the tongue of the lock over your chest and pelvis
 .
– Insert the tongue of the lock into the seat belt buckle belonging to the seat until it is heard to lock in place.
– Pull on the belt to check that it has also reliably engaged in the lock.
Each three-point seat belt is equipped with an inertia reel. This inertia reel offers you
complete freedom of movement if the belt is unreeled slowly. If the brakes are applied
suddenly, the inertia reel will block. The belts also block when the car accelerates,
when driving downhill and when cornering.
Expectant mothers must also wear the seat belt .
WARNING

The shoulder part of the seat belt must never run across your neck but must
run approximately over the middle of the shoulder and fit snugly against the chest. The lap part of the belt must r
un across the hip and must never be routed
across the stomach. It must always fit snugly fig. 107 . Adjust the belt webbing
as required.

The lap part of the belt should be posi tioned as low as possible at the pelvis
of an expectant mother in order to avoid exerting any pressure on the lower
abdomen.

Always ensure that the webbing of the seat belts is properly routed. Seat
belts which are not correctl y adjusted can themselves cause injuries even in
minor accidents.

A seat belt which is hanging too loose can result in injuries as your body is
moved forward by the kinetic energy pr oduced in an accident and is then
suddenly held firm by the belt.

Only insert the lock tongue into the lock which is the correct one for your
seat. This will affect the protection which the belt offers and increase the risk of
an injury.
Seat belt height adjuster on the front seatsThe seat belt height adjuster makes it possible for you to adapt the routing of the front
three-point seat belt in the area of the shoulder to match your body size.
– To adjust the belt height press the heig ht adjuster and move it up or down
 fig. 108 .
WARNING (continued)
Fig. 108 Front seat: Seat belt height
adjuster
s16g.4.book Page 115 Wednesda y, February 10, 2010 3:53 PM

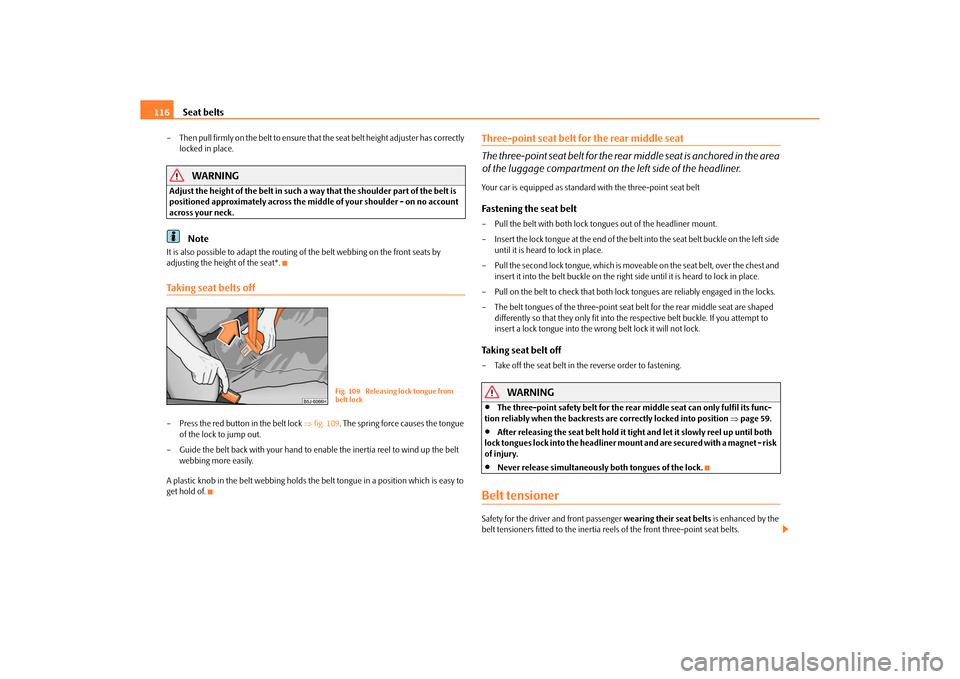

Seat belts
116
– Then pull firmly on the belt to ensure that the seat belt height adjuster has correctly
locked in place.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is
positioned approximately across the middle of your shoulder - on no account
across your neck.
Note
It is also possible to adapt the routing of the belt webbing on the front seats by
adjusting the height of the seat*.Taking seat belts off– Press the red button in the belt lock fig. 109 . The spring force causes the tongue
of the lock to jump out.
– Guide the belt back with your hand to en able the inertia reel to wind up the belt
webbing more easily.
A plastic knob in the belt webbing holds the be lt tongue in a position which is easy to
get hold of.
Three-point seat belt for the rear middle seat
The three-point seat belt for the rear middle seat is anchored in the area
of the luggage compartment on the left side of the headliner.Your car is equipped as standard with the three-point seat beltFastening the seat belt– Pull the belt with both lock to ngues out of the headliner mount.
– Insert the lock tongue at the end of the belt into the seat belt buckle on the left side
until it is heard to lock in place.
– Pull the second lock tongue, which is move able on the seat belt, over the chest and
insert it into the belt buckle on the right side until it is heard to lock in place.
– Pull on the belt to check that both lock tongues are reliably engaged in the locks.
– The belt tongues of the thre e-point seat belt for the rear middle seat are shaped
differently so that they only fit into the respective belt buckle. If you attempt to
insert a lock tongue into the wrong belt lock it will not lock.Taking seat belt off– Take off the seat belt in the reverse order to fastening.
WARNING

The three-point safety belt for the rear middle seat can only fulfil its func-
tion reliably when the backrests are correctly locked into position page 59.

After releasing the seat belt hold it tight and let it slowly reel up until both
lock tongues lock into the headliner mount and are secured with a magnet - risk
of injury.

Never release simultaneously both tongues of the lock.
Belt tensionerSafety for the driver and front passenger wearing their seat belts is enhanced by the
belt tensioners fitted to the inertia reels of the front three-point seat belts.
Fig. 109 Releasing lock tongue from
belt lock
s16g.4.book Page 116 Wednesda y, February 10, 2010 3:53 PM

Seat belts117
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data

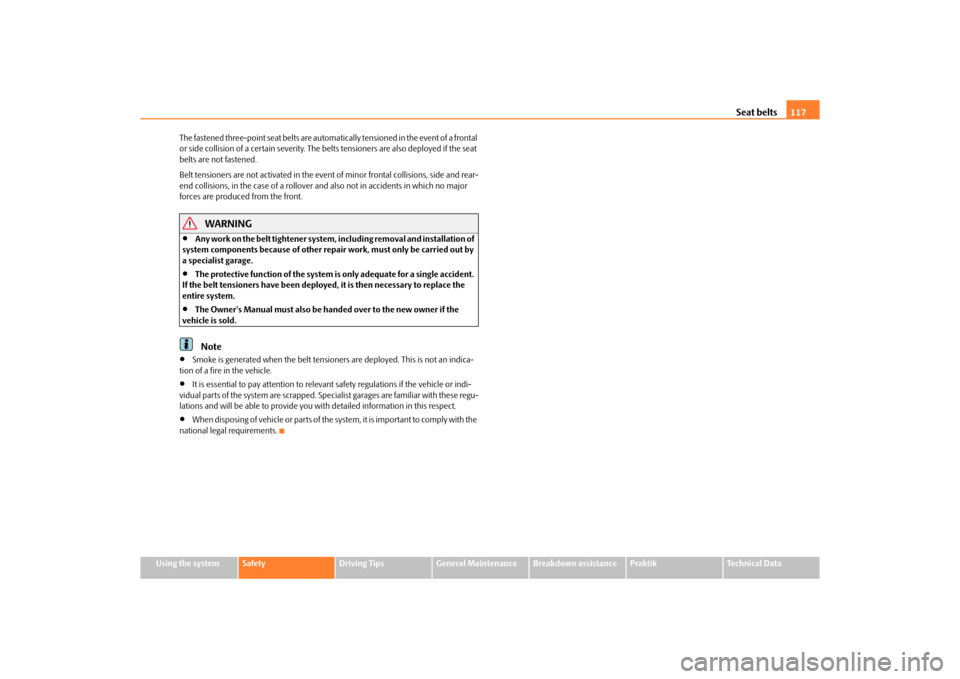

The fastened three-point seat belts are automatically tensioned in the event of a frontal
or side collision of a certain severity. The belts tensioners are also deployed if the seat
belts are not fastened.
Belt tensioners are not activated in the event of minor frontal collisions, side and rear-
end collisions, in the case of a rollover and also not in accidents in which no major
forces are produced from the front.
WARNING

Any work on the belt tightener system,
including removal and installation of
system components because of other repair work, must only be carried out by
a specialist garage.

The protective function of the system is only adequate for a single accident.
If the belt tensioners have been deployed, it is then necessary to replace the
entire system.

The Owner's Manual must also be handed over to the new owner if the
vehicle is sold.Note

Smoke is generated when the belt tensioners are deployed. This is not an indica-
tion of a fire in the vehicle.

It is essential to pay attent ion to relevant safety regulations if the vehicle or indi-
vidual parts of the system are scrapped. Specialist garages are familiar with these regu-
lations and will be able to provide you with detailed information in this respect.

When disposing of vehicle or parts of the system, it is important to comply with the
national legal requirements.
s16g.4.book Page 117 Wednesda y, February 10, 2010 3:53 PM

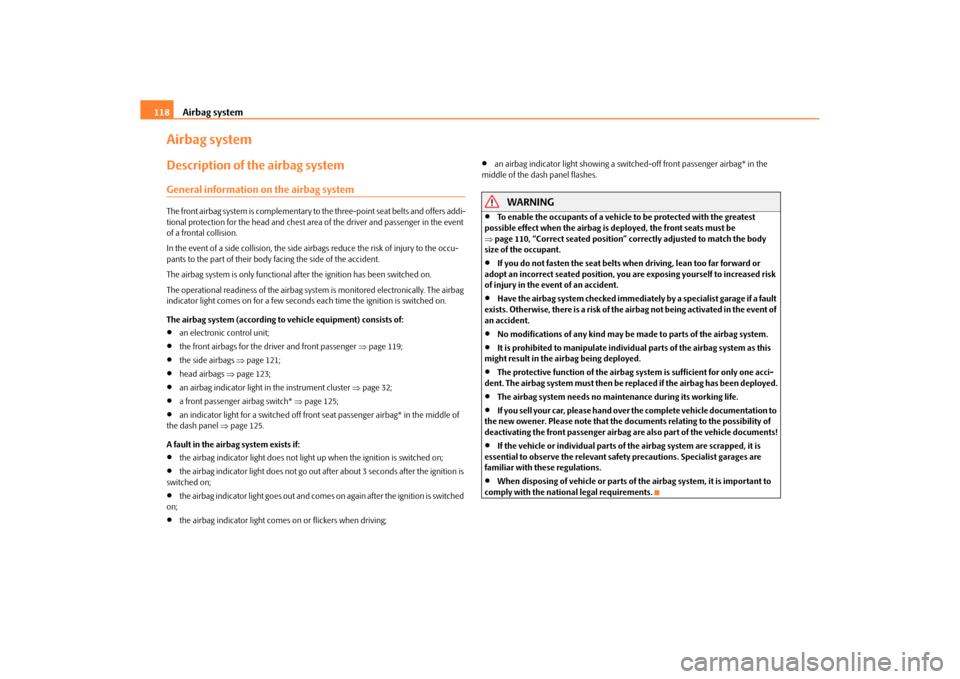

Airbag system
118
Airbag systemDescription of the airbag systemGeneral information on the airbag systemThe front airbag system is complementary to the three-point seat belts and offers addi-
tional protection for the head and chest area of the driver and passenger in the event
of a frontal collision.
In the event of a side collision, the side airb ags reduce the risk of injury to the occu-
pants to the part of their body facing the side of the accident.
The airbag system is only functional af ter the ignition has been switched on.
The operational readiness of the airbag syst em is monitored electronically. The airbag
indicator light comes on for a few seconds each time the ignition is switched on.
The airbag system (according to vehicle equipment) consists of:
an electronic control unit;

the front airbags for the driver and front passenger page 119;

the side airbags page 121;

head airbags page 123;

an airbag indicator light in the instrument cluster page 32;

a front passenger airbag switch*  page 125;

an indicator light for a switched off fron t seat passenger airbag* in the middle of
the dash panel page 125.
A fault in the airbag system exists if:

the airbag indicator light does not light up when the ignition is switched on;

the airbag indicator light does not go out after about 3 seconds after the ignition is
switched on;

the airbag indicator light goes out and come s on again after the ignition is switched
on;

the airbag indicator light comes on or flickers when driving;

an airbag indicator light showing a switched-off front passenger airbag* in the
middle of the dash panel flashes.
WARNING

To enable the occupants of a vehicle to be protected with the greatest
possible effect when the airbag is deployed, the front seats must be
 page 110, “Correct seated position” correctly adjusted to match the body
size of the occupant.

If you do not fasten the seat belts when driving, lean too far forward or
adopt an incorrect seated position, you are exposing yourself to increased risk
of injury in the event of an accident.

Have the airbag system checked immediat ely by a specialist garage if a fault
exists. Otherwise, there is a risk of the airbag not being activated in the event of
an accident.

No modifications of any kind may be made to parts of the airbag system.

It is prohibited to manipulate individual parts of the airbag system as this
might result in the airbag being deployed.

The protective function of the airbag system is sufficient for only one acci-
dent. The airbag system must then be re placed if the airbag has been deployed.

The airbag system needs no maintenance during its working life.

If you sell your car, please hand over the complete vehicle documentation to
the new owener. Please note that the documents relating to the possibility of
deactivating the front passenger airbag are also part of the vehicle documents!

If the vehicle or individual parts of the airbag system are scrapped, it is
essential to observe the relevant safety precautions. Specialist garages are
familiar with these regulations.

When disposing of vehicle or parts of the airbag system, it is important to
comply with the national legal requirements.
s16g.4.book Page 118 Wednesda y, February 10, 2010 3:53 PM

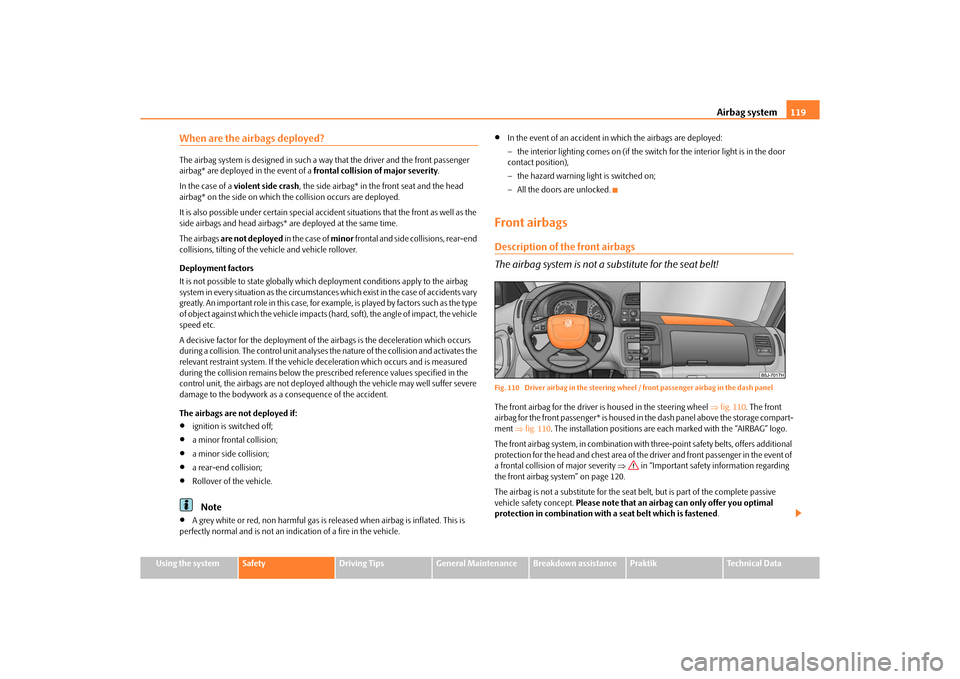

Airbag system119
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Praktik
Technical Data
When are the airbags deployed?The airbag system is designed in such a way that the driver and the front passenger
airbag* are deployed in the event of a frontal collision of major severity.
In the case of a violent side crash , the side airbag* in the front seat and the head
airbag* on the side on which the collision occurs are deployed.
It is also possible under certain special accident situations that the front as well as the
side airbags and head airbags* are deployed at the same time.
The airbags are not deployed in the case of minor frontal and side collisions, rear-end
collisions, tilting of the ve hicle and vehicle rollover.
Deployment factors
It is not possible to state globally which deployment conditions apply to the airbag
system in every situation as the circumstances which exist in the case of accidents vary
greatly. An important role in this case, for ex ample, is played by factors such as the type
of object against which the vehicle impacts (h ard, soft), the angle of impact, the vehicle
speed etc.
A decisive factor for the deployment of the airbags is the deceleration which occurs
during a collision. The control unit analyses the nature of the collision and activates the
relevant restraint system. If the vehicle deceleration which occurs and is measured
during the collision remains below the prescribed reference values specified in the
control unit, the airbags are no t deployed although the vehicle may well suffer severe
damage to the bodywork as a consequence of the accident.
The airbags are not deployed if:
ignition is switched off;

a minor frontal collision;

a minor side collision;

a rear-end collision;

Rollover of the vehicle.Note

A grey white or red, non harmful gas is released when airbag is inflated. This is
perfectly normal and is not an indi cation of a fire in the vehicle.

In the event of an accident in which the airbags are deployed:
the interior lighting comes on (if the swit ch for the interior light is in the door
contact position),
 the hazard warning li ght is switched on;
 All the doors are unlocked.
Front airbagsDescription of the front airbags
The airbag system is not a su bstitute for the seat belt!Fig. 110 Driver airbag in the steering wheel / front passenger airbag in the dash panelThe front airbag for the driver is housed in the steering wheel fig. 110 . The front
airbag for the front passenger* is housed in the dash panel above the storage compart-
ment fig. 110 . The installation positi ons are each marked with the “AIRBAG” logo.
The front airbag system, in combination with three-point safety belts, offers additional
protection for the head and chest area of the driver and front passenger in the event of
a frontal collision of major severity  in “Important safety information regarding
the front airbag system” on page 120.
The airbag is not a substitute for the seat belt, but is part of the complete passive
vehicle safety concept. Please note that an airbag can only offer you optimal
protection in combination with a seat belt which is fastened .
s16g.4.book Page 119 Wednesday, February 10, 2010 3:53 PM
