Page 50 of 66

Navigation49
The traffic reports are shown in the map display by means of symbols:
• slow-moving traffic
• traffic jam
• closed road
The corresponding stretch of the journey is shown in the map display by
a dotted line.
So that you can use the dynamic navigation, a radio station must be able
to receive the traffic reports emitted via TMC. The TMC box selects auto-
matically a TMC station; you can also manually select another station.
Note
The proper functioning of the automatic route influence depends on
the transmitted traffic reports. The radio stations broadcasting the
traffic reports are responsible for its content.
Select TMC station
– Press the button tailback function . The tailback menu appears.
– Mark and confirm the menu field “ RDS station” ⇒ fig. 41 . A list
with the available TMC stations appears.
– Mark and confirm the desired station ⇒fig. 42 .
An aerial symbol in the symbol and map display indicates that a
TMC Station can be received.
Note
The audible station is not changed as a result of this. If the selected station
cannot be received, automatically the next TMC to be received is set.
Fig. 41 Select TMC
station
Fig. 42 TMC station
A16
20.book Page 49 Tuesday, December 6, 2005 2:26 PM
Page 55 of 66

Navigation
54
Anti-theft coding
Description
Each time when:
•the unit is disconnected from the power supply of the vehicle
•the battery is disconnected
•the electrical fuse for the radio was blown
The information “ SAFE” appears in the display after switching on the unit.
Then the unit can only be operated again by entering the correct code.
Caution
•This code number is affixed together with the serial number behind the
instructions on the “ Unit map”.
•The “unit map ” must absolutely be disconnected and safe - never
store in the vehicle.
Enter code - Cancel electronic lock
The electronical lock is cancelled by entering the correct code.
The order of the operating steps must be maintained:
– Switch on the system. After t he start screen with the Škoda
logo appears the menu for entering the code with the informa-
tion “ Please enter your numerical code. ” ⇒ fig. 46.
– Enter the numerical code by marking the corresponding digits in the digit register one after the other using the menu knob
and confim each digit by pressing the menu knob . The
digits are entered into four lower numerical fields.
– Mark and confirm the field “ OK” with the menu knob .
The unit is again ready for operation!
Fig. 46 Enter safety code
A18
A18
A18
20.book Page 54 Tuesday, December 6, 2005 2:26 PM
Page 61 of 66

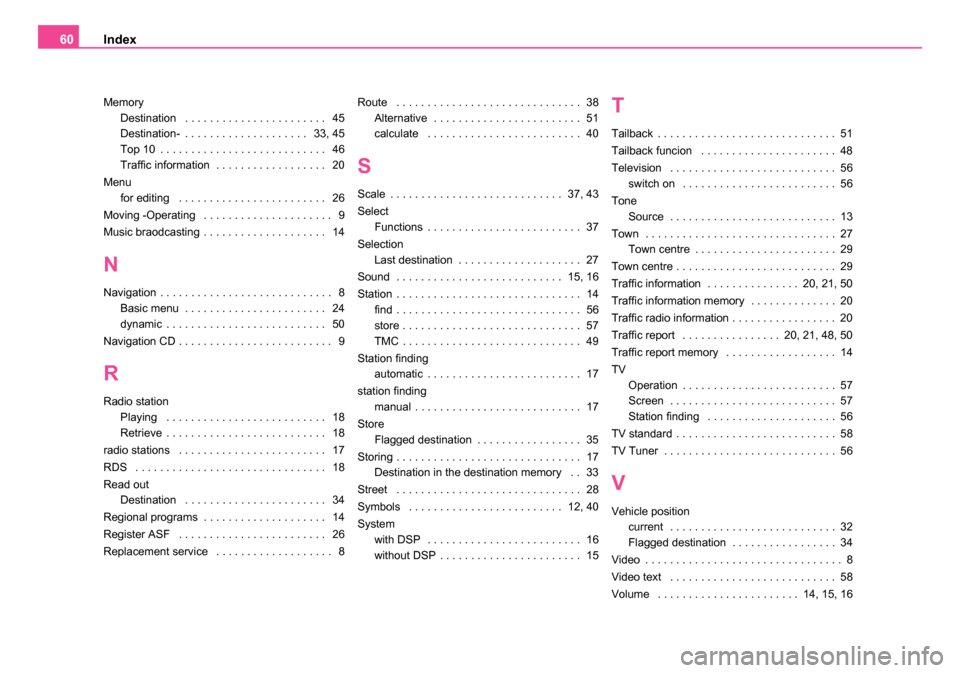

Index
60
Memory
Destination . . . . . . . . . . . . . . . . . . . . . . . 45
Destination- . . . . . . . . . . . . . . . . . . . . 33, 45
Top 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Traffic information . . . . . . . . . . . . . . . . . . 20
Menu for editing . . . . . . . . . . . . . . . . . . . . . . . . 26
Moving -Operating . . . . . . . . . . . . . . . . . . . . . 9
Music braodcasting . . . . . . . . . . . . . . . . . . . . 14
N
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Basic menu . . . . . . . . . . . . . . . . . . . . . . . 24
dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Navigation CD . . . . . . . . . . . . . . . . . . . . . . . . . 9
R
Radio station Playing . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Retrieve . . . . . . . . . . . . . . . . . . . . . . . . . . 18
radio stations . . . . . . . . . . . . . . . . . . . . . . . . 17
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Read out Destination . . . . . . . . . . . . . . . . . . . . . . . 34
Regional programs . . . . . . . . . . . . . . . . . . . . 14
Register ASF . . . . . . . . . . . . . . . . . . . . . . . . 26
Replacement service . . . . . . . . . . . . . . . . . . . 8 Route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Alternative . . . . . . . . . . . . . . . . . . . . . . . . 51
calculate . . . . . . . . . . . . . . . . . . . . . . . . . 40
S
Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37, 43
SelectFunctions . . . . . . . . . . . . . . . . . . . . . . . . . 37
Selection Last destination . . . . . . . . . . . . . . . . . . . . 27
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 16
Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 find . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
TMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Station finding automatic . . . . . . . . . . . . . . . . . . . . . . . . . 17
station finding manual . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Store Flagged destination . . . . . . . . . . . . . . . . . 35
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Destination in the destination memory . . 33
Street . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . 12, 40
System with DSP . . . . . . . . . . . . . . . . . . . . . . . . . 16
without DSP . . . . . . . . . . . . . . . . . . . . . . . 15
T
Tailback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Tailback funcion . . . . . . . . . . . . . . . . . . . . . . 48
Television . . . . . . . . . . . . . . . . . . . . . . . . . . . 56switch on . . . . . . . . . . . . . . . . . . . . . . . . . 56
Tone Source . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Town . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Town centre . . . . . . . . . . . . . . . . . . . . . . . 29
Town centre . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Traffic information . . . . . . . . . . . . . . . 20, 21, 50
Traffic information memory . . . . . . . . . . . . . . 20
Traffic radio information . . . . . . . . . . . . . . . . . 20
Traffic report . . . . . . . . . . . . . . . . 20, 21, 48, 50
Traffic report memory . . . . . . . . . . . . . . . . . . 14
TV Operation . . . . . . . . . . . . . . . . . . . . . . . . . 57
Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Station finding . . . . . . . . . . . . . . . . . . . . . 56
TV standard . . . . . . . . . . . . . . . . . . . . . . . . . . 58
TV Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
V
Vehicle position current . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Flagged destination . . . . . . . . . . . . . . . . . 34
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Video text . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Volume . . . . . . . . . . . . . . . . . . . . . . . 14, 15, 16
20.book Page 60 Tuesday, December 6, 2005 2:26 PM
Page 63 of 66

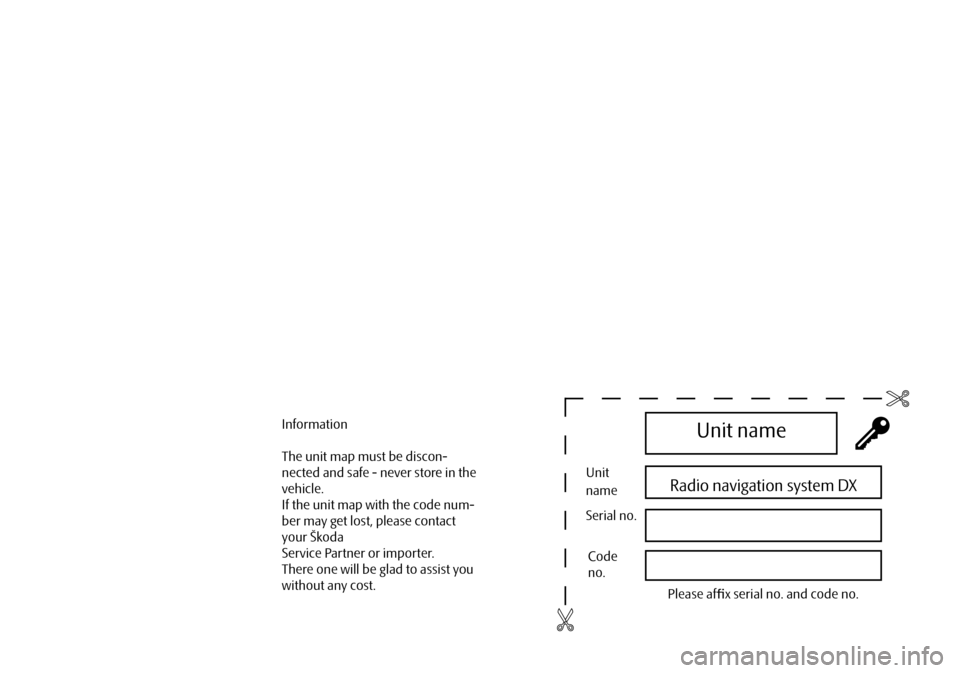

Unit name
Radio navigation system DX
Please affi x serial no. and code no.
Code
no.
Serial no. Unit
name
Information
The unit map must be discon-
nected and safe - never store in the
vehicle.
If the unit map with the code num-
ber may get lost, please contact
your Škoda
Service Partner or importer.
There one will be glad to assist you
without any cost.
DX-průkaz.indd 16.12.2005 14:21:15
Page 66 of 66

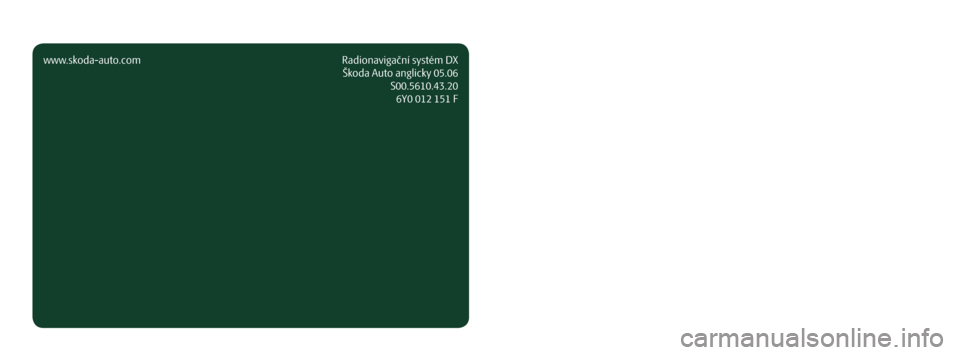

SIMPLY CLEVER
ŠkodaAuto
RADIO NAVIGATION SYSTEM DXwww.skoda-auto.comRadionavigační systém DX
Škoda Auto anglicky 05.06 S00.5610.43.206Y0 012 151 F
DX_22-06.indd 112.4.2006 11:56:38
