SKODA SUPERB 2008 2.G / (B6/3T) Owners Manual

Seats and Stowage
90
Stowage compartment for spectacles*
– Press button , the storage compartment folds down ⇒fig. 96 .
WARNING
The compartment must only be opened when removing or inserting objects
and otherwise must be kept closed.
Storage compartment in the front doors
WARNING
Use the storage compartments in the door panels ⇒fig. 97 only for small
items which do not project out of the compartment in order to avoid any
interference with the proper operation of the side airbags.
Stowage compartment below front passenger seat*
The storage compartment is foreseen for storing small objects of up to 1,5
kg. in weight.
– Tilt the lock to open the flap and pull out the flap ⇒fig. 98 .
– Tilt the lock to close the flap and press flap close.
Fig. 96 Detail of the head-
liner: Stowage compartment
for spectacles
AA
Fig. 97 Storage compart-
ment in the front doors
Fig. 98 Front passenger seat:
Storage compartment
NKO B6 20.book Page 90 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage91
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Front seat armrest with storage compartment
The armrest is adjustable for height and length.
Opening stowage compartment
– Open the lid of the armrest in the direction of arrow ⇒fig. 99 .
Closing stowage compartment
– Open the lid up to the stop, then you can fold it downwards.
Setting height
– First of all fold the lid to the bottom and lift it in the direction of arrow into one of the 4 fixed positions.
Adjusting in forward/back direction
– Push the lid into the desired position.
Note
Push the lid of the armrest up to stop to the rear before operating the handbrake.
Rear seat armrest with storage compartment*
You can fold down the armrest to enhance occupant comfort.
The armrest includes a stowage compar tment. You open the compartment by
pressing the button on the front side and raising the cover ⇒fig. 100 .
Stowage compartment in rear centre console*
The storage compartment is equipped with a removeable insert.
Fig. 99 Armrest: Storage
compartmentFig. 100 Armrest at the rear
door
Fig. 101 Centre console at
rear: Storage compartment
NKO B6 20.book Page 91 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage
92
– Open the storage compartment by pu lling at the handle in direc-
tion of arrow ⇒ page 91, fig. 101.
WARNING
The storage compartment is not a substitute for the ashtray and must also
not be used for such purposes - risk of fire!
Stowage compartment for umbrella*
The umbrella supplied with the car is stowed in the compartment in the
rear left door ⇒ fig. 102. Opening umbrella
– Press button
⇒fig. 103 .
Closing umbrella
– Press the button . The umbrella closes partially in direction of arrow .
– Press the umbrella in direction of arrow in order to fold it closed completely.
Seat backrest with opening for skis
AA
Fig. 102 Left rear door:
Storage compartment
Fig. 103 Opening and
closing umbrella
AA
AA
AB
AC
Fig. 104 Rear seats: Handle
of lid
Fig. 105 Luggage compart-
ment: Unlock button
NKO B6 20.book Page 92 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage93
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
After folding open the armrest and the lid, an opening in the seat backrest
becomes visible through which you can push long objects e.g. skis etc.
You can fold open the armrest and the lid from the passenger or luggage
compartment.
Opening from passenger compartment
– Fold the rear armrest ⇒page 77, fig. 70 .
– Pull the handle up to the stop in upward direction and fold open the lid downwards ⇒page 92, fig. 104 .
Opening from luggage compartment
– Push the unlock button downwards ⇒page 92, fig. 105 and fold
the lid (with armrest) to the front.
Closing
– Fold the lid and the armrest up to the stop in upward direction - the lid must click into place audibly.
Ensure that the armrest is always locked into place after closing. You can recognize
this on the fact that the red field above the unlocking button of the luggage
compartment is not visible.
Through-loading bag (Unibag)*
Loading
– Open the boot lid/luggage compartment door.
– Push the unlock button downwards ⇒page 92, fig. 105 and fold
the lid (with armrest) to the front.
– Place the empty through-loading bag in such a way that the end of the bag with the zip lies in the boot.
– Push the objects into the through-loading bag from the boot ⇒.
Securing
– Insert the securing belt of the through-loading bag into the middle seat belt buckle ⇒fig. 106 .
– Place the securing belt on ski sport articles in the middle between the bindings ⇒.
– Pull the securing belt tight at the free end of the belt .
AA
AA
Fig. 106 Attaching through-
loading bag to middle seat
belt buckle of rear seats
AA
AA
AC
AB
NKO B6 20.book Page 93 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage
94
Stowing
– Fold the lid and the armrest up to the stop in upward direction - the lid must click into place audibly. You can recognize this on the fact that
the red field above the unlocking button of the luggage compart-
ment is not visible ⇒page 92, fig. 105 .
– Carefully fold the empty (dry) through-loading bag together, place it in the luggage compartment and secure it to prevent it slipping.
WARNING
•After placing items into the through- loading bag, you must secure the
bag with the securing belt .
•The securing belt must hold the items tight.
•Ensure that the securing belt on ski sport articles lies in the middle
between the bindings (see imprint on the through-loading bag).
Note
•Place the skis with the tips facing the front, snowboards and ski sticks with the
tips facing the rear into the through-loading bag.
•If there are several pairs of skis in the through-loading bag, ensure that the bind-
ings are positioned at the same height.
•The through-loading bag must never be folded together or stowed when
moist.
Side compartments*
– You can open the compartment by turning the locks in the direction of arrow ⇒fig. 107 ⇒ fig. 108 .
On some vehicles the battery is located in the left compartment ⇒page 216. This
compartment is marked by the symbol  and can be opened by turning the
securing pins e.g with a coin or using a flat screwdriver.
In the right compartment ⇒fig. 108 is located the CD changer*, the TV tuner* and
the first-aid box.
AA
AA
Fig. 107 Luggage compart-
ment: Left side compartment
Fig. 108 Luggage compart-
ment: Right side compart-
ment
NKO B6 20.book Page 94 Wednesday, March 26, 2008 3:15 PM

Seats and Stowage95
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Clothes hooks*
A clothes hook is located above the rear doors ⇒fig. 109 .
WARNING
•Ensure that any clothes hanging from the hooks do not impair your
vision to the rear.
•Use the hooks for hanging only light items of clothing and ensure that
there are no heavy or sharp- edged objects in the pockets.
•Do not use clothes hangers for hanging up items of clothing otherwise
this will interfere with the protection offered by the head airbag*.
Fig. 109 Rear door: Clothes
hooks
NKO B6 20.book Page 95 Wednesday, March 26, 2008 3:15 PM

The air conditioning system
96
The air conditioning system
Climatic* (semi-automatic air conditioning system)
Description
The Climatic is a combined cooling and heating system. It makes it
possible to optimally control the air temperature at any season of the
year.
Description of the Climatic
It is important for your safety and for your driving comfort that the Climatic is oper-
ating properly.
The cooling only operates if button ⇒page 97, fig. 110 is pressed, and the
following conditions are met:
•engine running,
•outside temperature above +2°C and
•blower switch switched on (positions 1 to 4).
If the cooling system is switched on, the temperature and air humidity drops in the
vehicle. The wellbeing of the occupants of the car is enhanced as a result of this
particularly at high outside temperatures and a high air humidity. The system
prevents the windows misting up during the cold season of the year.
The heating effect is dependent upon th e coolant temperature, thus full heat
output only occurs when the engine has reached its operating temperature.
It is possible to briefly activate recirc ulated air mode in order to enhance the
cooling effect ⇒.
Air at a temperature of about 5°C may flow out of the vents under certain circum-
stances when the cooling system is operating. Lengthy and uneven distribution of
the air flow out of the vents and large differences in temperature, for example when
getting out of the vehicle, can resu lt in chills in sensitive persons.
The air inlet in front of the windscreen must be free of ice, snow or leaves in order
to ensure that the heating and cooling systems operate properly. After switching on the cooling
Condensation from the evaporator of the air condi-
tioning may drip down and form a puddle below the vehicle. This is quite normal
and not an indication of a leak!
WARNING
•For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mist ing. Please familiarize yourself about
how to correctly operate the heating an d ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.
•You should not leave recirculated air mode on over a longer period of
time, as “stale” air may result in fatigue in the driver and occupants, divert
your attention and also cause the windows to mist up. The risk of having an
accident increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Note
•We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the inte-
rior of the vehicle forms deposits in the evaporator of the air conditioning system.
This produces a permanent odour when th e air conditioning system is operating
which can only be eliminated through co nsiderable effort and expense (replace-
ment of compressor).
ACA1
NKO B6 20.book Page 96 Wednesday, March 26, 2008 3:15 PM

The air conditioning system97
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Using the system

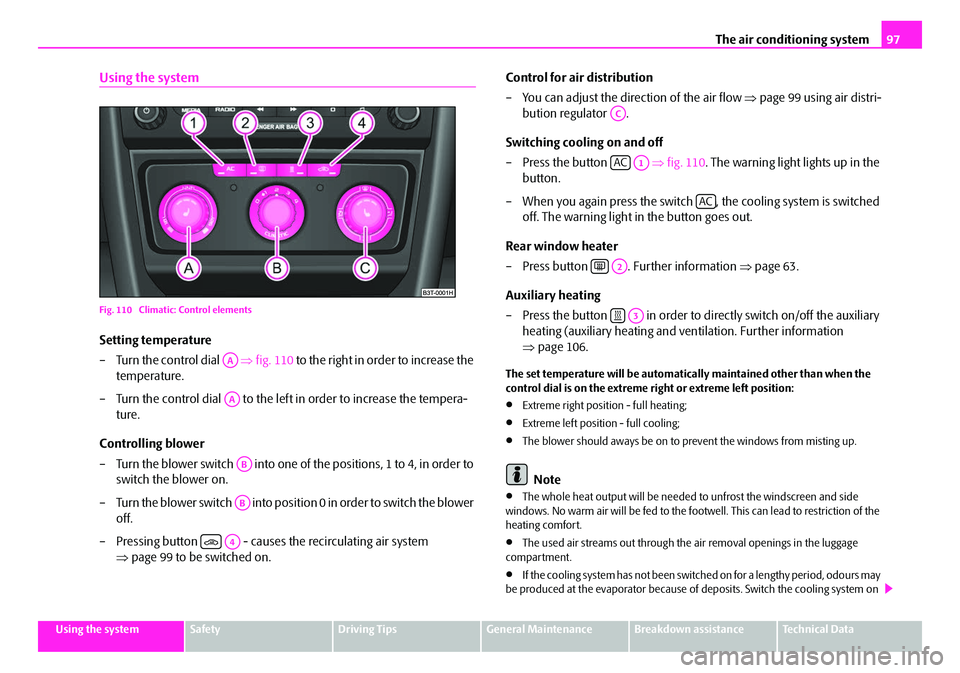

Fig. 110 Climatic: Control elements
Setting temperature
– Turn the control dial ⇒fig. 110 to the right in order to increase the
temperature.
– Turn the control dial to the left in order to increase the tempera- ture.
Controlling blower
– Turn the blower switch into one of the positions, 1 to 4, in order to switch the blower on.
– Turn the blower switch into position 0 in order to switch the blower off.
– Pressing button - causes the recirculating air system ⇒page 99 to be switched on. Control for air distribution
– You can adjust the direction of the air flow
⇒page 99 using air distri-
bution regulator .
Switching cooling on and off
– Press the button ⇒ fig. 110. The warning light lights up in the
button.
– When you again press the switch , the cooling system is switched off. The warning light in the button goes out.
Rear window heater
– Press button . Further information ⇒ page 63.
Auxiliary heating
– Press the button in order to directly switch on/off the auxiliary heating (auxiliary heating and ventilation. Further information
⇒page 106.
The set temperature will be automatically maintained other than when the
control dial is on the extreme right or extreme left position:
•Extreme right position - full heating;
•Extreme left position - full cooling;
•The blower should aways be on to prevent the windows from misting up.
Note
•The whole heat output will be needed to unfrost the windscreen and side
windows. No warm air will be fed to the footwell. This can lead to restriction of the
heating comfort.
•The used air streams out through the air removal openings in the luggage
compartment.
•If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of deposits. Switch the cooling system on
AA
AA
AB
AB
A4
AC
ACA1
AC
A2
A3
NKO B6 20.book Page 97 Wednesday, March 26, 2008 3:15 PM

The air conditioning system
98
at least once a month for approximately 5 mi nutes at the highest blower stage - also
during the cold season of the year - in order to remove such odours. Also open a
window for a short time.•Please refer to the information regarding recirculated air mode ⇒page 99.
Set Climatic
Recommended settings of Climatic contro ls for the respective operating modes:
Set-upSetting of the control dialButtonAir outlet vents 2
Defrosting the windscreen and
side windowsrecommended
22°C3switched offdo not switch onopen and align with the side window
Free windscreen and side win-
dows from mistdesired tempera-
ture2switched ondo not switch onopen and align with the side window
The fastest heatingrecommended 22°C2switched offbriefly switched onopen
Comfortable heatingdesired tempera- ture2 or 3 or switched offdo not switch onopen
The fastest coolingrecommended
22°Cbriefly 4, then 2 or 3switched onbriefly switched onopen
Optimal coolingdesired tempera- ture1, 2 or 3switched ondo not switch onopen and align to the roof
Fresh air mode - ventilation up to the stop
towards the leftdesired positionswitched offdo not switch onopen
AAABACA1A4
NKO B6 20.book Page 98 Wednesday, March 26, 2008 3:15 PM

The air conditioning system99
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Recirculated air mode
In recirculated air mode air is sucked out of the interior of the vehicle
and then fed back into the interior.
Recirculated air mode prevents polluted air outside the vehicle from
getting into the vehicle, for example when driving through a tunnel or
when standing in a traffic jam.
Switching recirculated air mode on
– Press the button ⇒page 97, fig. 110 the warning light lights
up in the button.
Switching recirculated air mode off
– Press again the button - the warning light in the button goes out.
The recirculated air mode is switched off au tomatically if the air distribution control
is in position  ⇒ page 97, fig. 110 . You can also switch recirculated air mode
on again from this setting by repeatedly pressing button .
WARNING
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your
attention and also cause the windows to mist up. The risk of having an acci-
dent increases. Switch recirculated air mode off as soon as the windows
begin misting up.
Air outlet vents
Fig. 111 Air vents at the front
Fig. 112 Air vents at the rear
Open air outlet vents
– Turn the rotary knob to position
.
Close air outlet vents
– Turn the rotary knob to position 0.
A4

AC
NKO B6 20.book Page 99 Wednesday, March 26, 2008 3:15 PM
