Communication
132
Universal telephone preinstallation GSM II*
Inserting the mobile phone and adapter
Only one telephone mount is factory-fitted. An adapter for the mobile
phone can be purchased from Škoda original accessories.
Inserting the mobile phone and adapter
– First of all push the adapter in the direction of arrow ⇒fig. 139 up
to the stop into the mount. Press the adapter slightly downwards, until
it locks securely into position.
– Insert the mobile phone into the adapter (as specified in manufac- turer's instructions).
Removing the mobile phone and adapter
– Press simultaneouly the side locks of the mount and remove the mobile phone and adapter ⇒fig. 139 .
This enables you to make full use of the ad vantages of a normal carphone (“hands-
free system - Hands Free” using a micropho ne integrated in the vehicle, optimal
transmission of signals using an external aerial, operating via two buttons on the
adapter etc.). The communication between the telephon
e and the handsfree system of your
vehicle is established via Bluetooth
®, the telephone mount serves only for charging
the telephone.
Bluetooth®
The Bluetooth® technology serves as cableless connection of a
mobile phone and multimedia unit, which are equipped with this
technology, to the hands-free system of your vehicle.
In order to connect a mobile phone or multimedia unit with Bluetooth®
to the hands-free system, it is necessary to adapt the phone or multi-
media unit and the hands-free system to each other. Detailed informa-
tion on this is provided in the operating instructions of your mobile
phone or multimedia unit. The following steps must be carried out for the
connection:
– Switch on the ignition.
– Select the menu on the mobile phone or multimedia unit by finding further setups which can be connected via Bluetooth
®.
– If the hands-free system on the display of the mobile phone or multi- media unit announces SKODA_BT, enter the PIN 1234 within 30
seconds and wait, until the connection is established.
12)
– If you want to connect a multimed ia unit of which the PIN cannot be
changed (differing from 1234), do not hesitate to contact your Škoda
Service Partner.
The connection of the mobile phone or mu ltimedia unit and the hands-free system
is only possible 5 minutes after switching on the ignition and up to a speed of 6
km/h. When exceeding these conditions, the connection can be repeated by
continuous pressing of the butt on PTT (button push to talk)
 and the button SOS
Fig. 139 Universal prepara-
tion for the mobile phone
AA
AA
12)Some mobile phones have a menu, in which the authorization for establishing a Bluetooth®
connection is performed via the input of a code . If the input for the authorization is neces-
sary, it must always be performed when re-establishing the Bluetooth connection.
NKO B6 20.book Page 132 Wednesday, March 26, 2008 3:15 PM

Communication133
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
on the adapter with an interval of 2 seconds or pressing the button
 twice on the
multifunction steering wheel* with an interval of 2 seconds.
While connecting the mobile phone with the hands-free system by means of Blue-
tooth
®, no other phone can be connected wi th the hands-free system via Blue-
tooth®.
Up to seven mobile phones and four mu ltimedia units can be connected by the
hands-free system via Bluetooth
® whereby only one mobile phone or multimedia
unit can communicate simultaniously via Bluetooth® with the hands-free system.
If an eighth mobile phone is connected to the handsfree-system, then the tele-
phone, which has not been used together with the handsfree system for the longest
period, is disconnected by means of Bluetooth
®.
Establish Bluetooth
® connection
After switching on the ignition, the Blue tooth connection is automatically estab-
lished for the already adapted mobile phone
12). Check on the mobile unit if the
automatic connection was established.
Disconnect Bluetooth
® connection
After withdrawing the ignition key, the Bluetooth® connection is disonnected.
WARNING
•Pay attention primarily to the traffic si tuation! As the driver you are fully
responsible for road safety. Use the telephone system only to such an extent,
so that you are in full control of your vehicle at any time - risk of accident!
•In the event of air transport, the Bluetooth® function of the handsfree-
system must be switched off by a specialist garage!
Caution
Taking the mobile phone out of the adapter during the call can lead to interruption
of the connection. When taking out the mobile phone, the connection to the
factory-fitted antenna is interrupted, this reduces the quality of the transmitting
and receiving signal. This might result additionally in harmful radiation from the
mobile phone in the interior of the ve hicle and the charging of the telephone
battery is interrupted.
Note
•Not valid for all mobile phones which enable a communication via Bluetooth®.
•Please operate your mobile phone exclusively with a suitable adapter, in order
to keep a low radiation in the vehicle.
•Inserting the mobile phone into the adapter ensures an optimal sending and
receiving power and offers at the same ti me the advantage of the battery charging.
•Note that the range of the Bluetooth® connection to the handsfree-system is
limited to the vehicle interior. The range is dependent on local factors, e.g. obstacles
between the devices and interferences with other devices. If your mobile phone is
e.g. in a jacket pocket, this can lead to difficulties when establishing the Bluetooth
®
connection with the handsfree-sy stem or the data transfer.
Erase the list of connected units
Erase previously connected mobile or multimedia units
– Switch on the ignition. A connectio n to a mobile or multimedia unit
must not be established.
– Press the button SOS on the adapter or the button
 on the multi-
function steering wheel* for more than 10 seconds.
– Erasing is confirmed with an audible signal.
NKO B6 20.book Page 133 Wednesday, March 26, 2008 3:15 PM

Communication
136
Universal telephone preinstallation GSM III*
Introduction
This enables you to make full use of the ad vantages of a normal carphone (“hands-
free system” using a microphone integrated in the vehicle, optimal transmission of
signals using an external aerial etc.). The equipment includes also the voice control.
The telephone is connected using the rSAP profile - Remote SIM access profile
(telecommunication of the SIM data) by means of Bluetooth
® technology, if your
telephone supports this profile. The equi pment includes the following functions:
•Display of the SMS text in the information display.
•Free talking in the vehicle interior.
•MUTE signal to the radio.
•Voice control (with the set-up possibility for “short and long dialogue”,
depending on the user's knowledge of the operating structure).
•Convenience mode with the multifunction steering wheel and the display in the
information display.
•Handsfree-system.

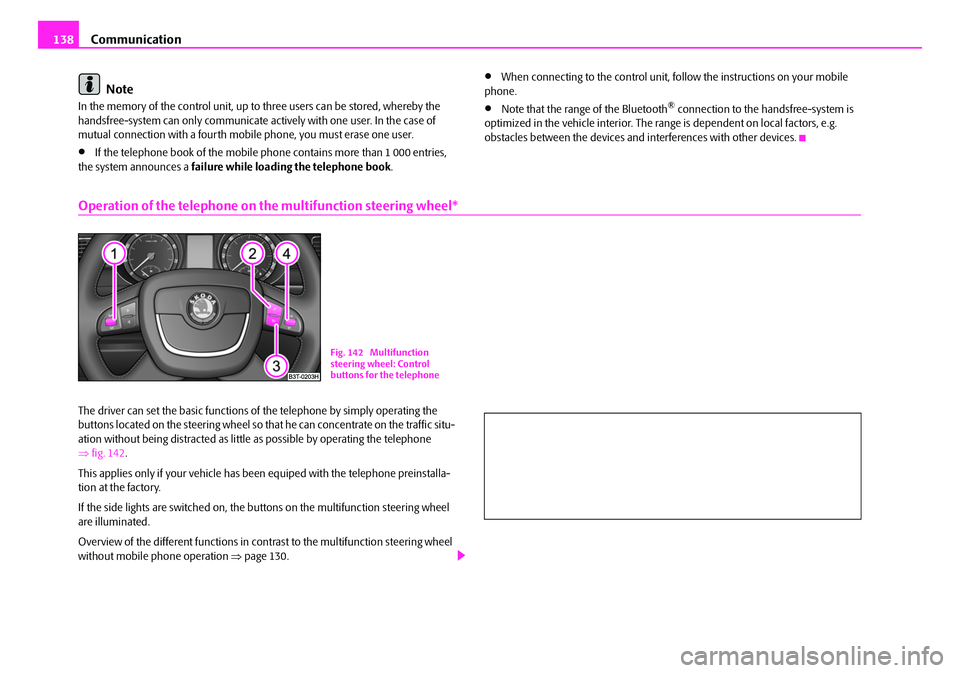

The voice control of the telephone is acti vated by pressing the button PTT on the
multifunction steering wheel ⇒page 139, fig. 142 .
A phone phonebook is part of the univers al telephone preinstallation GSM III with
voice control. In the phone phonebook there are 1 000 free memory locations
available. This phone phonebook is inde pendent of the appliance used for the
mobile phone.
Furthermore the volume can be changed indi vidually at any time with the button
for setting the radio or on vehicles fitted with multifunction steering wheel* with
function buttons on the steering wheel.
Dialogue
The period, in which the telephone system is ready to receive voice commands and
carry out the voice commands, is called DIALOGUE. The system gives audible feed-
back and guides you if nece ssary through the relevant functions. You can start or
end the dialogue at any time by pressing the PTT button. The dialogue is always automatically ended after carrying out an operation, e.g.
after erasing the name from the phonebook.
The dialogue of the incoming call is i
mmediately interrupted and you can accept
the call by pressing the button
.
If a voice command is not detected, the system answers with “ Sorry?” and a new
entry can be performed. After the 2nd error the system repeats the aid. After the 3rd
error the answer “ Cancel” is given and the dialogue is ended.
Optimum understanding of the voice commands depends on the following
factors:
•Speak with a normal tone of voice wi thout intonation and excessive voice
pauses.
•Avoid insufficient articulation.
•Close the doors, windows and sliding roof, in order to reduce or stop disturbing
exterior noise.
•It is recommended to speak louder at higher speeds, so that the tone of your
voice is louder than the increased surrounding noise.
•During the dialogue avoid additional nois e in the vehicle, e.g. simultaneously
talking occupants.
•Do not speak, if the system makes an announcement.
•The microphone for voice control is in serted in the moulded headliner and
directed to the driver and front passen ger. Therefore the driver and the front
passenger can operate the equipment.
WARNING
Pay attention primarily to the traffic si tuation! As the driver you are fully
responsible for road safety. Use the telephone system only to such an extent,
so that you are in full control of your vehicle at any time.
Note
•Please contact your Škoda Service Partne r if there are any points which are not
clear.
•Please also refer to the additional instructions ⇒page 145.
NKO B6 20.book Page 136 Wednesday, March 26, 2008 3:15 PM

Communication137
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Bluetooth®
The equipment enables the wireless connection to the control unit of a
telephone with Bluetooth® function which supports the rSAP profile.
Process of connection
– Switch on the ignition.
– If you have not switched on Bluetooth
® on your telephone, switch it
on.
– For certain mobile phones it is necessary to switch on first the rSAP
function.
– Press the button
 on the multifunction steering wheel and select
device search . The system searches mobile devices and shows these
in the information display*.
– Select your telephone in the information display by turning the hand- wheel and select it by pressing the handwheel.
– Within 30 seconds enter in your te lephone the 30 digit PIN of your
control unit, which is indicated in your information display* and
confirm it according to the instructions on the display of your tele-
phone.
– If your SIM card is blocked by a PIN code, enter the PIN of the SIM card of your telephone. The telephone connects to the control unit (during
the first connection you can only se lect in the information display*
and when the vehicle is stationary , if the PIN should be stored).
– For the first storage of a new user follow the instructions in the infor-
mation display.
– To download the telephone book and the indentification data of the SIM card into the new control unit, confirm again the command rSAP
in your mobile phone. The system reads the telephone book.
If you do not want to confirm the command rSAP during each connection of the
telephone to the control unit, then you must carry out in the menu of the mobile
phone an authorization using the control unit.
The telephone deregisters from the GSM network and only the control unit ensures
the communication with the network. In th e telephone only the interface for Blue-
tooth
® remains active. In this case, you can only select to separate from the device,
switch off the Bluetooth® connection or the number of the emergency call 112.
If the PIN was stored, an automatic selection and connection of the telephone take
place the next time the ignition is swit ched. Check on your mobile phone if the
automatic connectio n was established.
Connection terminated
The connection of the handsfree-system is terminated by means of Bluetooth
®:
•When removing the key from the igniti on lock (during a telephone call, the
connection is disconnected).
•By switching off the Bluetooth® in the mobile phone.
•By selecting “separate telephone” in the menu of the mobile phone.
On vehicles which are fitted out with radio or navigation at the factory, it is possible
to terminate the telephone call after remo ving the key from the ignition lock by
pressing the icon on the touch-screen of the radio
13) or the navigation, see oper-
ating instructions for radio or for navigation.
WARNING
•Pay attention primarily to the traffic situation! As the driver you are fully
responsible for road safety. Use the tele phone system only to such an extent,
so that you are in full control of your vehicle at any time - risk of accident!
•In the event of air transport, the Bluetooth® function of the handsfree-
system must be switched of f by a specialist garage!
13)Does not apply for Radio Swing.
NKO B6 20.book Page 137 Wednesday, March 26, 2008 3:15 PM

Communication
138
Note
In the memory of the control unit, up to three users can be stored, whereby the
handsfree-system can only communicate actively with one user. In the case of
mutual connection with a fourth mobile phone, you must erase one user.
•If the telephone book of the mobile phone contains more than 1 000 entries,
the system announces a failure while loading the telephone book .
•When connecting to the control unit, follow the instructions on your mobile
phone.
•Note that the range of the Bluetooth® connection to the handsfree-system is
optimized in the vehicle interior. The rang e is dependent on local factors, e.g.
obstacles between the devices and interferences with other devices.
Operation of the telephone on the multifunction steering wheel*
The driver can set the basic functions of the telephone by simply operating the
buttons located on the steering wheel so th at he can concentrate on the traffic situ-
ation without being distracted as little as possible by operating the telephone
⇒ fig. 142 .
This applies only if your vehicle has been equiped with the telephone preinstalla-
tion at the factory.
If the side lights are switched on, the buttons on the multifunction steering wheel
are illuminated.
Overview of the different functions in cont rast to the multifunction steering wheel
without mobile phone operation ⇒page 130.
Fig. 142 Multifunction
steering wheel: Control
buttons for the telephone
NKO B6 20.book Page 138 Wednesday, March 26, 2008 3:15 PM

Communication
140
Operate telephone in the information display*
If you select the menu point Te l e p h o n e in the information display with the aid of
the handwheel , you can select the following menu points:
„Phone book
„Dial number
„Call register
„Voice mailbox
„Messages
„Bluetooth
„Settings
„Back
Phone book
In the menu point Phone book is the list of the loaded contacts from the telephone
memory and the SIM card of the mobile phone. In the phone phonebook there are
1 000 free memory locations available.
Dial number
In the menu point Dial number, you can write any telephone number. Select in
sequence the desired digits with the aid of the handwheel and confirm it by
pressing the handwheel. Yo u can select the numbers 0 - 9, the symbols *, # and the
functions Delete, Call, Cancel . Call register
In the menu point
Call register, you can select the following menu points:
„Missed calls
„Received calls
„Last calls
„Delete lists
Voice mailbox
In the menu point Voice mailbox there is a list of messages from the missed calls.
Messages
In the menu point Messages there is a list of received text messages.
Bluetooth
In the menu Bluetooth you can select the following menu points:
„User - the overview of the stored users
„New user - Search for users who are in the reception range
„Visibility - Switching on the visi bility of the telephone unit for other devices
„Extras
„Headset
„Modem
„Phone name - the possibility to change the name of the telephone unit (pre-
set SKODA-rSAP)
Settings
In the menu Settings you can select the following menu points:
„Phone book
„Update
„Select memory
„SIM & phone (SIM & Mobile phone)
„SIM card
„Mobile phone
Fig. 143 Information
display: Menu telephone
A4
NKO B6 20.book Page 140 Wednesday, March 26, 2008 3:15 PM

Index265
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Adaptive headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 71, 150 electrically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 110
AHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 96 Recirculated air mode . . . . . . . . . . . . . . . . . . . . . 99
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 183 Antilock brake system (ABS)
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 45
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic gearbox Emergency programme . . . . . . . . . . . . . . . . . . 128
Automatic gearbox DSG . . . . . . . . . . . . . . . . . . . . . . 123 Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Selector lever-emergency unlocking . . . . . . . 128
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Automatic light control . . . . . . . . . . . . . . . . . . . . . . . . 54
Automatic seat adjustment . . . . . . . . . . . . . . . . . . . . 73
Automatic vehicle wash systems . . . . . . . . . . . . . . 198
Automatic wiper/washer system . . . . . . . . . . . . . . . 65
Avoiding damage to your vehicle . . . . . . . . . . . . . 193
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 216 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Inspecting the electrolyte level . . . . . . . . . . . . 219
Operation in winter . . . . . . . . . . . . . . . . . . . . . . 219
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Belt Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 138
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 42 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Brake pads Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Button on the driver's door Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Buttons for the central locking system . . . . . . . . . . 39C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230, 235
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 188
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
NKO B6 20.book Page 265 Wednesday, March 26, 2008 3:15 PM

Index
268
K
Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
L
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Leather care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Light
automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Light bulbs Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Lighting of the interior of the vehicle . . . . . . . . . . . 61
Lights converting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Range adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 59
switching on and off . . . . . . . . . . . . . . . . . . . . . . . 53
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Liquid in reservoir for windscreen washer system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Locking and unlocking from inside . . . . . . . . . . . . . 39
Low beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Low beam light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Lugagge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 42
Luggage compartment . . . . . . . . . . . . . . . . . . 41, 42, 78 Folding hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Lashing eyes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 Luggage rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
M
Main beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53, 60
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Manual shifting of gears . . . . . . . . . . . . . . . . . . . . . 113
Memory for the on-board computer . . . . . . . . . . . . 15
Mobile phone . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 145 Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 137
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Multifunction steering wheel . . . . . . . . . . . . . . . . . 130
Multi-functional indicator . . . . . . . . . . . . . . . . . . . . . . 14
N
Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
O
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Oil dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Onboard computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Open door Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Opening a single door . . . . . . . . . . . . . . . . . . . . . . . . . 38
Opening for skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Operation in winter
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
De-icing windows . . . . . . . . . . . . . . . . . . . . . . . . 200
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Overview of the engine compartment . . . . . . . . . 210
P
Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Paint damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Parking aid rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
parking aid Front and rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Parking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Petrol engines Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 112
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
NKO B6 20.book Page 268 Wednesday, March 26, 2008 3:15 PM
