heater SKODA SUPERB 2016 3.G / (B8/3V) Brief Instructions

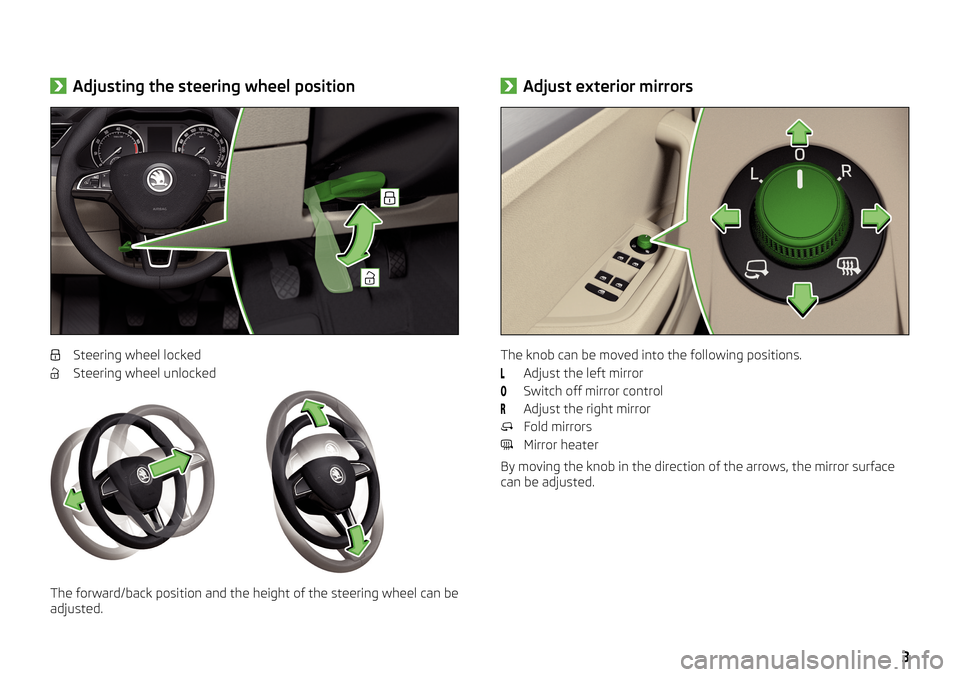

›Adjusting the steering wheel position
Steering wheel locked
Steering wheel unlocked
The forward/back position and the height of the steering wheel can be
adjusted.
› Adjust exterior mirrors
The knob can be moved into the following positions.
Adjust the left mirror
Switch off mirror control
Adjust the right mirror
Fold mirrors
Mirror heater
By moving the knob in the direction of the arrows, the mirror surface
can be adjusted.
3

Air conditioning system›Climatronic
Individual functions can be set or switched on by turning the control
dial or by pressing the appropriate button. If the function is switched
on, a warning light lights up within or below the button.
Adjust the temperature for the left side
Adjust the blower speed
Adjust the temperature for the right side
Display the temperature setting for the left side
Display the temperature setting for the right side
Depending on equipment fitted:
 Auxiliary heating
 Heating of the passenger compartment using the residual heat
of the engine (after switching off the ignition)
Depending on equipment fitted:
 Seat heating and ventilation of the left front seat
 Seat heater on the front left seat
Depending on equipment fitted:
 Seat heating and ventilation of the right front seat
 Seat heating for the front right seat
Air flow to the windows
ABCDEFGHAir flow to the upper body
Air flow in the footwell Recirculated air mode Ventilation/defrosting of the windscreen
Heated rear window
Heated windscreen
Adjust Climatronic in Infotainment
Synchronise the temperature inside the entire vehicle according
to the temperature setting on the driver's side
Automatic mode
Cooling system
6

›Climatronic - Operation of the rear bench seat
Individual functions can be set or switched on by pressing the appro-
priate button. When the function is activated, the warning light illumi-
nates in the button.
Left rear seat heating
Lower the temperature
Display of the set temperature
Increase the temperature
Right rear seat heating
ABC› Manual air conditioning
Individual functions can be set or switched on by turning the control
dial or by pressing the appropriate button. When the function is activa-
ted, the warning light illuminates underneath the button.
Setting temperature
Adjust the blower speed
Set the direction of the air outlet
Seat heater on the front left seat Cooling system
Heated rear window Recirculated air mode
Depending on equipment fitted:
 Auxiliary heating
 Heated windscreen
Seat heating for the front right seat
ABCD7
