ECU SKODA SUPERB 2017 Owner´s Manual

A child that has been incorrectly secured in the
wrong sitting position - endangered by the side
airbag
The child should not be
in the deployment area
of the side airbag.
A child that has been properly secured in a child
seat
There must be enough
room between the child
and the exit area of the
side airbag for the side
airbag to o

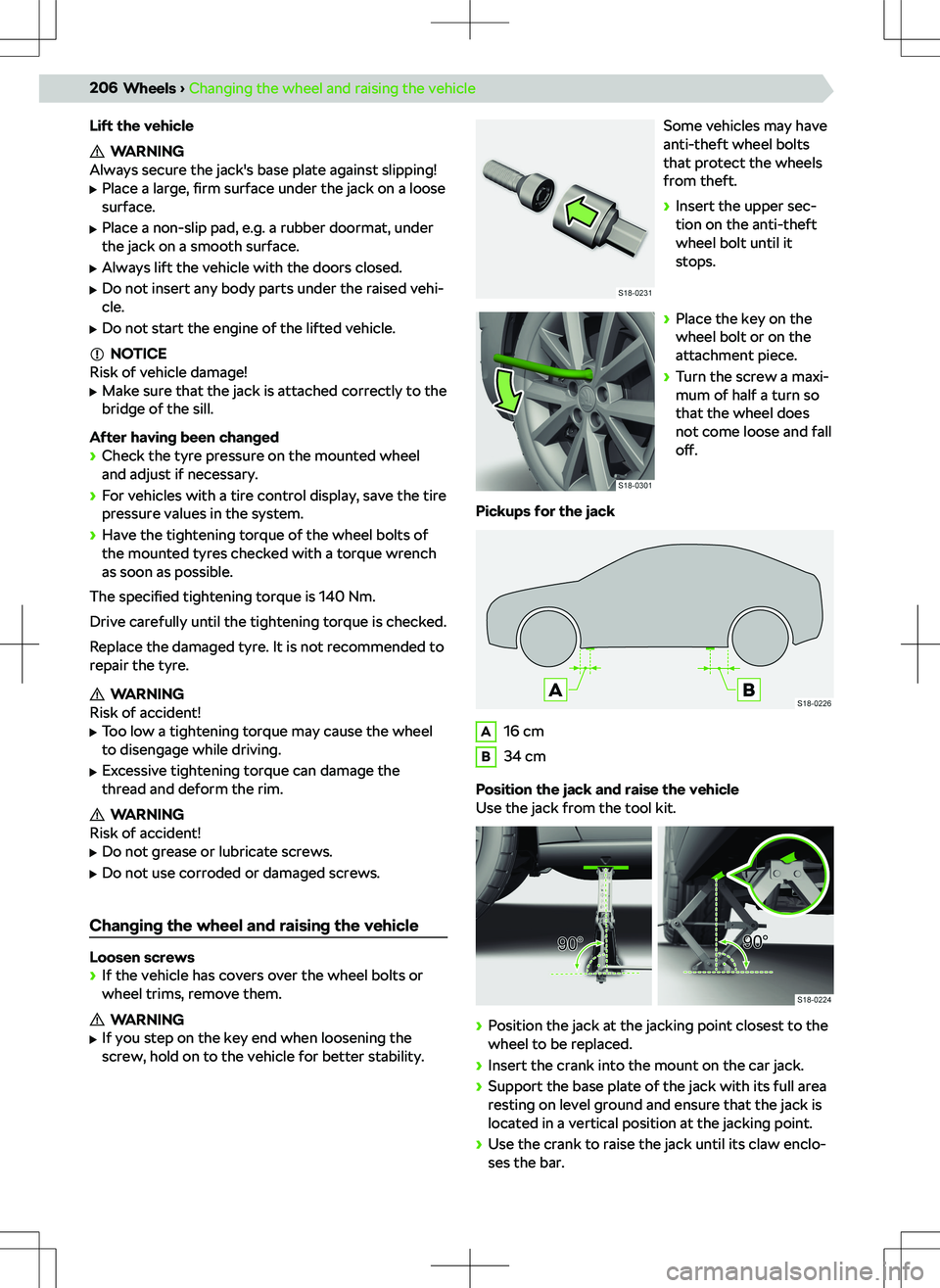

Lift the vehicle
WARNING
Always secure the jack

Fire extinguisher under the passenger seat
Tool kit
Depending on the equipment, not all of the following
components may be included in the tool kit.
AAttachment for the anti-theft wheel boltsBTowing lugCBracket for removing the full wheel coversDJack with sign and crankEWheel wrenchFRemoval clip for the wheel bolt cover capsGBreakdown setHScrewdriver
The declaration of conformity is enclosed with the jack or the logbook folder.
Storage compartment for the reflective
vest
Fasteners in the boot
Overview
Vehicle without the variable loading floor
APocket hook
Max. load 7.5 kgBFastening elements for fastening the fastening
netsCLashing eyes for securing the load and the fas-
tening nets
Max. load 350 kg
Vehicle with variable loading floor
APocket hook
Max. load 7.5 kgBFastening elements for fastening the fastening
netsCLashing eyes for securing the load and the fas-
tening nets
Max. load 350 kgDLashing eyes for securing the load and the fas-
tening nets
Max. load 350 kg212Storage space and interior equipment

Cargo elements212
Central locking25
SAFE function25
Central locking button26
Centre console10
Changing gear with a manual gearbox
165
Charging your phone wirelessly223
Check the vehicle before your journey19
Child lock29
Child seat42
Attachment45
Attachment with a strap45
Grouping43
i-Size45
in the passenger seat43
ISOFIX44, 45
Keyword child seat42
Recommended child seats44
Safety instructions42
Securing children properly20
TOP TETHER45
Choose Tyre control display A.209
cigarette lighter224
Cleaning the vehicle Outside
231
Climatronic56
Display in the centre console at the back57
COMING HOME50
attitude50
Functional conditions50
Compartments219
Control Centre Infotainment Amundsen
106
Infotainment Bolero85
Infotainment Columbus131
Infotainment Swing70
Coolant192
Checking193
Indicator light193
Refilling193
Safety19
Specification193
Temperature display192
Troubleshooting193
Cooling system56, 57
Crew Protect Assist see Proactive occupant protection
182
Cruise control176
Cup holder223
Cybernetic Security Infotainment Amundsen
115
Infotainment Bolero94
Infotainment Columbus140
D Data Connection
159
Daylight running lights48
DCC167
Diesel197
Misfuel protection197
Prescribed fuel198
Refill197
Requirements for refuelling197
Standards197
Tank capacity198
Troubleshooting198
Digital instrument cluster
63
Digital Assistant Laura Columbus Infotainment
130
Infotainment Amundsen105
Digital instrument cluster63
dimmed headlights48, 49
Distribution of the cargo168
Door Open / close
29
Downhill assistant183
Activation / deactivation184
Functionality183
Drive assistant see Travel Assist
180
Drive in neutral165
DriveGreen168
Driver Alert183
fatigue detection assistant183
Driver
