Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Engine revolutions counterThe red zone of the rev counter scale page 16, fig. 15 indicates the range in
which the engine control unit begins to limit the engine speed. The engine control unit
restricts the engine speed to a steady limit value.
Shift into the next higher gear or select th e selector lever position D of the automatic
gearbox before reaching the red zone of the rev counter scale.
Avoid high engine speeds du ring the driving time and before the engine has been
warmed up to operating temperature page 173.
For the sake of the environment
Shifting up early helps you sa ve fuel and reduce the operating noise of your vehicle.SpeedometerWarning against excessive speeds*
An acoustic warning signal will sound when the vehicle speed exceeds 120 kilometres
per hour. The acoustic warning signal will sw itch off again when the vehicle speed goes
below this speed limit.
Note
This function is only valid for some countries.Coolant temperature gaugeThe coolant temperature gauge page 16, fig. 15 operates only when the ignition
is switched on.
In order to avoid any damage to the engine, please pay attention to the following notes
regarding the temperature ranges: Cold range
If the pointer is in the left-hand area of the scale it means that the engine has not yet
reached its operating temperature. Avoid running at high engine speeds, at full throttle
and at severe engine loads.
The operating range
The engine has reached its operating temperature as soon as the pointer moves into
the mid-range of the scale. The pointer may
also move further to the right at high
engine loads and high outside temperatures. This is not critical provided the warning
symbol
in the instrument cl uster does not flash.
If the symbol in the instrument cluster flashes it means that either the coolant
temperature is too high or the coolant level is too low. Observe the guidelines
page 33, “Coolant temperature/ Coolant quantity ”.
WARNING
Pay attention to the warning notes page 204, “Working in the engine
compartment” before opening the bonn et and inspecting the coolant level.
Caution
Additional headlights and other attached components in front of the fresh air inlet
impair the cooling efficiency of the coolant. There is then a risk of the engine over-
heating at high outside temperatures and high engine loads!Fuel gaugeThe fuel gauge page 16, fig. 15 only operates when the ignition is switched on.
The fuel tank has a capacity of about 60 litres. The warning symbol
in the instrument
cluster lights up when the pointer reaches the reserve marking. There are now about
10.5 litres of fuel remaining in the ta nk. This symbol is a reminder for you, that you
must refuel .
The following will be displayed in the information display*: Please refuel!
An audible signal sounds as an additional warning signal.
A1
A4
A6
s2ug.6.book Page 17 Friday, April 9, 2010 2:24 PM
Page 85 of 271
Seats and Stowage
84
Roof rackRoof railPay attention to the following points if you wish to transport luggage or other items on
the roof of your vehicle:
A special roof luggage rack system was de veloped for the vehicle, that is why you
should only use a roof luggage rack which has been released for use by Škoda Auto.
The roof rail is the basis for a complete roof luggage rack system. Separate addi-
tional holders are required for safety reasons for transporting luggage, bikes, surf-
boards, skis and boats.
The basic version of the roof luggage ra ck system and further components are
obtainable as accessories from the authorised Škoda Service Partners.Caution
If you use other roof rack systems or if the roof bars are not properly fitted, then any
damage which may result to your car is no t covered by the warranty agreements. It is
therefore essential to pay attention to the fitting instructions supplied with the roof
luggage rack system.
Ensure that the opened boot lid does not collide with the roof load.
On vehicles with a panorama roof, make su re that the tilted panorama roof does
not strike any items which are transported.
For the sake of the environment
The increased aerodynamic drag resu lts in a higher fuel consumption.Roof loadDistribute weight evenly over the roof lu ggage rack system. The maximum permissible
roof load (including roof rack system) of 100 kg and the maximum permissible total
weight of the vehicle should not be exceeded.
You cannot make full use of th e permissible roof load if you use a roof luggage rack
system with a lower load carr ying capacity. The load transported on the roof luggage
rack system must not exceed the weight limit which is stated in the fitting instructions.
WARNING
The items which you transport on the roof bar system must be reliably
attached - risk of accident!
You must on no account exceed the pe rmissible roof load, the permissible
axle loads and the permissible gross weight of your vehicle - risk of accident!
Please note that the handling proper ties of your vehicle change when you
transport heavy or bulky items on the roof bar system as a result of the
displacement of the centre of gravity an d the increased wind attack area - risk
of accident! You must absolutely adapt your style of driving and the speed of
the vehicle to the specific circumstances.
Fig. 78 Roof rail
s2ug.6.book Page 84 Friday, April 9, 2010 2:24 PM
Page 244 of 271
Technical Data243
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Te c h n i c a l D a t aTechnical DataGeneral informationThe details given in the official vehicle regi stration documents always take precedence
over the details in the Owner's Manual. Please refer to the official vehicle registration
documents or consult a specialist garage concerning the engine with which your
vehicle is equipped.Used abbreviations
PerformancesThe listed performance values were de termined without performance-reducing
equipment, e.g. air conditioning system.WeightThe loading capacity is reduced in line with the range of the special equipment. The
unloaden weight contains a fuel tank topped up to 90%. A driver with a weight of 75
kg is also includ ed in the value.Identification detailsVehicle data sticker
The vehicle data sticker fig. 197 is located on the floor of the luggage compartment
and is also stated in the Service schedule.
The vehicle data sticker co ntains the following data:
Vehicle identification number (VIN)
Vehicle type
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring unit for the engine torque
CO2 in g/km
discharged quantity of carbon dioxide in grams per driven
kilometer
TSI
Petrol engine with a turbocharger and a direct fuel injection
system
TDI CR
Diesel engine with turbocharger and injection system Com-
mon Rail
M5 / M6
5-speed/6-speed manual gearbox
DQ6/DQ7
6 speed-/7 speed automatic gearbox DSG
DPF
Diesel particle filter
Fig. 197 Vehicle data sticker
A1A2
s2ug.6.book Page 243 Friday, April 9, 2010 2:24 PM
Page 249 of 271
Technical Data
248
Weight (in kg)
M6
DQ7
Permissible gross weight
1885
1915
Unloaden weight ready for work
1340
1370
Loading capacity
620
620
Loading capacity when using the TLC
540
540
Permissible front axle load
1100
1100
Permissible rear axle load
1160
1160
Permissible trailer loads, trailer braked
1200
1200
Permissible trailer loads, trailer unbraked
600
600
s2ug.6.book Page 248 Friday, April 9, 2010 2:24 PM
Page 251 of 271
Technical Data
250
Weight (in kg)
M6 4x4
Permissible gross weight
2050
Unloaden weight ready for work
1505
Loading capacity
620
Loading capacity when using the TLC
540
Permissible front axle load
1200
Permissible rear axle load
1250
Permissible trailer loads, trailer braked
1800
Permissible trailer loads, trailer unbraked
700
s2ug.6.book Page 250 Friday, April 9, 2010 2:24 PM
Page 253 of 271
Technical Data
252
Weight (in kg)
M5
M6 4x4
Permissible gross weight
1960
2070
Unloaden weight ready for work
1415
1525
Loading capacity
620
620
Loading capacity when using the TLC
540
540
Permissible front axle load
1100
1200
Permissible rear axle load
1160
1250
Permissible trailer loads, trailer braked
1500
1800
Permissible trailer loads, trailer unbraked
650
700
s2ug.6.book Page 252 Friday, April 9, 2010 2:24 PM
Page 255 of 271

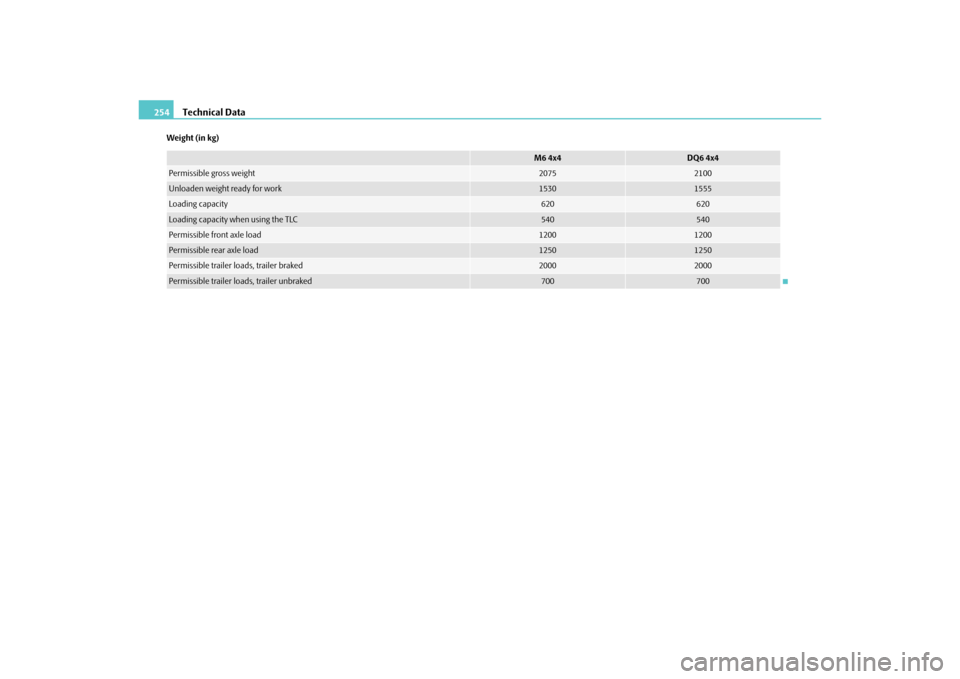

Technical Data
254
Weight (in kg)
M6 4x4
DQ6 4x4
Permissible gross weight
2075
2100
Unloaden weight ready for work
1530
1555
Loading capacity
620
620
Loading capacity when using the TLC
540
540
Permissible front axle load
1200
1200
Permissible rear axle load
1250
1250
Permissible trailer loads, trailer braked
2000
2000
Permissible trailer loads, trailer unbraked
700
700
s2ug.6.book Page 254 Friday, April 9, 2010 2:24 PM
Page 257 of 271

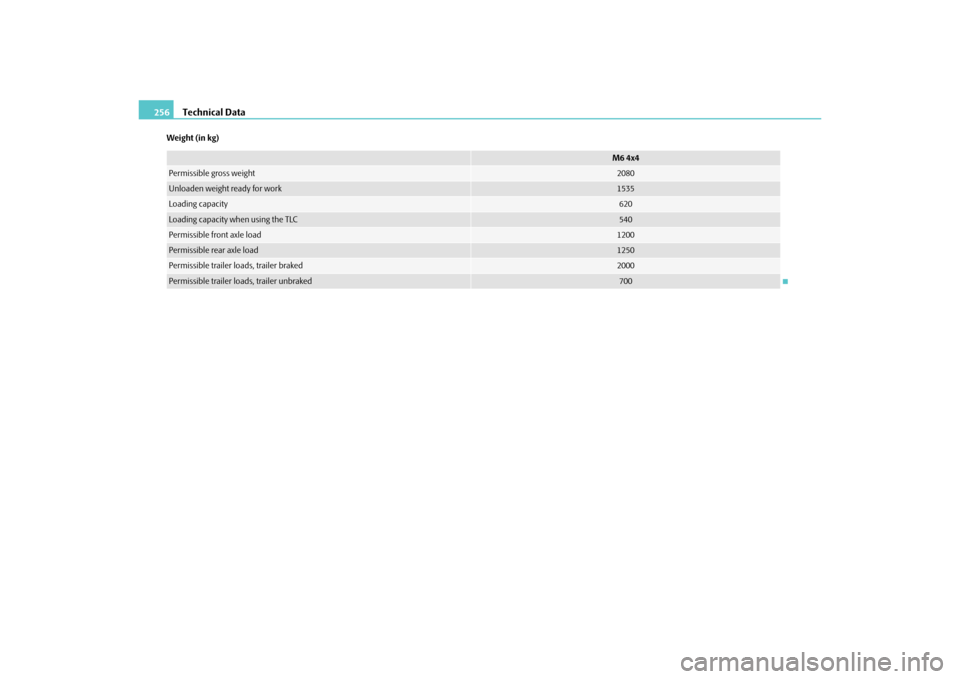

Technical Data
256
Weight (in kg)
M6 4x4
Permissible gross weight
2080
Unloaden weight ready for work
1535
Loading capacity
620
Loading capacity when using the TLC
540
Permissible front axle load
1200
Permissible rear axle load
1250
Permissible trailer loads, trailer braked
2000
Permissible trailer loads, trailer unbraked
700
s2ug.6.book Page 256 Friday, April 9, 2010 2:24 PM
Page 258 of 271
Technical Data257
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Yeti - Vehicles of the group N1Weight (in kg)Engine
1.2/77 kW TSI
1.8 ltr./118 kW
TSI
2.0 ltr./81 kW TDI CR
2.0 ltr./103 kW TDI CR
2.0 ltr./125 kW TDI CR
M6
DQ7
M6 4x4
M5
M6 4x4
M6 4x4
DQ6
M6 4x4
Permissible gross weight
1940
1970
2105
2015
2125
2130
2155
2135
Loading capacity
675
675
675
675
675
675
675
675
s2ug.6.book Page 257 Friday, April 9, 2010 2:24 PM
