Parking and manoeuvring
Visual parking system

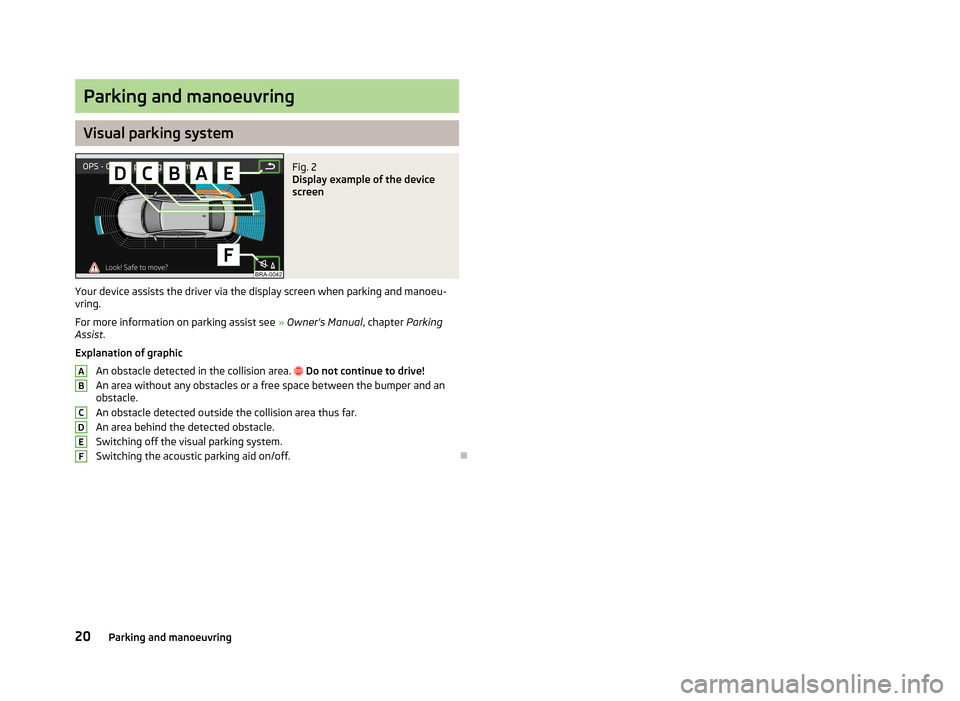

Fig. 2
Display example of the device
screen
Your device assists the driver via the display screen when parking and manoeu-
vring.
For more information on parking assist see » Owner's Manual , chapter Parking
Assist .
Explanation of graphic
An obstacle detected in the collision area. 
Do not continue to drive!
An area without any obstacles or a free space between the bumper and an
obstacle.
An obstacle detected outside the collision area thus far.
An area behind the detected obstacle.
Switching off the visual parking system.
Switching the acoustic parking aid on/off.
ABCDEF20Parking and manoeuvring
