Page 6 of 216
A
ABS (Antilock Brake System) ............. 45
Indicator lamp ........................ 149
Accessory weight .......................... 130
Accidents
Air bags .................................. 33
Additives
Engine oil .............................. 207
Gasoline ................................ 208
Address change .............................. 15
Air bags ....................................... 33
Children .................................. 33
Front, driver and passenger .........37
Front, passenger ....................... 37
Head-thorax ............................. 36
Passenger front air bag off
indicator lamp ..................... 28, 40
Safety guidelines ......................35
SRS indicator lamp ...................151
Air conditioning
see HVAC .................................. 91
Air conditioning refrigerant .......... 207
Air pressure see Tire inflation pressure
Air pressure (tires) ....................... 130
Air vents ...................................... 93
Alarm system see Anti-theft systems
Alternator (Technical data)
see Vehicle specification
Anticorrosion/antifreeze ............... 210
Antiglare, Interior rear view
mirror ......................................... 60
Antilock Brake System see ABS
Anti-theft systems ......................... 47
Anti-theft warning system ...........47
Electronic immobilizer ..............47
Interior motion sensor ...............48
Tow-away alarm ......................... 48
Aquaplaning
see Hydroplaning
Armrest ........................................ 57
Aspect ratio (tires) ....................... 130
Audio system ................................. 90
Automatic headlamp mode ................ 63Automatic locking .......................... 51
Automatic transmission ................... 79
Display message ...................... 149
Driving tips ............................. 81
Emergency operation (limp-
home mode) .............................. 83
Gear selector lever ....................79
Gear selector lever positions ......80
Gearshift pattern ...................... 79
Hill-start assist system ..............81
Manual gearshifting ..................82
Shifting procedure ....................80
Auxiliary instruments
Cockpit clock ........................... 89
Tachometer .............................. 89
AUX socket .................................... 91
B
Backrest see Seats
Backup lamp ................................. 166
Bar (air pressure unit) ................... 130
Battery
Charging ................................ 180
Indicator lamp ........................ 154
Jump starting .......................... 183
Removing and installing ............180
Battery (key)
Replacing the transmitter
battery ................................... 163
Bead (tire) .................................. 130
Brake fluid .................................. 113
Checking ................................ 113
Brake lamp .................................. 166
Brake pedal ................................... 78
Brakes ........................................ 134
Parking brake ........................... 77
Warning lamp .......................... 150
Break-in period ........................... 106
Bulbs
Front ..................................... 165
Rear ...................................... 166
Replacing ............................... 164
4Keywords451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 4
Page 9 of 216
G
Gasoline see Fuel
GAWR (Gross Axle Weight Rating) ...... 130
Gear selector lever ......................... 79
Transmission positions ..............80
Generator
see Alternator
Global locking/unlocking ................ 51
Glove box .................................... 100
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight
see GVW
Gross Vehicle Weight Rating
see GVWR
GVW (Gross Vehicle Weight) ............. 130
GVWR (Gross Vehicle Weight Rating) .. 131
H
Halogen headlamps see Headlamps
Hazard warning flasher .................... 66
Headlamps
Automatic headlamp mode ............63
Daytime running lamp mode .........64
High-beam flasher .....................65
High-beam headlamps ................. 65
Low-beam headlamps ..................63
Switch ..................................... 62
Head-thorax air bags ...................... 36
Heated exterior rear view mirrors ..... 60
Heated seats .................................. 58
Heating
see HVAC .................................. 91
Height adjustment
Seats ...................................... 57
High-beam flasher ......................... 65
High-beam headlamps ................ 65, 165
Indicator lamp ........................ 155
High-mounted brake lamp ............... 166
Hill-start assist system .................. 81
HVAC (Heating, Ventilation, Air
Conditioning) ............................... 91
Air distribution ....................... 94
Air recirculation ...................... 96
Air vents ................................. 93
Air volume ............................... 95
Defrosting ............................... 95
Rear window defroster ................95
Temperature ............................. 93
Hydraulic brake assistant ................ 46
Hydroplaning ............................... 137
I
Identification labels .................... 198
Identification number, vehicle
(VIN) .......................................... 199
Infant and child restraint systems see Children in the vehicle
Inflation pressure
see Tires, Inflation pressure
Inside door handle ......................... 52
Instrument cluster ..................... 22, 24
Lamps, indicator and warning .....149
Instrument panel
see Instrument cluster
Instruments and controls
see Cockpit
Interior motion sensor .................... 48
Interior rear view mirror ................ 60
Interior storage spaces see Storage compartments
Intermittent wiping
Rear window wiper .....................69
Windshield wipers .....................68
J
Jump-starting .............................. 183
K
Key ............................................. 50
Loss of ................................... 160
Replacing the transmitter
battery ................................... 163
Kilopascal (air pressure unit) ......... 131
Keywords7451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 7
Page 11 of 216
Passenger front air bag off
indicator lamp .......................... 37
Seat belts ............................ 31, 35
SRS indicator lamp, malfunction .. 151
OCS (Occupant Classification
System) ........................................ 37
Self-test ................................. 40
Oil
see Engine oil
Oil level
see Engine oil, Checking level
On-board Diagnostics Socket (OBD) ... 197
Operating safety ............................ 15
Outside temperature display ............ 86
Overhead control panel ................... 28
P
Paintwork care ............................. 144
Panic alarm .................................. 44
Parcel net ..................................... 97
Parking ........................................ 77
Parking brake ................................ 77
Parking lamps .............................. 165
Parts service ............................... 196
PASS AIR BAG OFF indicator lamp see Passenger front air bag off
indicator lamp
Passenger front air bag ................... 37
Passenger front air bag off
indicator lamp .................... 28, 37, 159
Passenger safety see Occupant safety
Passenger seat ............................... 58
Pedals ........................................ 134
Power assistance .......................... 134
Power outlet ................................ 102
Power washer ............................... 144
Practical hints
Battery .................................. 180
Display messages .....................148
Flat tire ................................. 172
Fuses ..................................... 188
Jump starting .......................... 183
Replacing bulbs ....................... 164
Replacing transmitter battery ....163
Replacing wiper blades .............170
Towing ................................... 185
Unlocking/locking manually .......162
Warning and indicator
lamps ............................... 149, 159
What to do if ........................... 149
Where will I find...? .................148
Premium unleaded gasoline ............ 208
Problems with your vehicle .............. 16
Product information ....................... 13
Production options weight .............. 131
PSI (air pressure unit) ................... 131
R
Radio .......................................... 90
Radio transmitters ........................ 139
Rain-light sensor .......................... 68
Rear lamps
Overview ................................ 166
Rear window defroster ..................... 95
Rear window wiper/washer ............... 69
Replacing wiper blade ..............170
Recommended tire inflation
pressure ................................ 115, 131
Refrigerant, air conditioning ......... 207
Refueling .................................... 106
Remote control see Key
Replacing bulbs ............................ 164
Reporting safety defects .................. 16
Research Octane Number see RON
Reserve fuel indicator .................... 88
Restraint systems see Occupant safety
Rims ..................................... 131, 202
Roadside Assistance ....................... 14
RON (Research Octane Number) ......... 208
Roof see Soft top system
Keywords9451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 9
Page 149 of 216
>> Practical hints.Where will I find ...? ........................148
Display messages ............................. 148
What to do if ... ............................... 149
Unlocking/locking manually ...............162
Replacing transmitter battery ............163
Replacing bulbs .............................. 164
Replacing wiper blades .....................170
Flat tire ........................................ 172
Wheel change ................................... 177
Battery .......................................... 180
Jump starting .................................. 183
Towing ........................................... 185
Fuses ............................................. 188451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 147
Page 183 of 216

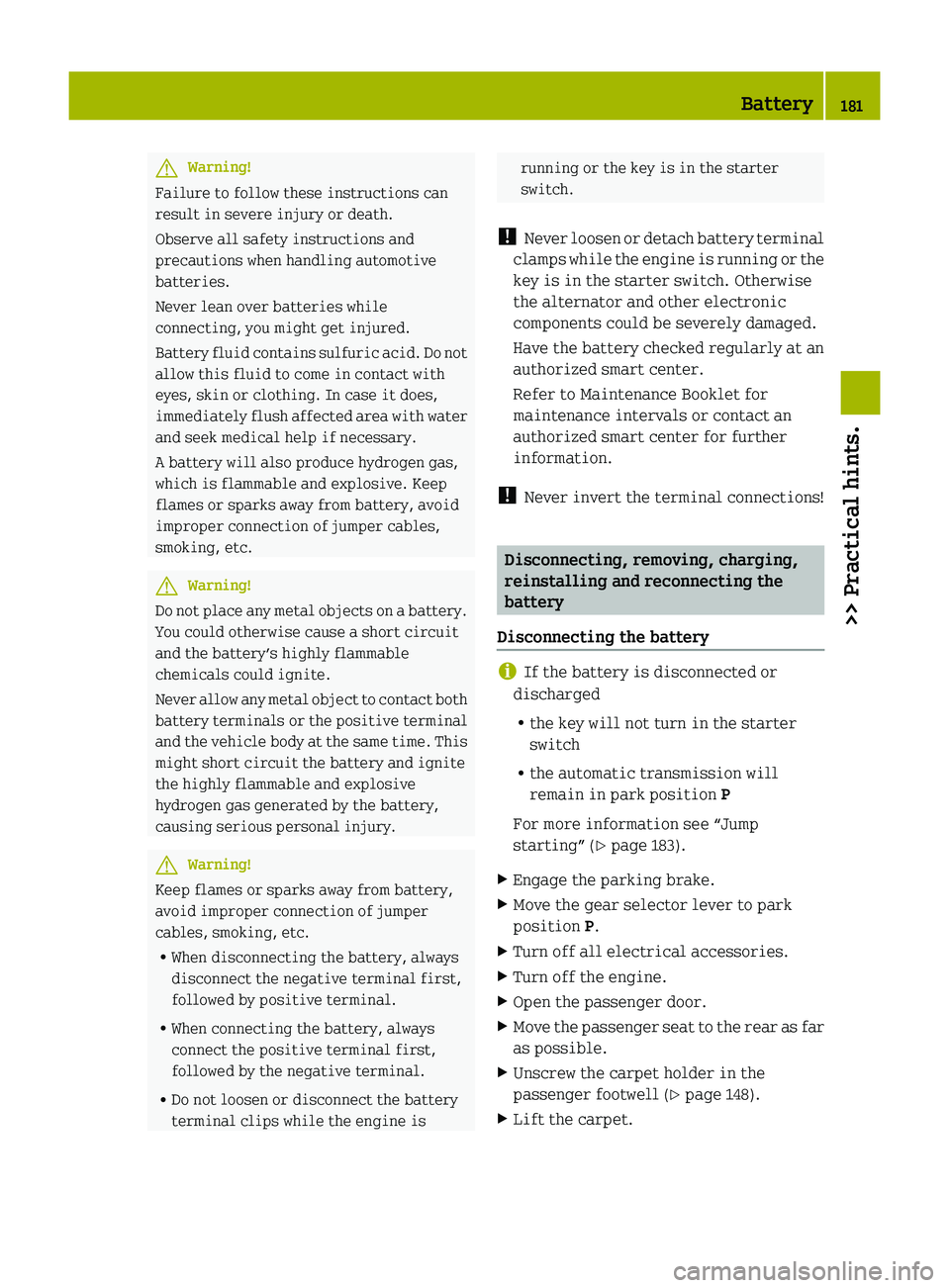

GWarning!
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries.
Never lean over batteries while
connecting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with
eyes, skin or clothing. In case it does,
immediately flush affected area with water
and seek medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
GWarning!
Do not place any metal objects on a battery.
You could otherwise cause a short circuit
and the battery’s highly flammable
chemicals could ignite.
Never allow any metal object to contact both
battery terminals or the positive terminal
and the vehicle body at the same time. This
might short circuit the battery and ignite
the highly flammable and explosive
hydrogen gas generated by the battery,
causing serious personal injury.
GWarning!
Keep flames or sparks away from battery,
avoid improper connection of jumper
cables, smoking, etc.
R When disconnecting the battery, always
disconnect the negative terminal first,
followed by positive terminal.
R When connecting the battery, always
connect the positive terminal first,
followed by the negative terminal.
R Do not loosen or disconnect the battery
terminal clips while the engine is
running or the key is in the starter
switch.
! Never loosen or detach battery terminal
clamps while the engine is running or the
key is in the starter switch. Otherwise
the alternator and other electronic
components could be severely damaged.
Have the battery checked regularly at an
authorized smart center.
Refer to Maintenance Booklet for
maintenance intervals or contact an
authorized smart center for further
information.
! Never invert the terminal connections!
Disconnecting, removing, charging,
reinstalling and reconnecting the
battery
Disconnecting the battery
i If the battery is disconnected or
discharged
R the key will not turn in the starter
switch
R the automatic transmission will
remain in park position P
For more information see “Jump
starting” ( Y page 183).
XEngage the parking brake.XMove the gear selector lever to park
position P.XTurn off all electrical accessories.XTurn off the engine.XOpen the passenger door.XMove the passenger seat to the rear as far
as possible.XUnscrew the carpet holder in the
passenger footwell ( Y page 148).XLift the carpet.Battery181>> Practical hints.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 181Z
Page 185 of 216
Reinstalling the batteryXReinstall the charged battery. Follow the
previously described steps in reverse
order.
! The battery, its filler caps and the
ventilation hose must always be securely
installed when the vehicle is in
operation.
Reconnecting the battery
! Always connect the battery in the order
described below. Otherwise the
vehicle’s electronics can be damaged.
XTurn off all electrical accessories.XRemove the key from the starter switch.
! Never invert the terminal connections!
XConnect the battery positive lead and
fasten cover 0088 (Y page 182).XConnect battery negative lead 008A
( Y page 182).
i
After battery power (e.g. due to
reconnection) was interrupted, you will
have to set the clock ( Y page 86).
i Have the battery’s charge status and
acid level checked at the start of the cold
season at a smart center.
Jump starting
GWarning!
Failure to follow these directions will
cause damage to the electronic components,
and can lead to a battery explosion and
severe injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with
eyes, skin or clothing. In case it does,
immediately flush affected area with
water, and seek medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive.
Keep flames or sparks away from battery,
avoid improper connection of jumper
cables, smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing
personal injury.
Read all instructions before proceeding.
! Do not tow‑start vehicle. You could
otherwise seriously damage the
transmission which is not covered by the
smart Limited Warranty.
! Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine using
a battery quick charge unit.
If the engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized smart
center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and may
present a fire risk.
Make sure the jumper cables do not have
loose or missing insulation.
Make sure the cable clamps do not touch
any other metal part while the other end
is still attached to a battery.
If the battery is discharged, the engine can
be started with jumper cables and the fully
charged battery of another vehicle or an
equivalent starter pack. Observe the
following:
R Access to the battery is not possible on
all vehicles. If you cannot access the
battery in your vehicle provide jumpJump starting183>> Practical hints.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 183Z
Page 186 of 216
start power by an external battery or
starter pack.
R Jump starting should only be performed
when the engine and catalytic converter
are cold.
R Do not start the engine if the battery is
frozen. Let the battery thaw out first.
R Only jump start from batteries with the
same voltage rating (12 V). Jump starting
with a more powerful battery could
damage the vehicle’s electrical system.
Such damage will not be covered by the
smart Limited Warranty.
R Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.
R Always make sure the jumper cables are
not on or near pulleys, fans or other parts
that move when an engine is started or
running.
R Should the battery be drained
completely, let the donating power
source charge the vehicle for several
minutes before reattempting the
starting process.GWarning!
Keep flames or sparks away from battery. Do
not smoke.
Observe all safety instructions and
precautions when handling automotive
batteries.
Jump start assistance
Your vehicle’s battery is located in the
passenger footwell below the footrest
( Y page 182).
For jump starting, use the terminals of the
battery, keeping the leads connected.
XMake sure the two vehicles do not touch.XSwitch off all electrical consumers.XEngage the parking brake.XMove the gear selector lever to park
position P.XTurn off the engine.XGet access to the battery in the passenger
footwell ( Y page 181).XRemove the positive terminal cover.184Jump starting>> Practical hints.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 184
Page 187 of 216
Position 0086 represents the charged battery
of another vehicle or an equivalent starter
pack.
! Never invert the terminal connections!XConnect positive terminal 0046 of charged
battery 0086 with positive terminal 0047 of
discharged battery 0087 with a jumper
cable. Clamp the jumper cable to
positive terminal 0046 of charged battery
0086 first.XStart the engine of the vehicle with
charged battery 0086 and run at idle speed.XConnect negative terminal 008A of charged
battery 0086 with negative terminal 0088 of
discharged battery 0087 with a jumper
cable. Clamp the jumper cable to
negative terminal 008A of charged battery
0086 first.XStart the engine of the vehicle with
discharged battery 0087 and run at idle
speed. You can now switch on the
electrical consumers. Do not switch on
the headlamps under any circumstances.XRemove the jumper cables from negative
terminals 008A and 0088 first.XRemove the jumper cables from positive
terminals 0046 and 0047.
You can now switch on the headlamps.XRemount the positive terminal cover.XHave the battery checked at the nearest
authorized smart center.
Towing
About towing
This section offers information on towing
methods for breakdown situations,
emergency towing, and flat towing smart
vehicles.
Recommended towing method -
Breakdown situation
smart recommends that the vehicle be
transported with all wheels off the ground
using a flatbed carrier truck or
appropriate wheel lift/dolly equipment.XSwitch off the tow‑away protection* and
interior motion sensor* ( Y page 48).
!
To prevent damage during transport, do
not tie down the vehicle by its chassis or
suspension parts — use only wheel straps
to position and hold down the vehicle.
Improper tie down on a flatbed carrier
truck or trailer can damage suspension
parts and body panels.
Emergency towing
When circumstances do not permit the
recommended towing method, the vehicle
may be towed with all wheels on the ground
using a strap or tow bar connected to
another vehicle. Only tow the vehicle as far
as necessary to have the vehicle moved to a
safe location where the recommended
towing method can be employed.
GWarning!
If circumstances require towing the
vehicle with all wheels on the ground,
always tow with a tow bar if:
R the engine will not run
R there is a malfunction in the brake
system
R there is a malfunction in the power
supply or in the vehicle’s electrical
system
A tow bar is necessary to adequately control
the towed vehicle.
Prior to towing the vehicle with all wheels
on the ground, make sure the gear selector
lever is in neutral position N and the
ignition is switched off.
Towing185>> Practical hints.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 185Z
