Driving and parkingSafety notes .............................. 78
Driving safety systems .................... 46
ABS ........................................ 46
ESP ®
....................................... 47
Hydraulic brake assistant ...........48
E
Electrical system Improper work on or
modifications ........................... 15
Power outlet ............................ 115
Electronic immobilizer .................. 48
Display message ....................... 161
Electronic Power Steering
see EPS
Electronic Stability Program
see ESP ®

Emergency, in case of
Hazard warning flasher ..........48, 68
Roadside Assistance ..................14
Emergency operation (limp-home
mode) .......................................... 86
Emergency Tensioning Device see ETD
Emission control .......................... 152
Information label ..................... 213
System warranties ......................13
Engine
Break-in recommendations .........118
Compartment ........................... 119
Compartment cover .................... 119
Electronics ............................. 212
Malfunction indicator lamp ........173
Number .................................. 215
Starting .................................. 78
Turning off .............................. 81
Engine coolant
see Coolant
Engine oil
Adding ................................... 121
Additives ............................... 221
Checking level ......................... 120
Consumption ........................... 120
Oil dipstick ............................ 121
EPS (Electronic Power Steering)
Warning lamp .......................... 169
ESP®
(Electronic Stability Program) ... 47
Warning lamp .......................... 169
ETD (Emergency Tensioning Device) ... 33
Safety guidelines ......................35
Exterior lamp switch ...................... 64
Exterior lighting Overview ................................ 181
Exterior rear view mirrors .............. 61
Exterior view of vehicle .................. 20
F
First-aid kit ............................... 160
Flat tire ..................................... 188
Fluids Capacities ............................. 220
Engine coolant ........................ 220
Engine oil .............................. 220
Fog lamps ................................ 68, 181
Front air bags see Air bags
Front compartment ........................ 122
Front lamps Overview ................................ 181
Fuel ........................................... 148
Additives ............................... 222
Capacity, fuel tank ...................220
Fuel filler flap and cap .............118
Fuel level display .....................90
Premium unleaded
gasoline ..................... 119, 220, 221
Refueling ............................... 118
Requirements .......................... 222
Fuel cap
Indicator lamp ......................... 172
Fuel filler flap ............................. 118
Fuel level display .......................... 90
Fuel tank Capacity ................................ 220
Fuel filler flap and cap .............118
Refueling ............................... 118
Fuse chart ................................... 207
Fuses ......................................... 204
6IndexBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 6

XTurn the battery on using the previously
installed battery switch.
XMove the gear selector lever to park
position P.
XRemove the key from the starter switch.XLock the doors.
! Do not flat tow the vehicle with the front
axle raised. Doing so may cause serious
damage to the brake system which is not
covered by the smart Limited Warranty.
! Failure to follow the recommendations
for flat towing can cause damage to your
vehicle:
RNot following the battery disconnect
procedure in the proper sequence may
result in data loss in the vehicle’s
control units.
RNot disconnecting the battery and
leaving the key in starter switch
position 1 (ignition on) may result in
-the vehicle locking. The vehicle will
lock if the wheels are turning at
vehicle speeds of approximately
8 mph (14 km/h) or more.
-the ESP® being activated. Active
braking action through the ESP® may
seriously damage the brake system
which is not covered by the smart
Limited Warranty.
RNot moving the gear selector lever to
neutral position N may result in
significant transmission damage.
Rin a discharged battery.
Fuses
The electrical fuses in your vehicle serve
to switch off malfunctioning power
circuits.
If a fuse is blown, the components and
systems secured by that fuse will stop
operating.
GWarning!
Only use fuses approved by smart with the
specified amperage for the system in
question and do not attempt to repair or
bridge a blown fuse this may cause an
overload leading to a fire, and/or cause
damage to electrical components and/or
systems. Contact a smart center if you
encounter any electrical problems.
! A blown fuse must be replaced by an
appropriate spare fuse (recognizable by
its color or the fuse rating given on the
fuse) of the amperage recommended in
the fuse chart. Any smart center will be
glad to advise you on this subject.
If a newly inserted fuse blows again, have
the cause determined and rectified at an
authorized smart center.
Before replacing fuses:
REngage the parking brake.
RMake sure the gear selector lever is in
park position P.
RTurn off all electrical accessories.
RTurn off the engine.
RRemove the key from the starter switch.
Replacing a fuse
The fuse box is located on the driver’s side
below the dashboard.
204Fuses>> Practical hints.
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 204

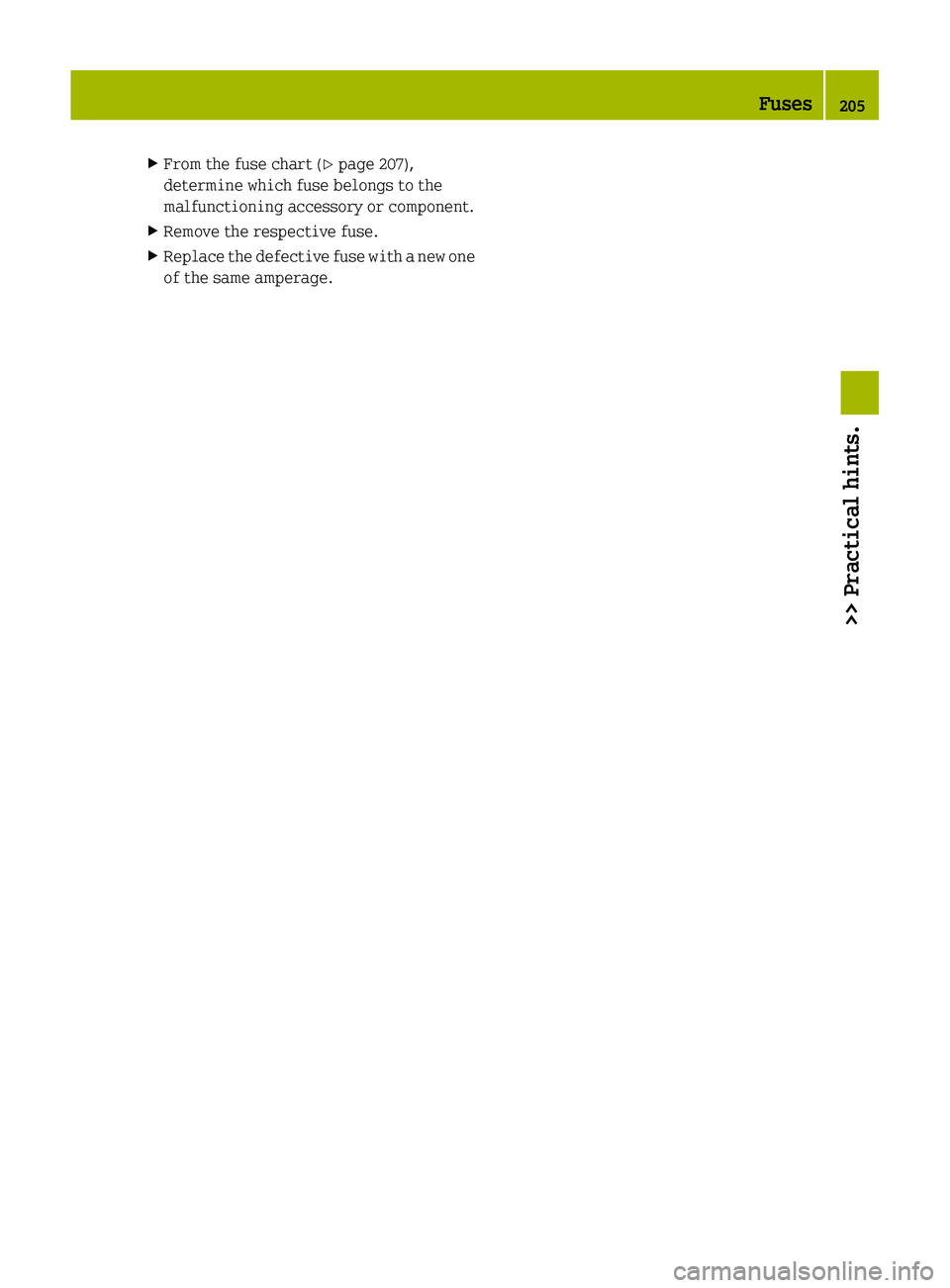

XFrom the fuse chart (Y page 207),
determine which fuse belongs to the
malfunctioning accessory or component.XRemove the respective fuse.XReplace the defective fuse with a new one
of the same amperage.Fuses205>> Practical hints.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 205Z

Rear side
006C - 00BA Fuse
Fuse chart
No.Accessory/ComponentAmperageColor0046Engine25 ANeutral0047Windshield wipers25 ANeutral008APower window, left and right20 AYellow0088Blower25 ANeutral0086Front fog lamps10 ARed0087Right parking lamp, right tail lamp, license plate
lamps7.5 ABrown006ELeft parking lamp, left tail lamp7.5 ABrown006FEngine25 ANeutral0070Engine7.5 ABrownFuses207>> Practical hints.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 207Z
