technical data SMART FORTWO COUPE 2011 Owners Manual

Index ............................................ 4Introduction ................................. 13At a glance .................................... 19Safety .......................................... 29Controls ....................................... 51Operation .................................... 117Practical hints ............................. 159Technical data ............................. 211
Contents3BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 3

Seat belts ..................................... 31
Children in the vehicle ..............42
Fastening ................................ 62
Proper use of ............................ 31
Safety guidelines ......................35
Safety notes .............................. 31
Telltale .................................. 167
Seating capacity ........................... 133
Seats ........................................... 58
Adjustment ............................... 59
Armrest ................................... 59
Heating ................................... 60
Passenger seat .......................... 60
Self-test
OCS (Occupant Classification
System) ................................... 42
SRS ......................................... 30
Service
see Maintenance
Service, parts .............................. 212
Service and warranty Booklet .................................. 212
Service flap ................................. 122
Service interval display .................. 91
Service life (tires) ....................... 136
Side marker lamps ......................... 181
Sidewall (tires) ............................ 144
Side windows Operation ................................ 77
Signs and labels ........................... 213
smart surround sound system ............ 101
Snow chains ................................. 145
Snow tires see Winter tires
Soft top system ............................... 71
Cleaning the soft top fabric .......157
Locking rear soft top manually ....178
Mounting the side rails ..............76
Opening and closing the rear
soft top ............................... 56, 74
Opening and closing the
retractable soft top ...............56, 72
Removing the side rails ..............74
Storing the side rails ................75
Sound package .............................. 101SRS (Supplemental Restraint
System) Indicator lamp ........................ 168
Standing water, driving through ....... 151
Starter switch positions .................. 57
Starting the engine ........................ 78
Status indicator ............................ 90
Steering wheel gearshift control ...... 26
Storage compartments .................... 110
Coin holder ............................. 111
Door pockets ............................ 111
Drawer ................................... 112
Glove box ................................ 111
in the tailgate ......................... 112
Parcel nets .............................. 112
Storage tray in center console ..... 112
Storage trays next to steering
wheel ..................................... 111
Storing tires ............................... 136
Sun screen ................................... 114
Sun visors ................................... 114
T
Tailgate Closing ............................... 55, 57
Opening .............................. 54, 56
Tail lamps ................................... 182
Technical data Air conditioning refrigerant .....221
Brake fluid ............................. 221
Coolant .................................. 223
Engine oil additives ................. 221
Engine oils ............................. 220
Fuel requirements ....................222
Gasoline additives ...................222
Identification labels ................ 213
Premium unleaded gasoline ........221
Rims and tires ......................... 217
Service fluids and capacities .....218
Vehicle specification (model
BRABUS) ................................. 216
Vehicle specification (model
passion) ................................. 215
Vehicle specification (model
pure) ..................................... 215
Windshield/rear window washer
system ............................. 220, 222
10IndexBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 10

Technical data (dimensions)see Vehicle specification
Technical data (weights)
see Vehicle specification
Temperature
Coolant .................................. 153
Interior temperature ................105
Outside ................................... 89
Tether anchorage points
see Children in the vehicle
Thorax-pelvis side air bags ............. 38
Tightening torque Wheels ................................... 138
TIN (Tire Identification
Number) ................................. 141, 144
Tire and Loading Information
placard ....................................... 132
Tire and loading terminology .......... 142
Tire Identification Number see TIN
Tire inflation pressure
Checking ................................ 128
Important notes on ....................128
Placard on driver’s door B-
pillar .................................... 132
Tire labeling ............................... 138
Tire load rating ........................... 144
Tire ply composition and material
used ........................................... 144
Tire Pressure Monitoring System
(TPMS) ........................................ 129
Tire repair kit ....................... 160, 188
Tires .................................... 126, 217
Air pressure ............................ 127
Care and maintenance ................ 135
Cleaning ................................ 136
Direction of rotation, spinning ..135
Driving instructions ................149
Flat tire ................................. 188
Important notes on tire
inflation pressure .................... 128
Inflation pressure ..............128, 129
Information placard .................132
Inspection .............................. 136
Labeling ................................ 138
Load rating ............................. 144Ply composition and material
used ...................................... 144
Problems under-/overinflation ...128
Retreads ................................. 126
Rims and tires (technical data) ...217
Rotation ................................. 138
Service life ............................ 136
Sizes ..................................... 217
Snow chains ............................ 145
Speed rating ................ 140, 144, 150
Storing .................................. 136
Temperature ...................... 128, 137
Terminology ............................ 142
Tire Identification Number ..141, 144
Tire Pressure Monitoring
System (TPMS) .......................... 129
Traction ...................... 137, 144, 150
Tread ..................................... 144
Tread depth ....................... 136, 145
Treadwear indicators ..........136, 144
Vehicle maximum load on ...........145
Wheel change ........................... 193
Winter tires ...................... 145, 217
Tire speed rating .................... 140, 144
Top tether see Children in the vehicle
Total load limit ........................... 144
Tow-away alarm ............................. 49
Towing ....................................... 201
Traction ................................ 144, 150
Transmission see Automatic transmission
Transmission position indicator ...... 88
Transmitting power values .............. 212
Traveling abroad .......................... 153
Tread (tires) ................................ 144
Tread depth (tires) .................. 136, 145
Treadwear indicators (tires) ..... 136, 144
Trip odometer, resetting ................. 91
Turning off the engine .................... 81
Turn signal lamps .......................... 181
Turn signals .................................. 67
Indicator lamps ....................... 171Index11BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 11

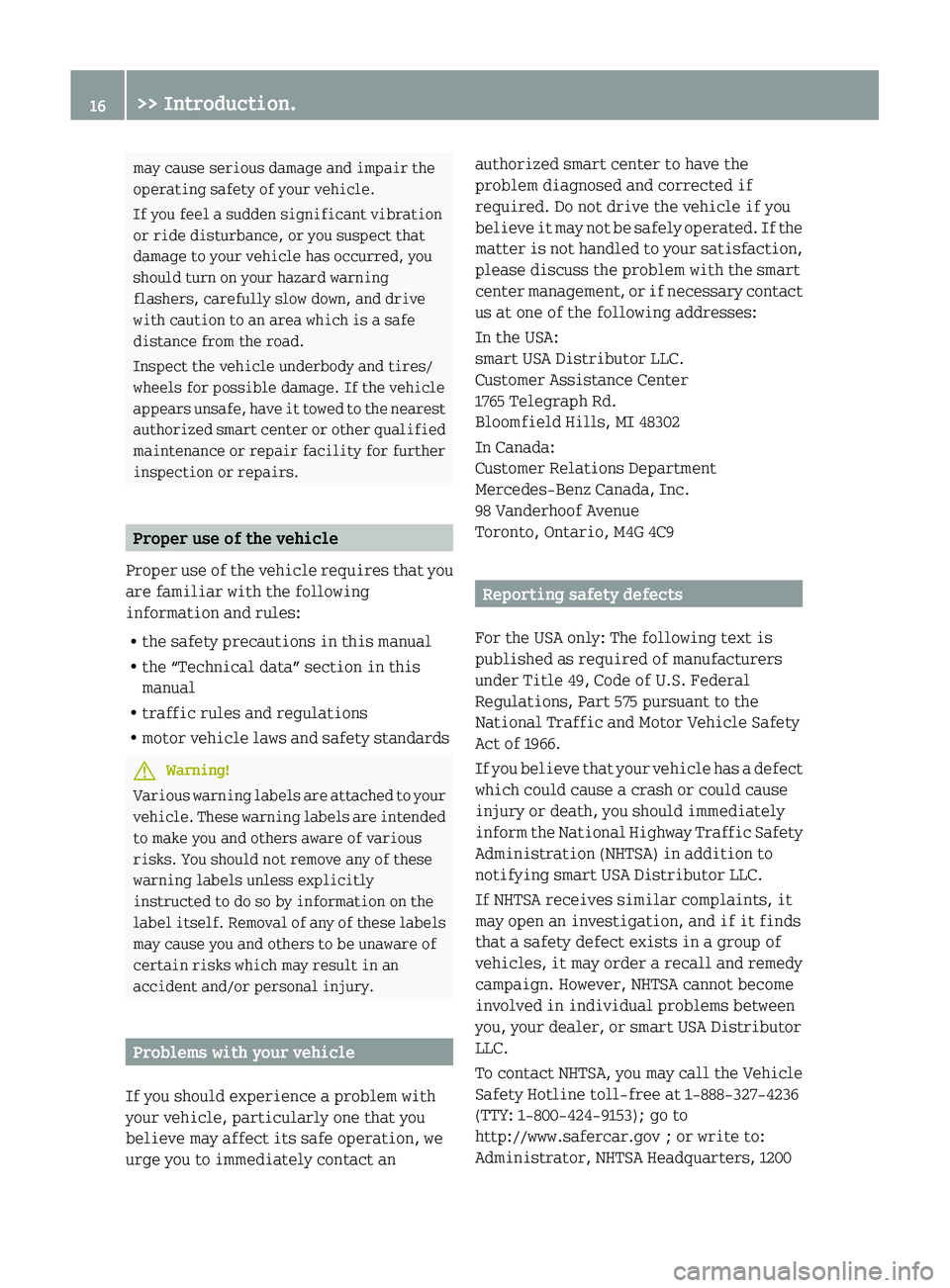

may cause serious damage and impair the
operating safety of your vehicle.
If you feel a sudden significant vibration
or ride disturbance, or you suspect that
damage to your vehicle has occurred, you
should turn on your hazard warning
flashers, carefully slow down, and drive
with caution to an area which is a safe
distance from the road.
Inspect the vehicle underbody and tires/
wheels for possible damage. If the vehicle
appears unsafe, have it towed to the nearest
authorized smart center or other qualified
maintenance or repair facility for further
inspection or repairs.
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following
information and rules:
R the safety precautions in this manual
R the “Technical data” section in this
manual
R traffic rules and regulations
R motor vehicle laws and safety standards
GWarning!
Various warning labels are attached to your
vehicle. These warning labels are intended
to make you and others aware of various
risks. You should not remove any of these
warning labels unless explicitly
instructed to do so by information on the
label itself. Removal of any of these labels
may cause you and others to be unaware of
certain risks which may result in an
accident and/or personal injury.
Problems with your vehicle
If you should experience a problem with
your vehicle, particularly one that you
believe may affect its safe operation, we
urge you to immediately contact an
authorized smart center to have the
problem diagnosed and corrected if
required. Do not drive the vehicle if you
believe it may not be safely operated. If the
matter is not handled to your satisfaction,
please discuss the problem with the smart
center management, or if necessary contact
us at one of the following addresses:
In the USA:
smart USA Distributor LLC.
Customer Assistance Center
1765 Telegraph Rd.
Bloomfield Hills, MI 48302
In Canada:
Customer Relations Department
Mercedes-Benz Canada, Inc.
98 Vanderhoof Avenue
Toronto, Ontario, M4G 4C9
Reporting safety defects
For the USA only: The following text is
published as required of manufacturers
under Title 49, Code of U.S. Federal
Regulations, Part 575 pursuant to the
National Traffic and Motor Vehicle Safety
Act of 1966.
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying smart USA Distributor LLC.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become
involved in individual problems between
you, your dealer, or smart USA Distributor
LLC.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to:
Administrator, NHTSA Headquarters, 1200
16>> Introduction.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 16

Certification label
Even after careful determination of the
combined weight of all occupants and cargo
as to not exceed the permissible load
limit, you must make sure your vehicle
never exceeds the Gross Vehicle Weight
Rating (GVWR) and the Gross Axle Weight
Rating (GAWR) for either the front or rear
axle. You can obtain the GVWR and GAWR
from the certification label. The
certification label can be found on the
driver’s door B‑pillar, see “Technical
data” ( Y page 214).
Gross Vehicle Weight Rating (GVWR) means:
The total weight of the vehicle, all
occupants, and all cargo must never exceed
the GVWR.
Gross Axle Weight Rating (GAWR) means:
The total allowable weight that can be
carried by a single axle (front or rear).
To assure that your vehicle does not exceed
the maximum permissible weight limits
(GVWR and GAWR for front and rear axle),
have the loaded vehicle (including driver,
passenger, and all cargo) weighed on a
suitable commercial scale.
Maximum tire load
GWarning!
Do not overload the tires by exceeding the
specified load limit as indicated on the
Tire and Loading Information placard on
the driver’s door B‑pillar. Overloading the
tires can overheat them, possibly causing
a blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.
i For illustration purposes only. Actual
data on tires are specific to each vehicle
and may vary from data shown in above
illustration.
The maximum tire load 0046 is the maximum
weight the tires are designed to support.
For more information on tire load rating
( Y page 139).
For information on calculating total and
cargo load capacities ( Y page 134).
Direction of rotation
Unidirectional tires offer added
advantages, such as better hydroplaning
performance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the
intended direction of rotation (spinning)
of the tire.
Tire care and maintenance
GWarning!
Regularly check the tires for damage.
Damaged tires can cause tire inflation
pressure loss. As a result, you could lose
control of your vehicle.
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
Tires and wheels135>> Operation.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 135Z

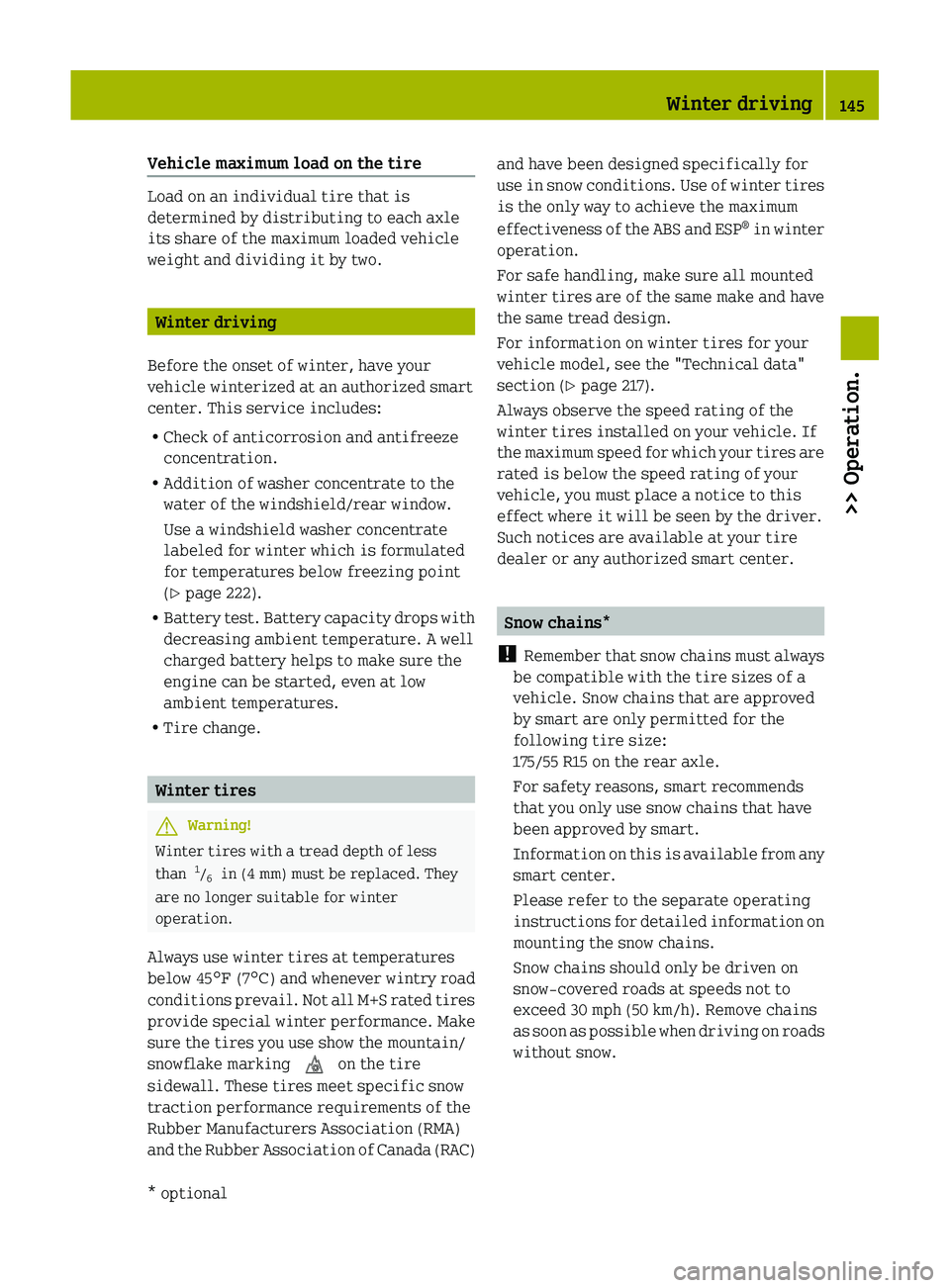

Vehicle maximum load on the tire
Load on an individual tire that is
determined by distributing to each axle
its share of the maximum loaded vehicle
weight and dividing it by two.
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized smart
center. This service includes:
R Check of anticorrosion and antifreeze
concentration.
R Addition of washer concentrate to the
water of the windshield/rear window.
Use a windshield washer concentrate
labeled for winter which is formulated
for temperatures below freezing point
( Y page 222).
R Battery test. Battery capacity drops with
decreasing ambient temperature. A well
charged battery helps to make sure the
engine can be started, even at low
ambient temperatures.
R Tire change.
Winter tires
GWarning!
Winter tires with a tread depth of less
than 1
/ 6 in (4 mm) must be replaced. They
are no longer suitable for winter
operation.
Always use winter tires at temperatures
below 45 ¦ (7¥ ) and whenever wintry road
conditions prevail. Not all M+S rated tires
provide special winter performance. Make
sure the tires you use show the mountain/
snowflake marking 004D on the tire
sidewall. These tires meet specific snow
traction performance requirements of the
Rubber Manufacturers Association (RMA)
and the Rubber Association of Canada (RAC)
and have been designed specifically for
use in snow conditions. Use of winter tires
is the only way to achieve the maximum
effectiveness of the ABS and ESP ®
in winter
operation.
For safe handling, make sure all mounted
winter tires are of the same make and have
the same tread design.
For information on winter tires for your
vehicle model, see the "Technical data"
section ( Y page 217).
Always observe the speed rating of the
winter tires installed on your vehicle. If
the maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available at your tire
dealer or any authorized smart center.
Snow chains*
! Remember that snow chains must always
be compatible with the tire sizes of a
vehicle. Snow chains that are approved
by smart are only permitted for the
following tire size:
175/55 R15 on the rear axle.
For safety reasons, smart recommends
that you only use snow chains that have
been approved by smart.
Information on this is available from any
smart center.
Please refer to the separate operating
instructions for detailed information on
mounting the snow chains.
Snow chains should only be driven on
snow-covered roads at speeds not to
exceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.
Winter driving145>> Operation.* optionalBA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 145Z

Specified tire inflation pressures must be
maintained. This applies particularly if
the tires are subject to high loads (e.g.
high speeds, heavy loads, high ambient
temperatures).GWarning!
Do not drive with a flat tire. A flat tire will
affect your ability to steer or brake and may
cause you to lose control of the vehicle.
Continued driving with a flat tire or
driving at high speed with a flat tire will
cause excessive heat build-up and possibly
a fire.
For more information, see “Tires and
wheels” ( Y page 126).
Hydroplaning
Depending on the depth of the water layer
on the road, hydroplaning may occur
resulting in a loss of control, even at low
speeds and with new tires. Reduce vehicle
speed, avoid track grooves in the road and
apply brakes cautiously when it is raining.
Tire traction
The safe speed on a wet, snow covered or icy
road is always lower than on a dry road.
You should pay particular attention to the
condition of the road whenever the outside
temperatures are close to the freezing
point.
GWarning!
If ice has formed on the road, tire traction
will be substantially reduced. Under such
weather conditions, drive, steer and brake
with extreme caution.
smart recommends winter tires
( Y page 145) with a minimum tread depth of
approximately 1
/ 6 in (4 mm) on all four
wheels for the winter season to ensure
normal balanced handling characteristics.
On packed snow, they can reduce your
stopping distance compared to summer
tires.
Stopping distance, however, is still
considerably greater than when the road is
not covered with snow or ice. Exercise
appropriate caution.
! Avoid spinning of a drive wheel for an
extended period when driving off on
slippery road surfaces. Otherwise, the
drivetrain could be damaged, which is
not covered by the smart Limited
Warranty.
Tire speed rating
Regardless of the tire speed rating, local
speed limits should be obeyed. Use prudent
driving speeds appropriate to prevailing
conditions.
GWarning!
Even when permitted by law, never operate
a vehicle at speeds greater than the
maximum speed rating of the tires.
Exceeding the maximum speed for which
tires are rated can lead to sudden tire
failure, causing loss of vehicle control and
possibly resulting in an accident and/or
personal injury and possible death, for you
and for others.
An electronic speed limiter prevents your
vehicle from exceeding a speed of 90 mph
(145 km/h).
The factory equipped tires on your vehicle
may have a tire speed rating above the
maximum speed permitted by the
electronic speed limiter.
Make sure your tires have the required tire
speed rating as specified for your vehicle
in the “Technical data section”
( Y page 217), for example when purchasing
new tires.
For information on how to identify the tire
speed rating on a tire’s sidewall, see “Tire
150Driving instructions>> Operation.
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 150

>> Technical data.Parts service ..................................212
Warranty coverage ............................212
Engine electronics ...........................212
Identification labels .......................213
Vehicle specification (model pure) .....215
Vehicle specification (model passion) . 215
Vehicle specification (model BRABUS) . 216
Rims and tires .................................217
Service fluids and capacities ............218
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 211

Parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Genuine smart Parts are subjected to
stringent quality inspections. Each part
has been specifically developed,
manufactured or selected for and adapted
to smart vehicles.
Therefore, Genuine smart Parts should be
installed.
! The use of non-genuine smart parts and
accessories not authorized by smart
could damage the vehicle, which is not
covered by the smart Limited Warranty,
or could compromise the vehicle’s
durability or safety.
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized smart center will exchange or
repair any defective parts originally
installed on the vehicle in accordance with
the terms of the following warranties:
R smart USA Limited Warranty (USA only)
R New Vehicle Limited Warranty (Canada
only)
R Emission System Warranty
R Emission Performance Warranty
R Corrosion Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island, and Vermont Emission
Control System Warranty
R smartmove Assistance (Canada only)
R State Warranty Enforcement Laws (Lemon
Laws, USA only)
Replacement parts and accessories are
covered by the smart Parts and Accessories
warranties, copies of which are available
at any authorized smart center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
smart center arrange for a replacement. It
will be mailed to you.
Engine electronics
Work on engine electronics
GWarning!
Always have maintenance work on engine
electronics and components performed by a
qualified specialist, e.g. at a smart
center. In particular, work relevant to
safety or on safety related systems must be
carried out at a qualified specialist
workshop.
! Always have maintenance work on the
engine electronics and components, such
as control modules, sensors and
connecting cables, performed by a
qualified specialist who has the
necessary knowledge and tools to carry
out the work required, e.g. at a smart
center. Otherwise there is a danger that
vehicle components may wear more
rapidly, which may void the vehicle’s
warranty.
Retrofitting electrical and electronic
devices
Electrical and electronic devices can
endanger vehicle operating safety.
! Damage or consequential damage due to
retrofitting a device in the vehicle is
not covered by smart’s warranty.
If you install telephones or radio
transmitters in the vehicle you must have
such retrofits approved. smart approves
the installation of telephones and radio
devices if the work is done professionally
212Engine electronics>> Technical data.
BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 212

and the device is connected to a low-
reflection exterior antenna.
The transmitting power of the telephone or
radio must not exceed the following
maximum values.Frequency range
(band)Maximum
transmitting
power (Watts)Short wave
(<50 MHz)1002 m wavelength500.7 m wavelength350.25 m wavelength10GWarning!
Radio transmitters can interfere with the
vehicle’s electronic system, endanger the
operating safety of the vehicle and thus
your own safety, if
R there is no external antenna
R the external antenna is not low-
reflection
R the external antenna is incorrectly
installed
Excessive electromagnetic radiation can
damage your health and that of others.
Using an external antenna addresses and
considers the concerns currently being
discussed in scientific circles about the
health hazards possibly posed by
electromagnetic fields.
Because of this, have the external antenna
installed exclusively at a qualified
specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required, e.g. at a
smart center. In particular, work relevant
to safety or on safety-related systems must
be carried out at a qualified specialist
workshop.
On-board Diagnostics Socket (OBD)
The on-board diagnostics socket is located
inside the vehicle on the right side of the
left footwell.0046 On-board diagnostics socket
Identification labels
Signs and labels
0046 Air bag information signs
(sun visor)0047 VIN (engine compartment)Identification labels213>> Technical data.BA 451 USA, CA Edition A 2011; 1; 4, en-UShereepeVersion: 3.0.3.62010-05-11T15:12:26+02:00 - Seite 213Z
