>> At a glance.Exterior view
................................... 20
Cockpit ........................................... 21
Instrument cluster (miles) ..................22
Instrument cluster (kilometers) ...........24
Steering wheel gearshift control .......... 26
Center console .................................. 27
Overhead control panel ...................... 28
Door control panel ............................ 28

Cockpit

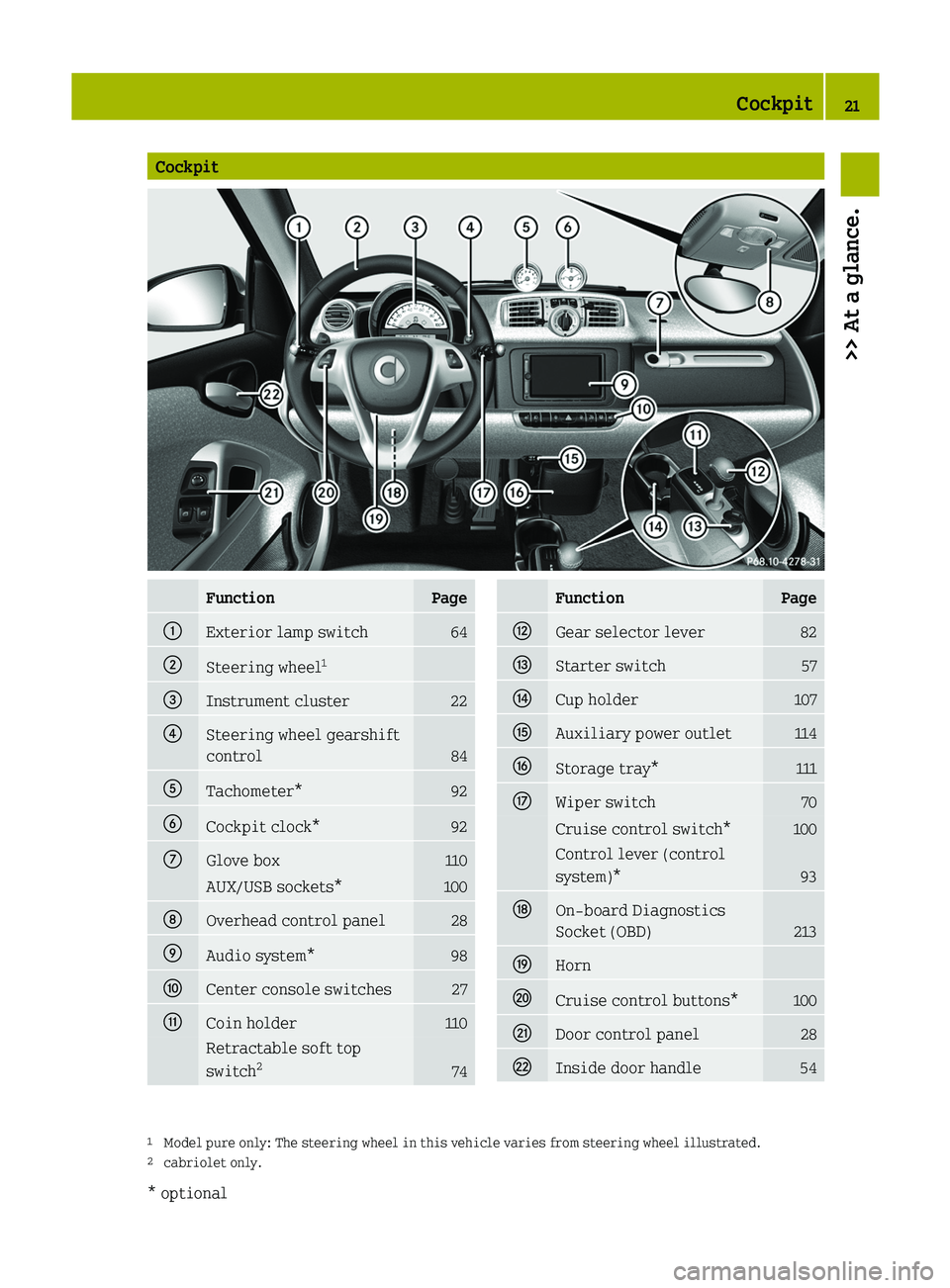

Function Page
:
Exterior lamp switch 64
;
Steering wheel
1=
Instrument cluster 22
?
Steering wheel gearshift
control
84
A
Tachometer* 92
B
Cockpit clock* 92
C
Glove box 110
AUX/USB sockets* 100
D
Overhead control panel 28
E
Audio system* 98
F
Center console switches 27
G
Coin holder 110
Retractable soft top
switch
2 74 Function Page
H
Gear selector lever 82
I
Starter switch 57
J
Cup holder 107
K
Auxiliary power outlet 114
L
Storage tray* 111
M
Wiper switch 70
Cruise control switch* 100
Control lever (control
system)*
93
N
On-board Diagnostics
Socket (OBD)
213
O
Horn
P
Cruise control buttons* 100
Q
Door control panel 28
R
Inside door handle 54
1
Model pure only: The steering wheel in this vehicle varies from steering wheel illustrated.
2 cabriolet only. Cockpit
21>> At a glance.
* optional

Center console
Function Page
:
Tachometer* 92
;
Cockpit clock* 92
=
HVAC 102
?
Audio system* 98
A
Switching front fog
lamps* on/off
68
B
Central locking switch 54
C
Hazard warning flasher
switch
69
D
Switching tow-away
protection*/interior
motion sensor* on/off
49
E
Restarting TPMS button
127 Function Page
F
Switching seat heating*
on/off, passenger side
60
G
Central unlocking switch 54
H
Switching seat heating*
on/off, driver’s side
60
I
Storage tray* 111
J
Gear selector lever 82
K
Starter switch 57
L
Parking brake lever 80
M
Coin holder 110
Retractable soft top
switch
4 74
N
Cup holder 107
4
cabriolet only. Center console
27>> At a glance.
* optional

R
Do not lean on the armrests or lift
yourself
from the seat by using the handle
over the door as this may cause the OCS to
be unable to correctly approximate the
occupant weight category.
R Only have the seat repaired or replaced
by an authorized smart center.
R Read and observe all warnings in this
chapter.
Self-test Occupant Classification
System After turning the key in the starter switch
to position
1 or 2, the 4 0
indicator lamp located in the center
console illuminates. If an adult occupant
is properly sitting on the passenger seat
and

the system senses the occupant as being
an adult, the 4 0 indicator
lamp will illuminate and go out after
approximately 4 seconds.
If the seat is not occupied and the system
senses the passenger seat as being empty,
the 4 0 indicator lamp will
illuminate and not go out. G
WARNING
If the 4 0 indicator lamp does
not illuminate immediately after starting
the engine, the system is not functioning.
You

must contact an authorized smart center
before seating any child on the passenger
seat.
More information can be found in the
“Practical hints” section ( Y page 173).G
WARNING
Never place anything between seat cushion
and child seat (e.g. pillow), since it
reduces the effectiveness of the Occupant
Classification System. The bottom of the
child seat must make full contact with the
passenger seat cushion. An incorrectly
mounted

child seat could cause injuries to the child in case of an accident, instead of
increasing protection for the child.
Follow the manufacturer’s instructions for
installation of child seats.
Children in the vehicle
If an infant or child is traveling with you
in the vehicle:
X Secure the child using an infant or child
restraint

appropriate to the age and size
of the child.
X Make sure the infant or child is properly
secured

at all times while the vehicle is
in motion. G
WARNING
Do not leave children unattended in the
vehicle,
even if they are secured in a child
restraint system. The children could
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or
cold
Do not expose the child restraint system to
direct sunlight. The child restraint
system’s metal parts, for example, could
become very hot, and the child could be
burned on these parts.
If children open a door, they could
R injure other persons
R get out of the vehicle and injure
themselves or be injured by following
traffic
Do not carry heavy or hard objects in the
passenger compartment unless they are
firmly secured in place.
For more information, please refer to the
“Loading and storing section”. 42
Occupant safety
>> Safety.

fresh air can flow freely into the vehicle
interior.
R Do not obstruct air vents or ventilation
grilles in the vehicle interior.
i For draft-free ventilation, move the
sliders
for the center air vents and side
air vents to the middle position.
Center air vents :
Left center air vent, adjustable
; Right center air vent, adjustable
X Adjusting: Turn slider : or ; to the
left, right, up, or down.
X Opening: Turn slider : or ; inwards
towards the center console.
X Closing: Turn slider : or ; fully
outwards towards the side window.
Side air vents Side air vents on driver’s side illustrated as
example
:
Left side air vent, adjustable
; Left side defroster air vent, fixed X
Adjusting: Turn slider : to the left,
right, up, or down.
X Opening:
Turn slider : inwards towards
the center console.
X Closing: Turn slider : fully outwards
towards the side window. Adjusting air distribution
Symbol Function
z
Directs air to the windshield
and side windows
O
Directs air to the footwells
and air distribution is
reduced

at the center and side
air vents P
Directs air through the center
and side air vents
i
You can also turn the air distribution
control to a position between two
symbols.
Heating Control panel (Y page 103).
X
Turn air distribution control = to the
desired symbol.
The air distribution is controlled
depending on the position of the air
distribution control.
Air conditioning with climate control Control panel (Y page 103).
X
Turn air distribution control B to the
desired symbol.
The air distribution is controlled
depending on the position of the air
distribution control. HVAC (Heating, Ventilation, Air Conditioning)
105
>> Controls. Z

Storage tray* in center console
X
Installing: Slide storage tray ; onto the
cones on the center console until it
engages audibly.
X Removing: Press levers :
simultaneously
towards the storage tray.
X Pull storage tray ;
away from the center
console.
X Opening: Pull handle =.
X Closing: Swivel storage tray ; back
until it engages.
Parcel nets Parcel nets are located on the in-board
sides of the seat backrests.
i
Vehicles equipped with an armrest*

on
the driver’s seat, have a parcel net on the
passenger seat only.
i Each parcel net is intended for light-
weight items of below 0.9 lb (0.4 kg). Example illustration: Parcel net on passenger
seat
:
Parcel net
Drawer* A drawer is located below the audio
system*
13
. X
Opening: Press on the center of
drawer :.
The drawer opens slightly.
X Pull drawer: to open completely.
X Closing: Press on drawer : until it
engages.
Storage compartment in the tailgate
(coupé only) You can store small objects in the storage
compartment in the tailgate.
13 Vehicles with audio system basic* only. Loading and storing
111
>> Controls.
* optional Z

Auxiliary power outlet
The auxiliary power outlet supplies power
to the following electrical accessories
when the key is turned to starter switch
position 1:
R the cigarette lighter*, available in
conjunction with the ashtray*
R the electric air pump, available in
conjunction with the tire repair kit*
R other consumers which operate up to a
maximum of
60 W
! The auxiliary power outlet can
accommodate 12V DC electrical
accessories designed for use with the
standard “cigarette lighter” plug type.
Keep in mind, however, that connecting
accessories to the auxiliary power outlet
(for example extensive connecting and
disconnecting, or using plugs that do not
fit properly) can damage the auxiliary
power outlet. With the auxiliary power
outlet damaged, the cigarette lighter*
may no longer be able to be placed in the
heating (pushed-in) position, or may pop
out before it is hot enough.
The auxiliary power outlet is located in the
lower center console. Auxiliary power outlet
X
Turn the key to starter switch position 1.
! Please observe the safety instructions
given in the respective operating
instructions. Please note that
R
if using the auxiliary power outlet the
maximum current drawn may not exceed
5 A or 60 W
R the electric air pump* can be connected
to
the auxiliary power outlet for the time
it takes to inflate the tire without any
problem
R the vehicle battery will discharge when
current is drawn.114
Useful features
>> Controls.
* optional

Problem Possible causes/consequences and
M SolutionsA warning signal
sounds when parking. You have not engaged the parking brake before releasing the
brake pedal, turning off the engine, and switching off the
ignition.
X
Switch on the ignition to deactivate the acoustic warning.
X Engage the parking brake.
X Make sure the gear selector lever is in park position P.
X Turn the key to starter switch position 0.
X Remove the key from the starter switch.
For safety, it is important that you perform the parking
procedure as described (Y page 80). You can hear a
continuous
noise from
the front axle when
braking. The vehicle is equipped with a mechanical/acoustic brake pad
indicator.
X
Have the brake pads checked at an authorized smart center. Unlocking/locking manually
Unlocking the vehicle
You can unlock the driver’s door and the
fuel filler flap by unlocking the driver’s
door using the key. The lock cylinder is
fitted with a cap.
X Press button # on the key.
The anti-theft warning system* is
disarmed.
i If the transmitter battery in the key is
discharged, the anti-theft warning
system* can no longer be disarmed with
button # on the key.
For replacing the transmitter battery
(Y page 177).
Unlocking the vehicle with the key and
opening a door or the tailgate will
trigger the anti-theft warning system*
(Y page 48).
To cancel the alarm:
X Insert the key in the starter switch.
X Turn the key to starter switch position 1. X
Remove cap : from lock cylinder ;.
X Unlock the driver’s door.
The

driver’s door and the fuel filler flap
are unlocked.
i To unlock the vehicle centrally press
the

central unlocking switch in the upper
center console ( Y page 27). Locking the vehicle
If
you can no longer lock the vehicle using
the remote control and you do not have a
spare transmitter battery at hand, please
proceed as follows: 176
Unlocking/locking manually
>> Practical hints.
* optional
