For more information on coolant tempera-
ture warning lamp (Y page 172).Driving abroad
Abroad, there is an extensive smart service
network at your disposal. If you plan to
drive into areas which are not listed in the
index of your smart center directory, you
should request pertinent information from
an authorized electric drive smart center.
Keep in mind, however, that due to the tech-
nical requirements of the smart fortwo
electric drive and its high-voltage power
systems, the vehicle should be serviced
only at an authorized electric drive smart
center.
If you plan to operate your vehicle in for-
eign countries, please be aware that:
R Service facilities or replacement parts
may not be readily available.
R The AC power sockets in some countries,
especially overseas, require different
plugs on the charging cable.
R Charging stations may not be available. Symmetrical low beams
i If you drive in countries where vehi-
cles drive on the other side of the road
than the country in which the vehicle is
registered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained at
any authorized electric drive smart
center. Vehicle care
Care tips
Regular and proper care will help to main-
tain the value of your vehicle. The best way
to protect your vehicle from harmful envi- ronmental influences is to wash it and use
protective treatments regularly.
smart recommends that you care for the
paintwork at least twice a year (e.g. in the
spring and autumn). G
WARNING
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the par-
ticular container. Always open your vehi-
cle’s doors or windows when cleaning the
inside.
Never use fluids or solvents that are not
designed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.
! Follow the care tips. Wash your vehicle
preferably by hand.
While in operation or even while parked,
your vehicle is subjected to varying exter-
nal influences, which left unchecked can
attack the paint as well as the vehicle
underbody and lead to permanent damage.
Such damage is caused not only by extreme
and varying climatic conditions, but also
by:
R Air pollution
R Road salt
R Tar
R Gravel and stone chipping
To avoid paint damage, you should imme-
diately remove:
R Insects
R Bird droppings
R Tree sap, etc.
R Grease and oil
R Brake fluid
R Coolant
R Fuel
R Tar spots
! Failure to remove such dirt immedi-
ately can cause damage to the paint or the Vehicle care
153>> Operation. Z

Vehicle
Problem Possible causes/consequences and
0050
0050Solutions 003D
The red 12-V-
battery indica-
tor lamp illu-
minates while
driving or does
not go out after
the drive sys-
tem is started. The 12-V-battery is not being charged.
X
Stop the vehicle immediately in a safe location.
X Do not continue to drive.
X Switch off the drive system.
X Engage the parking brake when leaving the vehicle.
X Contact Roadside Assistance or an authorized electric drive
smart center. 0075
The yellow
high-voltage
battery warn-
ing lamp comes
on while driv-
ing. There may be a malfunction in the high-voltage system.
Contact an authorized electric drive smart center immediately
and have the high-voltage system checked.
0057
The high‑beam
headlamp indi-
cator lamp does
not illuminate
when the
high‑beam
headlamps are
switched on or
when using the
high‑beam
flasher. The high‑beam headlamp indicator lamp has failed.
X
Have the high‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. 0059
The low‑beam
headlamp indi-
cator lamp does
not illuminate
when the
low‑beam head-
lamps are
switched on. The low‑beam headlamp indicator lamp has failed.
X
Have the low‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. What to do if ...
171>> Practical hints. Z

!
Check the polarity when inserting the
new transmitter battery. You could oth-
erwise damage parts of the electrical
system. When inserting the batteries,
make sure they are clean and free of lint.
X Insert the new transmitter battery.
X Press both halves of the key housing
together again.
X Check the operation of the remote
control. Replacing bulbs
About replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is
therefore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact an author-
ized electric drive smart center for head-
lamp adjustment. G
WARNING
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before changing
a bulb. Otherwise you could be burned if you
touch them.
Keep bulbs out of the reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
R touch or move it when hot
R drop the bulb
R scratch the bulb
Wear eye and hand protection.
i If the headlamps or front fog lamps* are
fogged up on the inside as a result of
high humidity, driving the vehicle a
distance with the lights on should clear
up the fogging. Notes on bulb replacement:
R
Only use bulbs of the same type and with
the specified watt rating.
R Switch the lights off before replacing a
bulb to prevent short circuits.
R Always use a clean lint-free cloth when
handling bulbs.
R Your hands should be dry and free of oil
and grease.
R Avoid touching the glass of the bulb with
bare fingers.
R If the newly installed bulb does not come
on, contact an authorized electric drive
smart center.
R Have the bulbs for the front fog lamps*
and the LED daytime running lamps*
replaced at an authorized electric drive
smart center. Replacing bulbs
179>> Practical hints.
* optional Z

Overview bulbs
Front lamps
Headlamp Type
0043
Low‑beam headlamp
H7 (55 W)
0044 High‑beam headlamp
H7 (55 W)
0087 Parking and side marker lamp
WY 5 W
0085 Turn signal lamp
2357 A Front fog lamp* Type
0043
Front fog lamp
H 11 Side turn signal lamp Type
0043
Side turn signal lamp
WY 5 W 180
Replacing bulbs>> Practical hints.
* optional

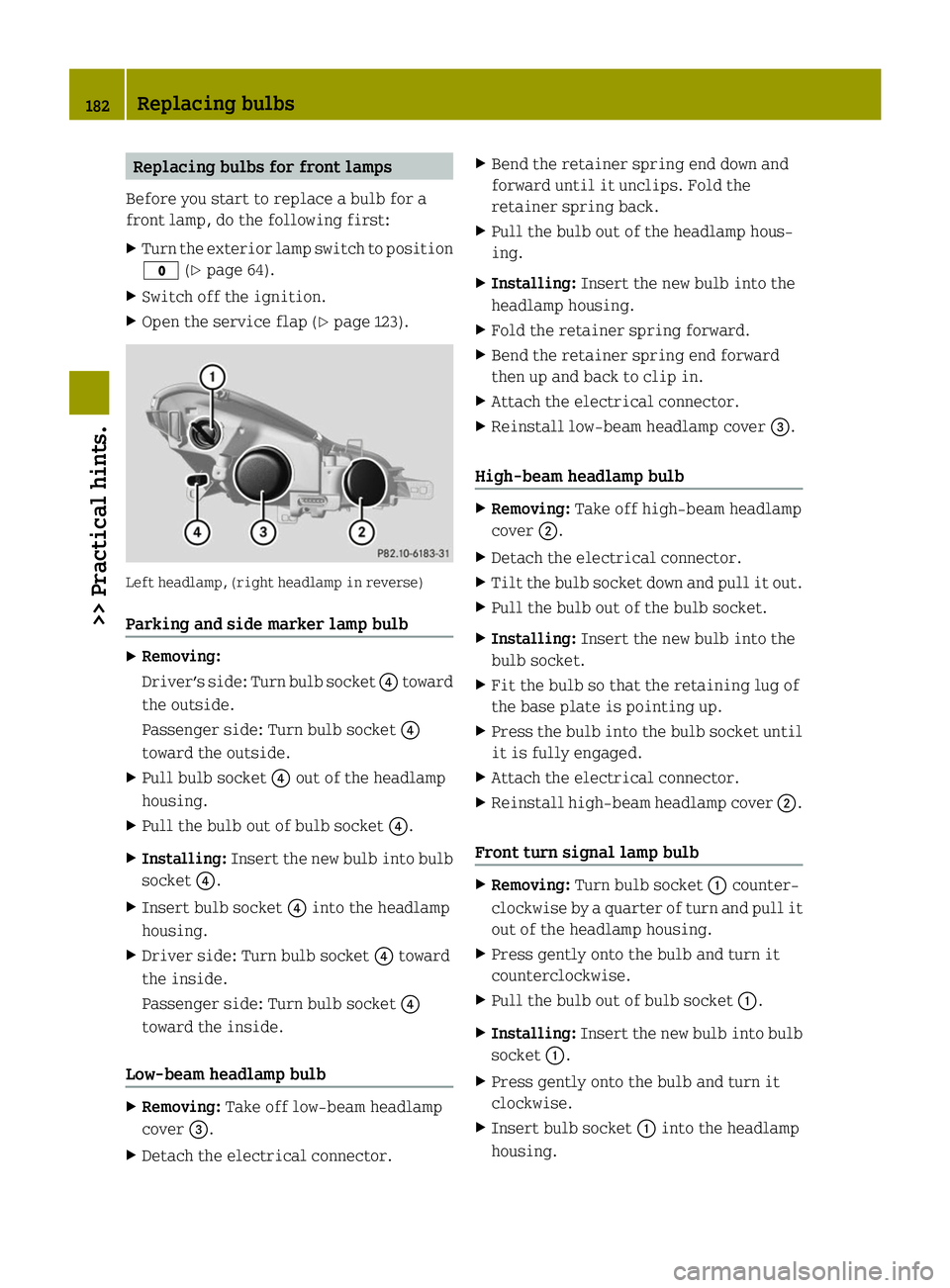

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
003F (Ypage 64).
X Switch off the ignition.
X Open the service flap (Y page 123).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket 0085toward
the outside.
Passenger side: Turn bulb socket 0085
toward the outside.
X Pull bulb socket 0085out of the headlamp
housing.
X Pull the bulb out of bulb socket 0085.
X Installing: Insert the new bulb into bulb
socket 0085.
X Insert bulb socket 0085into the headlamp
housing.
X Driver side: Turn bulb socket 0085toward
the inside.
Passenger side: Turn bulb socket 0085
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover 0087.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips. Fold the
retainer spring back.
X Pull the bulb out of the headlamp hous-
ing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover 0087.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover 0044.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover 0044.
Front turn signal lamp bulb X
Removing: Turn bulb socket 0043counter-
clockwise by a quarter of turn and pull it
out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket 0043.
X Installing: Insert the new bulb into bulb
socket 0043.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket 0043into the headlamp
housing. 182
Replacing bulbs>> Practical hints.

The arrow on bulb socket
0043must be in
line with the line on the headlamp hous-
ing.
X Turn bulb socket 0043clockwise by a quar-
ter of turn.
Side turn signal lamp bulb X
Removing: Open the door on the corre-
sponding side. X
Press on retaining lug 0043in the direc-
tion of the arrow until the side turn sig-
nal lamp housing disengages.
X Close the door.
X Use a suitable tool to loosen the side turn
signal lamp housing from the fender.
X Turn the bulb socket counterclockwise
and pull it out of the side turn signal
lamp housing.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Insert the bulb socket into the side turn
signal lamp housing and turn the bulb
socket clockwise.
X Fit the side turn signal lamp housing
onto the fender.
X Press gently onto the side turn signal
lamp housing.
The side turn signal lamp housing must
audibly engage. Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
X Turn exterior lamp switch to position
003F (Ypage 64).
X Switch off the ignition.
Tail lamp unit X
Removing:
Coupé: Open the upper tailgate.
X Open the lower tailgate.
X Cabriolet: Open the rear soft top
(Y page 72).
X Remove the side cover in the cargo com-
partment on the corresponding side.
X Fold the damping material forward, if
necessary. Left bulb carrier illustrated as example
0043
Retaining tab
0044 Electrical connector
X Press retaining tab 0043in the center of
the bulb carrier upwards.
X Pull the bulb carrier out of the tail lamp
housing. Replacing bulbs
183>> Practical hints. Z

Jump start assistance
Your vehicle’s 12-volt battery is located in the passenger footwell below the footrest
(Y page 199).
For jump starting, use the terminals of the battery, keeping the leads connected.
X Make sure the two vehicles do not touch.
X Switch off all electrical consumers.
X Engage the parking brake.
X Move the gear selector lever to park position P.
X Switch off the drive system.
X Get access to the battery in the passenger footwell (Y page 199).
X Remove the positive terminal cover. Position
0083represents the charged battery of another vehicle or an equivalent starter
pack.
! Never invert the terminal connections!
X Connect positive terminal 0043of charged battery 0083with positive terminal 0044of your
vehicle’s battery 0084with a jumper cable. Clamp the jumper cable to positive termi-
nal 0043of charged battery 0083first.
X Start the engine of the vehicle with charged battery 0083.
X Connect negative terminal 0087of charged battery 0083with negative terminal 0085of your
vehicle’s battery 0084with a jumper cable. Clamp the jumper cable to negative terminal
0087 of charged battery 0083first.
X Start the drive system of your vehicle. You can now switch on minimal consumers. Do
not switch on large consumers such as the rear window defroster or headlamps. 202
Jump starting>> Practical hints.

X
Remove the jumper cables from negative terminals 0087and 0085first.
X Remove the jumper cables from positive terminals 0043and 0044.
You can now switch on the headlamps.
X Remount the positive terminal cover.
X Have the 12-volt battery checked at the nearest authorized electric drive smart center.
i Please keep in mind that it will take quite some time to charge the 12-volt battery.
When you switch off the drive system after driving a short distance, you may not be able
to start it again.
Charge the 12-volt battery completely as soon as possible. Towing
About towing
This section offers information on towing
methods for breakdown situations and
emergency towing. Recommended towing method - Break-
down situation
! To prevent damage during transport, do
not tie down the vehicle by its chassis or
suspension parts — use only wheel straps
to position and hold down the vehicle.
Improper tie down on a flatbed carrier
truck or trailer can damage suspension
parts and body panels.
smart recommends that the vehicle be
transported with all wheels off the ground
using a flatbed carrier truck or appropri-
ate wheel lift/dolly equipment.
Always have your vehicle transported:
R when the 0075warning lamp for the high-
voltage system lights up in the instru-
ment cluster
R when the Do not tow (away)
Do not tow (away) message
appears in the instrument cluster
R when the multifunction display is inop-
erative R
when one or several of the following
warning lamps light up:
-00ED Drive diagnostics (red)
- 003D 12‑Volt battery
0052 Power steering
R if the brake pedal already starts to pul-
sate just after towing begins
R if you have to transport the vehicle over
long distances
X Switch off the tow‑away protection* and
interior motion sensor* (Y page 50). Emergency towing
When circumstances do not permit the rec-
ommended towing method, the vehicle may
be towed with all wheels on the ground
using a strap or tow bar connected to
another vehicle. Only tow the vehicle as far
as necessary to have the vehicle moved to a
safe location where the recommended tow-
ing method can be employed. G
WARNING
If circumstances require towing the vehi-
cle with all wheels on the ground, always tow
with a tow bar if:
R the drive system will not run
R there is a malfunction in the brake sys-
tem
R there is a malfunction in the power sup-
ply or in the vehicle’s electrical system Towing
203>> Practical hints.
* optional Z

No. Accessory/Component Amperage Color
006D
CPC, shifter, brake force booster vacuum
pump 7.5 A Brown
006E
Coolant pumps 1 and 2, high-voltage battery 15 A Blue
006F
ESP
®
control unit 25 A Neutral
0070
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view mir-
ror heating, anti-theft warning system,
rain-light sensor, charge level and power
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS), brake and turn signal lamps (left and
right) 10 A Red
0071
— — —
0072
— — —
0073
Safety circuit high-voltage battery 15 A Blue
0074
— — —
0075
Rear window wiper (coupé only) 15 A Blue
0076
ESP
®
control unit, EPS control unit, restraint
systems 10 A Red
0077
Electric drive components, engine control
unit, transmission control unit, on-board
diagnostics socket, sound generator 7.5 A Brown
0078
Air conditioning system, exterior rear view
mirror adjustment, washer pump, audio, seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only), backup lamp 10 A Red
0079
Auxiliary power outlet 15 A Blue
007A
Left low‑beam headlamp 7.5 A Brown
007B
Right low‑beam headlamp 7.5 A Brown
007C
— — —
007D
Right high‑beam headlamp 7.5 A Brown
007E
Left high‑beam headlamp 7.5 A Brown
007F
Electric drive components 7.5 A Brown Fuses
209>> Practical hints. Z
