Page 171 of 222
Problem Possible causes/consequences and
M
MSolutions 6
Scenario 1:
The SRS indica-
tor lamp illu-
minates when
the ignition is
switched on and goes out after a
maximum of
4 seconds. The subsequent self check of the safety systems detected no
malfunction. The supplemental restraint system is opera-
tional.
6
Scenario 2:
The SRS indica-
tor lamp illu-
minates when
the ignition is
switched on and goes out after a
maximum of
4 seconds for
approximately
1 second, then itcomes on again
and stays on. There is a malfunction in the supplemental restraint systems.
The air bags or Emergency Tensioning Devices could deploy
unexpectedly or fail to deploy in an accident.
X Do not sit on the passenger seat; this applies particularly to
children.
X Have the system checked at an authorized electric drive
smart center. G
WARNING
If the SRS indicator lamp does not come on when you switch on the ignition or does not go out again after a few seconds once the drive system is running or comes on again, the supple-
mental restraint systems are malfunctioning.
In the event that a malfunction of the SRS is indicated as described in scenario 2, the SRS may
not be operational. For your safety, we strongly recommend that you contact an authorized
electric drive smart center immediately to have the system checked; A malfunctioning SRS system may not deploy when needed in an accident resulting in serious or fatal injury, or it
might deploy unexpectedly and unnecessarily which could result in an accident and/or
injury to you or to others.
! If the SRS indicator lamp comes on while driving, have the system checked at an
authorized electric drive smart center immediately.
It is possible that the air bag and the emergency tensioning device could be activated
unintentionally or will not function in the event of an accident.
i Information on the operating principle of the air bags can be found in the “Safety”
section (Y page 33). What to do if ...
169>> Practical hints. Z
Page 172 of 222
Problem Possible causes/consequences and
M
MSolutions ÷
The ESP ®
warn-
ing lamp
flashes while
driving. The ESP
®
has engaged because of detected traction loss in at
least one tire.
X When driving off, apply as little throttle as possible.
X While driving, ease up on the accelerator pedal.
X Adapt your speed and driving to the prevailing road and
weather conditions. ÷
The ESP ®
warn-
ing lamp illu-
minates con-
tinuously while
the drive sys-
tem is running. The ESP
®
is not operational due to a system failure.
X Have the system checked at an authorized electric drive
smart center. The ESP
®
is not available.
X Have the system checked at an authorized electric drive
smart center. G
WARNING
When the ESP ®
warning lamp is illuminated continuously, the ESP ®
is not available or not
operational due to a system failure.
Adapt your speed and driving to the prevailing road conditions and the non-operating status
of the ESP ®
.
i It may be possible to clear a system failure by restarting the drive system.
X Restart the drive system.
If the warning lamp still does not go out, have the system checked at an authorized
electric drive smart center immediately.
i More information on the ESP ®
can be found in the “Safety” section (Y page 47).Problem Possible causes/consequences and
M MSolutions D
The yellow EPS
warning lamp
illuminates
while the drive
system is run-
ning. The Electronic Power Steering (EPS)* is not available.
X Have the EPS checked at an authorized smart electric drive
center immediately. G
WARNING
When the EPS is not available a higher degree of effort is necessary to steer the vehicle. Have the system checked at an authorized electric drive smart center. 170
What to do if ...>> Practical hints.
* optional
Page 173 of 222
Vehicle
Problem Possible causes/consequences and
M
MSolutions #
The red 12-V-
battery indica-
tor lamp illu-
minates while
driving or does
not go out after
the drive sys-
tem is started. The 12-V-battery is not being charged.
X
Stop the vehicle immediately in a safe location.
X Do not continue to drive.
X Switch off the drive system.
X Engage the parking brake when leaving the vehicle.
X Contact Roadside Assistance or an authorized electric drive
smart center. N
The yellow
high-voltage
battery warn-
ing lamp comes
on while driv-
ing. There may be a malfunction in the high-voltage system.
Contact an authorized electric drive smart center immediately
and have the high-voltage system checked. K
The high‑beam
headlamp indi-
cator lamp does
not illuminate
when the
high‑beam
headlamps are
switched on or
when using the
high‑beam
flasher. The high‑beam headlamp indicator lamp has failed.
X Have the high‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. M
The low‑beam
headlamp indi-
cator lamp does
not illuminate
when the
low‑beam head-
lamps are
switched on. The low‑beam headlamp indicator lamp has failed.
X Have the low‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. What to do if ...
171>> Practical hints. Z
Page 174 of 222
Problem Possible causes/consequences and
M
MSolutions #!
The turn signal indi-
cator lamp(s) do(es)
not illuminate when
the ignition is
switched on and the
corresponding turn
signal is switched on
or the hazard warning
flasher is switched
on. The turn signal indicator lamp(s) has (have) failed.
X Have the turn signal indicator lamp(s) checked at an author-
ized electric drive smart center. #!
The turn signal indi-
cator lamp(s) flashes
at double frequency. One of the turn signals is malfunctioning.
X Replace the bulb as soon as possible (Y page 180).
or
X Have the turn signal checked at an authorized electric drive
smart center as soon as possible. Drive system
Problem Possible causes/consequences and
M MSolutions ?
The red coolant
temperature
warning lamp
illuminates. The coolant is too hot. The high-voltage battery and/or the
drive system are not cooled sufficiently.
X Stop the vehicle immediately in a safe location.
X Switch off the drive system.
X Engage the parking brake when leaving the vehicle.
X Contact Roadside Assistance or an authorized electric drive
smart center. 172
What to do if ...>> Practical hints.
Page 175 of 222
Problem Possible causes/consequences and
M
MSolutions þ
The yellow
drive diagnos-
tics indicator
lamp comes on
while driving. There may be a malfunction in the drive system.
X Have the vehicle checked at an authorized electric drive
smart center immediately. þ
The red drive
diagnostics
warning lamp
comes on while
driving. There may be a malfunction in the drive system.
X Stop the vehicle immediately in a safe location.
X Do not continue to drive.
X Switch off the drive system.
X Engage the parking brake when leaving the vehicle.
X Contact Roadside Assistance or an authorized electric drive
smart center. Tire Pressure Monitoring System (TPMS)*
Problem Possible causes/consequences and
M MSolutions h
The yellow com-
bination low
tire pressure/
TPMS malfunc-
tion telltale
illuminates
continuously. The TPMS detects a loss of pressure in at least one tire.
X Carefully bring the vehicle to a halt, avoiding abrupt steer-
ing and braking maneuvers. Observe the traffic situation
around you.
X Check and correct tire inflation pressure as required
(Y page 129).
If the tire inflation pressure in the respective tire(s) has
(have) been corrected, the combination low tire pressure/TPMS
malfunction telltale goes out after a few minutes of driving.
See also “Restarting the TPMS” (Y page 132).h
The combina-
tion low tire
pressure/TPMS
malfunction
telltale flashes
60 seconds and
then stays illu-
minated. There is a malfunction in the TPMS.
X Have the TPMS checked at an authorized electric drive smart
center.
After the malfunction has been remedied the combination low
tire pressure/TPMS malfunction telltale goes out after a few
minutes of driving. G
WARNING
Each tire should be checked monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the Tire and Loading Information placard. If your vehicle has tires of a different size than the size indicated on the Tire and Loading Infor- mation placard, you should determine the proper tire inflation pressure for those tires. What to do if ...
173>> Practical hints.
* optional Z
Page 176 of 222
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is significantly underinflated.
Accordingly, when the low tire pressure telltale illuminates, you should stop and check your
tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly
underinflated tire causes the tire to overheat and can lead to tire failure.
Underinflation also increases energy consumption, reduces tire tread life, and may affect
the vehicle’s handling and stopping ability. Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if underinflation has not reached the level to trigger illumination of the
TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when the system is not operating properly. The TPMS malfunction indicator is combined with the lowtire pressure telltale. When the system detects a malfunction, the telltale will flash for
approximately 1 minute and then remain continuously illuminated.
This sequence will continue upon subsequent vehicle start-ups as long as the malfunction
exists. When the malfunction indicator is illuminated, the system may not be able to detect
or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the installation of incom-
patible replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function properly. 174
What to do if ...>> Practical hints.

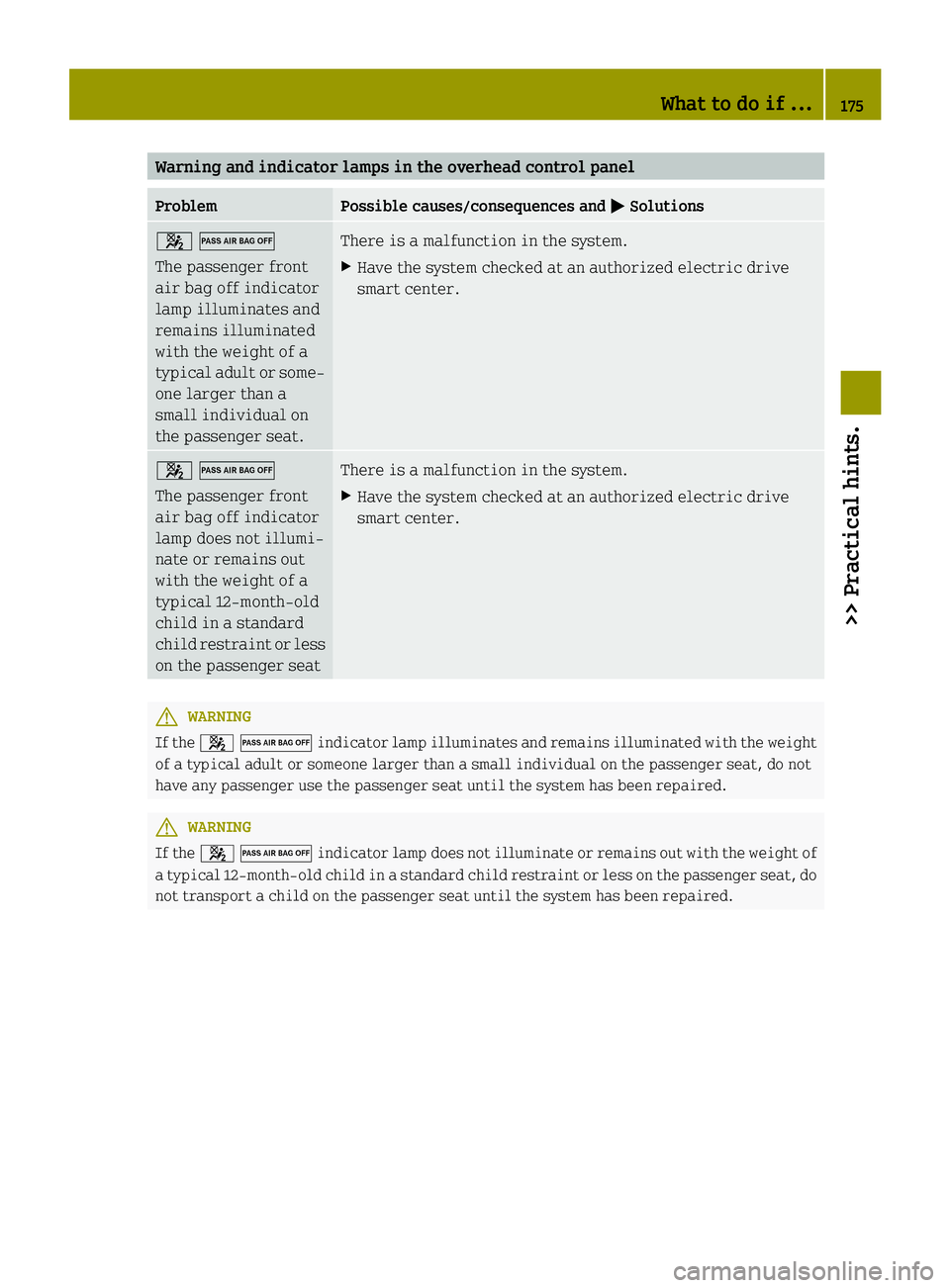

Page 177 of 222
Warning and indicator lamps in the overhead control panel
Problem Possible causes/consequences and
M
MSolutions 40
The passenger front
air bag off indicator
lamp illuminates and
remains illuminated
with the weight of a
typical adult or some-
one larger than a
small individual on
the passenger seat. There is a malfunction in the system.
X Have the system checked at an authorized electric drive
smart center. 40
The passenger front
air bag off indicator
lamp does not illumi-
nate or remains out
with the weight of a
typical 12‑month‑old
child in a standard
child restraint or less
on the passenger seat There is a malfunction in the system.
X Have the system checked at an authorized electric drive
smart center. G
WARNING
If the 40indicator lamp illuminates and remains illuminated with the weight
of a typical adult or someone larger than a small individual on the passenger seat, do not
have any passenger use the passenger seat until the system has been repaired. G
WARNING
If the 40indicator lamp does not illuminate or remains out with the weight of
a typical 12‑month‑old child in a standard child restraint or less on the passenger seat, do not transport a child on the passenger seat until the system has been repaired. What to do if ...
175>> Practical hints. Z
Page 178 of 222
Loss of key
Problem Possible causes/consequences and
M
MSolutions You lose a key. X
Have the key deactivated at an authorized electric drive
smart center.
X Report the loss of the key to your car insurance company
immediately.
X If necessary, have the mechanical lock replaced.
Your authorized electric drive smart center will be glad to
supply you with a replacement following an identity check. Acoustic warning signals
Problem Possible causes/consequences and
M MSolutions A warning signal
sounds while driving. You are driving with the parking brake engaged.
X Release the parking brake (Y page 77).A warning signal
sounds when opening
the driver’s door. You have opened the driver’s door while the exterior lighting
is still switched on.
X Turn the exterior lamp switch to position $.A warning signal
sounds. The door is opened while a gear is engaged with the drive sys-
tem running and neither the brake nor accelerator pedals are
depressed.
X Close the driver’s and passenger door.
X Move the gear selector lever to park position P.
or
X Switch off the drive system. You open the driver’s door with the key in starter switch posi-
tion 0to remind you not to leave the key in the vehicle.
X Close the driver’s door.
or
X Remove the key from the starter switch. A warning signal
sounds. The seat belts are not fastened when the drive system is star-
ted. For details, see seat belt telltale (Y
page 168).
X Fasten your seat belts. 176
What to do if ...>> Practical hints.
Page 179 of 222
Problem Possible causes/consequences and
M
MSolutions A warning signal
sounds when parking. You have not engaged the parking brake before releasing the
brake pedal and switching off the drive system.
X Switch on the ignition to deactivate the acoustic warning.
X Engage the parking brake.
X Make sure the gear selector lever is in park position P.
X Turn the key to starter switch position 0.
X Remove the key from the starter switch.
For safety, it is important that you perform the parking pro-
cedure as described (Y page 77).You can hear a contin-
uous noise from the
front axle when brak-
ing. The vehicle is equipped with a mechanical/acoustic brake pad
indicator.
X Have the brake pads checked at an authorized electric drive
smart center. Unlocking/locking manually
Unlocking the vehicle
You can unlock the driver’s door and the
charge socket flap by unlocking the
driver’s door using the key. The lock cyl-
inder is fitted with a cap. X Press button #on the key.
i For replacing the transmitter battery
(Y page 178). X
Remove cap :from lock cylinder ;.
X Unlock the driver’s door.
The driver’s door and the charge socket
flap are unlocked. i
To unlock the vehicle centrally press
the central unlocking switch in the upper center console (Y page 27). Locking the vehicle
If you can no longer lock the vehicle using the remote control and you do not have a
spare transmitter battery at hand, please
proceed as follows:
X Open the driver’s door.
X Press the central locking switch
(Y page 53).
The indicator lamp on the central lock-
ing switch comes on, when the starter
switch is in position 1.
The indicator lamp on the central lock-
ing switch flashes, when the starter
switch is in position 0.
X Remove the key from the starter switch,
take it with you, and close all doors.
The vehicle is now locked. Unlocking/locking manually
177>> Practical hints. Z
Page 180 of 222
Closing the rear soft top
If the rear soft top does not lock properly
after being closed, proceed as follows:
X Stop the vehicle in a safe location.
X Engage the parking brake.
X Make sure the key is in starter switch
position 1.
X Fold up the rear soft top completely.
The rear soft top stops in the unlocked
position.
X Within one minute, press and hold symbol
G on the retractable soft top switch
for 15 seconds twice.
The rear soft top closes the locking
hooks.
X Close the retractable soft top com-
pletely.
X Have the rear soft top checked at an
authorized electric drive smart center. Replacing transmitter battery
Notes
The remote control’s transmitter battery is
almost spent when the turn signals flash
rapidly nine times in a row when locking
the vehicle.
i If you do not replace the transmitter
battery, after about 100 more times you
will no longer be able to lock or unlock
the vehicle using the remote control.
X Replace the transmitter battery.
or
X Have the transmitter battery replaced at
an authorized electric drive smart cen-
ter. G
WARNING
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help immediately. Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states/provinces require sellers of batteries to accept old
batteries for recycling. Replacing battery
Replacement battery: CR 2016 button cell ! Replace the remote control’s transmit-
ter battery every two years at the latest.
Otherwise there is a danger of leakage.
The remote control could be damaged. X
Insert a suitable object such as a coin
into the slot at the eyelet of the key hous-
ing.
X Carefully turn the coin until key housing
top half :is unlatched.
X Open key housing top half :to the side. X
Remove transmitter battery ;from the
board. 178
Replacing transmitter battery>> Practical hints.
