To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to position Lwhen driving or
when traffic and/or ambient lighting con-
ditions require you to do so.
In low ambient lighting conditions, only
switch from position ÃtoL with the
vehicle at a standstill in a safe location.
Switching from position ÃtoL will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting con- ditions may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible
for the operation of the vehicle’s lights at
all times.
X Turn the exterior lamp switch to position
Ã.
With the key in starter switch position 1,
the tail and parking lamps, the license
plate lamps, and the side marker lamps
will come on and go out automatically
depending on the brightness of the ambi-
ent light.
With the engine running, the low‑beam
headlamps, the tail and parking lamps,
the license plate lamps and the side
marker lamps will come on and go out
automatically depending on the bright-
ness of the ambient light.
Daytime running lamp mode* In USA, the daytime running lamp mode can
be deactivated.
In Canada, the daytime running lamp mode
is mandatory and therefore in a constant
mode.
Depending on the vehicle equipment, your
vehicle comes either with low-beam day-
time running lamps or with LED daytime
running lamps. Switching on:
X Start the drive system.
The daytime running lamps are switched
on.
On vehicles with low beam daytime run-
ning lamps the parking lamps also come
on.
Switching off - vehicles without rain-
light sensor*:
X Switch on the parking lamps Tor the
low‑beam headlamps M.
The daytime running lamps are switched
off.
Switching off - vehicles with rain-light
sensor*:
X Switch on the parking lamps Tor the
low‑beam headlamps M.
The daytime running lamps are switched
off.
or
X Turn the exterior lamp switch to position
Ã.
With the engine running, the low‑beam
headlamps, the tail and parking lamps,
the license plate lamps and the side
marker lamps will come on and go out
automatically depending on the bright-
ness of the ambient light.
Deactivating (USA only):
X Switch off the ignition.
X Remove the key from the starter switch.
X Switch on the high-beam flasher and
press button #on the key simultane-
ously.
An acoustic signal sounds.
The daytime running lamp mode is deac-
tivated. Lighting
65>> Controls.
* optional Z

When returning to the vehicle
X
Press button #on the key either once or
twice.
The vehicle is either selectively or
globally unlocked.
The interior lamps come on and then go
out again after 12 seconds. Ambient lighting*
The ambient lighting illuminates the
vehicle interior with 6 LEDs when the low- beam headlamps are switched on. The LEDs
can be dimmed.
The LEDS are located
R in the overhead control panel
R in the door pockets, driver’s and
passenger side
R in the storage trays to the left and right
of the steering wheel
In addition to the ambient lighting, the
footwells on the driver’s and passenger
side are also illuminated by separate
lamps.
i When you open a door, the interior
lighting comes on and the brightness of
lamps in the footwells increases. X
Make sure the key is in starter switch
position 1.
X Switch on the parking lamps.
X To brighten or dim ambient lighting:
Press button :on the instrument cluster repeatedly until the desired setting is
reached.
The current setting is stored.
i When adjusting the ambient lighting,
the illumination level for instrument
cluster is also changed (Y page 82). Front fog lamps
G
WARNING
Vehicles with rain-light sensor*:
In low ambient lighting or foggy condi-
tions, only switch from position Ãto
L with the vehicle at a standstill in a
safe location. Switching from ÃtoL
will briefly switch off the headlamps.
Doing so while driving in low ambient
lighting conditions may result in an acci- dent.
i Fog lamps will operate with the parking
lamps and/or the low‑beam headlamps on.
Fog lamps should only be used in con-
junction with low‑beam headlamps. Con- sult your State or Province Motor Vehicle
Regulations regarding permissible
lamp operation.
i Vehicle with rain-light sensor*:
Fog lamps cannot be switched on manually
with the exterior lamp switch in posi-
tion Ã. To switch on the fog lamps,
turn the exterior lamp switch to position
L first. Lighting
67>> Controls.
* optional Z

Windshield wipers
Switching windshield wipers on and off
Example illustration coupé
X Make sure the key is in starter switch
position 1.
X Switching on: Turn the wiper switch to
position 2or3, depending on the
intensity of the rain.
! Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a dry
windshield. If it is necessary to operate the windshield wipers in dry weather
conditions, always operate the wind-
shield wipers with windshield washer
fluid.
! If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons, stop the vehicle in a
safe location and
R -
remove the key from the starter
switch
- engage the parking brake
before attempting to remove any
blockage.
R Remove blockage.
R Turn the windshield wipers on again.
X Switching off: Turn the wiper switch to
position g. Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Vehicles with rain-light sensor*: When you select intermittent wiping, the sensor is
activated. The sensor automatically sets a
suitable wiping interval depending on thewetness of the sensor surface.
! Vehicles with rain-light sensor*:
Do not leave windshield wipers in inter-
mittent setting when the vehicle is taken to an automatic car wash or during wind-
shield cleaning. Windshield wipers will operate in the presence of water sprayedon the windshield, and windshield wip-
ers may be damaged as a result.
! Vehicles with rain-light sensor*:
If you have set intermittent wiping, dirt
on the surface of the sensor or optical
effects may cause the windshield wipers
to wipe in an undesired fashion. This
could then damage the windshield wiper
blades or scratch the windshield. You
should therefore switch off the wind-
shield wipers when weather conditions
are dry.
X Make sure the key is in starter switch
position 1.
X Activating intermittent wiping: Turn the
wiper switch to position 1.
After the initial wipe, pauses between
wipes are automatically controlled
depending on the vehicle speed and by the
rain-light sensor*.
X Deactivating intermittent wiping: Turn
the wiper switch to position g. Windshield wipers
69>> Controls.
* optional Z

Audio system basic
The audio system basic contains the fol-
lowing functions:
R Radio (FM/AM)
R Radio Broadcast Data System (RBDS) and
radio text
R AUX and USB socket (Y page 96)
! Please be sure to read the operating
instructions for the audio system basic
before using the unit. Familiarize your- self with the various functions of the
unit so that you are able to operate it
easily, reliably and correctly at any
time. :
On/off and volume switch
; Display
= Skip/Scroll/Frequency search switches
? Tone settings/Mute/Back control panel
A Stored station buttons
B Radio/Media/System control panel Audio system navigation/multimedia*
The audio system navigation/multimedia
contains the following functions:
R Radio (FM/AM)
R Radio Broadcast Data System (RBDS)
R AUX and USB-socket
R Bluetooth ®
hands-free device
R Navigation
R Audio operation from CD/DVD or SD Card,
via AUX/USB/iPod ®
, or Bluetooth ®
Audio R
Video operation from CD/DVD or SD Card,
via AUX/USB/iPod ®
R Image display from CD/DVD or SD Card,
via USB/iPod ®
! Please be sure to read the operating
instructions for the audio system navi-
gation/multimedia before using the
unit. Familiarize yourself with the var-
ious functions of the unit so that you are able to operate it easily, reliably and
correctly at any time. :
Bluetooth ®
connection indicator lamp
; Display
= Microphone
? Light sensor
A Eject button
B Rotary/Push button
C Menu button AUX and USB sockets
You can connect mobile audio devices such as an MP3 player via the AUX and USB sock-
ets using commercially available 3.5 mm
socket plug (AUX) or USB connector cable
(USB).
The AUX and USB sockets are located in the glove box. 96
Audio system*>> Controls.
* optional

X
Removing: Fold the wiper arm away from
the rear window until you feel it engage.
X Fold wiper blade :away from the wiper
arm in direction of arrow ;until it
disengages from its mounting.
X Detach wiper blade :.
X Installing: Push the new wiper blade onto
the wiper arm until you feel it engage.
X Fold the wiper blade into a position par-
allel to the wiper arm.
X Fold the wiper arm backward to rest on
the rear window.
Make sure to hold on to the wiper when
folding the wiper arm back.
! Make sure the wiper blade is properly
installed. An improperly installed
wiper blade may cause rear window dam- age. Adjusting the washer jet nozzles
:
Front washer jet nozzles
; Rear washer jet nozzles
X Adjusting: Use a needle to move washer
jet nozzles :or; left, right, up, or
down.
i Check the setting of the washer jet noz-
zles at regular intervals. The washer jet
nozzles are correctly set when the water
jet hits the windshield or the rear win-
dow approximately in the center. Flat tire
Preparing the vehicle
Upon experiencing any type of problem
with the vehicle’s tires, switch on the haz-
ard warning flasher, carefully slow down
and exit the roadway in a cautious manner.
X Park the vehicle at a safe distance from
moving traffic on a hard, flat surface
when possible.
X Make sure the tire valve of the damaged
tire is located below the horizontal axle
of the wheel hub.
X Engage the parking brake.
X Turn the steering wheel so that the front
wheels are in a straight ahead position.
X Move the gear selector lever to park
position P.
X Switch off the drive system.
X Remove the key from the starter switch
and take the key with you.
i Open door only when conditions are safe
to do so.
X Have any passenger exit the vehicle at a
safe distance from the roadway. Using the tire repair kit
! Depending on the type of damage on the
tire, the tire sealant could damage the
sensor of the Tire Pressure Monitoring
System (TPMS)*. Such damage is not cov-
ered by the smart Limited Warranty.
When having the damaged tire replaced,
also have the TPMS sensors* checked for
proper function. When the sensor is dam-
aged, the TPMS* will not function prop-
erly. The sensor must then be replaced at an authorized electric drive smart cen-
ter as soon as possible.
i Depending on production date of your
vehicle, it will be equipped with version
1 or version 2 of the tire repair kit.
Please make sure to refer to the descrip- Flat tire
187>> Practical hints.
* optional Z

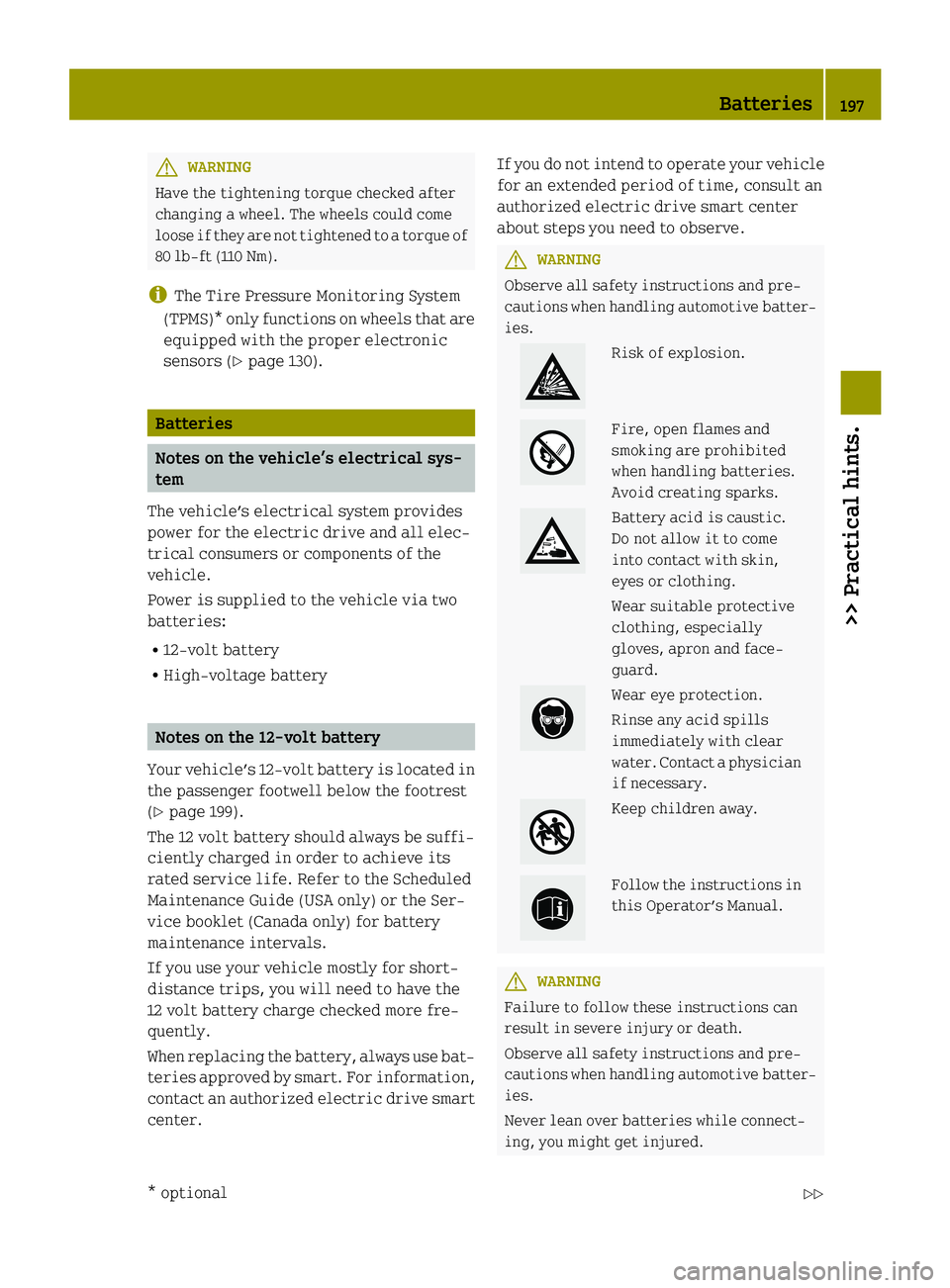

G
WARNING
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
80 lb-ft (110 Nm).
i The Tire Pressure Monitoring System
(TPMS)* only functions on wheels that are
equipped with the proper electronic
sensors (Y page 130). Batteries
Notes on the vehicle’s electrical sys-
tem
The vehicle’s electrical system provides
power for the electric drive and all elec-
trical consumers or components of the
vehicle.
Power is supplied to the vehicle via two
batteries:
R 12-volt battery
R High-voltage battery Notes on the 12‑volt battery
Your vehicle’s 12‑volt battery is located in
the passenger footwell below the footrest
(Y page 199).
The 12 volt battery should always be suffi-
ciently charged in order to achieve its
rated service life. Refer to the Scheduled
Maintenance Guide (USA only) or the Ser-
vice booklet (Canada only) for battery
maintenance intervals.
If you use your vehicle mostly for short-
distance trips, you will need to have the
12 volt battery charge checked more fre-
quently.
When replacing the battery, always use bat-
teries approved by smart. For information,
contact an authorized electric drive smart
center. If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized electric drive smart center
about steps you need to observe. G
WARNING
Observe all safety instructions and pre-
cautions when handling automotive batter- ies. Risk of explosion.
Fire, open flames and
smoking are prohibited
when handling batteries.
Avoid creating sparks.
Battery acid is caustic.
Do not allow it to come
into contact with skin,
eyes or clothing.
Wear suitable protective
clothing, especially
gloves, apron and face-
guard. Wear eye protection.
Rinse any acid spills
immediately with clear
water. Contact a physician
if necessary. Keep children away.
Follow the instructions in
this Operator’s Manual. G
WARNING
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and pre-
cautions when handling automotive batter- ies.
Never lean over batteries while connect-
ing, you might get injured. Batteries
197>> Practical hints.
* optional Z

X
Remove the jumper cables from negative terminals =and ?first.
X Remove the jumper cables from positive terminals :and ;.
You can now switch on the headlamps.
X Remount the positive terminal cover.
X Have the 12-volt battery checked at the nearest authorized electric drive smart center.
i Please keep in mind that it will take quite some time to charge the 12-volt battery.
When you switch off the drive system after driving a short distance, you may not be able to start it again.
Charge the 12-volt battery completely as soon as possible. Towing
About towing
This section offers information on towing
methods for breakdown situations and
emergency towing. Recommended towing method - Break-
down situation
! To prevent damage during transport, do
not tie down the vehicle by its chassis or suspension parts — use only wheel straps to position and hold down the vehicle.
Improper tie down on a flatbed carrier
truck or trailer can damage suspension
parts and body panels.
smart recommends that the vehicle be
transported with all wheels off the ground
using a flatbed carrier truck or appropri- ate wheel lift/dolly equipment.
Always have your vehicle transported:
R when the Nwarning lamp for the high-
voltage system lights up in the instru-
ment cluster
R when the Do not tow (away)
Do not tow (away) message
appears in the instrument cluster
R when the multifunction display is inop-
erative R
when one or several of the following
warning lamps light up:
- þ Drive diagnostics (red)
- # 12‑Volt battery
D Power steering
R if the brake pedal already starts to pul-
sate just after towing begins
R if you have to transport the vehicle over
long distances
X Switch off the tow‑away protection* and
interior motion sensor* (Y page 50). Emergency towing
When circumstances do not permit the rec-
ommended towing method, the vehicle may
be towed with all wheels on the ground
using a strap or tow bar connected to
another vehicle. Only tow the vehicle as far as necessary to have the vehicle moved to a
safe location where the recommended tow-
ing method can be employed. G
WARNING
If circumstances require towing the vehi-
cle with all wheels on the ground, always tow
with a tow bar if:
R the drive system will not run
R there is a malfunction in the brake sys-
tem
R there is a malfunction in the power sup-
ply or in the vehicle’s electrical system Towing
203>> Practical hints.
* optional Z

No. Accessory/Component Amperage Color
E
CPC, shifter, brake force booster vacuum
pump 7.5 A Brown
F
Coolant pumps 1 and 2, high-voltage battery 15 A Blue
G
ESP
®
control unit 25 A Neutral
H
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view mir-
ror heating, anti-theft warning system,
rain-light sensor, charge level and power
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS), brake and turn signal lamps (left and right) 10 A Red
I
— — —
J
— — —
K
Safety circuit high-voltage battery 15 A Blue
L
— — —
M
Rear window wiper (coupé only) 15 A Blue
N
ESP
®
control unit, EPS control unit, restraint
systems 10 A Red
O
Electric drive components, engine control
unit, transmission control unit, on-board
diagnostics socket, sound generator 7.5 A Brown
P
Air conditioning system, exterior rear view
mirror adjustment, washer pump, audio, seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only), backup lamp 10 A Red
Q
Auxiliary power outlet 15 A Blue
R
Left low‑beam headlamp 7.5 A Brown
S
Right low‑beam headlamp 7.5 A Brown
T
— — —
U
Right high‑beam headlamp 7.5 A Brown
V
Left high‑beam headlamp 7.5 A Brown
W
Electric drive components 7.5 A Brown Fuses
209>> Practical hints. Z

Parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Genuine smart Parts are subjected to strin- gent quality inspections. Each part has
been specifically developed, manufac-
tured or selected for and adapted to smart
vehicles.
Therefore, Genuine smart Parts should be
installed.
! The use of non-genuine smart parts and
accessories not authorized by smart
could damage the vehicle, which is not
covered by the smart Limited Warranty,
or could compromise the vehicle’s dura-
bility or safety. Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the smart USA
Warranty booklet (USA only) or the Warranty
booklet (Canada only).
Your authorized electric drive smart cen-
ter will exchange or repair any defective
parts originally installed on the vehicle
in accordance with the terms of the follow-
ing warranties:
R smart USA Limited Warranty (USA only)
R New Vehicle Limited Warranty (Canada
only)
R Emission System Warranty
R Emission Performance Warranty
R Corrosion Warranty
R California, Connecticut, Maine, Massa-
chusetts, New York, Pennsylvania, Rhode
Island, and Vermont Emission Control
System Warranty
R smartmove Assistance (Canada only)
R State Warranty Enforcement Laws (Lemon
Laws, USA only)
Replacement parts and accessories are
covered by the smart Parts and Accessories warranties, copies of which are available
at any authorized electric drive smart cen-
ter. Loss of Warranty booklet
Should you lose your smart USA Warranty
booklet (USA only) or the Warranty booklet
(Canada only), have an authorized electric
drive smart center arrange for a replace-
ment. It will be mailed to you. Drive system and high-voltage system
electronics
Work on drive system and high-voltage
system electronics G
WARNING
Always have maintenance work on drive sys-
tem and high-voltage system electronics
and components performed by a qualified
specialist, e.g. at an authorized electric
drive smart center. In particular, work rel-
evant to safety or on safety related systems must be carried out at a qualified special-ist workshop with expert knowledge of
electric drive vehicles.
! Always have maintenance work on drive
system and high-voltage system elec-
tronics and components, such as control
modules, sensors and connecting cables,
performed by a qualified specialist
workshop with the necessary expert
knowledge of electric drive vehicles and
the tools to carry out the work required,
e.g. at an authorized electric drive
smart center. Otherwise there is a danger
that vehicle components may wear more
rapidly, which may void the vehicle’s
warranty. 212
Drive system and high-voltage system electronics>> Technical data.
