Page 12 of 218
Storage compartments
....................102
Coin holder ............................. 102
Door pockets ........................... 102
Drawer ................................... 103
Glove box ................................ 103
in the tailgate ........................ 104
Parcel nets ............................. 103
Storage tray in center console ....103
Storage trays next to steering
whee l..................................... 102
Storing tires ............................... 132
Sun screen ................................... 105
Sun visors ................................... 105T
Tailgate Closin g............................... 53, 55
Opening .............................. 52, 54
Tail lamps ................................... 174
Technical data Brake fluid ............................. 212
Coolant .................................. 213
Dimensions and weights ............ 209
Identification label s............... 208
Rims and tire s......................... 210
Service fluids and capacities .....211
Windshield/rear window washer
system ................................... 212
Temperature
Coolant .................................. 146
Interior temperature .................. 97
Outside ................................... 83
Tether anchorage points
see Children in the vehicle
Thorax-pelvis side air bags .............36
Tightening torque Wheels ................................... 133
TIN (Tire Identification
Number) ................................. 136, 139
Tire and Loading Information
placard ....................................... 127
Tire and loading terminology ..........137
Tire Identification Number see TIN Tire inflation pressure
Checking ................................ 124
Importan tnotes on .................... 124
Placard on driver’s door B-
pillar .................................... 127
Tire labeling ............................... 133
Tire load rating ........................... 139
Tire ply composition and material
used ........................................... 139
Tire Pressure Monitoring System
(TPMS) ........................................ 125
Tire repair kit ....................... 154, 180
Tires .................................... 122, 210
Air pressure ........................... 122
Care and maintenance ................131
Cleaning ................................ 132
Direction of rotation, spinning ... 131
Driving instructions ................143
Flat tire ................................. 180
Important notes on tire
inflation pressure ...................124
Inflation pressure ....................124
Information placard .................. 127
Inspection .............................. 131
Labeling ................................ 133
Load rating ............................. 139
Ply composition and material
used ...................................... 139
Problems under-/overinflation ...124
Retreads ................................. 122
Rims and tires (technical data) ...210
Rotatio n................................. 133
Service life ............................ 131
Sizes ..................................... 210
Snow chain s............................ 140
Speed rating ................ 135, 139, 145
Storing .................................. 132
Temperature ...................... 124, 133
Terminology ............................ 137
Tire Identification Number ..136, 139
Tire Pressure Monitoring
System (TPMS) .......................... 125
Traction ..................... 132, 139, 144
Tread ..................................... 139
Tread depth ....................... 131, 140
Treadwear indicators ..........131, 140
Vehicle maximum load on ...........140 10
Index

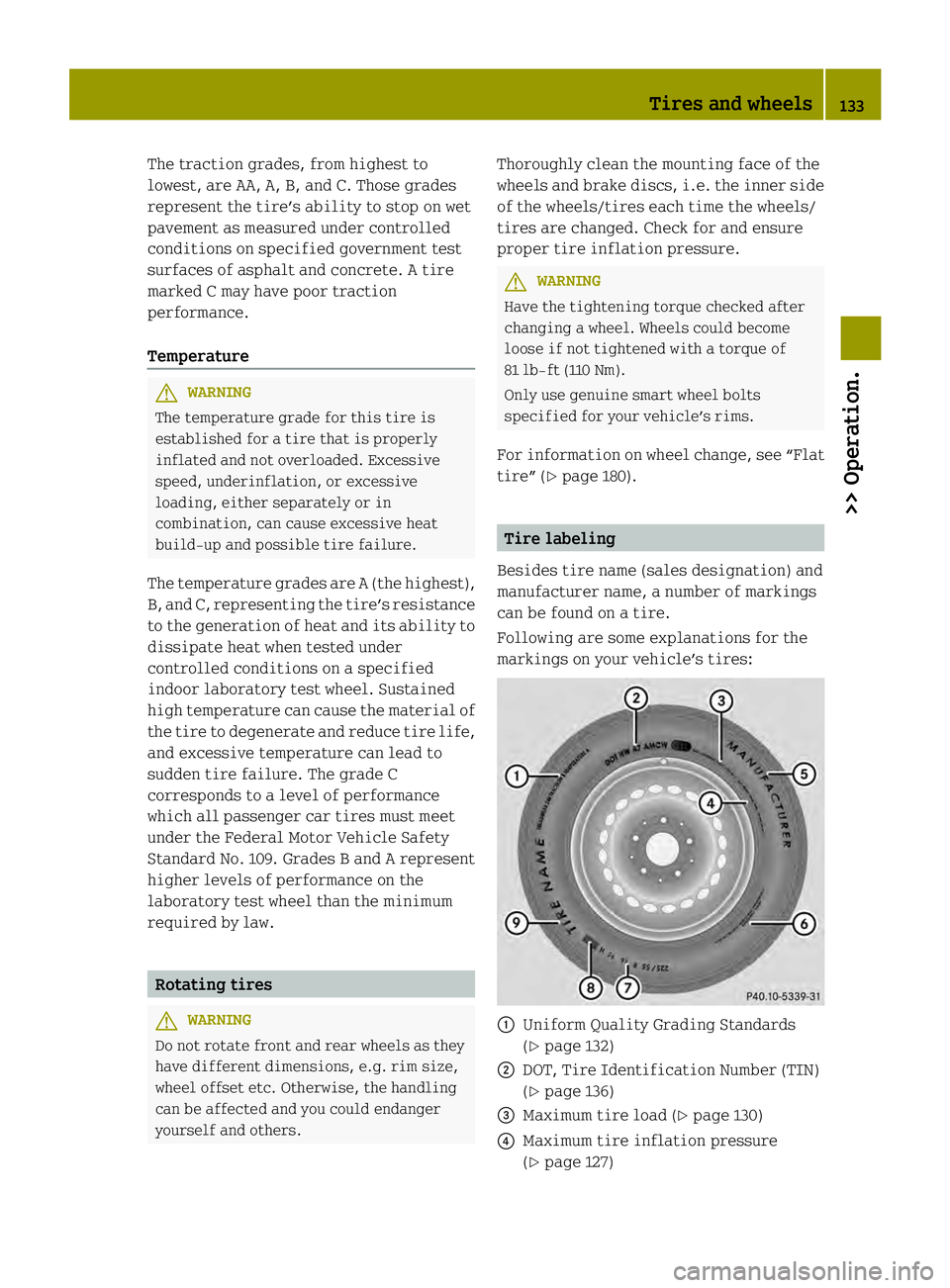

Page 135 of 218
The traction grades, from highest to
lowest, are AA, A, B, and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government test
surfaces of asphalt and concrete. A tire
marked C may have poor traction
performance.
Temperature G
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in
combination, can cause excessive heat
build-up and possible tire failure.
The temperature grades are A (the highest),
B, and C, representing the tire’s resistance
to the generation of heat and its ability to
dissipate heat when tested under
controlled conditions on a specified
indoor laboratory test wheel. Sustained
high temperature can cause the material of
the tire to degenerate and reduce tire life,
and excessive temperature can lead to
sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the
laboratory test wheel than the minimum
required by law. Rotating tires
G
WARNING
Do not rotate front and rear wheels as they
have different dimensions, e.g. rim size,
wheel offset etc. Otherwise, the handling
can be affected and you could endanger
yourself and others. Thoroughly clean the mounting face of the
wheels and brake discs, i.e. the inner side
of the wheels/tires each time the wheels/
tires are changed. Check for and ensure
proper tire inflation pressure. G
WARNING
Have the tightening torque checked after
changing awheel. Wheels could become
loose if not tightened with a torque of
81 lb‑ft (110 Nm).
Only use genuine smart wheel bolts
specified for your vehicle’s rims.
For information on wheel change, see “Flat
tire” (Y page 180). Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires: 0002
Uniform Quality Grading Standards
(Ypage 132)
0003 DOT, Tire Identification Number (TIN)
(Ypage 136)
002B Maximum tire load (Y page 130)
002A Maximum tire inflation pressure
(Ypage 127) Tires and wheels
133>> Operation. Z
Page 211 of 218
Example certification label (Canada vehicles)
0003
Vehicle Identification Number (VIN)
002B Paintwork code Vehicle Identification Number (VIN)
The Vehicle Identification Number (VIN)
can be found in the following locations:
R on the certification label on the driver’s
door B‑pillar (Y page 208)
R on the rear right on the cargo
compartment floor (Y page 209)
R in the lower edge of the windshield
(Y page 208)
X Open the cargo compartment.
X Fold back the carpet. 0002
VIN (on the cargo compartment floor) Vehicle specification
The quoted data apply only to the standard
vehicle. Contact an authorized electric
drive smart center for the corresponding
data of all special bodies and special
equipment. Main dimensions
Overall vehicle
length
107.4 in (2 727 mm)
Overall vehicle
width
11 69.0 in (1 752 mm)
Overall vehicle
height
62.1 in (1 555 mm)
Wheelbase
73.5 in (1 867 mm)
Turning circle
28.7 ft (8.75 m)
Weights
Cargo
compartment load
max. 110 lb (50 kg)
Roof load
None
This vehicle is not intended to carry items
on its roof. Thus roof rails and any roof-
mounted devices must not be used.
G
WARNING
No racks or loads may be secure dto the roof
of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off
11 Exterior rear view mirrors folded out. Vehicle specification
209>> Technical data.
* optional Z
