SMART FORTWO COUPE ELECTRIC DRIVE 2014 Manual PDF

Windshield wipers
Switching windshield wipers on and off
Example illustration coupé
X
Make sure the key is in starter switch
position 1.
X Switching on: Turn the wiper switch to
position 0048or0049, depending on the
intensity of the rain.
! Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a dry
windshield. If it is necessary to operate
the windshield wipers in dry weather
conditions, always operate the wind-
shield wipers with windshield washer
fluid.
! If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons, stop the vehicle in a
safe location and
R -
remove the key from the starter
switch
- engage the parking brake
before attempting to remove any
blockage.
R Remove blockage.
R Turn the windshield wipers on again.
X Switching off: Turn the wiper switch to
position 005A. Intermittent wiping
Only switch on intermittent wiping under
wet weather conditions or in the presence
of precipitation.
Vehicles with rain-light sensor*: When you
select intermittent wiping, the sensor is
activated. The sensor automatically sets a
suitable wiping interval depending on the
wetness of the sensor surface.
! Vehicles with rain-light sensor*:
Do not leave windshield wipers in inter-
mittent setting when the vehicle is taken
to an automatic car wash or during wind-
shield cleaning. Windshield wipers will
operate in the presence of water sprayed
on the windshield, and windshield wip-
ers may be damaged as a result.
! Vehicles with rain-light sensor*:
If you have set intermittent wiping, dirt
on the surface of the sensor or optical
effects may cause the windshield wipers
to wipe in an undesired fashion. This
could then damage the windshield wiper
blades or scratch the windshield. You
should therefore switch off the wind-
shield wipers when weather conditions
are dry.
X Make sure the key is in starter switch
position 1.
X Activating intermittent wiping: Turn the
wiper switch to position 0047.
After the initial wipe, pauses between
wipes are automatically controlled
depending on the vehicle speed and by the
rain-light sensor*.
X Deactivating intermittent wiping: Turn
the wiper switch to position 005A. Windshield wipers
69>> Controls.
* optional Z

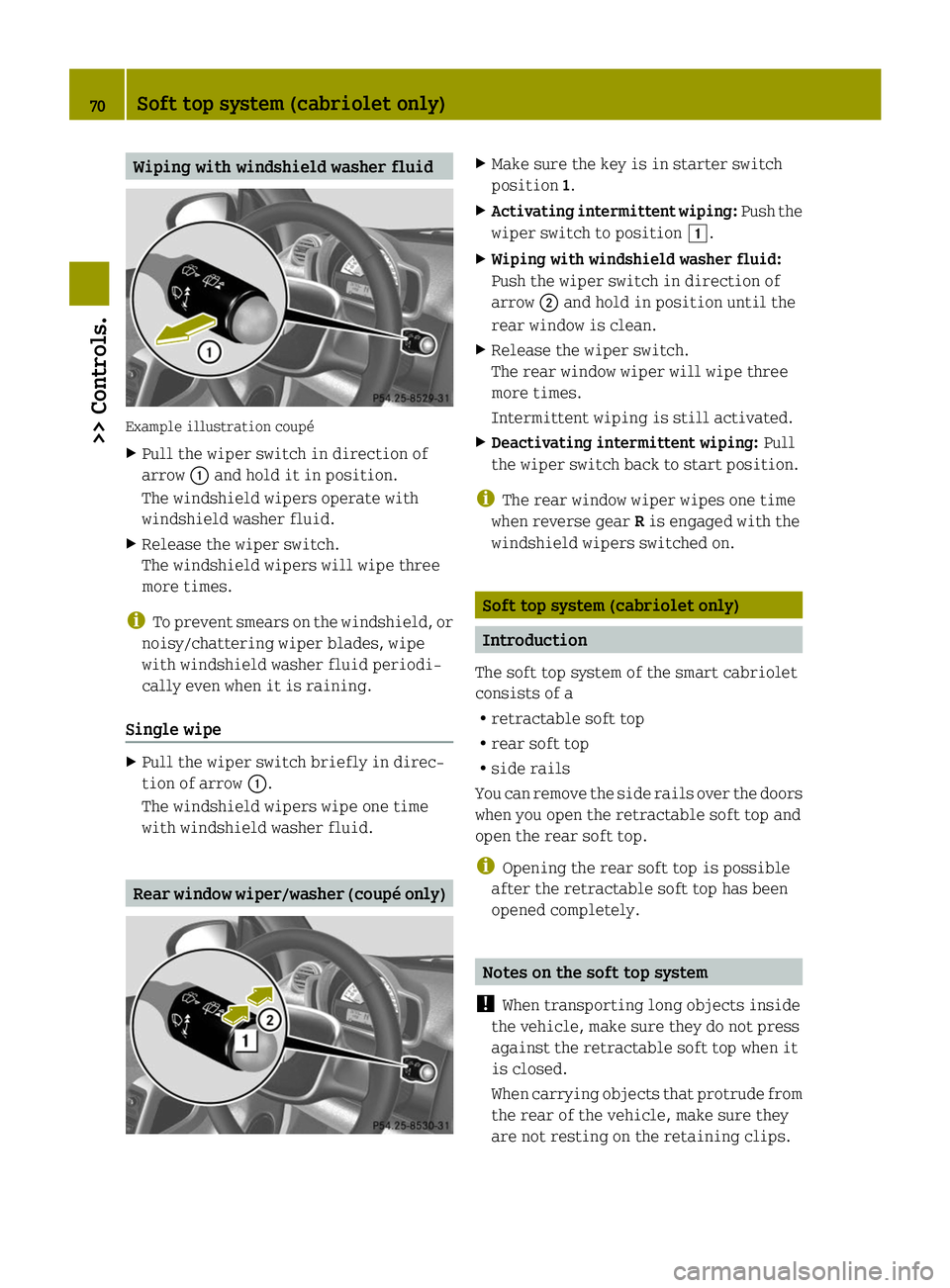

Wiping with windshield washer fluid
Example illustration coupé
X
Pull the wiper switch in direction of
arrow 0043and hold it in position.
The windshield wipers operate with
windshield washer fluid.
X Release the wiper switch.
The windshield wipers will wipe three
more times.
i To prevent smears on the windshield, or
noisy/chattering wiper blades, wipe
with windshield washer fluid periodi-
cally even when it is raining.
Single wipe X
Pull the wiper switch briefly in direc-
tion of arrow 0043.
The windshield wipers wipe one time
with windshield washer fluid. Rear window wiper/washer (coupé only) X
Make sure the key is in starter switch
position 1.
X Activating intermittent wiping: Push the
wiper switch to position 0047.
X Wiping with windshield washer fluid:
Push the wiper switch in direction of
arrow 0044and hold in position until the
rear window is clean.
X Release the wiper switch.
The rear window wiper will wipe three
more times.
Intermittent wiping is still activated.
X Deactivating intermittent wiping: Pull
the wiper switch back to start position.
i The rear window wiper wipes one time
when reverse gear Ris engaged with the
windshield wipers switched on. Soft top system (cabriolet only)
Introduction
The soft top system of the smart cabriolet
consists of a
R retractable soft top
R rear soft top
R side rails
You can remove the side rails over the doors
when you open the retractable soft top and
open the rear soft top.
i Opening the rear soft top is possible
after the retractable soft top has been
opened completely. Notes on the soft top system
! When transporting long objects inside
the vehicle, make sure they do not press
against the retractable soft top when it
is closed.
When carrying objects that protrude from
the rear of the vehicle, make sure they
are not resting on the retaining clips. 70
Soft top system (cabriolet only)>> Controls.

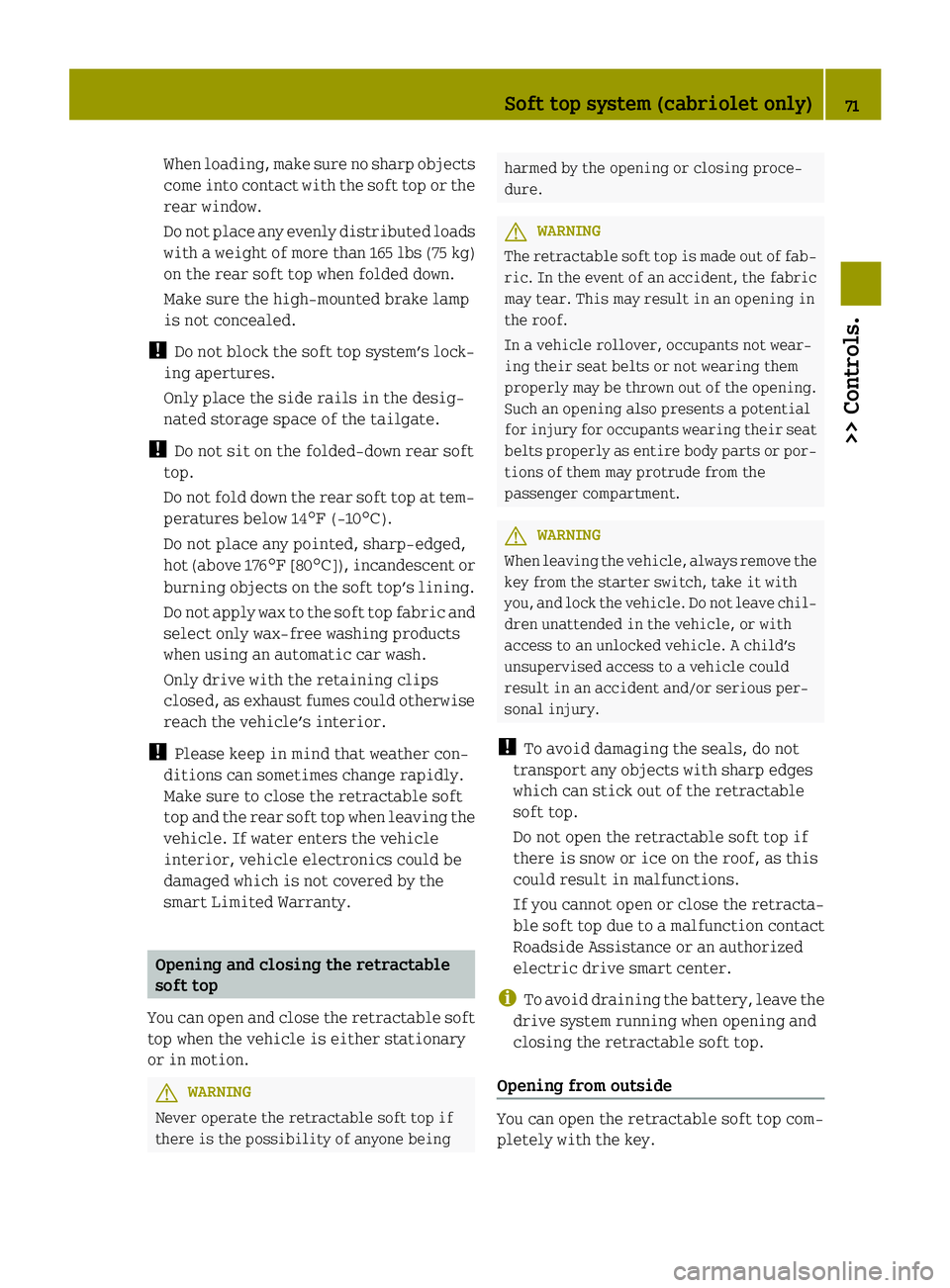

When loading, make sure no sharp objects
come into contact with the soft top or the
rear window.
Do not place any evenly distributed loads
with a weight of more than 165 lbs (75 kg)
on the rear soft top when folded down.
Make sure the high-mounted brake lamp
is not concealed.
! Do not block the soft top system’s lock-
ing apertures.
Only place the side rails in the desig-
nated storage space of the tailgate.
! Do not sit on the folded-down rear soft
top.
Do not fold down the rear soft top at tem-
peratures below 14¦ (-10¥).
Do not place any pointed, sharp-edged,
hot (above 176 ¦[80¥]), incandescent or
burning objects on the soft top’s lining.
Do not apply wax to the soft top fabric and
select only wax-free washing products
when using an automatic car wash.
Only drive with the retaining clips
closed, as exhaust fumes could otherwise
reach the vehicle’s interior.
! Please keep in mind that weather con-
ditions can sometimes change rapidly.
Make sure to close the retractable soft
top and the rear soft top when leaving the
vehicle. If water enters the vehicle
interior, vehicle electronics could be
damaged which is not covered by the
smart Limited Warranty. Opening and closing the retractable
soft top
You can open and close the retractable soft
top when the vehicle is either stationary
or in motion. G
WARNING
Never operate the retractable soft top if
there is the possibility of anyone being harmed by the opening or closing proce-
dure.
G
WARNING
The retractable soft top is made out of fab-
ric. In the event of an accident, the fabric
may tear. This may result in an opening in
the roof.
In a vehicle rollover, occupants not wear-
ing their seat belts or not wearing them
properly may be thrown out of the opening.
Such an opening also presents a potential
for injury for occupants wearing their seat
belts properly as entire body parts or por-
tions of them may protrude from the
passenger compartment. G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious per-
sonal injury.
! To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the retractable
soft top.
Do not open the retractable soft top if
there is snow or ice on the roof, as this
could result in malfunctions.
If you cannot open or close the retracta-
ble soft top due to a malfunction contact
Roadside Assistance or an authorized
electric drive smart center.
i To avoid draining the battery, leave the
drive system running when opening and
closing the retractable soft top.
Opening from outside You can open the retractable soft top com-
pletely with the key. Soft top system (cabriolet only)
71>> Controls. Z

Key with remote control
0043
0038Lock button
0044 0035Opening the retractable soft top
0087 0034Unlock button
X Press button 0035on the key for approx-
imately two seconds.
The retractable soft top opens com-
pletely.
Opening from the inside X
Make sure the key is in starter switch
position 1.
X Press symbol 0044on the retractable soft
top switch until the desired position is
reached or the retractable soft top is
opened completely.
or
X Press symbol 0044on the retractable soft
top switch briefly.
The retractable soft top opens com-
pletely.
i Pressing symbol 0043or0044 on the
retractable soft top switch while open- ing the retractable soft top will inter-
rupt the opening procedure.
Closing For safety reasons, you can only close the
retractable soft top using the retractable
soft top switch inside the vehicle.
X
Make sure the key is in starter switch
position 1.
X Press symbol 0043on the retractable soft
top switch until the retractable soft top
is closed. Opening and closing the rear soft top
You can open and close the rear soft top
when the vehicle is either stationary or in
motion. G
WARNING
Never operate the rear soft top if there is
the possibility of anyone being harmed by
the opening or closing procedure.
! Make sure objects are not stacked too
high in the cargo compartment. They
could get damaged when opening or clos-
ing the rear soft top.
! When the rear soft top is folded down,
the side rails are accessible. To prevent
theft, you should remove the side rails
and store them in the storage compart-
ment of the tailgate or close the soft top
system.
X Make sure the key is in starter switch
position 1. 72
Soft top system (cabriolet only)>> Controls.

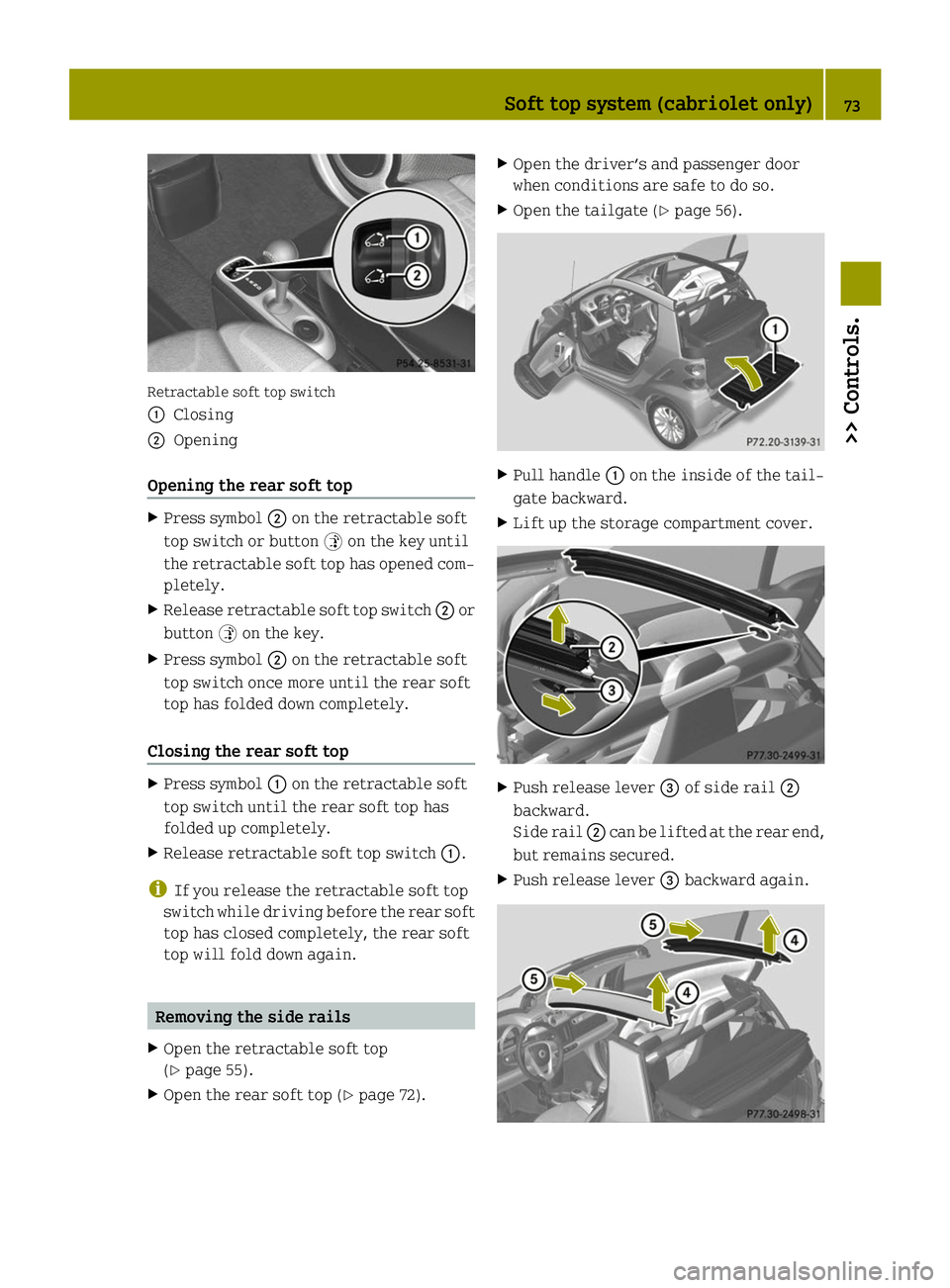

Retractable soft top switch
0043
Closing
0044 Opening
Opening the rear soft top X
Press symbol 0044on the retractable soft
top switch or button 0035on the key until
the retractable soft top has opened com-
pletely.
X Release retractable soft top switch 0044or
button 0035on the key.
X Press symbol 0044on the retractable soft
top switch once more until the rear soft
top has folded down completely.
Closing the rear soft top X
Press symbol 0043on the retractable soft
top switch until the rear soft top has
folded up completely.
X Release retractable soft top switch 0043.
i If you release the retractable soft top
switch while driving before the rear soft
top has closed completely, the rear soft
top will fold down again. Removing the side rails
X Open the retractable soft top
(Y page 55).
X Open the rear soft top (Y page 72).X
Open the driver’s and passenger door
when conditions are safe to do so.
X Open the tailgate (Y page 56). X
Pull handle 0043on the inside of the tail-
gate backward.
X Lift up the storage compartment cover. X
Push release lever 0087of side rail 0044
backward.
Side rail 0044can be lifted at the rear end,
but remains secured.
X Push release lever 0087backward again. Soft top system (cabriolet only)
73>> Controls. Z

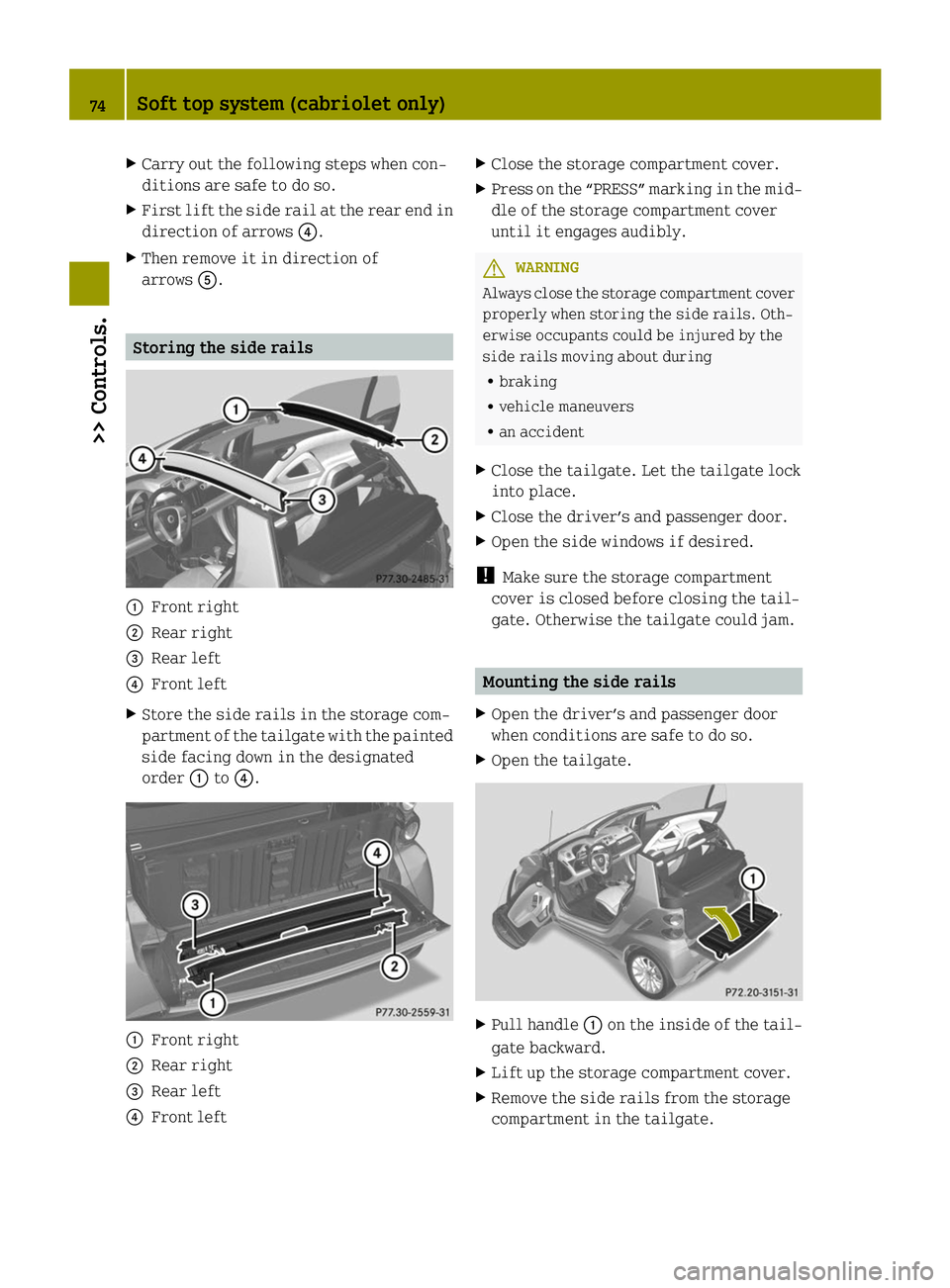

X
Carry out the following steps when con-
ditions are safe to do so.
X First lift the side rail at the rear end in
direction of arrows 0085.
X Then remove it in direction of
arrows 0083. Storing the side rails
0043
Front right
0044 Rear right
0087 Rear left
0085 Front left
X Store the side rails in the storage com-
partment of the tailgate with the painted
side facing down in the designated
order 0043to0085. 0043
Front right
0044 Rear right
0087 Rear left
0085 Front left X
Close the storage compartment cover.
X Press on the “PRESS” marking in the mid-
dle of the storage compartment cover
until it engages audibly. G
WARNING
Always close the storage compartment cover
properly when storing the side rails. Oth-
erwise occupants could be injured by the
side rails moving about during
R braking
R vehicle maneuvers
R an accident
X Close the tailgate. Let the tailgate lock
into place.
X Close the driver’s and passenger door.
X Open the side windows if desired.
! Make sure the storage compartment
cover is closed before closing the tail-
gate. Otherwise the tailgate could jam. Mounting the side rails
X Open the driver’s and passenger door
when conditions are safe to do so.
X Open the tailgate. X
Pull handle 0043on the inside of the tail-
gate backward.
X Lift up the storage compartment cover.
X Remove the side rails from the storage
compartment in the tailgate. 74

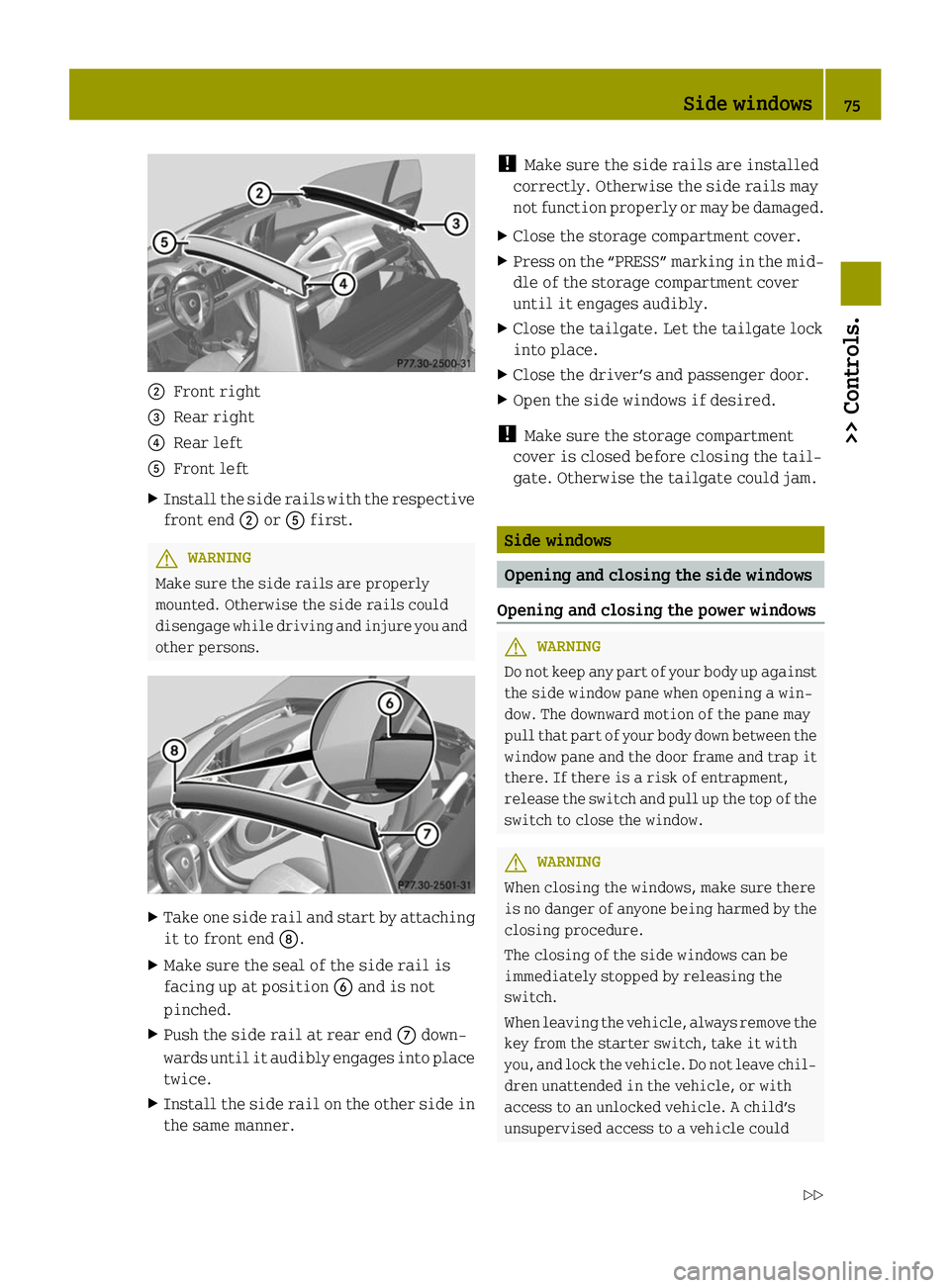

Soft top system (cabriolet only)>> Controls.

0044
Front right
0087 Rear right
0085 Rear left
0083 Front left
X Install the side rails with the respective
front end 0044or0083 first. G
WARNING
Make sure the side rails are properly
mounted. Otherwise the side rails could
disengage while driving and injure you and
other persons. X
Take one side rail and start by attaching
it to front end 006C.
X Make sure the seal of the side rail is
facing up at position 0084and is not
pinched.
X Push the side rail at rear end 006Bdown-
wards until it audibly engages into place
twice.
X Install the side rail on the other side in
the same manner. !
Make sure the side rails are installed
correctly. Otherwise the side rails may
not function properly or may be damaged.
X Close the storage compartment cover.
X Press on the “PRESS” marking in the mid-
dle of the storage compartment cover
until it engages audibly.
X Close the tailgate. Let the tailgate lock
into place.
X Close the driver’s and passenger door.
X Open the side windows if desired.
! Make sure the storage compartment
cover is closed before closing the tail-
gate. Otherwise the tailgate could jam. Side windows
Opening and closing the side windows
Opening and closing the power windows G
WARNING
Do not keep any part of your body up against
the side window pane when opening a win-
dow. The downward motion of the pane may
pull that part of your body down between the
window pane and the door frame and trap it
there. If there is a risk of entrapment,
release the switch and pull up the top of the
switch to close the window. G
WARNING
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the side windows can be
immediately stopped by releasing the
switch.
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could Side windows
75>> Controls.
Z

result in an accident and/or serious per-
sonal injury.
The switches for both power windows are on
the driver’s door. In addition, there is a
switch for the passenger side on the
passenger door. 0043
Side window driver’s door
0044 Side window passenger door
X Make sure the key is in starter switch
position 1.
X Opening: Press and hold the top of the
respective switch.
The corresponding side window moves
downwards until you release the switch.
X Closing: Pull and hold the top of the
respective switch.
The corresponding side window moves
upwards until you release the switch.
X Automatic opening: Press the top of the
respective switch briefly.
The corresponding side window opens
completely.
X Stopping during automatic opening:
Press or pull the top of the respective
switch again.
The corresponding side window stops
immediately. Driving and parking
Starting
G
WARNING
Make sure absolutely no objects are
obstructing the pedals’ range of motion.
Keep the driver’s footwell clear of all
obstacles. If there are any floormats* or
carpets in the footwell, make sure the ped-
als still have sufficient clearance.
During sudden acceleration or braking
maneuvers, the objects could get caught
between or beneath the pedals and restrict
your ability to brake or accelerate. This
could lead to accidents and/or injury. G
WARNING
A vehicle with an electric motor produces
significantly lower noise levels than a
vehicle with a combustion engine. Other
motorists or pedestrians, especially those
who are visually or hearing impaired, may
be unable to hear your vehicle while it is
in motion. This is particularly true when
driving at lower speeds and during parking
maneuvers. At all times, it is the respon-
sibility of the driver to be aware of their
surroundings, especially in these low
speed situations. Otherwise other road
users could be seriously or fatally injured.
Vehicles equipped with an Acoustic Vehi-
cle Indication* emit a certain noise. Thus,
your vehicle will be better noticed by other
road users at low speeds (Y page 48).
X Fasten the seat belt.
X Depress the brake pedal.
X Insert the key into the starter switch.
X Move the gear selector lever to position
Por N.
P or Nappears in the transmission posi-
tion indicator.
X Turn the key to starter switch position 2
(Y page 57). Hold the key until READY READY76
Driving and parking>> Controls.
* optional

appears in the multifunction display
(Y
page 87).
The pointer of the power gauge moves
from "OFF“ to "0“ (Y page 81).Driving
i The vehicle has a crawler function. The
vehicle moves forward when the brake
pedal is released.
X Depress the brake pedal.
X Move the gear selector lever to drive
position D.
D D appears in the transmission position
indicator.
X Release the brake pedal.
The vehicle moves forward.
X Depress the accelerator pedal smoothly.
The vehicle accelerates. Reversing the vehicle
! Shift the transmission into reverse
gear Ronly when the vehicle is stopped
in order to avoid damaging the trans-
mission.
You can drive in reverse gear at a speed
of up to 9 mph (15 km/h).
i The vehicle has a crawler function.
Thevehicle moves forward when the
brakepedal is released.
X Depress the brake pedal.
X Move the gear selector lever to reverse
gear R.
R R appears in the transmission position
indicator.
X Release the brake pedal.
The vehicle moves forward.
X Depress the accelerator pedal smoothly.
The vehicle accelerates. Parking
G
WARNING
With the drive system inactive, there is no
power assistance for the brake and steering
systems. In this case, it is important to
keep in mind that a considerably higher
degree of effort is necessary to brake and
steer the vehicle. Adapt your driving
accordingly. G
WARNING
Vehicle movement can cause serious per-
sonal injury. Therefore, always do the fol-
lowing before exiting and leaving the
vehicle:
R Keep right foot on the brake pedal.
R Engage the parking brake.
R Move the gear selector lever to park
position P.
R Slowly release the brake pedal.
R When parked on an incline, always turn
the front wheels towards the curb.
R Turn the key to starter switch position 0
and remove the key from the starter
switch.
R Take the key with you and lock the vehicle
when leaving.
X Properly stop and park the vehicle.
X Depress the brake pedal.
X Engage the parking brake (Y page 77).
When the ignition is switched on, the
brake warning lamp 0027(USA only) or
004D (Canada only) in the instrument
cluster comes on.
X Release the brake pedal.

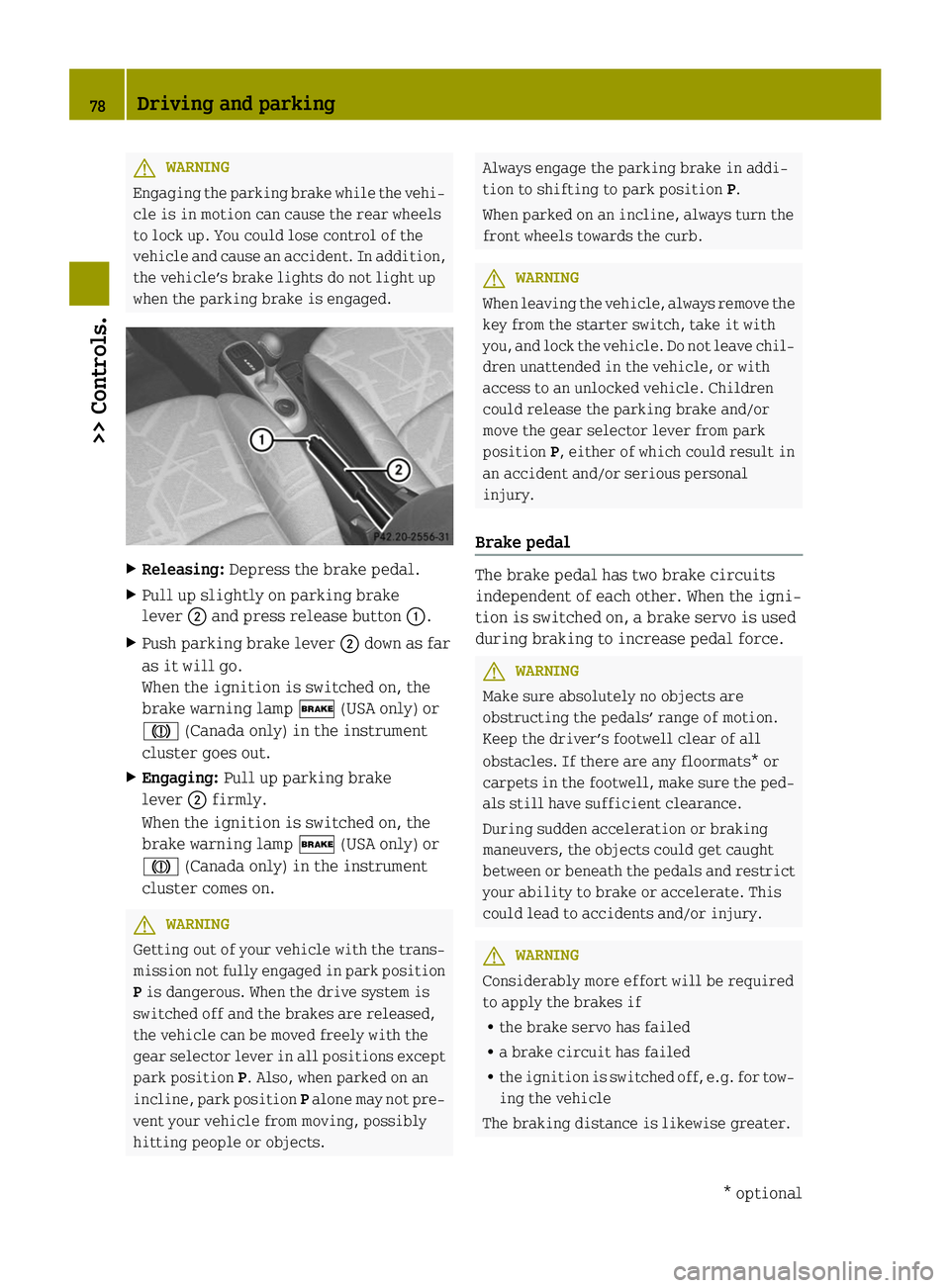

Parking brake The parking brake serves to secure the
vehicle against rolling away when it is
stationary or parked. Driving and parking
77>> Controls. Z

G
WARNING
Engaging the parking brake while the vehi-
cle is in motion can cause the rear wheels
to lock up. You could lose control of the
vehicle and cause an accident. In addition,
the vehicle’s brake lights do not light up
when the parking brake is engaged. X
Releasing: Depress the brake pedal.
X Pull up slightly on parking brake
lever 0044and press release button 0043.
X Push parking brake lever 0044down as far
as it will go.
When the ignition is switched on, the
brake warning lamp 0027(USA only) or
004D (Canada only) in the instrument
cluster goes out.
X Engaging: Pull up parking brake
lever 0044firmly.
When the ignition is switched on, the
brake warning lamp 0027(USA only) or
004D (Canada only) in the instrument
cluster comes on. G
WARNING
Getting out of your vehicle with the trans-
mission not fully engaged in park position
P is dangerous. When the drive system is
switched off and the brakes are released,
the vehicle can be moved freely with the
gear selector lever in all positions except
park position P. Also, when parked on an
incline, park position Palone may not pre-
vent your vehicle from moving, possibly
hitting people or objects. Always engage the parking brake in addi-
tion to shifting to park position
P.
When parked on an incline, always turn the
front wheels towards the curb. G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from park
position P, either of which could result in
an accident and/or serious personal
injury.
Brake pedal The brake pedal has two brake circuits
independent of each other. When the igni-
tion is switched on, a brake servo is used
during braking to increase pedal force.
G
WARNING
Make sure absolutely no objects are
obstructing the pedals’ range of motion.
Keep the driver’s footwell clear of all
obstacles. If there are any floormats* or
carpets in the footwell, make sure the ped-
als still have sufficient clearance.
During sudden acceleration or braking
maneuvers, the objects could get caught
between or beneath the pedals and restrict
your ability to brake or accelerate. This
could lead to accidents and/or injury. G
WARNING
Considerably more effort will be required
to apply the brakes if
R the brake servo has failed
R a brake circuit has failed
R the ignition is switched off, e.g. for tow-
ing the vehicle
The braking distance is likewise greater. 78
Driving and parking>> Controls.
* optional
