>> Safety.Occupant safety ................................ 30
Panic alarm ....................................
.45
Driving safety systems ....................... 46
Anti-theft systems ........................... .48
Page 32 of 222
Occupant safety
Introduction
The smart vehicle is equipped with seat
belts and dual stage air bags to protect you
in a crash. However, children can be killed or seriously injured by an inflating air
bag. Indeed, there is a stronger risk of
serious death or bodily injury when an air
bag deploys on a child positioned in a
rear-facing child seat in the passenger
seat. Because this vehicle has only two
front seats and no backseat, it is limited as are other two-seat vehicles, in the extent
to which it may restrain children traveling
in the passenger front seat. Many states
have laws against placing children of cer- tain ages in the front seat of a vehicle that
has both front and back seats. Those laws
make exceptions to permit children to be
restrained in the front seat of two seat
vehicles. Special instructions and warn-
ings are provided below about when and if
you may restrain a child in the passenger
seat of the smart vehicle. Under certain
circumstances, it is appropriate for the
passenger air bag not to operate when a
child is restrained in a car seat in the
passenger seat, and this vehicle is equip- ped with technology to accomplish this.
Please pay very close attention to the
instructions and warnings below, particu-
larly as they relate to children.
In this section you will learn the most
important facts about the restraint system components of the vehicle.
The restraint systems are:
R Seat belts (Y page 31)
R Child restraints (Y page 42) Additional protection potential is provi-
ded by:
R Supplemental RestraintSystem (SRS)
with
- Air bags (Y page 33)
- Air bag control unit (with crash sen-
sors)
- Emergency Tensioning Devices and
seat belt force limiters (Y page 33)
R Air bag system components with
- Passenger front air bag off indicator
lamp (Y page 41)
- Passenger seat with OccupantClassi-
fication System (OCS) (Y page 39)
Although independent systems, their pro-
tective functions work in conjunction with each other.
i For information on infants and chil-
dren traveling with you in the vehicle
and restraint systems for infants and
children, see “Children in the vehicle”
(Y page 42).
The SRS system conducts a self-test when
the ignition is switched on and in regular intervals while the engine is running. This facilitates detection of malfunctions. The
SRS indicator lamp 6in the instrument
cluster comes on when the ignition is
switched on and goes out after approx-
imately four seconds.
The SRS components are in operational
readiness if the SRS indicator lamp 6
is not lit when the engine is running.
A malfunction in the system has been detec- ted if the SRS indicator lamp 6
R fails to go out after approximately 4 sec-
onds after the ignition was switched on
R does not come on at all
R comes on after the engine was started or
while driving G
WARNING
Modifications to or work improperly con-
ducted on restraint systems (such as seat 30
Occupant safety>> Safety.
Page 33 of 222
belts and anchors, Emergency Tensioning
Devices, seat belt force limiters or air
bags) or their wiring, as well as tampering with interconnected electronic systems,
can lead to the restraint systems no longer
functioning as intended. Air bags or Emer- gency Tensioning Devices, for example,
could deploy inadvertently or fail to
deploy in accidents in which they other-
wise should deploy (although the deceler-
ation threshold for air bag deployment is
exceeded). Therefore, never modify the
restraint systems. Do not tamper with elec-
tronic components or their software. G
WARNING
In the event that the SRS indicator lamp
6 comes on while driving or does not
come on at all, the SRS self-check has
detected a malfunction. For your safety, we strongly recommend that you immediately
but safely pull the vehicle off of the road-
way and stop driving. Contact an authorized
electric drive smart center immediately to have the system checked; otherwise the SRS
may not deploy when needed in an accident, which could result in serious or fatal
injury, or it might deploy unexpectedly andunnecessarily which could also result in
injury.
In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air bag
deployment. Work on the SRS must therefore only be performed by qualified techni-
cians. Contact an authorized electric drive
smart center. If it is necessary to modify an air bag system to accommodate a person
with disabilities, contact your local
authorized electric drive smart center. Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all 50 states, the District of Columbia, the U.S. territories and all Canadian provinces and
territories.
Even where this is not the case, all vehicle
occupants should have their seat belts fas- tened whenever the vehicle is being oper-
ated.
For more information, see “Fastening the
seat belts” (Y page 62).
i For information on infants and chil-
dren traveling with you in the vehicle
and restraint systems for infants and
children, see “Children in the vehicle”
(Y page 42). G
WARNING
Always fasten your seat belt before driving. Always make sure all of your passengers are properly restrained.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely
severity in an accident. You and your
passenger should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled.
Without your seat belt buckled, you are
much more likely to hit the interior of the
vehicle or be ejected from it. You can be
seriously injured or killed.
In the same crash, the possibility of injury
or death is lessened if you are properly
wearing your seat belt. Air bags can only
protect you if you are properly wearing
your seat belt. G
WARNING
Never ride in a moving vehicle with the seat backrest in an excessively reclined posi-
tion as this can be dangerous. You could
slide under the seat belt in a collision. If
you slide under it, the belt would apply
force at the abdomen or neck, causing seri-
ous or even fatal injuries. The seat back-
rest and seat belt provide the best
restraint when the wearer is in a position Occupant safety
31>> Safety.
Z
Page 34 of 222
that is as upright as possible and the belt
is properly positioned on the body. G
WARNING
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is cor- rectly restrained with a separate seat belt.Never use a seat belt for more than one per-
son at a time. G
WARNING
Seat belts of a vehicle involved in an acci- dent must be inspected by smart. Only then
is it possible to determine whether the seat belts were damaged or stressed in the acci-dent. Damaged or stressed seat belts may
not properly protect you in a subsequent
accident.
Only use seat belts which have been
approved by smart.
Do not make any modifications to the seat
belts. This can lead to unintended activa-
tion of the Emergency Tensioning Devices
(ETDs) or to their failure to activate when
necessary.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized elec-
tric drive smart center. G
WARNING
USE SEAT BELTS PROPERLY R Seat belts can only work when used prop-
erly. Never wear seat belts in any other
way than as described in this section, as
that could result in serious injuries in
case of an accident.
R Each occupant should wear their seat belt
at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents,
including rollovers. The integrated
restraint system includes SRS (driver front air bag, passenger front air bag,
head-thorax air bags) and Emergency
Tensioning Devices (ETDs) with seat belt
force limiters.
The system is designed to enhance the
protection provided by secured seat
belts in certain frontal and side
impacts.
R Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. Doing so may cause your body to movetoo far forward in a frontal crash, which
would increase the chance of head and
neck injuries. The seat belt would also
apply too much force to the ribs or abdo-
men, which could severely injure inter-
nal organs such as your liver or spleen.
R Never wear seat belts over rigid or
breakable objects in or on your clothing,
such as eyeglasses, pens, keys, etc., as
these might cause injuries.
R Position the lap belt as low as possible
on your hips and not across the abdomen.
If the lap seat belt is positioned across
your abdomen, it could cause serious
injuries in a crash.
R Never use a seat belt for more than one
person at a time. Do not fasten a seat belt
around a person and another person or
other objects at the same time.
R Seat belts should not be worn twisted. In
a crash, you would not have the full width
of the seat belt to manage impact forces. The twisted seat belt against your body
could cause injuries.
R Pregnant women should also always use a
lap-shoulder belt. The lap belt portion
should be positioned as low as possible
on the hips to avoid any possible pres-
sure on the abdomen.
R Never place your feet on the instrument
panel, dashboard or on the seat. Always
keep both feet on the floor in front of the
seat.
R When using a seat belt to secure infant or
toddler restraints or children in booster 32
Occupant safety>> Safety.
Page 35 of 222
seats, always follow the child seat man-
ufacturer’s instructions. Emergency Tensioning Devices (ETDs)
and seat belt force limiters
The seat belts are equipped with Emer-
gency Tensioning Devices and seat belt
force limiters.
Emergency Tensioning Devices are
designed to activate in the following
cases:
R in frontal or rear-end impacts exceed-
ing the system deployment threshold
R if the restraint systems are operational
and functioning correctly
R in collisions with high vehicle decel-
eration/acceleration in the longitudi-
nal direction, e.g. a head-on collision
R on passenger side when the seat is occu-
pied and the seat belt is fastened
R independently of the front air bags
When activated, Emergency Tensioning
Devices remove slack from the seat belts in such a way that the seat belts fit more
snugly against the body. Seat belt force
limiters, when activated, reduce the force
exerted by the seat belts on occupants dur-
ing a crash.
When the emergency tensioning device is
triggered, the SRS indicator lamp 6in
the instrument cluster illuminates, see
“SRS indicator lamp” (Y page 169).G
WARNING
Once they have been triggered, Emergency
Tensioning Devices will no longer function properly and must be replaced. smart rec-
ommends that you visit a qualified work-
shop to have this done. In particular, work
relevant to safety or on safety-related sys-tems must be carried out at a qualified
specialist workshop.
Comply with safety regulations when dis-
posing of Emergency Tensioning Devices. These regulations are available at any
smart center.
The belt force limiter is designed to oper- ate in unison with the front air bag, which
absorbs a portion of the seat belt’s decel-
erating forces, distributing the load over
a larger area.
In the event of a head-on or rear-end col-
lision, the emergency tensioning device is
activated if the vehicle is decelerated or
accelerated sufficiently in the longitudi- nal direction at the start of impact with theignition switched on. Air bags
Air bags can reduce the severity of inju-
ries in serious collisions, e.g. in a head-
on collision or a side impact. G
WARNING
Air bags are designed to reduce the poten- tial of injury in certain frontal impacts
(front air bags and knee bags), or side
impacts (head-thorax air bags, window
curtain air bags and thorax-pelvis air
bags) which may cause significant inju-
ries. However, no system available today
can completely eliminate injuries and
fatalities.
The deployment of the air bags temporarily
releases a small amount of dust from the air
bags. This dust is neither injurious to your health, nor does it indicate a fire in the
vehicle. The dust might cause some tempo-
rary breathing difficulty for people with
asthma or other breathing trouble. To avoid
this, you may wish to get out of the vehicle
as soon as it is safe to do so. If you have any
breathing difficulty but cannot get out of
the vehicle after the air bag inflates, then get fresh air by opening a window or door. G
WARNING
To reduce the risk of injury when the front
air bags inflate, it is very important for Occupant safety
33>> Safety.
Z
Page 36 of 222
the driver and passenger to always be in a
properly seated position and to wear their respective seat belt.
For maximum protection in the event of a
collision always be in normal seated posi-
tion with your back against the backrest.
Fasten your seat belt and ensure it is prop-
erly positioned on your body.
Since the air bag inflates with considera- ble speed and force, a proper seating and
hands on steering wheel position will help
to keep you at a safe distance from the air
bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured or killed by an air bag as it
inflates extremely quickly and with great
force:
R Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.
R Adjust the driver’s seat as far as possible
rearward, still permitting proper oper-
ation of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover on
the steering wheel must be at least
10 inches (25 cm) or more. You should be
able to accomplish this by adjustments to the seat. If you have any problems, please contact an authorized electric drive
smart center.
R Do not lean your head or chest close to the
steering wheel or dashboard.
R Keep hands on the outside of the steering
wheel rim. Placing hands and arms inside the rim can increase the risk and poten-
tial severity of hand/arm injury when the
driver’s front air bag inflates.
R Adjust the passenger seat as far as pos-
sible rearward from the dashboard when
the seat is occupied.
R Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door where the
head-thorax air bag (cabriolet) or thorax-pelvis side air bag (coupé)
inflates. This could result in serious
injuries or death should the head-thorax air bag (cabriolet) or thorax-pelvis side
air bag (coupé) be deployed. Always sit as
upright as possible, wear the seat belt
properly and use an appropriately sized
infant restraint, toddler restraint, or
booster seat recommended for the size
and weight of the child.
Failure to follow these instructions can
result in severe injuries to you or other
occupants.
If you sell your vehicle, it is important that you make the buyer aware of this safety
information. Be sure to give the buyer this
Operator’s Manual.
i Air bags are designed to deploy only in
certain frontal impacts (front air bags
and knee bags), or side impacts (head-
thorax air bags, window curtain air bags and thorax-pelvis air bags) which
exceed preset thresholds. Only during
these events will they provide their sup-
plemental protection.
The driver and passenger should always
wear their seat belts. Otherwise it is not
possible for air bags to provide their
supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, air bags will not deploy. The
driver and passenger will then be pro-
tected to the extent possible by a prop-
erly fastened seat belt. A properly fas-
tened seat belt is also needed to provide the best possible protection in a roll-
over.
We caution you not to rely on the presence
of the air bags in order to avoid wearing your seat belt.
It is important to your safety and that of
your passenger that you replace deployed
air bags and repair any malfunctioning
air bags to make sure the vehicle will 34
Occupant safety>> Safety.
Page 37 of 222
continue to provide supplemental crash
protection for occupants.
Safety guidelines for the seat belt,
Emergency Tensioning Devices (ETDs)
and air bag G
WARNING
R Damaged seat belts or seat belts that have
been highly stressed in an accident must
be replaced and their anchoring points
must also be checked. Only use seat belts installed or supplied by an authorized
electric drive smart center.
R Air bags and Emergency Tensioning
Devices (ETDs) contain Perchlorate
material, which may require special
handling and regard for the environment.
Check with your local government’s dis-
posal guidelines. California residents,
see http://www.dtsc.ca.gov/
HazardousWaste/Perchlorate/index.cfm .
R Given the considerable deployment
speed, required inflation volume, and
the textile structure of the air bags,
there is the possibility of abrasions or
other, potentially more serious injuries
resulting from air bag deployment.
R Air bags and Emergency Tensioning
Devices (ETDs) are designed to function
on a one-time-only basis. An air bag or
ETD that has deployed must be replaced.
R Do not pass seat belts over sharp edges.
They could tear.
R Do not make any modification that could
change the effectiveness of the seat
belts.
R No modifications of any kind may be made
to any components or wiring of the SRS.
This includes changing or removing any
component or part of the SRS, the instal-lation of additional trim material,
badges, etc. over the steering wheel hub,
passenger front air bag cover, outboard
sides of the seat backrests, and instal-
lation of additional electrical/elec- tronic equipment on or near SRS compo-
nents and wiring. Keep area between air
bags and occupants free from objects
(e.g. packages, purses, umbrellas, etc.).
R Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protec-
tion.
R Do not hang hangers on the coat hooks or
handles over the door. These items may
turn into projectiles and cause head and
other injuries when the head-thorax air
bag is deployed.
R Air bag system components will be hot
after an air bag has inflated. Do not touch
them.
R Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.
R In addition, improper repair work on the
SRS creates a risk of rendering the SRS
inoperative or causing unintended air
bag deployment. Work on the SRS must
therefore only be performed by qualified
technicians. Contact an authorized elec- tric drive smart center.
R For your protection and the protection of
others, when scrapping the air bag unit
or Emergency Tensioning Devices (ETDs), our safety instructions must be followed.
These instructions are available from
any authorized electric drive smart cen-
ter.
How an air bag operates An air bag is inflated in a matter of mil-
liseconds. If an air bag is triggered, the
SRS indicator lamp
6in the instrument
cluster illuminates.
! If the air bags are activated, you will
hear a loud noise and some dust may be
generated. The explosion fundamentally
represents no risk to your hearing. Occupant safety
35>> Safety. Z
Page 38 of 222
An inflated air bag slows down and reduces
the movement of the occupant. When the
occupant makes contact with a front air bag
or head-thorax air bag (cabriolet only),
hot gas flows out of the inflated front air
bags and head-thorax air bags (cabriolet
only). This reduces the load on the occu-
pant’s head and upper body. These air bags
are consequently deflated after the acci-
dent.
Driver front air bag/passenger front air
bag The front air bags are designed to reduce
the potential of injury in certain frontal
impacts.
Driver front air bag and passenger front
air bag are deployed
R at the start of an accident with high
vehicle deceleration in the longitudinal direction
R independently of other air bags in the
vehicle being deployed
R never in the event of a rollover, unless
high vehicle deceleration in the longi-
tudinal direction is detected
i The front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different rates of inflation that are based on the
rate of relevant vehicle deceleration
and a fastened or unfastened seat belt as assessed by the air bag control unit.
On the passenger side, the front air bag
deployment is additionally influenced
by the passenger’s weight category as
identified by the Occupant Classifica-
tion System (OCS) (Y page 39).
The lighter the passenger side occupant,
the higher the vehicle deceleration rate required for the second stage inflation
of the air bag.
The air bags will not deploy in impacts
which do not exceed the system’s deploy- ment thresholds. In such instances, the seat
belts are designed to protect you.
The passenger air bag will only be
deployed if
R the system, based on OCS weight sensor
readings, senses that the passenger seat
is occupied and the 40
indicator lamp is not lit (Y page 41)
R the impact exceeds a preset deployment
threshold
The driver front air bag is located in the
steering wheel housing, the passenger
front air bag above the glove box. :
Driver front air bag
; Passenger front air bag
Knee bags :
Driver’s knee bag
; Passenger knee bag
The knee bags are designed to provide
increased protection for the driver and
passenger against the risk of injuries to
the knees, thighs and lower legs. The knee
bags are located on the lower instrument 36
Occupant safety>> Safety.
Page 39 of 222
panel. They are designed to operate
together with the front air bags in certain
frontal impacts if the system determines
that air bag deployment can offer addi-
tional protection to that provided by the
seat belts. Knee bags operate best in con-
junction with a properly positioned and
fastened seat belts.
Head-thorax air bags (cabriolet only) G
WARNING
There is a possibility for a head-thorax air bag related injury if occupants, especially children, are not properly seated or
restrained when next to a head-thorax air
bag which needs to deploy rapidly in a side
impact in order to do its job.
To help avoid the possibility of injury,
please follow these guidelines:
(1) Occupants, especially children, should never place their bodies
or lean their heads in the area of
the door where the head-thorax
air bag inflates. This could
result in serious injuries or
death should the head-thorax air
bag be deployed.
(2) Always sit as upright as possi- ble, properly use the seat belts,
and for all children 12 years old
or under, use an appropriately
sized infant restraint, toddler
restraint, or booster seat rec-
ommended for the size and
weight of the child.
(3) Always wear seat belts properly. G
WARNING
Only use seat covers which have been tested and approved by smart for your vehicle
model. A seat cover must have a deploymentcontrol seam for the head-thorax air bag.
Using other seat covers may interfere with
or prevent the deployment of the head-
thorax air bags. Contact an authorized electric drive smart center for availabil-
ity.
If activated, the head-thorax air bags are
intended to provide increased protection
for the head and thorax (but not arms) of the
occupants on the side of the vehicle that is struck.
The head-thorax air bags are deployed
R on the side of the vehicle that is struck
(when passenger side is struck only if the
seat is occupied)
R at the start of an accident with high
vehicle deceleration or acceleration
acting in a lateral direction, e.g. a side
impact
R regardless of whether or not the seat belt
is in use
R independently of the front air bags
being deployed
R independently of the emergency tension-
ing device
The head-thorax air bags are integrated
into the driver and passenger seat backr-
ests. :
Head-thorax air bag
Window curtain air bags and thorax-pel- vis side air bags (coupé only) G
WARNING
There is a possibility for a thorax-pelvis
side air bag related injury if occupants,
especially children, are not properly
seated or restrained when next to a thorax- Occupant safety
37>> Safety.
Z
Page 40 of 222

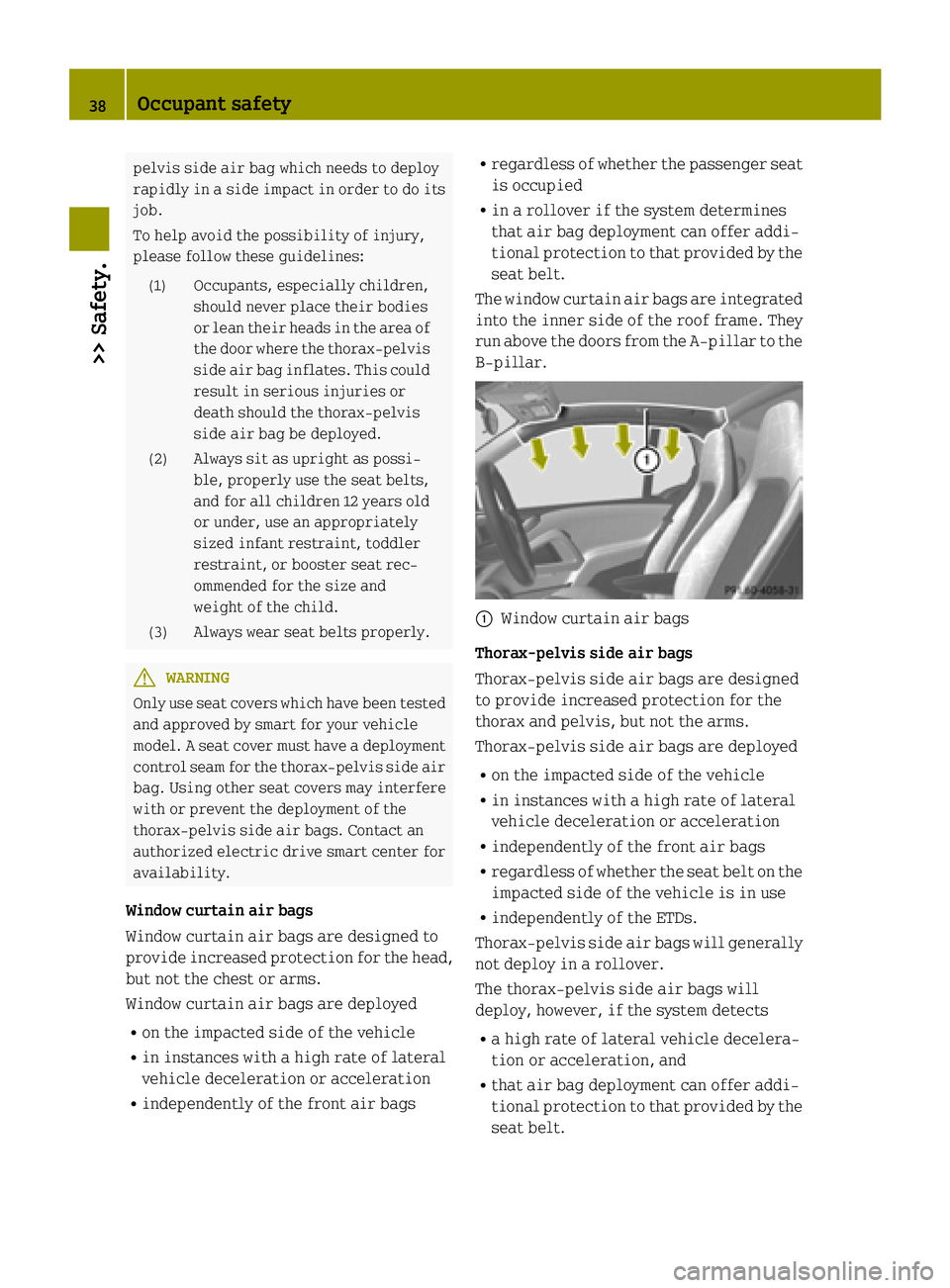

pelvis side air bag which needs to deploy
rapidly in a side impact in order to do its
job.
To help avoid the possibility of injury,
please follow these guidelines:
(1) Occupants, especially children, should never place their bodies
or lean their heads in the area of the door where the thorax-pelvis
side air bag inflates. This could
result in serious injuries or
death should the thorax-pelvis
side air bag be deployed.
(2) Always sit as upright as possi- ble, properly use the seat belts,
and for all children 12 years old
or under, use an appropriately
sized infant restraint, toddler
restraint, or booster seat rec-
ommended for the size and
weight of the child.
(3) Always wear seat belts properly. G
WARNING
Only use seat covers which have been tested and approved by smart for your vehicle
model. A seat cover must have a deploymentcontrol seam for the thorax-pelvis side air
bag. Using other seat covers may interfere
with or prevent the deployment of the
thorax-pelvis side air bags. Contact an
authorized electric drive smart center for
availability.
Window curtain air bags
Window curtain air bags are designed to
provide increased protection for the head, but not the chest or arms.
Window curtain air bags are deployed
R on the impacted side of the vehicle
R in instances with a high rate of lateral
vehicle deceleration or acceleration
R independently of the front air bags R
regardless of whether the passenger seat
is occupied
R in a rollover if the system determines
that air bag deployment can offer addi-
tional protection to that provided by the
seat belt.
The window curtain air bags are integrated
into the inner side of the roof frame. They
run above the doors from the A-pillar to the B-pillar. :
Window curtain air bags
Thorax-pelvis side air bags
Thorax-pelvis side air bags are designed
to provide increased protection for the
thorax and pelvis, but not the arms.
Thorax-pelvis side air bags are deployed
R on the impacted side of the vehicle
R in instances with a high rate of lateral
vehicle deceleration or acceleration
R independently of the front air bags
R regardless of whether the seat belt on the
impacted side of the vehicle is in use
R independently of the ETDs.
Thorax-pelvis side air bags will generally not deploy in a rollover.
The thorax-pelvis side air bags will
deploy, however, if the system detects
R a high rate of lateral vehicle decelera-
tion or acceleration, and
R that air bag deployment can offer addi-
tional protection to that provided by the
seat belt. 38
Occupant safety>> Safety.
