03-18

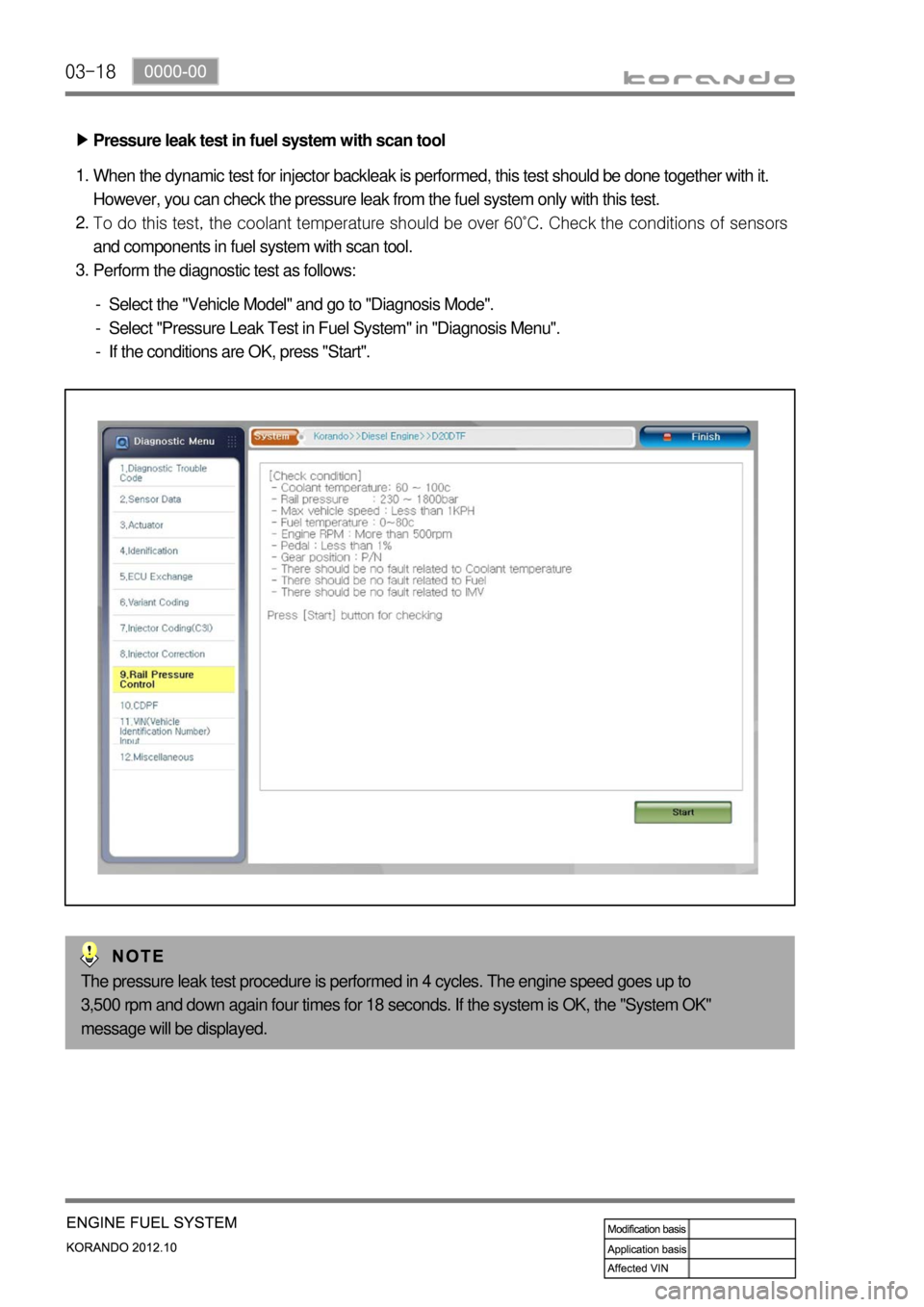

Pressure leak test in fuel system with scan tool ▶
When the dynamic test for injector backleak is performed, this test should be done together with it.
However, you can check the pressure leak from the fuel system only with this test.
<007b00960047008b00960047009b008f0090009a0047009b008c009a009b00530047009b008f008c0047008a00960096009300880095009b0047009b008c00940097008c00990088009b009c0099008c0047009a008f0096009c0093008b00470089008c00
470096009d008c00990047005d0057020b006a00550047006a>heck the conditions of sensors
and components in fuel system with scan tool.
Perform the diagnostic test as follows: 1.
2.
3.
Select the "Vehicle Model" and go to "Diagnosis Mode".
Select "Pressure Leak Test in Fuel System" in "Diagnosis Menu".
If the conditions are OK, press "Start". -
-
-
The pressure leak test procedure is performed in 4 cycles. The engine speed goes up to
3,500 rpm and down again four times for 18 seconds. If the system is OK, the "System OK"
message will be displayed.
