09-4
2. INSPECTION
1) Alternator Output Test
Item How to check DTC set value / Action
Output
current
B terminal
current
Rotor
coil
resistance
L terminal
voltage
Disconnect the cable connected to the B
terminal on the alternator. Connect one end
of the ammeter to the B terminal and the
other end to the cable connected to the B
terminal.
Measure the maximum output value.
(Maintain the engine speed between 2,500
and 3,000 rpm.)
(Turn the headlamp and all the electrical
switches on.) 1.
2.Pass: If the measured current is 45 A
or higher.
Fail: If the measured current is less
than 45 A.
Check the current of the B terminal. -
-
-
Move the gear selector lever to the
neutral position.
Maintain the engine speed at 2,500 rpm
with the vehicle unloaded.
(Turn all the electrical switches off.) 1.
2.Open circuit: If the measured
current is 5 A or higher. -
Disconnect the negative cable from the
battery.
Remove the B terminal and turn off the
ignition switch.
Measure the resistance between the L and F
terminals with an ohmmeter. 1.
2.
3.Pass: If the measured resistance is
between 3 and 6 Ω.
Faulty rotor coil or slip ring: If the
measured resistance is less than
3 Ω or greater than 6 Ω. -
-
Connect the B terminal wiring.
Measure the voltage with the engine running. 1.
2.Specification: 12.5 V to 14.5 V
Faulty IC regulator or field coil: If
the measured voltage is 14.5 V or
higher. -
-
Disconnect the negative battery cable.
Connect the negative cable again after connecting the ammeter. -
-

09-6
Item How to check DTC set value / Action
Output current
B terminal current
Rotor coil
resistance
L terminal voltage
3. INSPECTION
1) Alternator
Output Test ▶
Disconnect the cable connected to the B
terminal on the alternator. Connect one
end of the ammeter to the B terminal and
the other end to the cable connected to
the B terminal.
Measure the maximum output value.
(Maintain the engine speed between
2,500 and 3,000 rpm.)
(Turn the headlamp and all the electrical
switches on.) 1.
2.Pass: If the measured current
is 45 A or higher.
Fail: If the measured current is
less than 45 A.
Check the current of the B
terminal. -
-
-
Move the gear selector lever to the neutral
position.
Maintain the engine speed at 2,500 rpm
with the vehicle unloaded.
(Turn all the electrical switches off.) 1.
2.Open circuit: If the measured
current is 5 A or higher. -
Disconnect the negative cable from the
battery.
Remove the B terminal and turn off the
ignition switch.
Measure the resistance between the L
and F terminals with an ohmmeter. 1.
2.
3.Pass: If the measured
resistance is between 3 and
6Ω.
Faulty rotor coil or slip ring: If
the measured resistance is
less than 3Ω or greater than
6Ω. -
-
Connect the B terminal wiring.
Measure the voltage with the engine
running. 1.
2.
Specification: 12.5V to 14.5V
Faulty IC regulator or field
coil: If the measured voltage
is 14.5V or higher. -
-
Disconnect the negative cable from the battery.
Connect the negative cable again after connecting the ammeter. -
-

14-90000-00

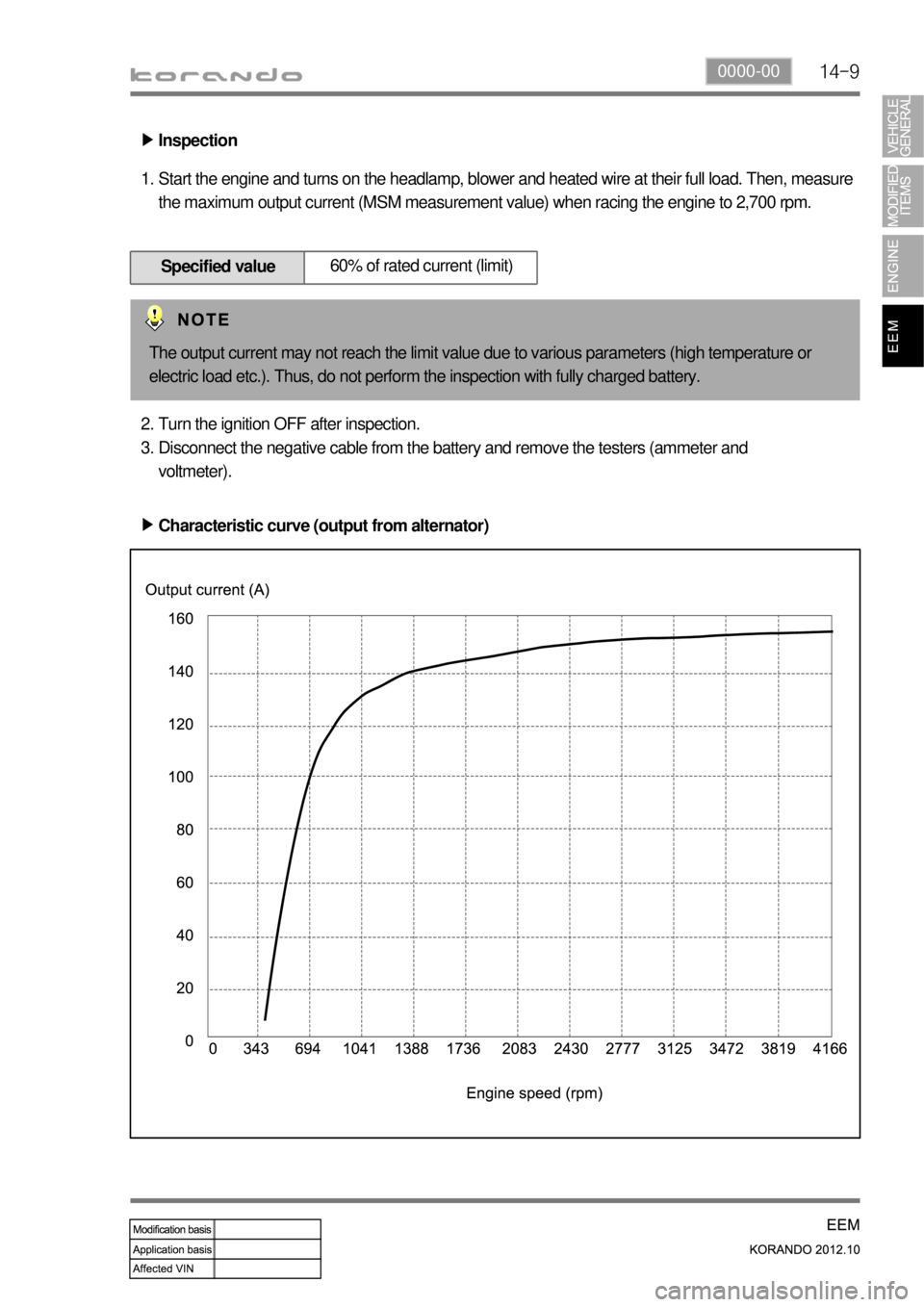

Inspection ▶
Start the engine and turns on the headlamp, blower and heated wire at their full load. Then, measure
the maximum output current (MSM measurement value) when racing the engine to 2,700 rpm. 1.
Specified value60% of rated current (limit)
Turn the ignition OFF after inspection.
Disconnect the negative cable from the battery and remove the testers (ammeter and
voltmeter). 2.
3.
Characteristic curve (output from alternator) ▶
The output current may not reach the limit value due to various parameters (high temperature or
electric load etc.). Thus, do not perform the inspection with fully charged battery.

01-30000-00
Front turn signal lamp
Side repeater lamp
Puddle lamp
1. EXTERIOR LAMP SYSTEM LAYOUT
Front fog lamp
Position lamp
Headlamp assembly
Rear turn signal lamp
High-mounted
stop lamp
Tail/stop lamp
Reflector
Backup lamp
Rear fog light
License plate lamp
Front view
Rear view

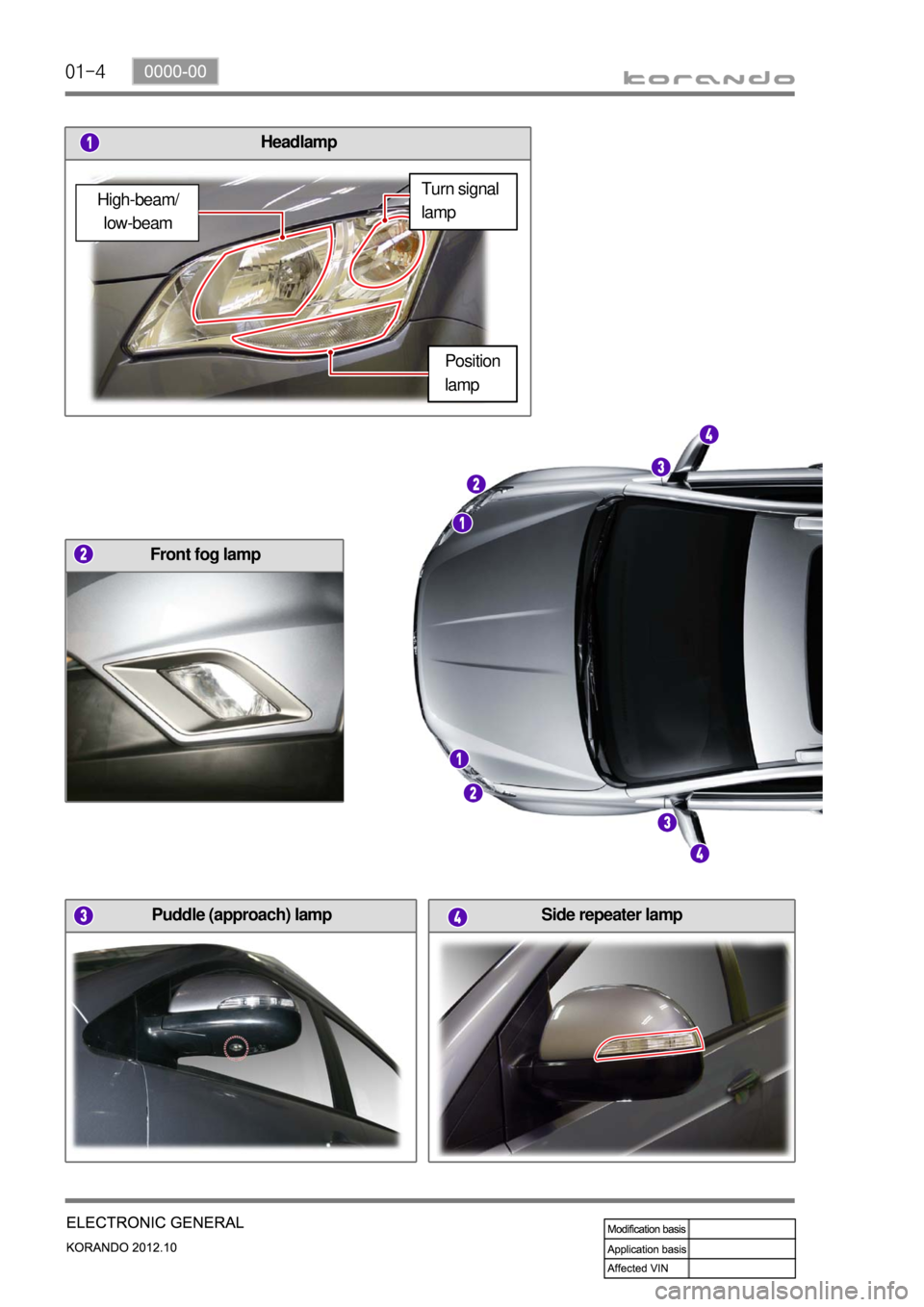

01-4
Puddle (approach) lamp
Front fog lamp
Headlamp
Side repeater lamp
High-beam/
low-beamTurn signal
lamp
Position
lamp

02-278410-00
4) Operating Process By Power Supply
(1) Rear wiper relay
(2) Rear fog lamp relay
The rear wiper motor relay is turned on when the rear wiper switch is turned on with the ignition key ON.
This relay is turned off when the rear wiper switch is turned off.
The power is supplied to the ICM no. B6 connector through the SB4 and no. 39.
The power for the rear fog lamp relay is supplied through the memory fuse in the engine compartment
CE box and fuse no. 52 in the interior IP box. This relay is controlled (ON/OFF) by the relay operation
signal which is connected to the no. A11 of the BCM.
The rear fog lamp is turned on when the rear fog lamp switch is turned on with the headlamp turned
on (i.e. IGN2 switch ON).
Turning on the rear fog lamp switch again when the relay is activated turns off the fog lamp.
The rear fog lamps do not come ON when the IGN2 switch is turned to OFF position or the light
switch is OFF.
The rear fog lamp should not automatically come on again if it has been turned off by any methods
other than the rear fog lamp switch. 1.
2.
3.
4.Operating conditions ▶

03-58710-01
FunctionSKM
without
BCMSKM
with
BCM
10 Keyless entry
controlTransmitter O X
Receiver O X
Remote door lock O X
Remote door unlock O X
Remote panic O X
After 30 seconds delay auto door lock O X
11 Door lock/unlock
controlLock/unlock control by door lock
controlOO
Lock/unlock control by central door lock
switchOO
Lock/unlock control by REKES signal O X
Lock/unlock control by SKM REKES
controlXO
Lock/unlock control by SKM passive entry X O
Auto door lock control O O
Auto door unlock (crash signal) control O O
12 Panic alarm Panic alarm control by REKES signal O X
Panic alarm control by SKM REKES FOB X O

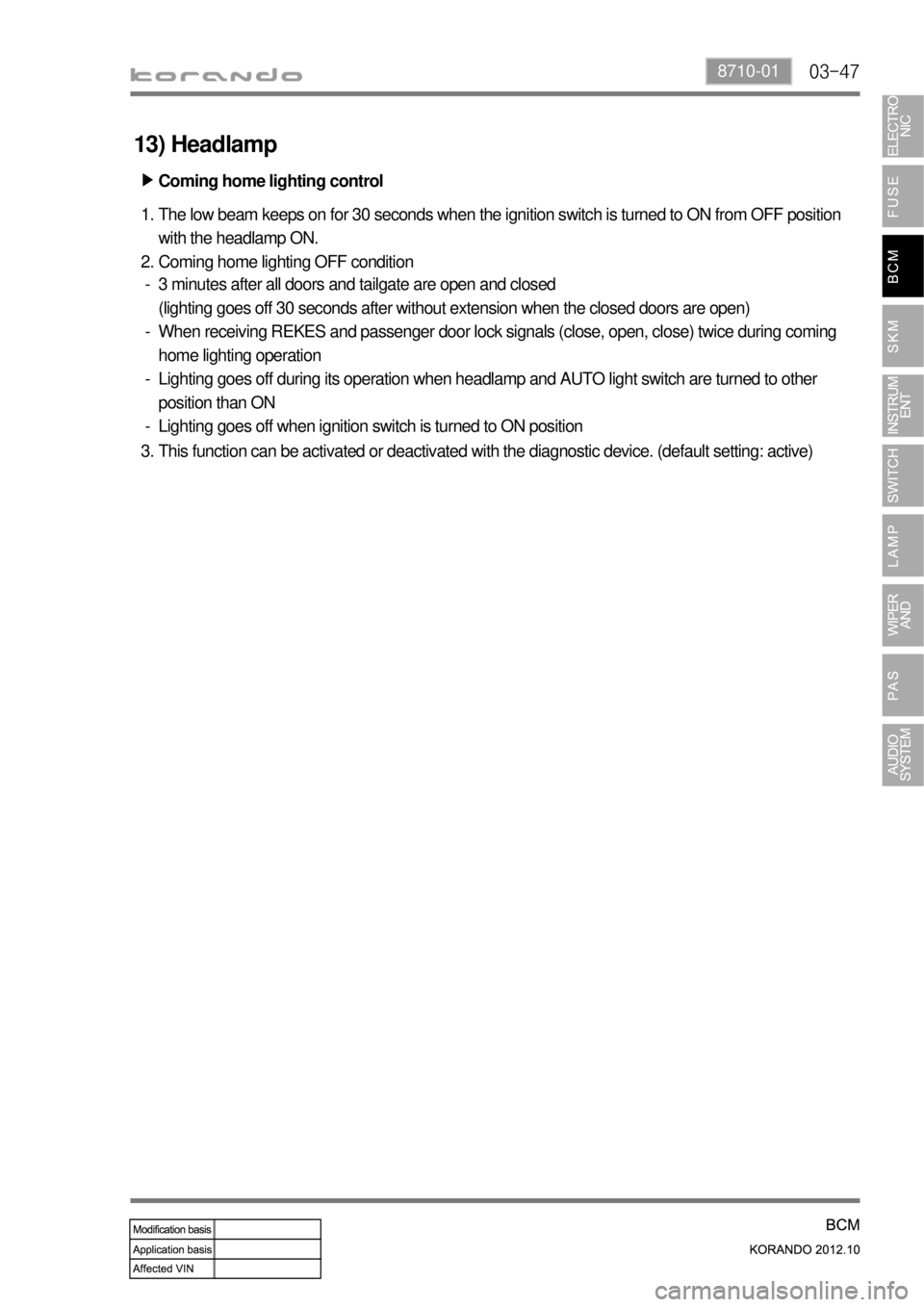

13 Headlamp control
(escort)Coming-home-light control O O
14 Tailgate open control Tailgate open control in BCM without SKM O X
Tailgate open control in BCM
with SKMXO

03-98710-01
1. OVERVIEW & FUNCTIONS
BCM (Body Control Module) controls the electric equipment on car body and outputs the control and
warning signals as below.
List Function List Function
1 Wiper control 14 Tailgate open control
2 Ignition key reminder warning 15 Theft deterrent
3 Tail lamp control 16 Time lag power window control
4 Door ajar warning 17 System power sleep mode
5 Seat belt control 18 Flasher function
6 Sunroof warning 19 DRL (daytime running lamp) control
7 Room lamp control 20 Fog lamp control
8 Key hole illumination control 21 Auto light control (LIN)
9 Defogger control 22 Immobilizer function
10 Keyless entry function 23 Folding/unfolding function
11 Door lock/unlock control 24 Approach (puddle) lamp control
12 Panic alarm 25 SKM warning buzzer control
13 Headlamp control (escort) 26 Diagnosis function
