horn SSANGYONG KORANDO 2012 Service Manual

01-8
4) Basic Inspection
(1) Horn operation
Listen for the horn sound when pressing the horn pad on the steering wheel. -
(2) Brake operation
Check if there is any abnormal noise, unusually long braking distance, or uneven braking force. If the
brake warning lamp does not go out even after starting the engien or are flashing during driving,
have the brake system checked immediately.
Check the brake pipes and hoses for connection, oil leak, crack or interference after changing the
position of tires. When replacing the tires, check the brake disc for surface condition and wear.
Check the parking brake cable and brake operation. Shorten the checking interval if the parking
brake is used frequently. -
-
-
(3) Exhaust system
Be aware to any changes in sound or smell from the exhaust system. These may be caused by leak or
overheat. Have the exhaust system checked and repaired immediately.
Inspect the exhaust system including catalytic converter. Inspect all the components and body frame
near the exhaust system. -
-
(4) Tires
Unusual vibration of the steering wheel and seats or pulling to one side on the straight and level roads
may indicates the uneven tire inflation pressure or poor wheel balance. -
(5) Steering and suspension system
Inspect the front and rear suspension and the steering system for damage, looseness or missing
parts, signs of wear or lack of lubrication. Inspect the power steering line and the hoses for
connection, leak, crack and chafing. Inspect the drive axle boot and seals for damage, tear or leak.
Replace or repair the system if necessary. -
(6) Engine oil
Check the oil level when the engine is still warm and add the specified engine oil if necessary. -
(7) Coolant
Check the coolant level in the coolant reservoir, coolant conditions (contamination, foreign material),
and hoses for damage and leak. Replace or add the Ssangyong genuine coolant, if needed. -
(8) Engine drive belt
Check all drive belts on the engine for wear, crack and looseness. Retighten or replace the belt, if
needed. -

01-8
4) Basic Inspection
(1) Horn operation
Listen for the horn sound when pressing the horn pad on the steering wheel. -
(2) Brake operation
Check if there is any abnormal noise, unusually long braking distance, or uneven braking force. If the
brake warning lamp does not go out even after starting the engien or are flashing during driving,
have the brake system checked immediately.
Check the brake pipes and hoses for connection, oil leak, crack or interference after changing the
position of tires. When replacing the tires, check the brake disc for surface condition and wear.
Check the parking brake cable and brake operation. Shorten the checking interval if the parking
brake is used frequently. -
-
-
(3) Exhaust system
Be aware to any changes in sound or smell from the exhaust system. These may be caused by leak or
overheat. Have the exhaust system checked and repaired immediately.
Inspect the exhaust system including catalytic converter. Inspect all the components and body frame
near the exhaust system. -
-
(4) Tires
Unusual vibration of the steering wheel and seats or pulling to one side on the straight and level roads
may indicates the uneven tire inflation pressure or poor wheel balance. -
(5) Steering and suspension system
Inspect the front and rear suspension and the steering system for damage, looseness or missing
parts, signs of wear or lack of lubrication. Inspect the power steering line and the hoses for
connection, leak, crack and chafing. Inspect the drive axle boot and seals for damage, tear or leak.
Replace or repair the system if necessary. -
(6) Engine oil
Check the oil level when the engine is still warm and add the specified engine oil if necessary. -
(7) Coolant
Check the coolant level in the coolant reservoir, coolant conditions (contamination, foreign material),
and hoses for damage and leak. Replace or add the Ssangyong genuine coolant, if needed. -
(8) Engine drive belt
Check all drive belts on the engine for wear, crack and looseness. Retighten or replace the belt, if
needed. -

02-6
ICM box
Interior fuse box
Fuse box in engine compartment
The fuse and relay boxes consist of three boxes: Integrated Control Module (ICM) box in which the
relays of rear wiper, rear fog lamp, mirror folding, ACC, IGN1 & 2, horn, tailgate, power outlet, shift lock
(A/T) are integrated, relay & fuse box in engine compartment and interior fuse box.
2. SYSTEM LAYOUT1. OVERVIEW

02-78410-00
3. OPERATING PROCESS

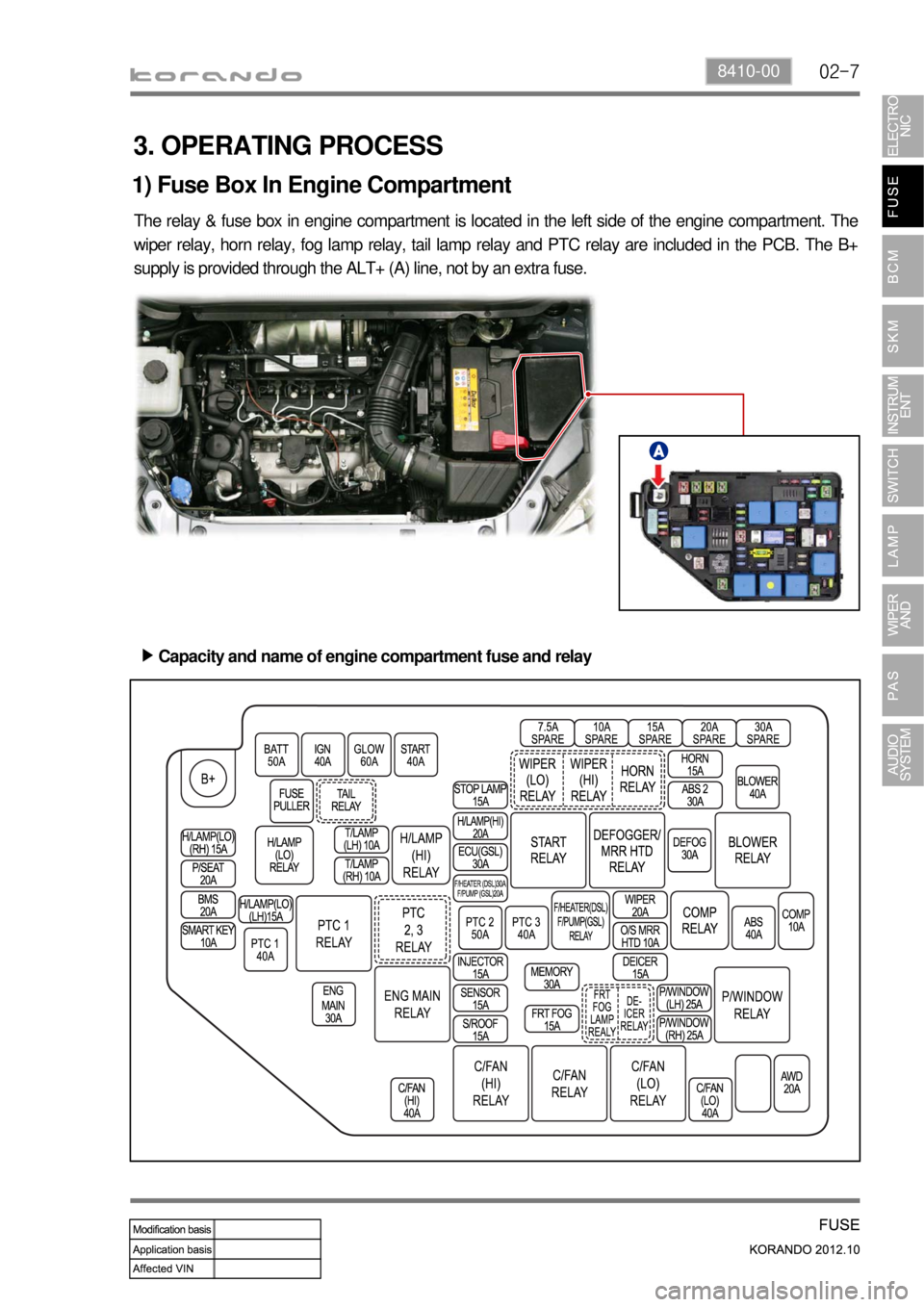

1) Fuse Box In Engine Compartment
The relay & fuse box in engine compartment is located in the left side of the engine compartment. The
wiper relay, horn relay, fog lamp relay, tail lamp relay and PTC relay are included in the PCB. The B+
supply is provided through the ALT+ (A) line, not by an extra fuse.
Capacity and name of engine compartment fuse and relay ▶

02-14
Engine compartment fuse and relay box V (Ef17, Ef20~Ef23, Ef25~Ef26, WIPER MOTOR
RELAY(HI, LO), HORN RELAY, POWER WINDOW RELAY) ▶

02-298410-00
(5) Horn relay
The power for the theft deterrent horn relay is supplied to the ICM terminal no. C5 through the battery
SB1 and fuse no. 45 in the interior fuse box.
The relay is operated by the signals from the BCM terminal no. A24. Refer to Conditions For Theft
Deterrent for operating conditions.
(6) Tailgate relay
The power for the tailgate relay is supplied to the ICM terminals no. C10 and no. B5 through the battery
SB1 and fuse no. 42 in the interior fuse box. The relay is operated (i.e. ON/OFF) by the operation signal
from the BCM terminal no. D6.
Deactivation condition ▶
Without SKM
The tailgate open relay is turned OFF immediately after the driver's door is locked or the vehicle
speed becomes 3 km/h or more during its activation.
With SKM
Refer to the section Tailgate of BCM for the operating conditions. -
-

03-378710-01
Remote door unlock ▶
When briefly pressing (below 2.0 sec) the UNLOCK button on the transmitter, the doors are
unlocked.
The door unlock relay is turned ON for 0.5 seconds when receiving the door unlock message from
the transmitter.
The turn signal lamps blink only when all doors are successfully unlocked.
The REKES operation is not available when the ignition key is in the key switch. Also, it is not
possible to use the switches on the remote control key for 1 second after removing the ignition key
from the ignition switch to avoid unintended operation. 1.
2.
3.
4.
Remote panic ▶
When pressing (over 2.0 sec) the PANIC switch on the transmitter, the panic alarm is activated.
When receiving the panic message from the transmitter, the horn sounds and the turn signal lamps
blink for 30 seconds (Panic alarm). 1.
2.

03-38
After 30 seconds delay auto door lock ▶
If a door or tailgate is not opened within 30 seconds after unlocking the doors with remote control key
in theft deterrent mode, all doors will be automatically locked again (change to theft deterrent mode).
If any door is not opened or the key is not detected within 30 seconds after receiving the unlock
signal, the lock signal is outputted and theft deterrent mode is activated.
When entering into the theft deterrent mode, the turn signal lamps blink twice and the exterior buzzer
sounds once for SKM the lamps blink twice and burglar alarm horn sounds once for REKES. 1.
2.

03-458710-01
12) Panic Alarm
Panic alarm by REKES signal ▶
When receiving the panic signal with Power OFF, ACC and IGN ON, the horn and turn signal lamps
operate for T1 with the interval of 0.5s ON/0.5s OFF.
When receiving the door lock or panic signal during the panic operation, the panic alarm stops.
(other commands are overridden)
The theft deterrent functions are as below:
- The theft deterrent alarm stops when receiving the panic alarm during its operation.
- The panic alarm stops and then the theft deterrent alarm starts its operation when occurring the
theft deterrent alarm conditions during panic alarm.
This function should be available regardless of the key status.
This function should be activated only when the ignition key is inserted (EU region). 1.
2.
3.
4.
5.

03-46
Panic alarm by SKM smart key's remote control ▶
When the BCM receives "Panic command by smart key remote control" as a BCAN signal, it
activates panic alarm by operating the horn and turn signal lamp for 30 seconds with a interval of
0.5s ON/0.5s OFF. However, the BCM used in EU region is operated when receiving the panic
command from the smart key remote control and the signal that the smart key is in the vehicle with
Power OFF, ACC and IGN ON.
The BCM stops the panic function and operates the function depending on the signal in the event of
following commands during turn signal lamp and horn operation by the "Panic command from smart
key remote control".
The panic alarm stops and then the theft deterrent alarm starts its operation when occurring the theft
deterrent alarm conditions during panic alarm.
All the functions are controlled by SKM and operated by signal from SKM. 1.
2.
3.
4.
Stops panic function activated by "Panic command from smart key remote control" through
BCAN signal
Panic function is activated when receiving other command -
-
