04-10
No. Symbol Item
24Engine oil pressure
warning lamp
25Water separator
warning light
26Engine coolant
overheat warning light
27Engine hood open
warning lamp
28 EBD warning light
29 SSPS warning lamp
30Hazard warning lampPower Turning ON condition
IGN Signal input
IGN IGN ON/ CAN signal input
IGN IGN ON/ CAN signal input
IGN Switch ground
IGN CAN signal input
IGN Digital input
IGN Switch to High

04-258210-01

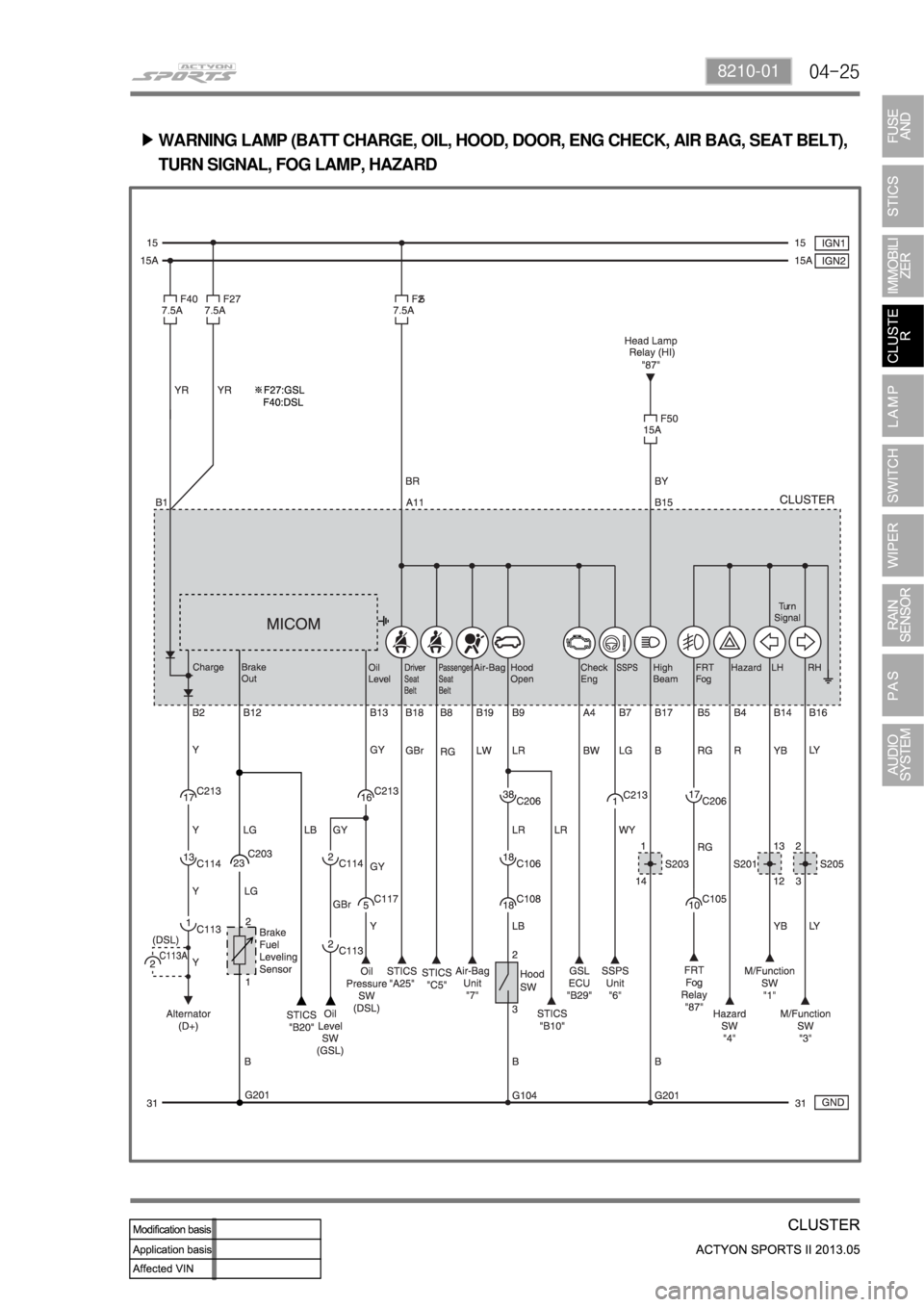

WARNING LAMP (BATT CHARGE, OIL, HOOD, DOOR, ENG CHECK, AIR BAG, SEAT BELT),
TURN SIGNAL, FOG LAMP, HAZARD ▶

05-38310-00
1. SPECIFICATIONS
AmountSpecification
EU General
Exterior lamp Headlamp Low beam / High
beam2 H4(60W) /
H4(55W)←
Turn signal lamp 2 PY21W←
Position lamp 2 W5W←
Front fog light 2 H27W←
DRL 2 P21W←
Side repeater 2 LED←
Rear combination
lampStop (tail) lamp 2 P21W(5W)←
Turn signal lamp 2 PY21W←
Back-up lamp 1/2 P21W/1 P21W/2
Rear fog light 1 P21W -
License plate lamp 2 W5W←
Interior lamp Front room lamp 2 8W←
Glove box lamp 1 5W←
Center room lamp 2 10W←
Door courtesy lamp 2 5W←Description
The surface of lamps can get foggy when raining or washing the vehicle. This is normal and is a result
of the temperature difference between inner and outer surface of lamp cover. However, if water gets
into the lamp, have the system checked at Ssangyong Authorized Service Center.

06-38610-08
1. SPECIFICATIONS
Multifunction switch ▶
Item Rated load Voltage drop
Light 0.1 A (Relay load) Max. 0.25 V
Dimmer & passing High beam: 0.3 A / Low beam: 0.3 A
/ Passing: 0.3 A (Relay load)Max. 0.25 V
Turn signal lamp switch6.6±0.5 A (Lamp load)Max. 0.25 V
Hazard warning flasher switch 0.1 A -
Fog lamp 0.1 A (Relay load) -
Wiper LOW: 5 A (motor load)
HI: 7 A (motor load)
AUTO: 0.22 ± 0.05A (relay load)
LOCK: Max. 28 A (motor load)Max. 0.25 V
Auto washer 0.1 A (Signal load) -
Washer 4 A (motor load)
20 A (Lock/Min)Max. 0.8 V
Variable Int Volume Max. 25 mA -
MIST SW 5 A (motor load) Max. 0.25 V
Hazard warning flasher bezel switch ▶
Item Rated load
Hazard warning flasher switch 12 V-10 A
Rear heated glass switch 12 V-0.1 A
Windshield heated glass switch 12 V-0.1 A
TRIP switch 12 V-0.1 A

08-4
STICS Engine Compartment Fuse Box
STICS ▶
The rain sensing unit detects the amount of rain drops and sends the operating signal to STICS, and
STICS drives the wiper directly. At this moment, STICS determines the wiper operation mode (washer,
MIST, AUTO), then sends the information to the rain sensor.
Auto Light Sensor and Rain Sensor Coupled Control ▶
Rain detected headlamp: If it rains heavy which requires the highest INT speed (almost LOW),
the headlamps are turned on automatically. -
Night detected wiping: When the auto light control turns on the headlamps and the rain sensor
detects the rain, the wiper sensitivity is automatically increased by one level in comparison with
daytime.
(i.e. the AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.) -Wiper relay (HI)
Wiper relay (LO)

08-78610-09
3) Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
<009a008c0095009a0090009b0090009d0090009b00a000470090009a004700900095008a0099008c0088009a008c008b0047004f008c009f00610047009a008c0095009a0090009b0090009d0090009b00a00047005700470d7d0047005800500047009e00
8f00900093008c0047009b008f008c00470090008e00950090>tion switch and the INT switch is
in the "ON" position, and the wiper motor is in "Parked" position). However, the wiper motor can
be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 1 stage within 2 seconds, the wiper motor runs only
one cycle.
4) Auto Light Control
Only when the auto light switch is in "AUTO" position, it controls the tail lamp and headlamp by
communicating with the rain sensor (while the ignition key is in "ON" position). 1.

08-98610-09
6) Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 2.The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain sensor,
while the ignition key is in "ON" position and the wiper switch is in "ON" position. 1.

09-38790-01
1. COMPONENT SPECIFICATIONS
The PAS (parking aid system) emits the ultrasonic wave signals from the sensors on the rear bumper at
a specific interval
and detects the reflected signals from obstacles when reversing. The alarm interval increases as the
obstacle approaches.
This supplementary system is useful to measure the distance when parking.
Parking Aid Unit ▶
Parking Aid Sensor ▶
Detecting type: Ultrasonic wave (Piezo
ceramic element)
Calculates the distance between the sensor
and the object by calculating the return time of
the emitted the ultrasonic wave
Frequency used: 50 KHz ± 1 KHz
Detection distance: 30 cm ~ 120 cm
(based on lineal distance between sensor and
obstacle)
Tolerance: ± 10 cm
Sensor detection range (at -6 dB) -
-
-
-
-
LH/RH sensor
Center sensor
Item Value Item Value
Rated voltage DC 12 V Operating temperature-30˚C ~ +80˚C
Operating voltage DC 9 V ~ 16 V Storage temperature-40˚C ~ +85˚C
Current
consumptionUnit 100 mA or less Relative humidity 95% RH max
Sensor 20 mA or less (each)
WeightUnit72 ± 10 g
Sensor40 ± 5 g

09-4
2. CAUTIONS
Note that the display does not show everything in the rear area. Always check nobody, especially
animals and children, is behind the vehicle when parking or reversing.
If you can not properly check the vehicle behind, get out of the vehicle and then visually check it.
The parking aid system is just a supplemental device to help your parking.
Always keep the safety precautions.
Do not press or shock the sensors by hitting or using a high-pressure water gun while washing,
since it may damage the sensors.
If the system is in normal operating condition, a short beep sounds when the shift lever is moved into
"R" position with the ignition key "ON". -
-
-
-
-
-
The parking aid system will not work or improperly work under following cases: ▶
1. Certain obstacles that sensors can not detect
Thin and narrow objects, such as wires, ropes, chains
Cotton, sponge, clothes, snow; that absorb ultrasonic waves
Obstacles lower than the bumper (ex. drain ditch or mud puddle) -
-
-
2. Not defective but improperly working
When the sensing portion is frozen (operates normally after thawed)
When the sensing portion is covered by rain, water drops, snow or mud (operates normally after
cleaned)
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on -
-
-
-
3. Narrowed sensing area
When the sensing portion is partially covered by snow or mud (operates normally after cleaned)
<007a009c009900990096009c0095008b00900095008e0047009b008c00940097008c00990088009b009c0099008c00470096008d0047009a008c0095009a0096009900470090009a0047009b009600960047008f0090008e008f0047004f00880097009700
990096009f005500470096009d008c00990047005f005700b6>C) or too low (approx.
below -30°C) -
-
When driving on the rough roads, gravel road, hill and grass
When the bumper height is changed due to heavy load
When the sensing portion is frozen
When the sensing portion is covered by rain, water drops, snow or mud
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on
When some accessories are attached in detecting ranges -
-
-
-
-
-
- 4. Not defective but may cause malfunction

03-73170-01
2) Function of N Switch
(1) Aids a smooth start of the vehicle by raising the RPM during the gear
shifting when the engine is cold.
When the vehicle is trying to start from the stopped state (vehicle speed below 3 km/h), the N switch
determines the shifting timing by using the clutch switch and the N switch. It raises the engine RPM (100
~ 200 rpm). Operation conditions are as follows.
The vehicle speed is at the stopped state (Vehicle speed below 3km/h detection).
While depressing the clutch (Clutch switch detection).
The gear lever is at a position other than neutral (N switch detection).
Start the vehicle while depressing the clutch pedal (Clutch switch detection).
The RPM increases in accordance with the temperature of the engine coolant
(Engine coolant temperature sensor detection). -
-
-
-
-
appx. 100 rpm increase
appx. 100 ~ 170 rpm increase
<008800970097009f00550047005f005700b6006a0047004f0095009600990094008800930047009b008c00940097008c00990088009b009c0099008c00470096008d0047009b008f008c0047008c0095008e00900095008c0047008a009600960093008800
95009b005000610047008800990096009c0095008b00470059>00 rpm ·
·
·
When the gear has been smoothly shifted and the vehicle speed exceeds 3km/h, it returns to the
previous operation interval of the engine RPM. -
In case of Actyon, the N switch signal is transmitted to the instrument panel, and then the instrument
panel transmits it to the engine ECU through the CAN communication.
Vehicle Made After 04.09.15 Actyon
