Page 180 of 751
12-12
Do not move the shift lever to Neutral position while driving with the cruise control turned on.
Otherwise, it may result in system malfunction or accidents.
Always be prepared to use the brake or accelerator pedal for safe driving while the cruise control
system is running.
The actual speed can be different from the set speed momentarily when driving on a uphill or
downhill. So, it is recommended to disable the cruise control function on a uphill or downhill. hen
driving on a steep hill use the engine brake and foot brake properly to protect the vehicle system
and for a safe driving.
Ensure that the safe distance is maintained and use the brake pedal if needed. 1.
2.
3.
4.
(1) Abnormal Cancellation of the Cruise Control
When the rapid deceleration is applied without braking.
When the rapid acceleration is applied without acceleration pedal intervention.
When the cruise control lever is faulty.
When the brake switch and the brake light switch input signal are implausible. 1.
2.
3.
When the cruise control function is cancelled abnormally or intermittent problems occur, stop the vehicle
and turn off the ignition switch and remove the key to reset the system. After a while, turn on the ignition
switch again to operate the cruise control system.
Page 223 of 751
15-230000-00
(7) Knocking Control
A. Resetting the pilot injection
The knocking control is used to reset the pilot injection flow in closed loop for each injector. This method
allows the correction of any injector deviations over a period of time. The principle of use of the knocking
control is based on the detection of the combustion noises.
The sensor is positioned in such a way as to receive the maximum signal for all the cylinders. The raw
signals from the knock sensor are processed to obtain a variable which quantifies the intensity of the
combustion. This variable, known as the ratio, consists of the ratio between the intensity of the
background noise and the combustion noise.
A first window is used to establish the background noise level of the knocking control signal for each
cylinder. This window must therefore be positioned at a moment when there cannot be any
combustion.
The second window is used to measure the intensity of the pilot combustion. Its position is such that
only the combustion noises produced by the pilot injection are measured . It is therefore placed just
before the main injection. 1.
2.
The knock sensor does not allow any evaluation of the quantity injected. However, the pulse value will
be measured when the injector starts injection and this pulse value is called the MDP (Minimum Drive
Pulse). On the basis of this information, it is possible to efficiently correct the pilot flows. The pilot
injection resetting principle therefore consists of determining the MDP, in other words the pulse
corresponding to the start of the increase in value of the ratio (increase of vibration due to fuel
combustion).
Page 224 of 751
15-24
This is done periodically under certain operating conditions. When the resetting is finished, the new
minimum pulse value replaces the value obtained during the previous resetting. The first MDP value is
provided by the C3I. Each resetting then allows the closed loop of the MDP to be updated according to
the deviation of the injector.
B. Detection of leaks in the cylinders
The accelerometer is also used to detect any injector which may have stuck open. The detection
principle is based on monitoring the ratio. If there is a leak in the cylinder, the accumulated fuel self-
ignites as soon as the temperature and pressure conditions are favorable (high engine speed, high load
and small leak).
This combustion is set off at about 20 degrees before TDC and before main injection.
The ratio therefore increases considerably in the detection window. It is this increase which allows the
leaks to be detected. The threshold beyond which a fault is signaled is a percentage of the maximum
possible value of the ratio.
Because of the severity of the recovery process (engine shut-down), the etection must be extremely
robust.
An increase in the ratio can be the consequence of various causes:
Pilot injection too much
Main combustion offset
Fuel leak in the cylinder -
-
-
If the ratio becomes too high, the strategy initially restricts the pilot injection flow and retards the main
injection. If the ratio remains high despite these interventions, this shows that a real leak is present, a
fault is signaled and the engine is shut down.
C. Detection of an accelerometer fault
This strategy permits the detection of a fault in the sensor or in the wiring loom connecting the sensor to
the ECU.
It is based on detection of the combustion. When the engine is idling, the detection window is set too low
for the combustion caused by the main injection. If the ratio increases, this shows that the knock sensor
is working properly, but otherwise a fault is signaled to indicate a sensor failure. The recovery modes
associated with this fault consist of inhibition of the pilot injection and discharge through the injectors.
Page 390 of 751
04-78210-01
Sub connector - 20-pin
(white)
Connector Pin Arrangement ▶
The connector pin sections illustrated below are viewed from the front of the instrument cluster. The
arrangement of the pins is the same for both the main connector and the sub connector.
1. IGN2+
2. CHARGE(ALT)
3. -
4. HAZARD
5. FRONT FOG
6. -
7. SSPS
8. PASSENGER SEATBELT
9. HOOD OPEN
10. -
11. -
12. PARKING BRAKE INPUT
13. OIL PRESSURE
14. TURN LEFT
15. HIGH BEAM+
16. TURN RIGHT
17. HIGH BEAM-
18. DRIVER SEATBELT
19. AIRBAG
20. -1. B+
2. -
3. DOOR OPEN
4. CHECK ENGIN (GSL ONLY)
5. -
6. ILL+
7. BUZZER OUTPUT
8. 4P OUTPUT
9. -
10. -
11. IGN1+
12. GND
13. FUEL GND
14. CAN HIGH
15. CAN LOW
16. MT R INPUT
17. MT N INPUT
18. RESET/MODE SW
19. FUEL INPUT
20. -
Main connector - 20-pin
(gray)
Page 399 of 751
04-16
Change
OrderMode LCD Display Description
1 TRIP A The maximum distance value that can be displayed is
999.9 km with increments of 0.1 km. The trip meter is
reset to 0.0 km when the value reaches above 999.9 km.
When measuring a trip distance, reset the distance value
in the mode you want to use by pressing the TRIP switch
for 1 sec. or more.
2 TRIP B The maximum distance value that can be displayed is
6,213.09 mi with increments of 0.62mi. The trip meter is
reset to 0.0 km when the value reaches above 999.9 km.
When measuring a trip distance, reset the distance value
in the mode you want to use by pressing the TRIP switch
for 1 sec. or more.
3 Distance to
emptyThe estimated distance that can be traveled is calculated
based on the current fuel level.
If the DTE is less than 50 km, "---" flashes on the display.
4 Driving time The driving time from resetting the value (0:00) until now
is displayed. The value displayed is accumulated while
the engine is running even if the vehicle is not driven. The
display range is 00:00 to 99:59. When measuring the
driving time, press the TRIP switch for 1 sec. or more to
reset the value.
5 Average
fuel
economyThe average fuel economy from resetting the value (--.-)
until now is displayed. The value displayed is
accumulated while the engine is running even if the
vehicle is not driven. The display range is 0.0 to 99.9
km/h. When measuring the average fuel economy, press
the TRIP switch for 1 sec. or more to reset the value. "--.-"
is displayed on the screen when resetting. The value is
reset automatically whenever the vehicle is fuelled.
5) Description for LCD Display
LCD display
Mode Description ▶
Page 400 of 751
04-178210-01
Change
OrderMode LCD Display Description
6 Instant fuel
consumptionThe fuel range is calculated based on the distance
driven and fuel consumed every 2 seconds. If the
vehicle speed is below 10 km/h or the engine rpm is
200 rpm or less, the instant fuel economy is not
displayed. The display range is 0.0 to 99.9 km/.
7 Brightness
adjustmentThe brightness of the illumination can be adjusted in 6
steps by pressing the TRIP switch briefly (less than 1
sec.). The display is changed from ILL1 to ILL6 every
time the switch is pressed. If you select one level
within the range and press and hold the TRIP switch,
the brightness level is memorized. If there is no TRIP
switch input for 5 seconds or more, the mode is
switched to TRIP A mode automatically. When the
battery is reinstalled, the brightness level is reset to
level 4.

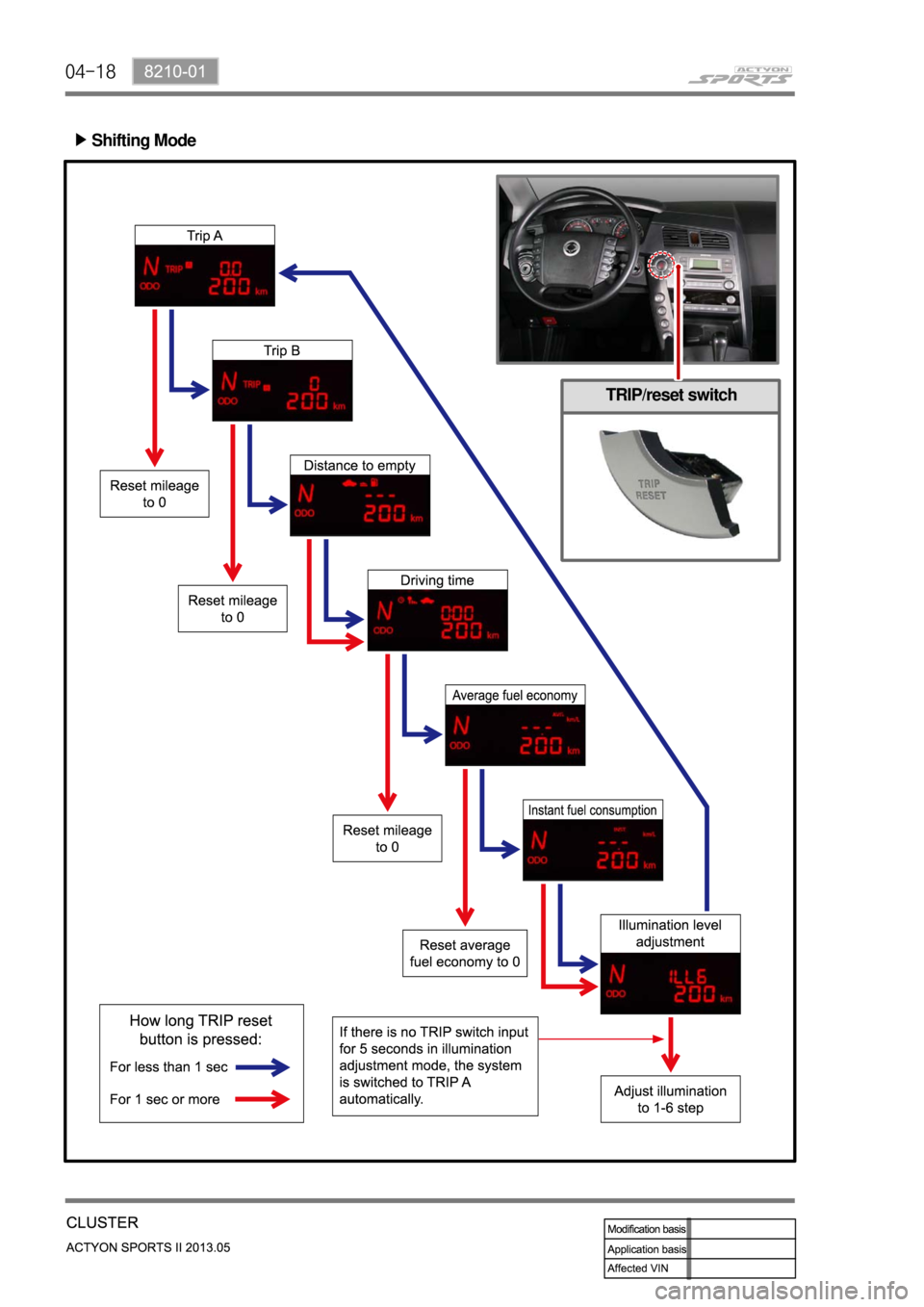

Page 401 of 751
04-18
Shifting Mode ▶
TRIP/reset switch
Page 415 of 751
06-8
1. OVERVIEW
TRIP/RESET Switch
The mode is changed each time this button is
pressed as follows: TRIP A -> TRIP B -> DTE -
> Driving time -> Average fuel economy ->
Instant fuel consumption -> Tail lamp
illumination level.Windshield de-icer switch
Pressing switch activates windshield
heated glass for approx. 12 minutes
The main switch which allows the
driver to control all door windows,
door lock and window lock from the
driver seat. Tailgate and
outside rearview
mirror heated glass
switch
Pressing switch
activates tailgate and
outside rearview
mirror heated glass
for approx. 12
minutes
Driver power window switchESP ON/OFF switch
Pressing this switch deactivates the ESP (Electronic
Stability Program) system and turns on the ESP OFF
indicator on the instrument cluster. Pressing this
switch again turns off the ESP OFF indicator and
activates the ESP system. Outside rearview mirror folding/unfolding switch
Press the FOLD/UNFOLD switch to fold the outside
rearview mirror and press the switch again to unfold
the mirror.
Rear Fog Lamp Switch
The rear fog lamp comes on when
the rear fog lamp is turned on only
while the front fog lamp is ON.
Steering Wheel Heating
Switch
To heat the steering wheel,
press this switch. To stop
the heating, press it again.
The indicator on the
instrument cluster comes
on when heating and goes
off when turning off. The
heating function stops when
stopping the engine.
Page 448 of 751
10-8
2. SWITCH
No. Name and Function
1 RDS setup
2 AF/TA selection
3 Start call
4 USB, AUX, CD selection
5 Power (ON/OFF), Mute, Volume
6 Preset key #1, Intro SCAN
7 Preset key #2, RPT
8 Preset key #3, Random
9 Preset key #4, folder down
10 Preset key #5, folder up
11 Preset key #6, File guide
12 AST, SCAN, TUNE UP/DOWN
13 Eject
14 End call
15 Set
16 Band
17 LCD window
Page 738 of 751
04-37340-00
1. SPECIFICATIONS
2. CAUTIONS WHEN WORKING
Wear clean work clothes and gloves.
Replace and wash the gloves frequently.
Any unauthorized modification or operational test is not allowed since the sunroof motor and control
unit are preset at the factory.
Take care not to drop the sunroof assembly when removing it and do not keep it right up. 1.
2.
3.
4.
Operating voltage 9 ~ 16 V
Operating current (open & close) Max. 6 A
At no load Max. 2 A
Leakage current Max. 1 mA or less
Roof motor operating speed (at opening and closing)1.2 ± 0.5 sec./100 mm
Motor overload stop conditionsCurrent for up to 26 A and torque (load)
for up to 8.3 Nm
Opening amount230 ± 3
Vertical/horizontal tolerance for sunroof glass panel± 2 mm/± 2.5 mm
3. CAUTIONS FOR OPERATION
Even though the sunroof can be operated when the engine is not running, operating the sunroof
repeatedly with the engine turned off will run down the battery. Operate the sunroof while the engine is
running.
When the sunroof operation is completed, release the switch. Keeping pressing the switch can result
in malfunction.
Especially in winter, never operate the sunroof if operation areas are iced. Wait until melted.
Make sure that the sunroof is completely closed when leaving the vehicle. Leaving the vehicle with the
sunroof open result in a theft. In addition, rain or snow can get into the vehicle through the open
sunroof.
When the sunroof is fully open, wind buffeting symptom can be worse. In this case, try to adjust the
sunroof position manually or open the sunroof until the wind buffeting is disappeared
Parts of the body can be trapped in the sunroof and can be struck by passing objects. Do not stick
hands, head or anything else out of the openings.
Remove any dirt and foreign material stuck on the edge of the sunroof glass periodically.
Noise can occur due to friction when operating the sunroof. -
-
-
-
-
-
