engine SSANGYONG NEW REXTON 2012 Service Manual

3. VEHICLE IDENTIFICATION
Engine Number
Gasoline Engine: The
engine number is stamped
on the lower area of
cylinder block in exhaust
manifold side.Vin LabelChassis Number
The chassis number is
stamped on the frame
behind the front right tire.
D20DTR D27DT D27DTP
Diesel Engine (D20DTR, D27DT, D27DTP): The engine number is stamped on the lower area
of cylinder block behind the Intake manifold.
Certification Label
The certification label is
sill.

0000-00
4. MAINTENANCE
1) Scheduled Maintenance Services (EU) - Diesel Engine (D20DTR)

2) Scheduled Maintenance Services (GEN) - Diesel Engine
(D20DTR)

0000-00

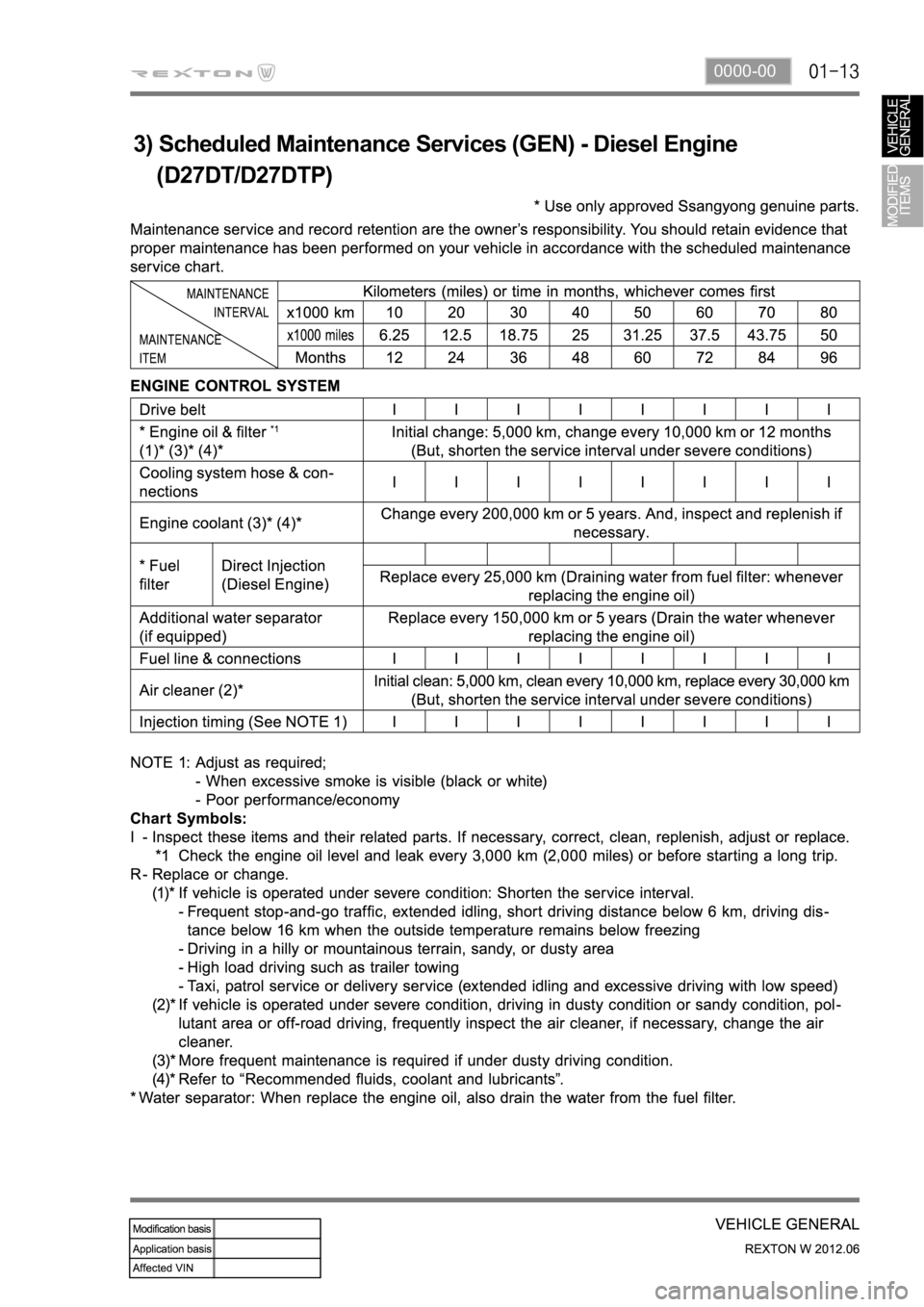

3) Scheduled Maintenance Services (GEN) - Diesel Engine
(D27DT/D27DTP)

4) Scheduled Maintenance Services (Gasoline Engine)

4. ENGINE AND CHASSIS
4190-06 Wheel Module
- Added the wheel module in each
wheel according to introduction of
TPMS.
1491-01 Engine Control Unit
- Changed the logic according to
introduction of TPMS.
4190-13 TPMS Unit
- Installed TPMS unit with antenna
according to introduction of TPMS.

0000-00

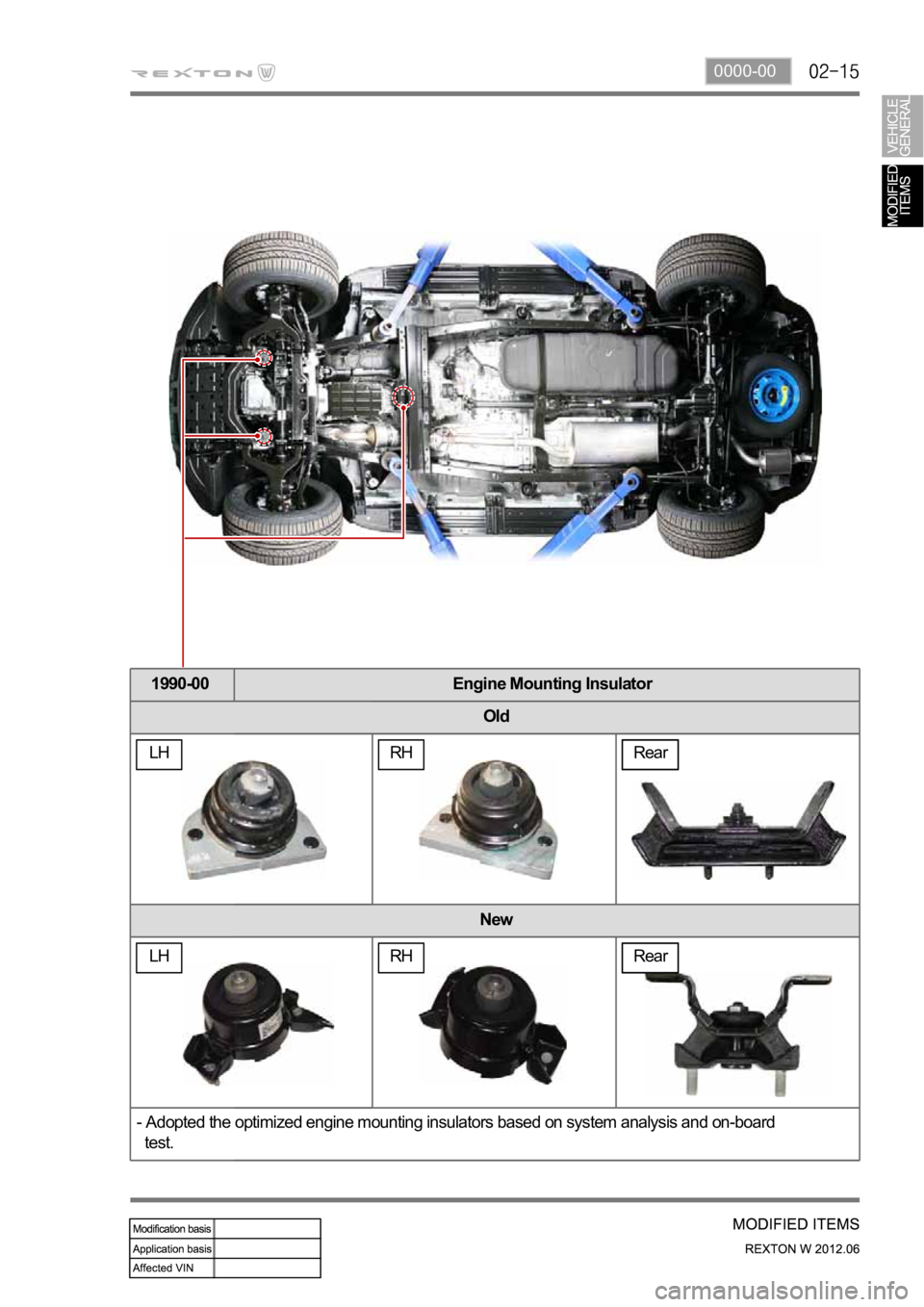

1990-00 Engine Mounting Insulator
Old
New
- Adopted the optimized engine mounting insulators based on system analysis and on-board
test.
LH RH Rear
LH RH Rear

0000-00
Knock sensor (one) and
water temperature sensor
Fuel rail sensor (common
rail)
1. LOCATION OF MAJOR SENSORS ON ENGINE
Major sensors and devices
InjectorGlow plugCommon rail
Camshaft position sensorBoost pressure sensor
Crankshaft position
sensor
HP pumpCommon rail
Injector
Turbocharger vacuum
modulator

2. ENGINE ACCESSORIES RELATED TO ECU
HFM sensor (HFM 6.0)
To control the engine more precisely, new
functions such as digital signal for intake air mass
have been introduced.
Engine ECU
Location

0000-00
Accelerator pedal moduleFuse
Relay
Engine main relay 4
PPS (integrated
two pedal position
sensors)
Pre-glow and immobilizer
Engine main relay 4
IMV
Priming pumpFuel filter
