0000-00
EXHAUST SYSTEM
Operation at Idling and Mid- Load
The throttle valve (6) is closed or very partially opened, and the vacuum pressure in intake
manifold is high.
The blow-by gas and the fresh air that is additionally supplied through the vent connection
(D) in the crank-case in partial load gets supplied to the combustion chamber from the
crank chamber (12) through the oil separation chamber (11), airconditioner bracket (10),
vent line (9), and restrictor (7) mounted to the cylinder head.
The circulated engine oil returns to the oil pan through the oil return pipe (13) at the bottom
of oil separation chamber (11).
The fresh air gets supplied to the crank chamber (12) through the HFM sensor (1), intake
air duct (4), vent line (5), oil separation chamber (3), chain housing (17), and the timing
gear case cover (15).
The additional supply of the fresh air is needed to prevent from forming the residues of the
engine oil.

ENGINE INTAKE SYSTEM
undefined
2313-01
OVERVIEW AND OPERATION PROCESS

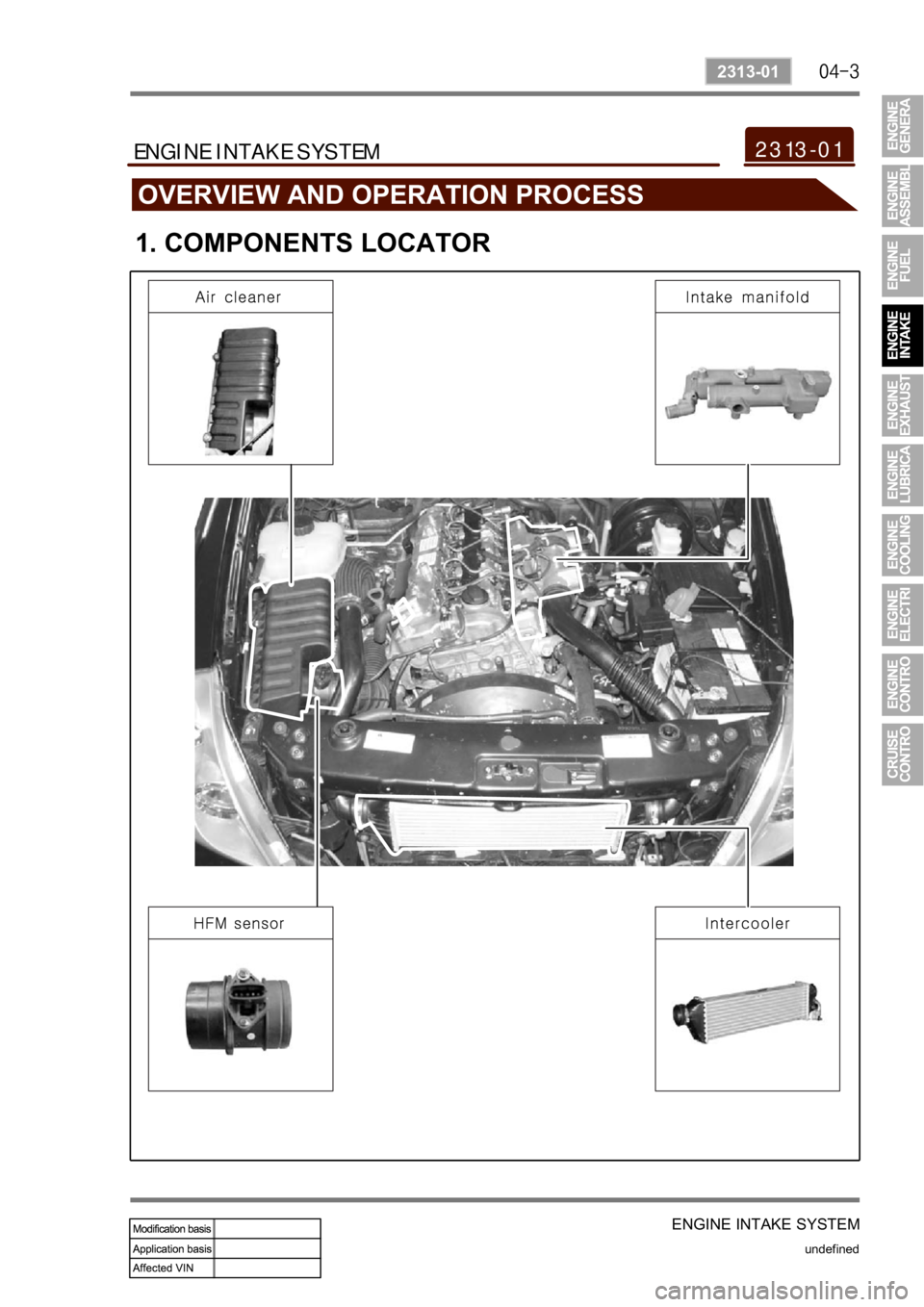

1. COMPONENTS LOCATOR
2313-01ENGINE INTAKE SYSTEM

undefined
2313-01
ENGINE INTAKE SYSTEM

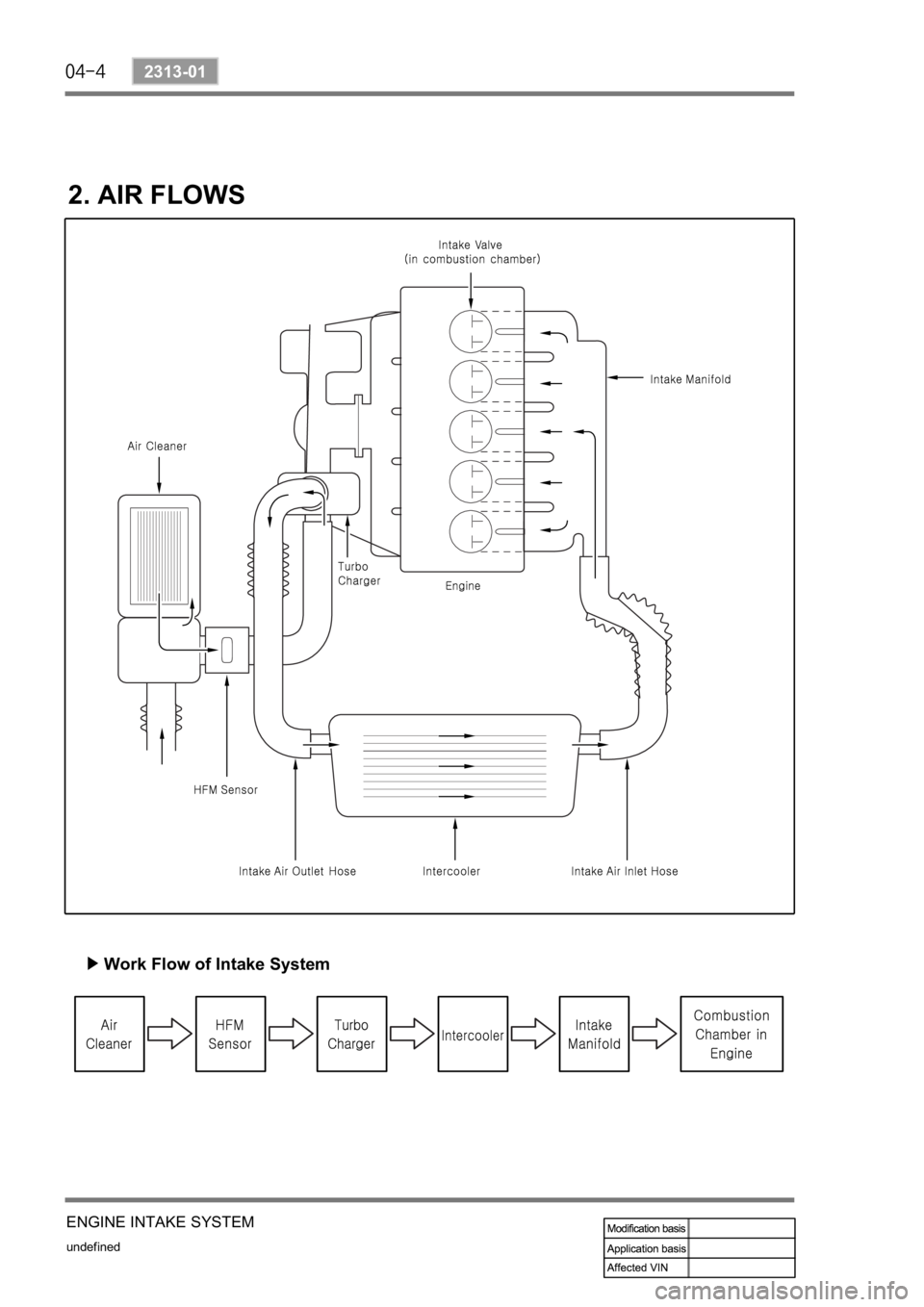

2. AIR FLOWS
Work Flow of Intake System
