8710-08

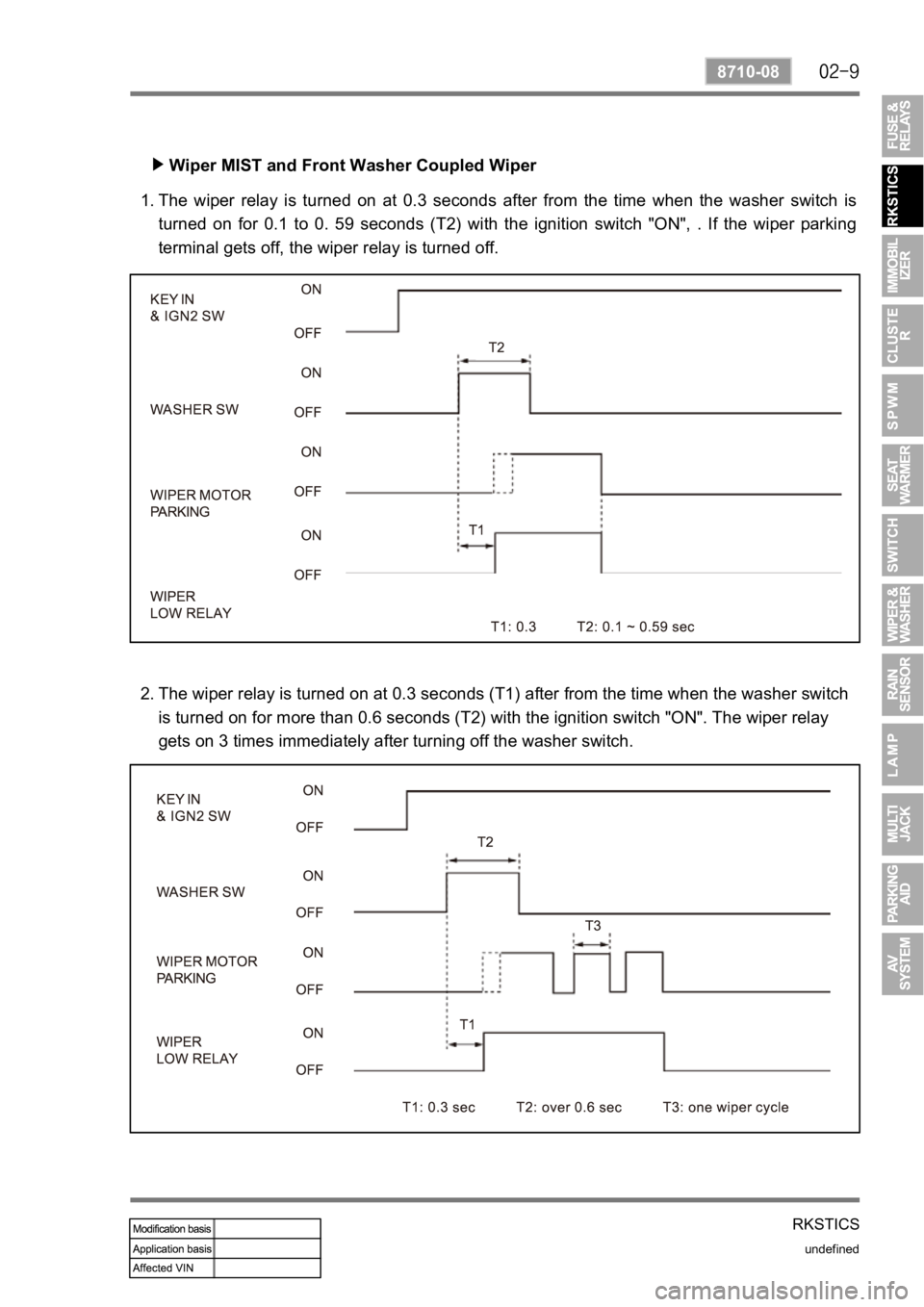

Wiper MIST and Front Washer Coupled Wiper
The wiper relay is turned on at 0.3 seconds after from the time when the washer switch is
turned on for 0.1 to 0. 59 seconds (T2) with the ignition switch "ON", . If the wiper parking
terminal gets off, the wiper relay is turned off. 1.
The wiper relay is turned on at 0.3 seconds (T1) after from the time when the washer switch
is turned on for more than 0.6 seconds (T2) with the ignition switch "ON". The wiper relay
gets on 3 times immediately after turning off the washer switch. 2.

RKSTICS
undefined
8710-08
Auto Washer and Wiper Switch
When the auto washer switch is turned on with the ignition switch "ON" and the AUTO
switch "OFF", the washer motor output gets ON for 1 second. If the system recognizes the
output signal, the wiper relay output gets ON during 4 cycles and the washer motor output
gets ON for 1 second. Then, the wiper relay output gets OFF after 3 cycles. 1.

undefined
8710-08
RKSTICS
Auto Switch Position Reminder (Power-Up Reminder Wiper)
When turning off and on the IGN2 switch with the auto switch on, the system drives the
wiper motor through LOW relay one cycle regardless of communication with rain sensor.
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when changing the
auto switch from "OFF" to "ON" position regardless of communication with rain sensor(while
the ignition key is in the "ON" position).
When the auto switch is turned to the "ON" position again from the "OFF" position, the
system drives the wiper motor through LOW relay one cycle only when the rain senso
r
detects the "Rain Detected" signal. 1.
2.

undefined
8710-08
RKSTICS
Washer Coupled Wiper in Rain Sensing Mode
The washer coupled wiper is operated when receiving the washer switch input with the
ignition switch "ON" and the AUTO switch "ON" in the rain sensing mode. At this moment,
the communication with the rain sensor is overridden. However, the washer switch input is
overridden during the continuous operation.
The operation data is sent to the rain sensor even during the washer coupled wiper's
operation. 1.
2.
Rain Sensing Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
sensitivity is increased (while the ignition key is in the "ON" position, the AUTO switch is in
the "ON" position, and the wiper motor is in "Parked" position). However, the wiper moto
r
can be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 2 stages within 2 seconds, the wiper moto
r
runs only one cycle. *

undefined
8710-08
RKSTICS
Defective Rain Sensor
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 2 from 3 during receiving the malfunction signal from the rain
sensor (while the ignition key is in "ON" position and the AUTO switch is in "ON" position). 1.
The wiper relay (LOW) is turned on and the wiper motor runs one cycle when the volume
sensitivity is changed to 3 from 4 during receiving the malfunction signal from the rain senso
r
(while the ignition key is in "ON" position and the AUTO switch is in "ON" position). 2.

RKSTICS
undefined
8710-08
Speed sensitive AUTO wiper -
1) The wiper relay continues to output for remaining "ON" time even when the AUTO switch
is turned off.
2) IGN 2 switch "ON", AUTO switch "OFF": Resume the intermittent time when turning "ON"
3) IGN 2 switch "OFF", AUTO switch "ON": Resume the intermittent time when turning "ON"
Controls when the wiper motor parking is defective -
1) The wiper relay continues to output when the parking terminal is fixed at the ground or
IGN while the wiper relay is "ON" (AUTO switch = ON or Washer switch = ON) (The output
stops immediately after turning off the switch) (The output stops immediately after turning
OFF the switch.)Pause time of vehicle speed sensitive INT wiper AUTO
Pause time

RKSTICS
undefined
8710-08
Tail Lamp Auto Cut (Battery Saver)
The tail lamp is turned on or off according to the operations of the tail lamp switch.
The tail lamp relay is turned off (auto cut) when opening and closing the driver's door afte
r
removing the ignition key without turning off the tail lamp.
The tail lamp relay is turned on when inserting the ignition key into the ignition switch.
The tail lamp relay is not turned off automatically (auto cut) when opening and closing the
driver's door while the ignition is removed and the tail lamp is turned on. 1.
2.
3.
4.

RKSTICS
undefined
8710-08
Door LOCK/UNLOCK by Remote Control Key
The door lock relay output is "ON" for 0.5 seconds when receiving the remote control lock
signal.
The door unlock relay output is "ON" for 0.5 seconds when receiving the remote control
unlock signal. 1.
2.

undefined
8710-08
RKSTICS
Time Lag Power Window Control
The power window relay output is "ON" when turning on the ignition switch.
The power window relay output is "ON" for 30 seconds when turning off the ignition switch.
The power window relay output is "OFF" when opening the driver's door or the passenger's
door.
The power window relay is turned "OFF" when receiving the remote control key lock signal
(armed mode) during its extended operation period of 30 seconds. 1.
2.
3.
Definition of Terms
DOOR OPEN and DOOR CLOSE
DOOR OPEN: Any of all door switches (including hood and tailgate) is in "OPEN" position.
DOOR CLOSE: All door switches (including hood and tailgate) are in "CLOSE" position. 1.
The door lock/unlock operation does not affect the engine hood.
DOOR LOCK: Indicates that all door lock switches (including tailgate) are in LOCK positions.
DOOR UNLOCK: Indicates that any of all door lock switches (including tailgate) is in UNLOCK
position. 2.

undefined
8710-08
RKSTICS
Description of Burglar Alarm Function
1. Armed mode activation requirements
1) The "LOCK" output is "ON" when receiving the "LOCK" signal from transmitter while the
ignition key is removed and all doors are closed. The armed mode is activated when the doo
r
lock switch is locked (hazard relay output: twice).
2) The theft deterrent horn and hazard relay outputs are "ON" when receiving the "LOCK"
signal from the remote control key again in armed mode (hazard relay output: twice).
3) When receiving "LOCK" signal from the remote control key while any of doors is not closed,
only the "LOCK" output can be done and then activates the armed ready mode (without hazard
warning flasher). At this moment, if the ignition key is in the ignition switch, the door unlock
switch is turned "ON" or the door lock switch is unlocked, it cancels the armed mode and
activates the normal mode. However, when closing and locking the opened door, the hazard
warning lamps flash twice.
4) When the door is not opened or the ignition key is not inserted into ignition switch for 30
seconds after receiving "UNLOCK" signal, it outputs "LOCK" and then activates armed mode
(RELOCK operation). Also, at this moment, the system outputs the hazard warning flashe
r
twice.
5) The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the ignition key.
