8710-08
RKSTICS
Door Ajar Warning
The warning light in instrument panel comes on when opening any of doors including
tailgate while the vehicle speed is below 10 km/h.
The warning light goes off when closing the door under step 1.
The warning light blinks when the vehicle speed is over 10 km/h while the warning light is
turned on.
The warning light blinks when a door is open while the vehicle speed is over 10 km/h.
The warning light goes off when closing the door under step 3.
The warning light comes on when the vehicle speed goes below 10 km/h under step 3. 1.
2.
3.
4.
5.
6.

RKSTICS
undefined
8710-08
Seat Belt Warning
The seat belt warning light comes on and the chime bell sounds for 6 seconds when turning
the ignition key to "ON" from "OFF".
If the seat belt is fastened before turning the ignition key to the the "ON" position, the
warning light in the instrument panel blinks, however, the chime bell does not sound.
The seat belt warning light goes off and the chime bell stops when turning the ignition switch
to the "OFF" position.
The chime bell stops and the seat belt warning light stays on for the specified period of time
when fastening the seat belt during the warning operation.
The seat belt warning light comes on and the chime bell sounds for 6 seconds again when
unfastening the seat belt during fastening operation while the ignition key is "ON" position. 1.
2.
3.
4.
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds when turning
the ignition key to "ON" from "OFF". After fastening the seat belt, the chime bell stops.
Seat Belt Warning Light

undefined
8710-08
RKSTICS

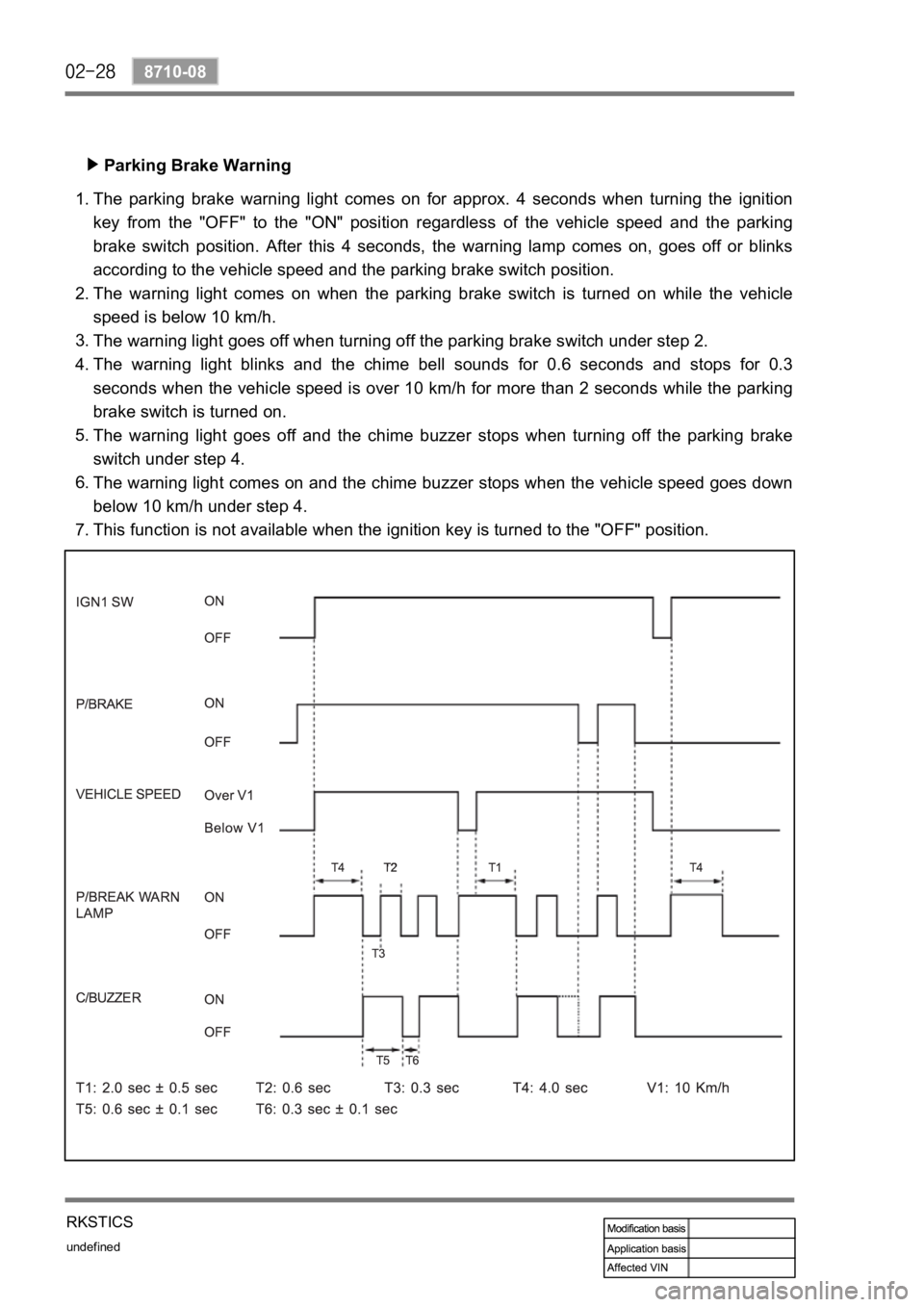

Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds when turning the ignition
key from the "OFF" to the "ON" position regardless of the vehicle speed and the parking
brake switch position. After this 4 seconds, the warning lamp comes on, goes off or blinks
according to the vehicle speed and the parking brake switch position.
The warning light comes on when the parking brake switch is turned on while the vehicle
speed is below 10 km/h.
The warning light goes off when turning off the parking brake switch under step 2.
The warning light blinks and the chime bell sounds for 0.6 seconds and stops for 0.3
seconds when the vehicle speed is over 10 km/h for more than 2 seconds while the parking
brake switch is turned on.
The warning light goes off and the chime buzzer stops when turning off the parking brake
switch under step 4.
The warning light comes on and the chime buzzer stops when the vehicle speed goes down
below 10 km/h under step 4.
This function is not available when the ignition key is turned to the "OFF" position. 1.
2.
3.
4.
5.
6.
7.
