CRUISE CONTROL SYSTEM
undefined
8510-23

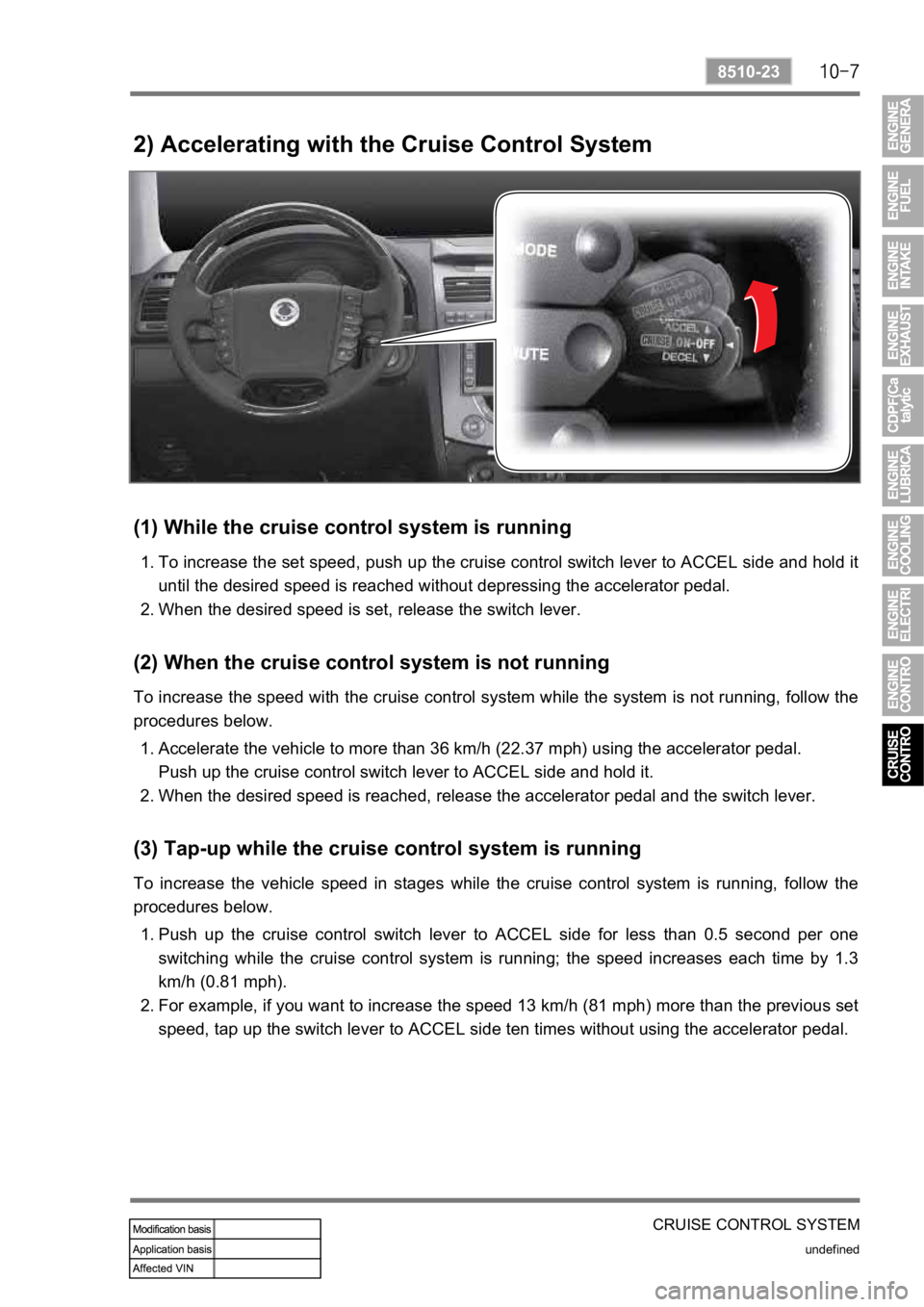

2) Accelerating with the Cruise Control System
(1) While the cruise control system is running
To increase the set speed, push up the cruise control switch lever to ACCEL side and hold it
until the desired speed is reached without depressing the accelerator pedal.
When the desired speed is set, release the switch lever. 1.
2.
(2) When the cruise control system is not running
Accelerate the vehicle to more than 36 km/h (22.37 mph) using the accelerator pedal.
Push up the cruise control switch lever to ACCEL side and hold it.
When the desired speed is reached, release the accelerator pedal and the switch lever. 1.
2. To increase the speed with the cruise control system while the system is not running, follow the
procedures below.
(3) Tap-up while the cruise control system is running
Push up the cruise control switch lever to ACCEL side for less than 0.5 second per one
switching while the cruise control system is running; the speed increases each time by 1.3
km/h (0.81 mph).
For example, if you want to increase the speed 13 km/h (81 mph) more than the previous set
speed, tap up the switch lever to ACCEL side ten times without using the accelerator pedal. 1.
2. To increase the vehicle speed in stages while the cruise control system is running, follow the
procedures below.

undefined
8510-23
CRUISE CONTROL SYSTEM

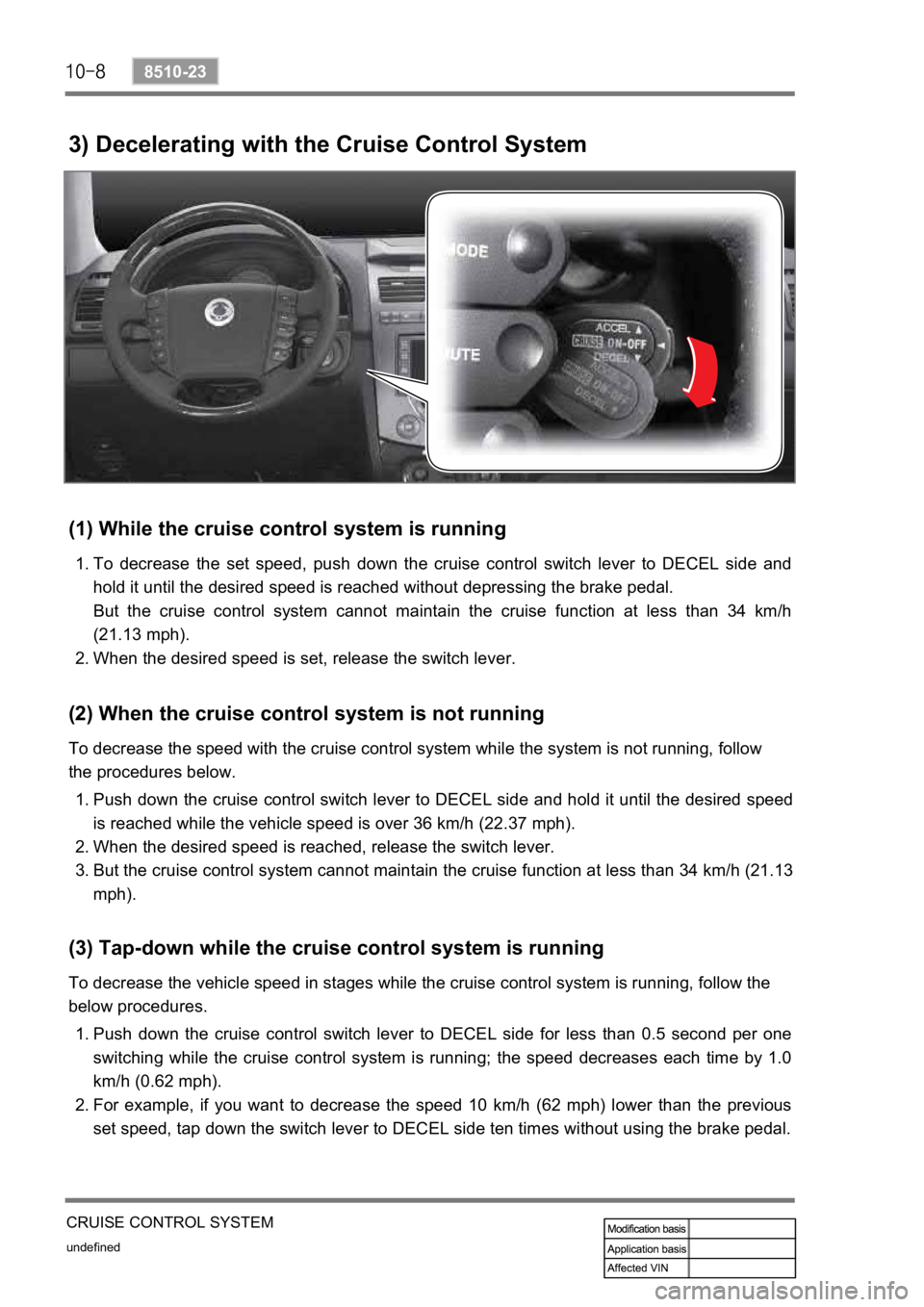

3) Decelerating with the Cruise Control System
(1) While the cruise control system is running
To decrease the set speed, push down the cruise control switch lever to DECEL side and
hold it until the desired speed is reached without depressing the brake pedal.
But the cruise control system cannot maintain the cruise function at less than 34 km/h
(21.13 mph).
When the desired speed is set, release the switch lever. 1.
2.
(2) When the cruise control system is not running
Push down the cruise control switch lever to DECEL side and hold it until the desired speed
is reached while the vehicle speed is over 36 km/h (22.37 mph).
When the desired speed is reached, release the switch lever.
But the cruise control system cannot maintain the cruise function at less than 34 km/h (21.13
mph). 1.
2.
3. To decrease the speed with the cruise control system while the system is not running, follow
the procedures below.
(3) Tap-down while the cruise control system is running
Push down the cruise control switch lever to DECEL side for less than 0.5 second per one
switching while the cruise control system is running; the speed decreases each time by 1.0
km/h (0.62 mph).
For example, if you want to decrease the speed 10 km/h (62 mph) lower than the previous
set speed, tap down the switch lever to DECEL side ten times without using the brake pedal. 1.
2. To decrease the vehicle speed in stages while the cruise control system is running, follow the
below procedures.

CRUISE CONTROL SYSTEM
undefined
8510-23

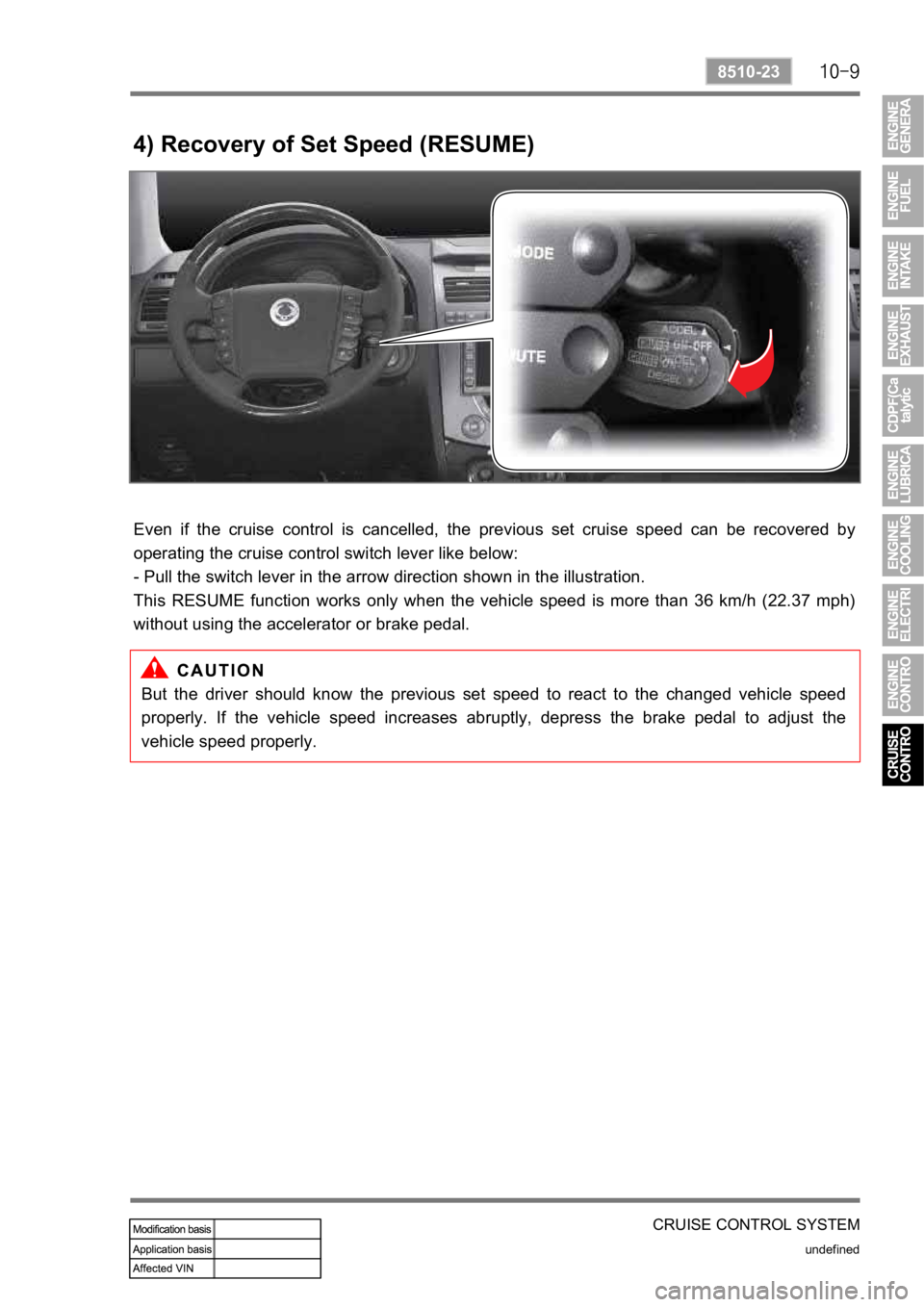

4) Recovery of Set Speed (RESUME)
Even if the cruise control is cancelled, the previous set cruise speed can be recovered by
operating the cruise control switch lever like below:
- Pull the switch lever in the arrow direction shown in the illustration.
This RESUME function works only when the vehicle speed is more than 36 km/h (22.37 mph)
without using the accelerator or brake pedal.
But the driver should know the previous set speed to react to the changed vehicle speed
properly. If the vehicle speed increases abruptly, depress the brake pedal to adjust the
vehicle speed properly.

undefined
8510-23
CRUISE CONTROL SYSTEM
The cruise control system will be cancelled when the button on the side of the switch is pressed,
or when one of the following conditions is met:
Put the cruise control switch lever in the neutral position when not using the cruise control
system.When the brake pedal is depressed or ESP is activated.
When the vehicle speed is less than 34 km/h (21.13 mph).
When the parking brake is applied while driving.
When the clutch pedal is depressed for shifting (M/T only). 1.
2.
3.
4.
(1) Abnormal Cancellation of the Cruise Control
When the rapid deceleration or acceleration occurs.
When the cruise control lever is faulty.
When the brake switch is malfunctioning or has an open circuit. 1.
2.
3.
When the cruise control function is cancelled abnormally or intermittent problems occur, stop
the vehicle and turn off the ignition switch and remove the key to reset the system. After a while,
turn on the ignition switch again to operate the cruise control system.
Do not move the shift lever to Neutral position while driving with the cruise control turned
on. Otherwise, it may result in system malfunction or accidents.
Always be prepared to use the brake or accelerator pedal for safe driving while the cruise
control system is running.
The actual speed can be different from the set speed momentarily when driving on a uphill
or downhill. So, it is recommended to disable the cruise control function on a uphill or
downhill. hen driving on a steep hill use the engine brake and foot brake properly to protect
the vehicle system and for a safe driving.
Ensure that the braking distance is maintained and use the brake pedal if needed. -
-
-
-
