3. SWITCHES IN PASSENGER COMPARTMENT
Audio remote control switch on the steering wheel

0-26
RODIUS 2007.07
8710-01
STICS

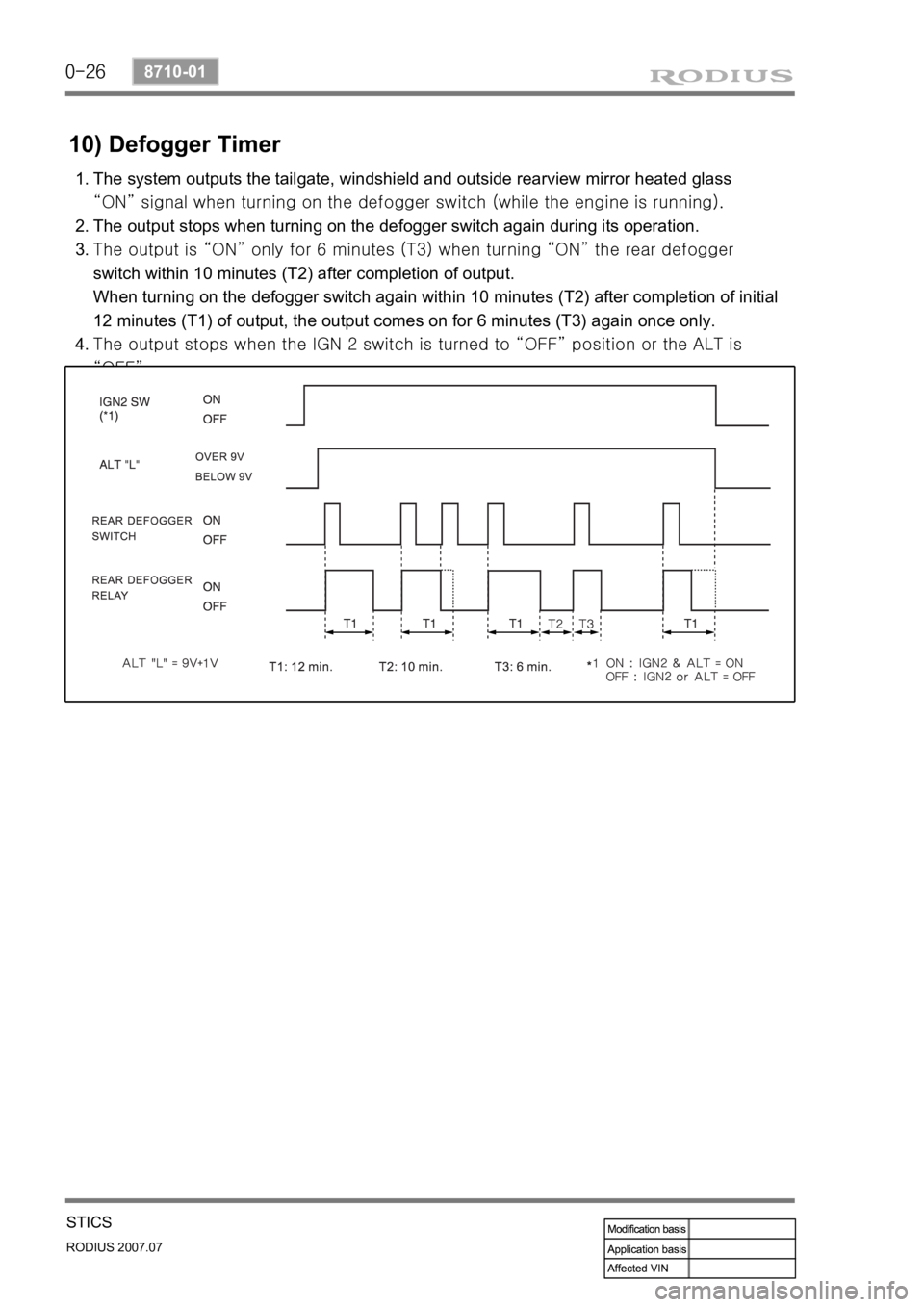

10) Defogger Timer
The system outputs the tailgate, windshield and outside rearview mirror heated glass
<02c80076007502c90047009a0090008e0095008800930047009e008f008c00950047009b009c0099009500900095008e0047009600950047009b008f008c0047008b008c008d0096008e008e008c00990047009a009e0090009b008a008f0047004f009e00
8f00900093008c0047009b008f008c0047008c0095008e0090>ne is running).
The output stops when turning on the defogger switch again during its operation.
<007b008f008c00470096009c009b0097009c009b00470090009a004702c80076007502c9004700960095009300a00047008d009600990047005d0047009400900095009c009b008c009a0047004f007b005a00500047009e008f008c00950047009b009c00
99009500900095008e004702c80076007502c90047009b008f>e rear defogger
switch within 10 minutes (T2) after completion of output.
When turning on the defogger switch again within 10 minutes (T2) after completion of initial
12 minutes (T1) of output, the output comes on for 6 minutes (T3) again once only.
<007b008f008c00470096009c009b0097009c009b0047009a009b00960097009a0047009e008f008c00950047009b008f008c00470070006e0075004700590047009a009e0090009b008a008f00470090009a0047009b009c00990095008c008b0047009b00
96004702c80076006d006d02c9004700970096009a0090009b>ion or the ALT is
“OFF”. 1.
2.
3.
4.

0-27
STICS
RODIUS 2007.07
8710-01
This vehicle has the windshield heated glass and the tailgate and outside rearview mirror
heated glass. The heater relay in the ICM box controls the tailgate and outside rearview mirro
r
heated glass and its fuse (15A) is located in the engine compartment fuse box.
Defogger switch

06-13
BODY EXTERIOR
RODIUS 2007.07
7115-01
5) OPERATION - OUTSIDE MIRROR
(1) General information

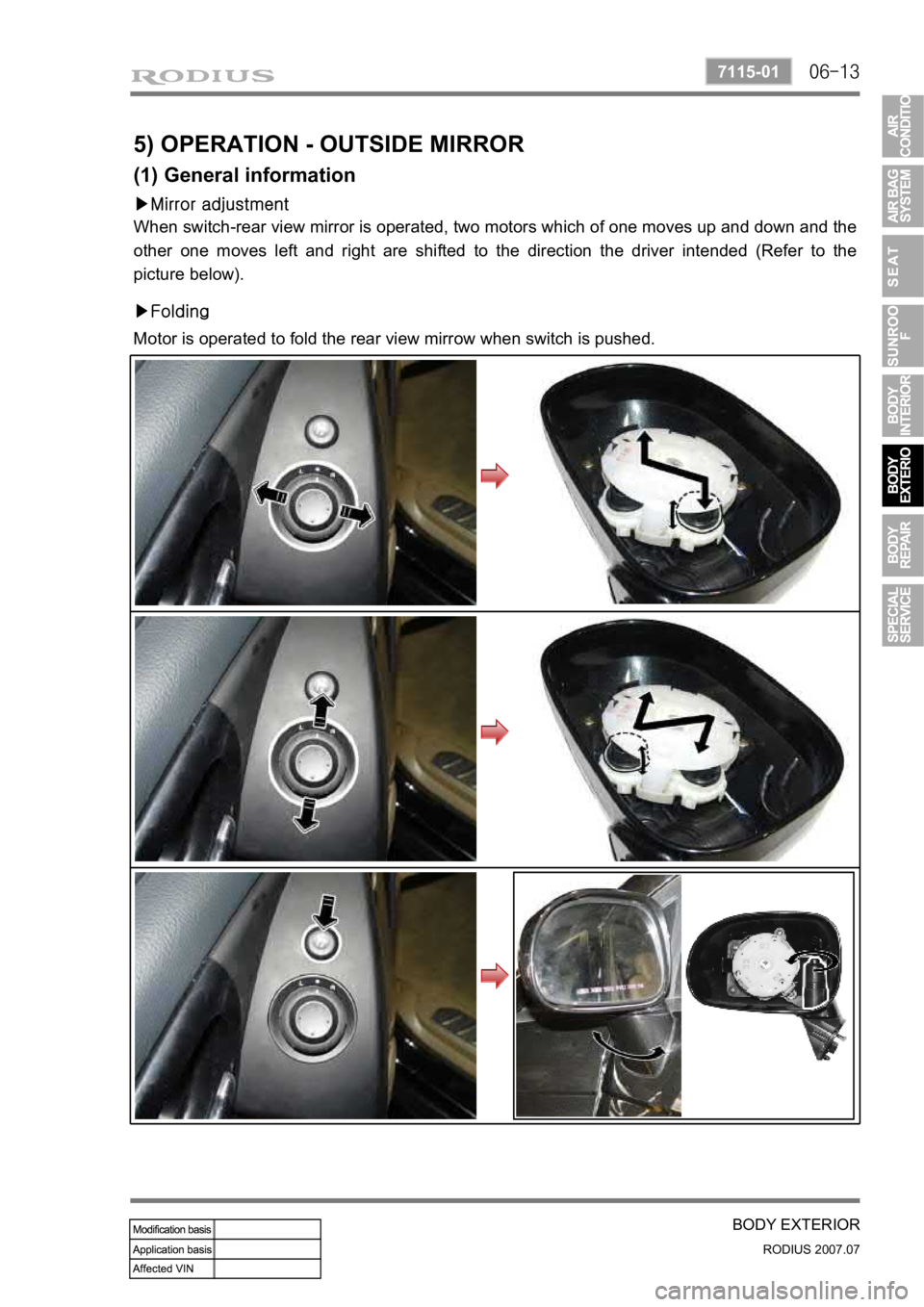

▶Mirror adjustment
When switch-rear view mirror is operated, two motors which of one moves up and down and the
other one moves left and right are shifted to the direction the driver intended (Refer to the
picture below).
▶Folding
Motor is operated to fold the rear view mirrow when switch is pushed.
