warning light SSANGYONG RODIUS 2006 Service Manual

0-19
STICS
RODIUS 2007.07
8710-01
4) Door Ajar Warning
The warning light in indicator display comes on when opening any of driver’s door,
passenger’s door, rear door or tailgate while the vehicle speed is below 6 km/h (V1).
The warning light goes off when closing the door under step 1.
The warning light blinks when the vehicle speed is over 10 km/h (V1) for more than 2
seconds while the warning light is turned on.
The warning light blinks when a door is opened while the vehicle speed is over 10 km/h (V1)
(while the warning light is turned off).
The warning light goes off when closing the door under step 3.
The warning light comes on when the vehicle speed is below 3 km/h (V2) under step 3. 1.
2.
3.
4.
5.
6.

0-20
RODIUS 2007.07
8710-01
STICS

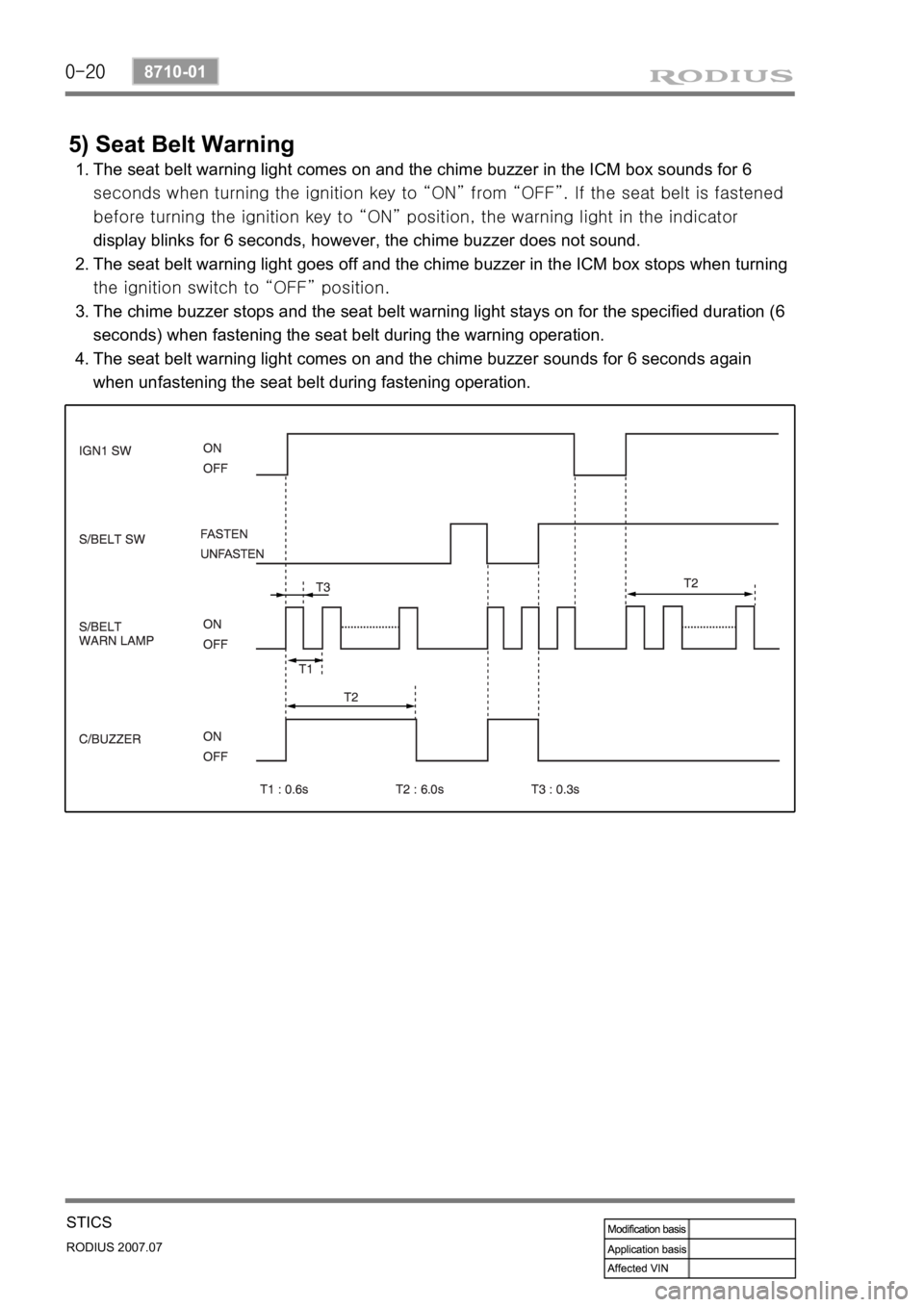

5) Seat Belt Warning
The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6
<009a008c008a00960095008b009a0047009e008f008c00950047009b009c0099009500900095008e0047009b008f008c00470090008e00950090009b00900096009500470092008c00a00047009b0096004702c80076007502c90047008d00990096009400
4702c80076006d006d02c9005500470070008d0047009b008f>e seat belt is fastened
<0089008c008d00960099008c0047009b009c0099009500900095008e0047009b008f008c00470090008e00950090009b00900096009500470092008c00a00047009b0096004702c80076007502c9004700970096009a0090009b0090009600950053004700
9b008f008c0047009e00880099009500900095008e00470093>ight in the indicator
display blinks for 6 seconds, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning
the ignition switch to “OFF” position.
The chime buzzer stops and the seat belt warning light stays on for the specified duration (6
seconds) when fastening the seat belt during the warning operation.
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again
when unfastening the seat belt during fastening operation. 1.
2.
3.
4.

0-21
STICS
RODIUS 2007.07
8710-01
6) Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds (T4) when turning the
ignition key from “OFF” to “ON” position regardless of the vehicle speed and parking
brake switch position.
The warning light comes on when the parking brake switch is turned on while the vehicle
speed is below 10 km/h (V1).
The warning light goes off when turning off the parking brake switch under step 2.
The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and
stops for 1.5 seconds when the vehicle speed is over 10 km/h (V1) for more than 2 seconds
while the parking brake switch is turned on.
The warning light goes off and the chime buzzer stops when turning off the parking brake
switch under step 4.
The warning light comes on and the chime buzzer stops when the vehicle speed goes down
below 7 km/h (V2) under step 4.
This function is not available when the ignition key is turned to “OFF” position. 1.
2.
3.
4.
5.
6.
7.

0-4
RODIUS 2007.07
8010-10
CLUSTER
2. DESCRIPTIONS OF INDICATOR DISPLAY
1. Immobilizer indicator
2. Glow indicator
3. Winter mode indicator
4. Left turn signal indicator
5. Auto shift indicator (for automatic transmission)
6. Right turn signal indicator
7. Harzard indicator*
8. Engine check warning light
9. Cruise control indicator*
10. 4WD CHECK warning light
11. 4WD HIGH indicator
12. 4WD LOW indicator
13. Brake warning light14. Battery charge warning light
15. Seat belt reminder
16. Low fuel level warning light
17. Heated glass indicator
18. Door open warning light
19. High beam indicator
20. Engine oil pressure warning light
21. Air bag warning light
22. Water separator warning light
23. ABS warning light
24. EBD warning light
25. ESP warning light
