GENERAL INFORMATION
0000-00
GENERAL INFORMATION
GENERAL INFORMATION1. HOW TO READ ELECTRICAL WIRING
DIAGRAM...............................................
3

0-3
GENERAL INFORMATION
undefined
0000-00
GENERAL INFORMATION
1. HOW TO READ ELECTRICAL WIRING DIAGRAM
Position Explanation
A- Upper horizontal lines : Power supply lines
- Power supply lines : 30, 15, 15A, 15C, 58
B- Ef20 or F2 : Fuse Number
·Ef20 : Fuse No #20 in engine room compartment
·F2 : Fuse No #2 in passenger room compartment
C- Connector (C101 ~ C903)
·Connector No C203 terminal No1
·Refer to Major Connector Position (Section 2)
D- S201 : Splice pack (S201 ~ S207)
·Refer to Major Splice Pack Position (Section2)
E- Wiring Harness Color
·Refer to Wiring Harness Color Abbreviation
F- Internal circuit of component (Relay)
(Component Name and Terminal Number)
G- Internal circuit of component (Switch)
(Component Name, Terminal Number and Connecting Wiring Circuit)
H- Lower horizontal line : Ground line
·Ground position (G101 ~ G402)
·B : Body Ground
·Refer to Major Ground Position (Section2)
1) HOW TO READ ELECTRICAL WIRING DIAGRAM2) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)

0-10
RODIUS 2007.07
8010-10
CLUSTER

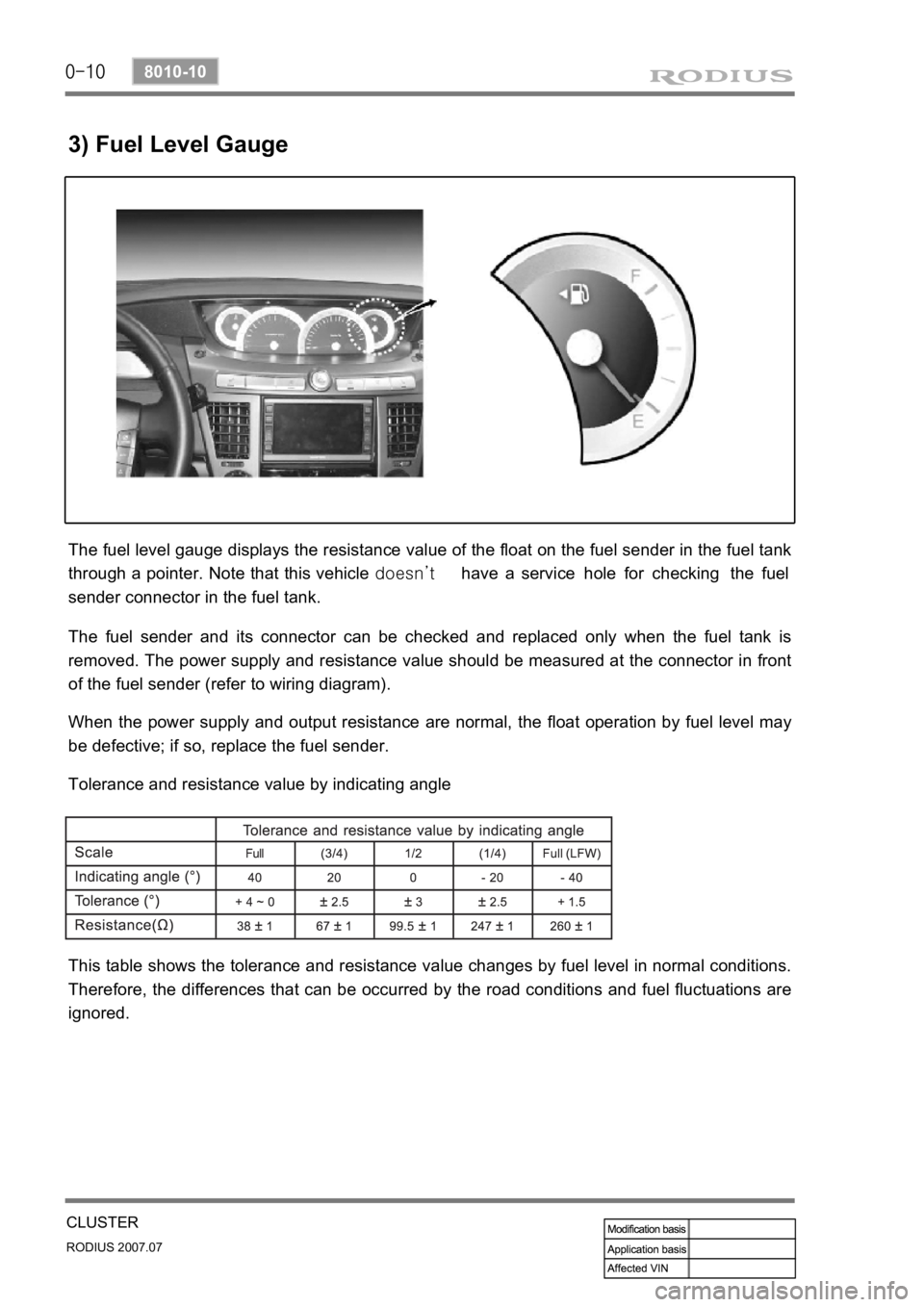

3) Fuel Level Gauge
The fuel level gauge displays the resistance value of the float on the fuel sender in the fuel tank
through a pointer. Note that this vehicle doesn’t have a service hole for checking the fuel
sender connector in the fuel tank.
The fuel sender and its connector can be checked and replaced only when the fuel tank is
removed. The power supply and resistance value should be measured at the connector in front
of the fuel sender (refer to wiring diagram).
When the power supply and output resistance are normal, the float operation by fuel level may
be defective; if so, replace the fuel sender.
Tolerance and resistance value by indicating angle
This table shows the tolerance and resistance value changes by fuel level in normal conditions.
Therefore, the differences that can be occurred by the road conditions and fuel fluctuations are
ignored.

0-21
SEAT
RODIUS 2007.07
7410-01

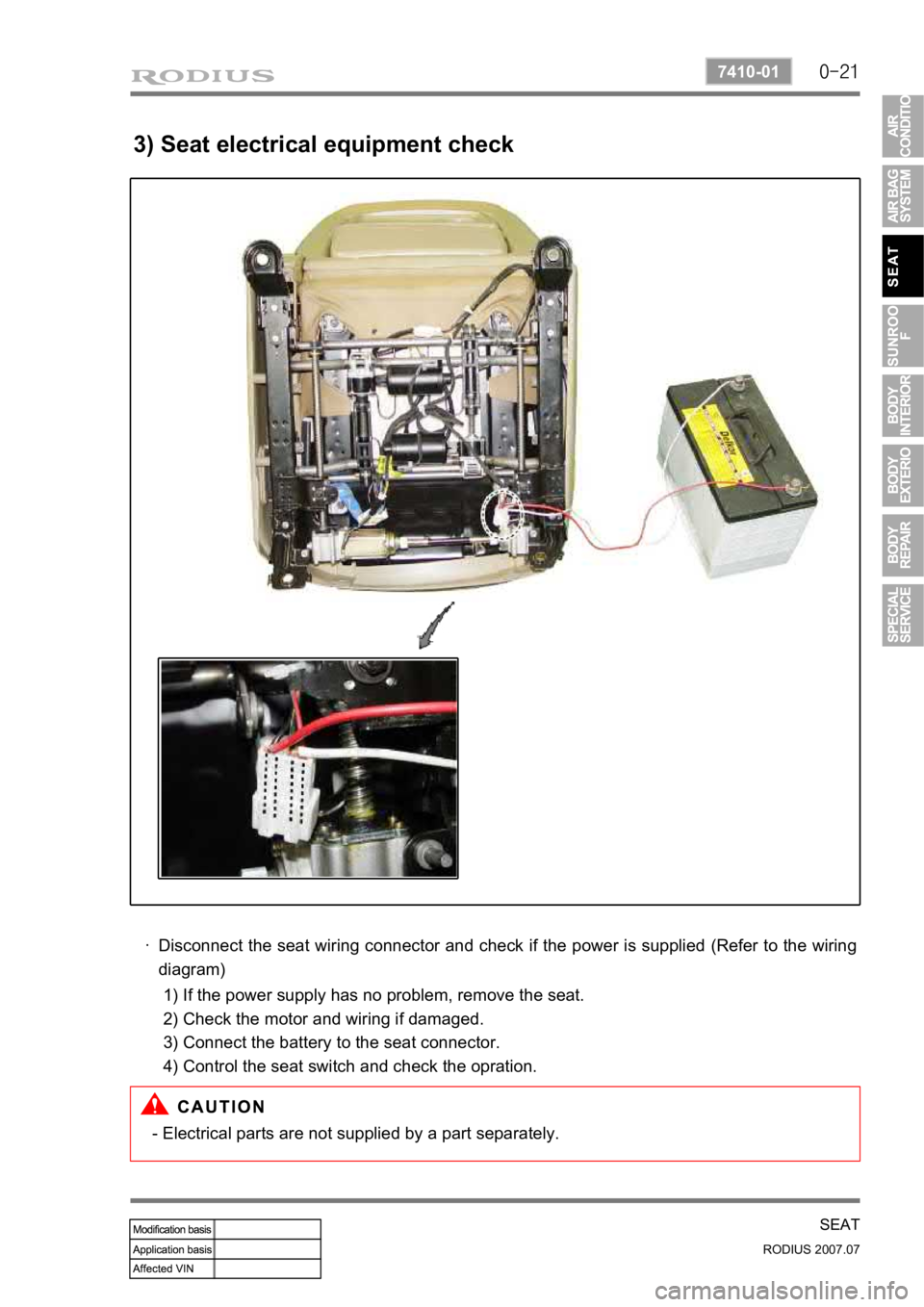

3) Seat electrical equipment check
Disconnect the seat wiring connector and check if the power is supplied (Refer to the wiring
diagram)
·
1) If the power supply has no problem, remove the seat.
2) Check the motor and wiring if damaged.
3) Connect the battery to the seat connector.
4) Control the seat switch and check the opration.
- Electrical parts are not supplied by a part separately.
