Ring - Snap
Ring - Snap
Bearing - Ball
Pinion assembly - Main drive
Bearing - Needle roller
Ring - Synchronizer
Ring - Snap
Sleeeve - Synchronizer
Key assembly - Synchronizer
Hub - Synchronizer
Ring assembly - Triple cone
Gear assembly - 3rd speed
Bearing - Needle roller
Shaft - Main
Gear assembly - 2nd speed
Bearing - Needle roller
Ring assembly - Triple cone
Hub - Synchronizer
Sleeeve - Synchronizer 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.Ring assembly - Triple cone
Gear assembly - 1st speed
Sleeve - 1st gear
Bearing - Double angular ball
Ring - Snap
Gear - Main shaft 5th
Spacer
Gear - Main shaft 6th
Sleeve - Reverse gear
Bearing - Needle roller
Gear assembly - Reverse speed
Ring assembly - Triple cone
Hub - Synchronizer
Sleeeve - Synchronizer
Stopper - Synchronizer key
Bearing - Ball
Flange assembly - Companion
O-ring
Nut - Locking (4WD: 245.1 ~ 264.7 Nm,
2WD: 117.6 ~ 137.2 Nm) 20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.

05-53240-01
Side View Rear View
1. OVERVIEW
By using the planetary gear sets, two-gears shift type part time transfer case achieves direct
connection when selecting 4WD "HIGH" and 2.48 of reduction gear ratio when selecting 4WD
"LOW". The silent chain in transfer case transfers the output power to front wheels.
The simple operation of switches on instrument panel allows to shift between "2H" and "4H" easily
while driving (for 4L: stop vehicle first). The warning lamp warns the driver when the system is
defective.

05-6
Operation ▶
Description Mode Conditions
Driving mode 2H 2 Wheel drive
(rear wheel)Rear-wheel drive mode. This is used under
normal or high-speed driving conditions on public
roads or highways.
4H 4 Wheel drive
(high speed)This is used under sandy, muddy or snow-
covered road conditions
4L 4 Wheel drive
(low speed)This is used for maximum traction.
When cornering with low speed in 4WD condition,
there could be tire dragging, some
mechanical shocks and resistances in vehicle’s
drive train. These are normal conditions due to
internal resistance in the drive train when the
4WD system is properly working
Mode change2H ↔
4H 2 Wheel drive
↔4 Wheel driveShifting is possible while driving at the speed of
70 km/h or less
2H, 4H
↔ 4L 2 Wheel drive,
4 Wheel drive
(high speed)
↔4 Wheel drive
(low speed)
To make the mode change easily, stop the
vehicle on level ground and turn the mode
switch to the desired position and move the
shift lever to "N"-"R"-"N" while depressing
the brake pedal. For Automatic Transmission:
Stop the vehicle on level ground and move
the gear selector lever into the “N” position.
Turn the switch to the desired position. -
For Manual Transmission:
Stop the vehicle on level ground and move
the gear selector lever into the “N” position.
Then turn the switch to the desired position
while depressing the clutch pedal. -

05-10
(2) Vacuum System Related to 4WD
In 4WD mode, the TCCU blocks the
transferring of vacuum pressure from
vacuum pump to locking hub by supplying
the power to solenoid valve.Check valve
This valve allows the vacuum pressure to
flow through it in only one direction. This
prevent the vacuum from abruptly
releasing due to faulty vacuum pump.
4WD:
The vacuum pressure is released from the
hub actuator. At this time, the front hub end
gear is engaged.2WD:
The vacuum pressure pulls in the locking
hub actuator so that it will not be engaged
with the front end hub gear.
Vacuum solenoid valve
To atmosphere Block the vacuum
pressure
Hub actuator (RH)
Gear disengagedGear engaged

05-133240-01
2) 4H Mode (4 Wheel Drive - High Speed)
Power Flow ▶
The driving force is pass through 4WD High magnetic clutch in transfer case and is distributed
on front wheels and rear wheels (50;50).

05-14
3) 4L Mode (4 Wheel Drive - Low Speed)
Power Flow ▶
The gear ratio is reduced to 2.48;1 while passing through 4WD Low range and planetary gear
set in transfer case and the driving force is distributed on front wheels and rear wheels
(50;50).

06-33310-01

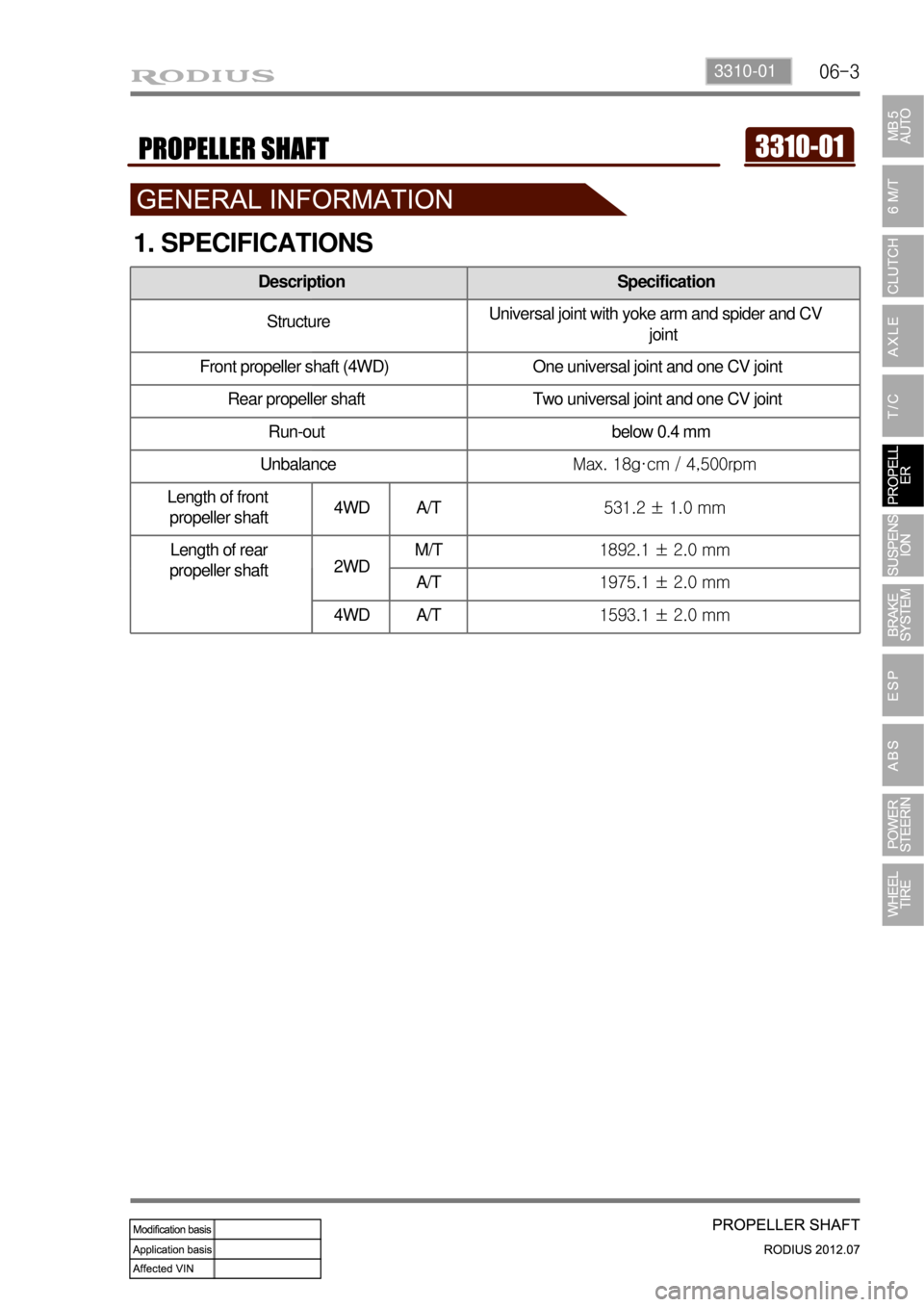

1. SPECIFICATIONS
Description Specification
StructureUniversal joint with yoke arm and spider and CV
joint
Front propeller shaft (4WD) One universal joint and one CV joint
Rear propeller shaft Two universal joint and one CV joint
Run-out below 0.4 mm
UnbalanceMax. 18g·cm / 4,500rpm
Length of front
propeller shaft4WD A/T 531.2 ± 1.0 mm
Length of rear
propeller shaft2WD M/T 1892.1 ± 2.0 mm
A/T 1975.1 ± 2.0 mm
4WD A/T 1593.1 ± 2.0 mm

06-53310-01
1. OVERVIEW
The propeller shaft transfers the power through the transmission and transfer case to the
front/rear axle differential carrier (final reduction gear). It is manufactured by a thin rounded steel
pipe to have the strong resisting force against the torsion and bending. Both ends of propeller
shaft are connected to the spider and the center of propeller shaft is connected to the spline to
accommodate the changes of the height and length. The rubber bushing that covers the
intermediate bearing keeps the balance of rear propeller shaft and absorbs its vibration.
Function of propeller shaft ▶
Transmits driving torque.
Compensates the angle change (universal joint / CV joint).
Compensates the axial length change (splines for the slip joint). -
-
-
4WD AT 2WD MT

07-4
3. MAJOR CHANGES
Front Sub Frame
Old New
The engine mounting insulators (A) have been changed according to newly equipped engine
(D20DTR). It improves the durability and NVH.
Front Knuckle Assembly
Old New
The front knuckle assembly has been changed according to new 4WD system (Part-time T/C).
Hub bearingLocking hub
actuator

07-74411-01
Coil Spring ▶
Description 4WD 2WD
Spring rate (kg/mm)10.01 ± 5% 10.01 ± 5%
Coil diameter (mm)16.7 16.7
Inner diameter
(mm)D 158.3 58.3
D 288.3 88.3
Spring identificationNone + Red or Blue Yellow + Red or Blue
Number of windings8.49 8.49
Number of active windings6.99
CVW (Curved
Vehicle Weight)Height (mm)256.0 256.0
Weight (kg)976.9 ± 4% 834.9 ± 4%
Stress (kg/mm)69.53 59.42
Winding directionClockwise Clockwise
