dimensions SSANGYONG RODIUS 2012 Service Manual

01-30000-00
Top View
Side View
Front View Rear View
*( ) : Optional
Unit: mm1. DIMENSIONS

02-470000-00
4) Cylinder Block
(1) Overview
The major dimensions in D20DTR are similar to
D20DTR engine. It has two mounting
bosses for knock sensor and meets the
requirements for EURO5 regulation.
(2) Layout
Right sideCylindrical pin
Expansion plug
Screw plug

07-6
(1) Shock Absorber and Coil Spring

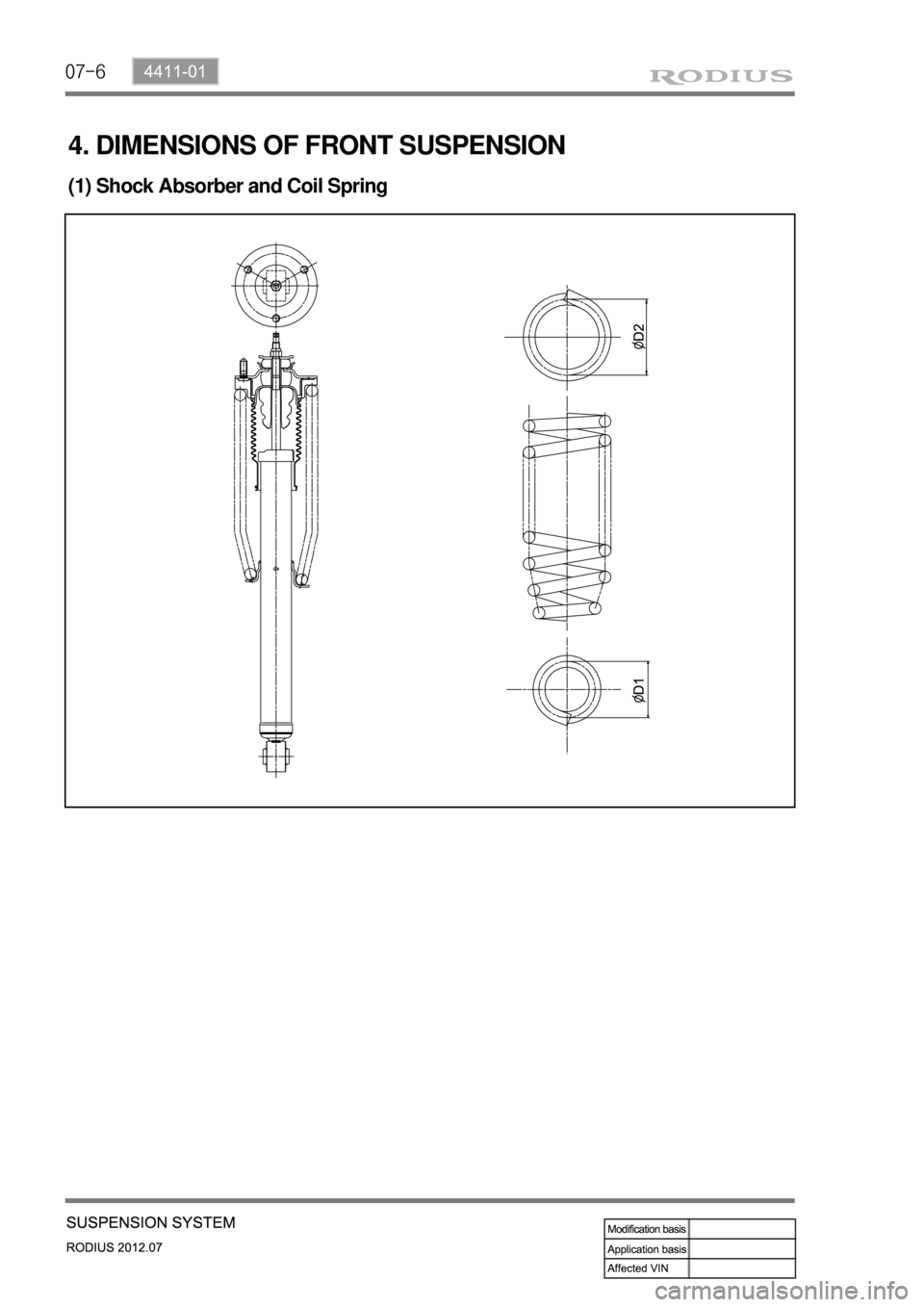

4. DIMENSIONS OF FRONT SUSPENSION

07-94411-01

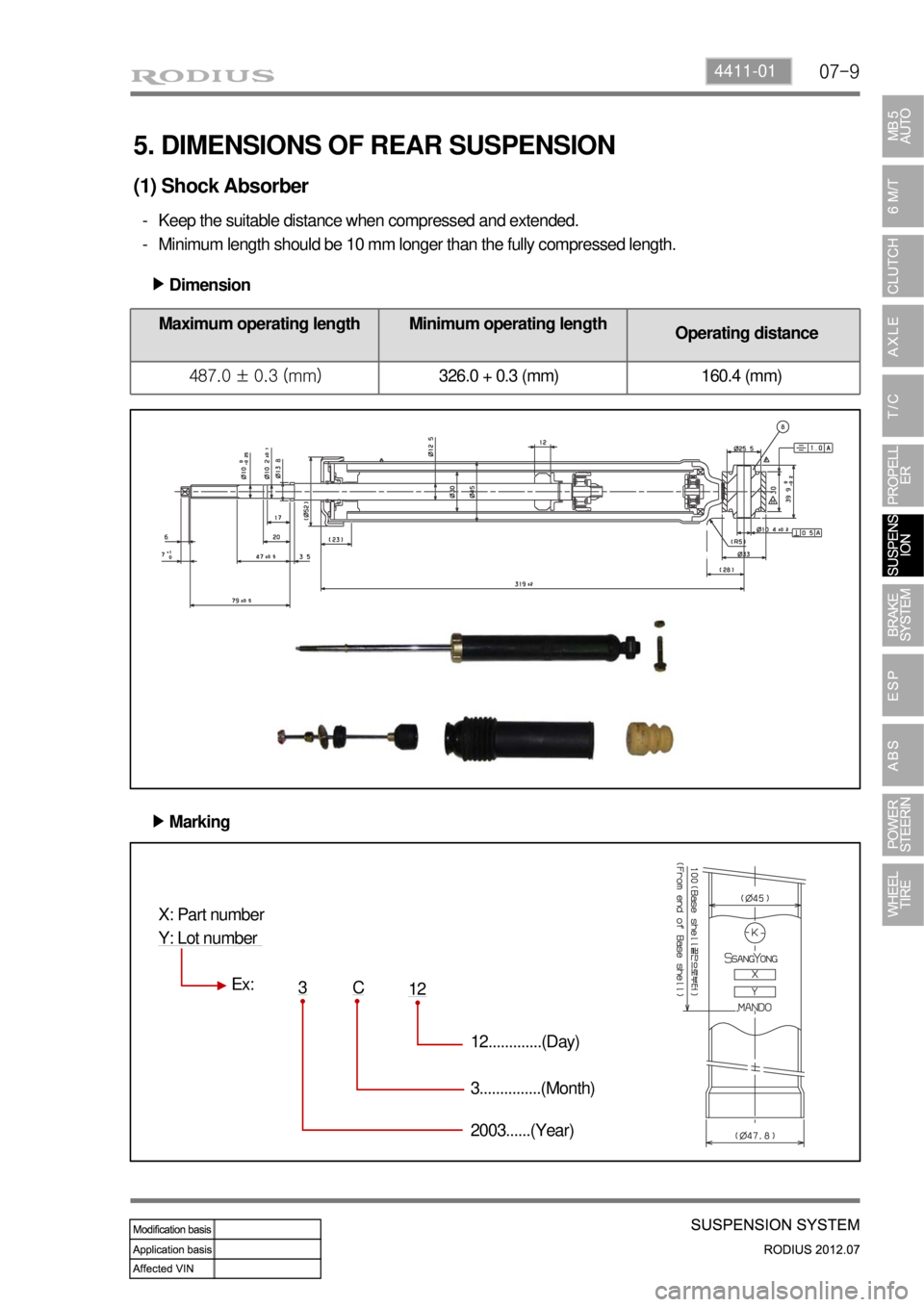

5. DIMENSIONS OF REAR SUSPENSION
(1) Shock Absorber
Keep the suitable distance when compressed and extended.
Minimum length should be 10 mm longer than the fully compressed length. -
-
Dimension ▶
Maximum operating length Minimum operating length
Operating distance
487.0 ± 0.3 (mm) 326.0 + 0.3 (mm) 160.4 (mm)
Marking ▶
X: Part number
Y: Lot number
Ex:
3C12
12.............(Day)
3...............(Month)
2003......(Year)

07-35110-01
Top View
Side View
Front View Rear View
1. MAJOR EXTERNAL DIMENSIONS
