engine SUBARU ASCENT 2020 Quick Guide

2PURPOSE OF THIS GUIDE
5ENTRY AND EXIT
8INSTRUMENT PANEL
10GETTING COMFORTABLE
21CONTROLS
27GAUGES AND WARNING LIGHTS
28OPERATING THE VEHICLE
33REFUELING
34PASSENGER/CARGO AREAS
39ENGINE COMPARTMENT
41ADDITIONAL SPECIFICATIONS
43INDEX
TABLE OF CONTENTS

Remote Engine Start with Climate Control
You can remotely start your Subaru and adjust the temperature using the STARLINK®
Safety and Security features through theMySubaruApp (subscription required). Please
refer to Subaru STARLINK®Owner's Manual for a list of required vehicle conditions for this
feature.
ACCESSORY CONNECTIONS
Power Outlets
Power outlets (12V) are located at the front of the center console and in the cargo area.
Electrical power is available for use with in-vehicle electrical appliances with a maximum
power rating of 120W. You may also have a 120V AC power outlet located below the rear
climate control panel (if equipped).
1Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through your Subaru’s
speakers. Press the “Source” button located on
the steering wheel or the “Media” button on the
Touchscreen to select the auxiliary mode. For more information, refer to the SUBARU
STARLINK
®Owner’s Manual.
2Dual USB Ports
The USB ports are located in the front of the center console and the rear seat areas.
You can connect a variety of USB-equipped devices to the front port, such as
portable music players or smartphones, to enjoy your favorite music through your
Subaru’s speakers. These ports also provide charging (5V, 2.1A) to devices. For more
information, refer to the SUBARU STARLINK
®Owner’s Manual or Quick Guide.
GETTING COMFORTABLE
20

Daytime Running Lights
The daytime running lights automatically turn on when the engine has started, the parking
brake is fully released, the light switch is in the Off, “AUTO” (if equipped) or “
”
position, and the select lever is not in the “P” position. Always turn on the headlights when
it’s dark outside by rotating the dial to the “
” or “AUTO” position.
TURN SIGNALS
Push slightly up for right lane change or fully
up for right turn signal. Push slightly down for
left lane change or fully down for left turn
signal.
WINDSHIELD WIPERS
To turn on the wipers, press the wiper control
lever down one position for intermittent, two
positions for low speed, or three positions for
high speed. To turn the wipers off, return the
lever to the “OFF” position. For a single wipe,
move the lever up one position.
When the lever is in the intermittent position,
rotate the dial to adjust the operating interval
of the wipers.
Pull the lever toward you to spray washer fluid.
The washer will spray until you release the lever, then wipe twice.
CONTROLS
23

GAUGES
1Tachometer
2Combination Meter Display (CMD)
3Speedometer
4Fuel gauge5Trip meter and odometer
6Select lever/gear position indicator
7Engine coolant temperature gauge
WARNING AND INDICATOR LIGHTS
Red lights indicate immediate attention is required. Some examples are:
Seatbelt
warningDoor
openBrake system
Yellow lights indicate caution. Some examples are:
Low fuelEngine oil
level warning
lightTire pressure
warning light
Green and blue lights are for information. Some examples are:
Headlight
indicator
lightAuto Vehicle
Hold ONHigh beam
indicator
light
GAUGES AND WARNING LIGHTS
27

IGNITION SWITCH
The ignition switch has four positions:
LOCK:You can only insert or remove the key in this position.
ACC (Accessory):Provides power to the radio and accessory power outlets.
ON:All electrical systems are available. The key returns to this position after starting the
engine.
START:Turn the key to this position to start the engine.
PUSH-BUTTON IGNITION SWITCH(if equipped)
Each time you press the ignition switch without
depressing the brake pedal, the ignition position will
change as follows: ACC, ON, OFF.
ACC (Accessory):Provides power to the radio and
accessory power outlets. Orange indicator illuminates.
ON:All electrical systems will be available. Orange
indicator illuminates.
OFF:Power off and indicator off.
STARTING THE ENGINE
Without Push-button Ignition
To start the engine:
1. Make sure the select lever is in the “P” position.
2. Using the key, turn the ignition switch to “START”.
NOTE: Do not depress the accelerator pedal. Release the key as soon as the engine
starts.
With Push-button Ignition
To start the engine:
1. Sit in the driver’s seat with the access key fob.
2. Make sure the select lever is in the “P” position.
3. Depress the brake pedal.
4. While depressing the brake pedal, look for the Engine START/ STOP button indicator to
turn Green and then briefly press and release the Engine “START/STOP” button.
OPERATING THE VEHICLE
28

DRIVING THE VEHICLE
Automatic Transmission Shift Mode
The Continuously Variable Transmission (CVT) is
electronically controlled and provides two different
driving modes: normal and manual.
Normal Mode
When the select lever is in the “D” (Drive) position, the
transmission is in normal shift mode. The select lever
position indicator in the Combination Meter Display
(CMD) shows “D” and the transmission automatically
shifts into a suitable forward gear.
Manual Mode
In manual mode, you select the desired gear position to obtain necessary acceleration and
engine braking. Move the selector lever left from the “D” position into the “M” position to
select manual mode. The gear position indicator in the Combination Meter Display (CMD)
shows the currently selected gear. Arrow-shaped indicators show when upshifting or
downshifting is available. To shift, use the paddle shift control switches behind the steering
wheel.
Paddle Shift Control Switches
• You can shift gears using the paddle shift
control switches. To upshift to the next
higher gear, pull the “+” paddle on the right
toward you. To downshift to the next lower
gear, pull the “–” paddle on the left toward
you.
• You can temporarily shift gears even when the selector lever is in the “D” position by
pulling either the “+” or “–” paddle toward you. Once vehicle speed stabilizes, the
transmission will switch back to normal mode.
OPERATING THE VEHICLE
29

X-MODE®
X-MODE is the integrated control system of the
engine, All-Wheel Drive (AWD) system and Vehicle
Dynamics Control (VDC) systems. It helps to maximize
traction in slippery conditions such as mud or snow. In
certain situations, such as deep mud or snow, it may
help to turn VDC off to allow for more wheel spin.
X-MODE functions with the select lever in the “D” or
“R” position.
Press the X-MODE button with the vehicle speed less
than 12 mph to activate the system. When active, the
Multi-Function Display (MFD) shows the steering direction, vehicle angle and power
distribution. If the vehicle speed reaches 25 mph while X-MODE is active, the system is
cancelled and you will need to activate it again once you reach a lower speed.
Hill Descent Control (HDC)
This function helps maintain a constant vehicle speed when driving down steep hills or
declines. HDC is automatically engaged with X-MODE and functions with the select lever
in the “D” or “R” position.
OPERATING THE VEHICLE
30

TURNING OFF THE VEHICLE
Without Push-button Ignition
To stop the engine:
1. Stop your Subaru completely.
2. Move the select lever to the “P” position or set the parking brake for manual
transmission models.
3. Turn the ignition switch to “OFF”.
NOTE: The windows will remain active for about 45 seconds and the SUBARU
STARLINK
®Multimedia System will remain on for about three minutes or until a door is
opened, whichever occurs first.
With Push-button Ignition Switch(if equipped)
To stop the engine:
1. Stop your Subaru completely.
2. Move the select lever to the “P” position.
3. Press the ignition switch.
NOTE: The windows will remain active for about 45 seconds and the SUBARU
STARLINK
®Multimedia System will remain on for about three minutes or until a door is
opened, whichever occurs first.
OPERATING THE VEHICLE
32

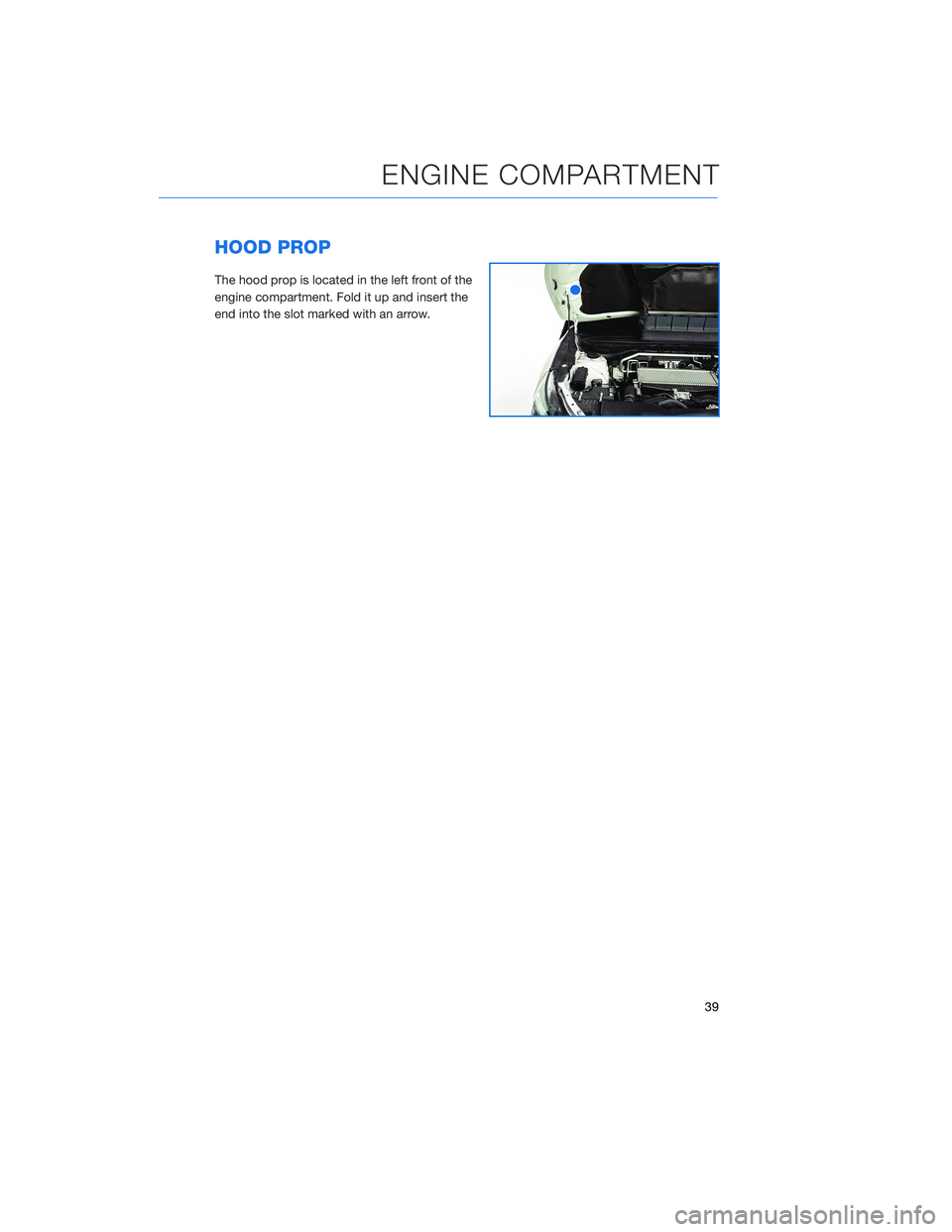

HOOD PROP
The hood prop is located in the left front of the
engine compartment. Fold it up and insert the
end into the slot marked with an arrow.
ENGINE COMPARTMENT
39

2.4 L ENGINE
1Brake Fluid Reservoir
2Main Fuse Box
3Battery
4Windshield Washer Tank
5Engine Oil Filler Cap6Radiator Cap
7Engine Coolant Reservoir
8Engine Oil Filter
9Engine Oil Dipstick
10Air Cleaner Element
ENGINE COMPARTMENT
40
