SUBARU ASCENT 2021 Getting Started Guide

KEYLESS ACCESS WITH PUSH BUTTON START(if
equipped)
The Keyless Access with Push-Button Start system features touch-activated door locking
or unlocking and push-button start functions without the key ever leaving your pocket or
purse. You can customize the touch-activated door locking or unlocking settings using the
i/Set switch to navigate to “Vehicle Setting” then “Keyless Entry System” in the
Combination Meter Display or through the STARLINK
®Touchscreen by selecting
“Settings” then “Vehicle”.
Unlocking Using Door Handles
Grip the driver’s door handle to
unlock the driver’s door (or all
doors depending on the setting).
Grip the front passenger’s door
handle to unlock all doors and the
rear gate. Two chirps sound and
the hazard warning lights flash
twice.
Locking Using Door Handles
Close all the doors and the rear
gate and touch the door lock
sensor (two lines) on either front
door handle. All doors and the
rear gate lock. One chirp sounds
and the hazard warning lights
flash once.
Door Unlock Sensor
Door Lock Sensor
ENTRY AND EXIT
9

Unlocking Using the Rear Gate
Press the rear gate opener button
to unlock and open the rear gate
(or also unlock all doors
depending on the setting). Two
chirps sound and the hazard
warning lights flash twice.
Locking Using the Rear Gate
Close all the doors and the rear
gate and press the rear lock
button. All doors and the rear
gate lock. One chirp sounds and
the hazard warning lights flash
once.
Rear Gate Opener Button
Rear Lock Button
ENTRY AND EXIT
10

POWER REAR GATE (PRG)(if equipped)
The Power Rear Gate allows automatic opening even when your arms are full, and a single
touch on the gate button lets it close and lock the entire vehicle. The opening height can
also be adjusted for spaces where clearance is limited.
Power Rear Gate Button
Opening the Power Rear Gate
Press and hold the Power Rear
Gate Button on the instrument
panel to automatically open the
rear gate. Two chirps sound and
the hazard warning lights flash
twice.
Stopping the Power Rear Gate
If you briefly press the Power
Rear Gate Button while the rear
gate is opening, it will stop. Press
and briefly hold the button again
to close the rear gate.
Closing the Power Rear Gate
Press and hold the Power Rear Gate Button on the instrument panel to close the rear gate.
If you briefly press the button while the rear gate is closing, it will open.
The operation is the same using the Power Rear Gate Button on the access key fob or
transmitter.
NOTE: This button only functions to open the PRG when the doors are unlocked. If the
doors are locked, you will hear three rapid beeps from the vehicle.
Power Rear Gate Button
ENTRY AND EXIT
11

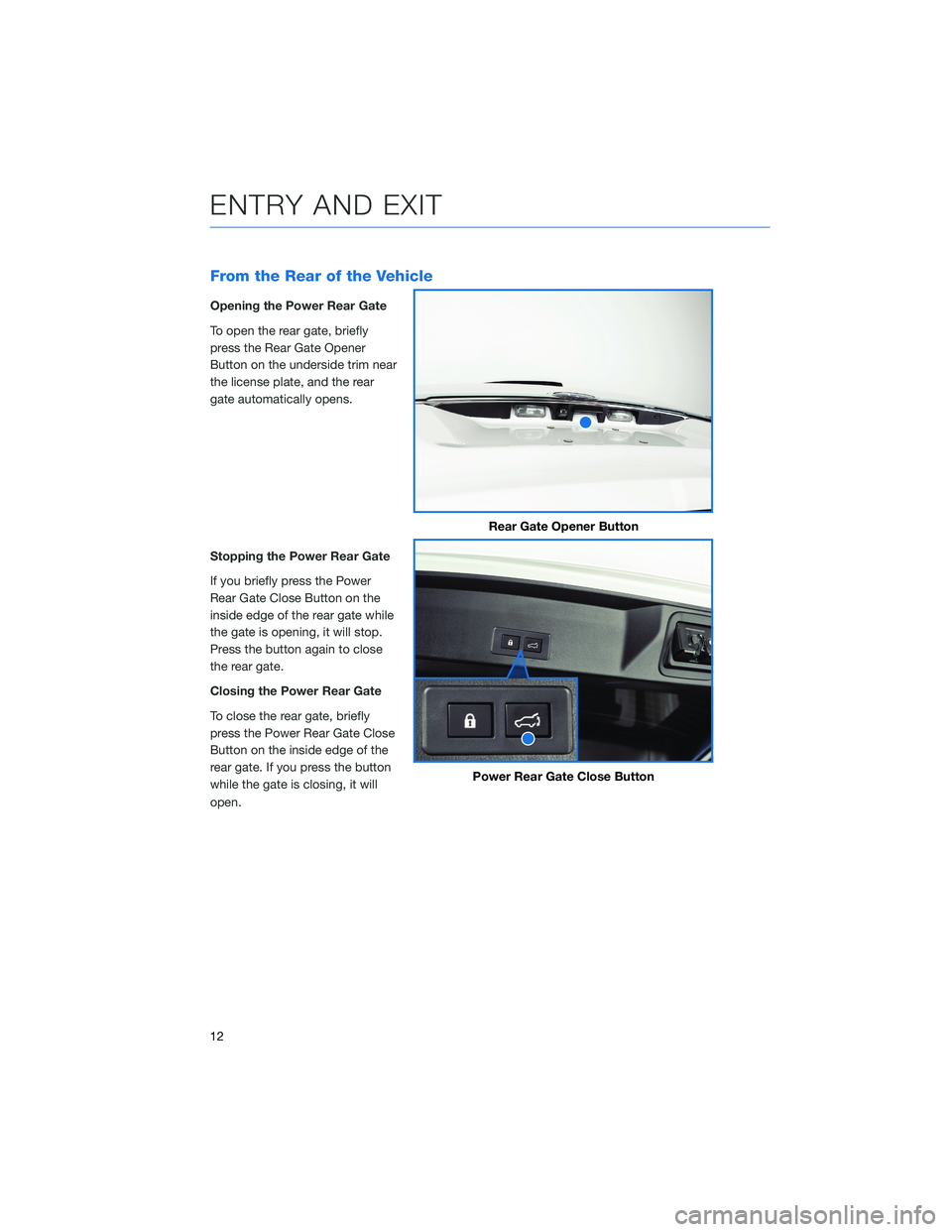

From the Rear of the Vehicle
Opening the Power Rear Gate
To open the rear gate, briefly
press the Rear Gate Opener
Button on the underside trim near
the license plate, and the rear
gate automatically opens.
Stopping the Power Rear Gate
If you briefly press the Power
Rear Gate Close Button on the
inside edge of the rear gate while
the gate is opening, it will stop.
Press the button again to close
the rear gate.
Closing the Power Rear Gate
To close the rear gate, briefly
press the Power Rear Gate Close
Button on the inside edge of the
rear gate. If you press the button
while the gate is closing, it will
open.
Rear Gate Opener Button
Power Rear Gate Close Button
ENTRY AND EXIT
12

Power Rear Gate Lock
Press the lock button on the
inside edge of the rear gate. The
Power Rear Gate will close, and
all doors, the rear gate, and the
fuel lid will lock.
The Power Rear Gate also comes equipped with a memory height function, allowing
you to set the where the Power Rear Gate stops when it opens. For step by step
instructions on setting the memory height, please refer to page 104.
Power Rear Gate Close and Lock Button
ENTRY AND EXIT
13

1Power Windows (p. 21)
2Power Exterior Mirrors (p. 19)
3Instrument Panel Switches (p. 30)
4I/Set Switch (p. 31)
5Audio Controls (p. 30)
6Light Controls (p. 32)
7Combination Meter (p. 37)
INSTRUMENT PANEL
14

8Advanced Adaptive Cruise Control (p. 31)
9Multi-Function Display (MFD) (p. 32)
10Windshield Wipers (p. 34)
11SUBARU STARLINK
®Multimedia Touchscreen (p. 56)
12Climate Control System (p. 23)
13CVT Selector (p. 39)
INSTRUMENT PANEL
15

SEATING
Manual Seats
1Forward/Backward:Pull
the lever below the seat up
and slide the seat forward or
backward. Release the lever
and make sure the seat is
locked into place.
2Seat Height (Driver’s Seat):
Pulling up or pushing down
on the lever will raise or
lower the seat cushion.
3Recline Seatback:Pull the
lever up to adjust the
seatback. Release the lever
and make sure the seatback
is locked into place.
Manual Seat Levers
GETTING COMFORTABLE
16

Power Driver’s Seat(if equipped)
1Seat Position:Moving the
switch forward or backward
will adjust the seat in that
direction. Pulling up or
pushing down on the back of
the switch will adjust the
seat height up or down.
Pulling up or pushing down
on the front of the switch will
adjust the angle of the seat
cushion.
2Recline Seatback:Moving
the top of the switch forward
or backward will adjust the
angle of the seatback.
3Lumbar Support:Pressing
the front of the switch will
increase support. Pressing
the rear of the switch will
decrease support.
4Thigh Extension (if
equipped):Pull up on the
lever below the seat cushion
to adjust the length.
Power Seat Controls
Thigh Extension
GETTING COMFORTABLE
17

Head Restraint Adjustment
Pull the head restraint up to raise
it. To lower the head restraint,
push it down while pressing the
release button on the top of the
seatback. Each head restraint
should be adjusted so that the
center of the head restraint is
closest to the top of the
occupant’s ears.
The angle of the front head
restraints can be adjusted by
tilting them forward. You will hear
a click when the restraint locks in
place. Pulling the head restraint
as far forward as it will go allows it
to return to the fully upright position.
Seatbelt Adjuster
To keep yourself comfortable and
safe, always position the seatbelt
adjuster so the shoulder belt
passes over the middle of your
shoulder without touching your
neck. Pull the tab out and slide
the adjuster up or down to set the
position. Release the tab and
make sure the adjuster is locked
in place.
Release Button and Head Restraint Adjustment
Seatbelt Adjustment Tab
GETTING COMFORTABLE
