Instrument panel
12 3 4 5 67
8
9
10
11
12
13
14
15
16
17
UBF021BB
1) Door locks (page 2-3)
2) Outside mirror (page 3-30)
3) Light control lever (page 3-18)
4) Combination meter (page 3-6)
5) Wiper control lever (page 3-23)
6) Hazard warning flasher switch
(page 3-5)
7) Climate c o ntr ol ( pa ge 4-1)
8) Gear shift lever (MT) (page 7- 12)/Selector lever (AT) (page 7-
15)
9) Au dio ( page 5- 1)
10) Cruise control (page 7-38)
11) Horn (page 3-34)
12) SRS airbag (page 1-47)
13) Tilt steering (page 3-33)
14) Fuse box (page 11-57)
15) Hood lock release knob (page 11-5)
16) Power door locking switch (page 2-5)
17) Power window (page 2-22)

19
–
CONTINUED –

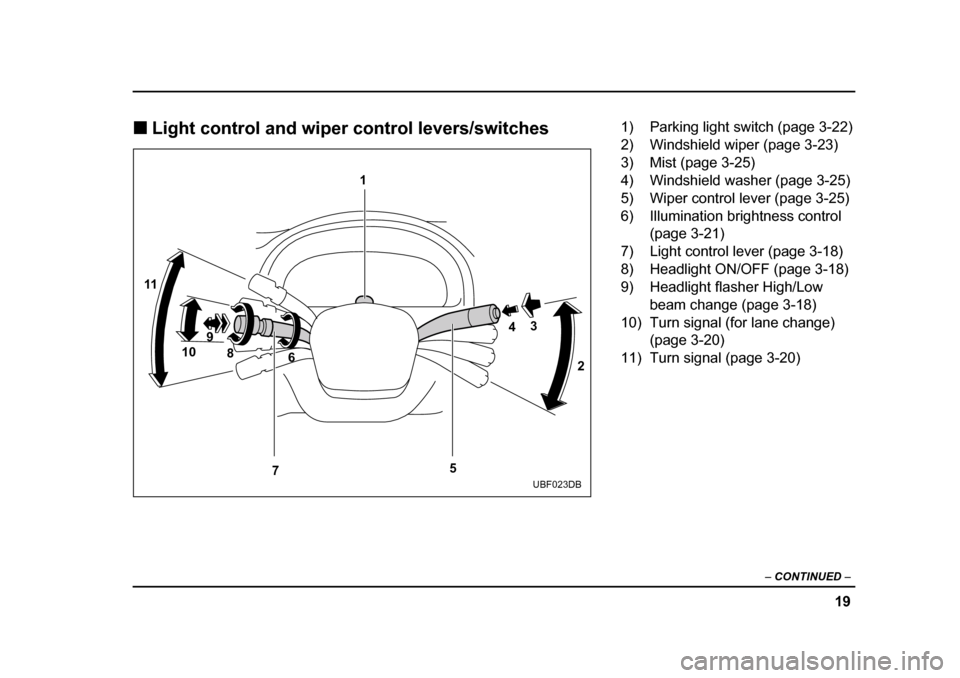

„Light control and wiper control levers/switches
1
2
3
4
5
7 6
8
9
10
11
UBF023DB
1) Parking light switch (page 3-22)
2) Windshield wiper (page 3-23)
3) Mist (page 3-25)
4) Windshield washer (page 3-25)
5) Wiper control lever (page 3-25)
6) Illumination brightness control
(page 3-21)
7) Light control lever (page 3-18)
8) Headlight ON/OFF (page 3-18)
9) Headlight flasher High/Low beam change (page 3-18)
10) Turn signal (for lane change) (page 3-20)
11) Turn signal (page 3-20)

20
„

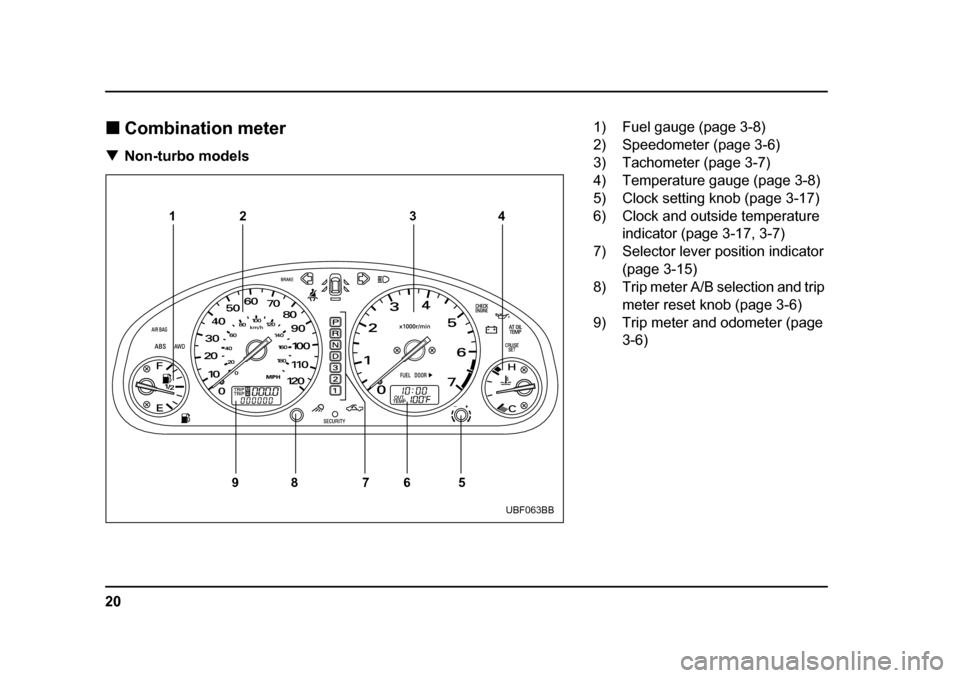

Combination meter
T Non-turbo models
12 3 4
5
6
7
8
9
UBF063BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Tachometer (page 3-7)
4) Temperature gauge (page 3-8)
5) Clock setting knob (page 3-17)
6) Clock and outside temperature
indicator (page 3-17, 3-7)
7) Selector lever position indicator (page 3-15)
8) Trip meter A/B selection and trip
meter reset knob (page 3-6)
9) Trip meter and odometer (page 3-6)

21
–
CONTINUED –

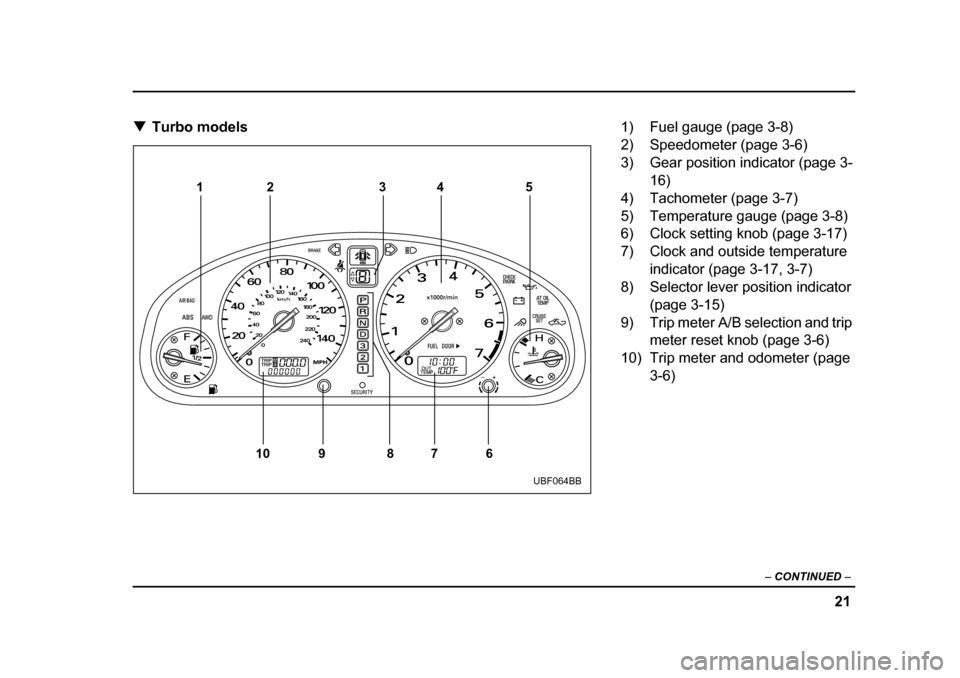

TTurbo models
12 4 35
6
7
8
9
10
UBF064BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Gear position indicator (page 3-
16)
4) Tachometer (page 3-7)
5) Temperature gauge (page 3-8)
6) Clock setting knob (page 3-17)
7) Clock and outside temperature indicator (page 3-17, 3-7)
8) Selector lever position indicator
(page 3-15)
9) Trip meter A/B selection and trip meter reset knob (page 3-6)
10) Trip meter and odometer (page 3-6)

22

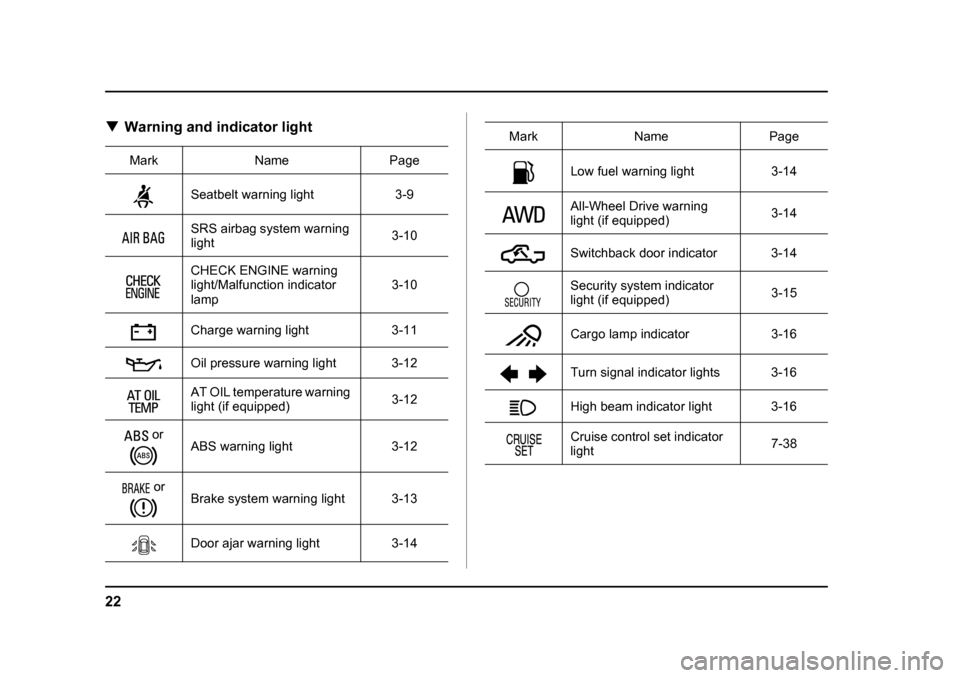

TWarning and indicator light
Mark Name Page
Seatbelt warning light 3-9
SRS airbag system warning light 3-10
CHECK ENGINE warning
light/Malfunction indicator lamp 3-10
Charge warning light 3-11
Oil pressure warning light 3-12
AT OIL temperature warning light (if equipped) 3-12
or ABS warning light 3-12
or Brake system warning light 3-13
Door ajar warning light 3-14
Low fuel warning light 3-14
All-Wheel Drive warning
light (if equipped) 3-14
Switchback door indicator 3-14 Security system indicator
light (if equipped) 3-15
Cargo lamp indicator 3-16
Turn signal indicator lights 3-16
High beam indicator light 3-16
Cruise control set indicator light 7-38
Mark Name Page

1-1
1
Seat, seatbelt and SRS airbags
Front seats .................................................... 1-2 Fore and aft adjustment ................................... 1-3
Seat cushion angle and height adjustment (Power seat only) ........................................... 1-4
Reclining the seatback ..................................... 1-5
Head restraint adjustment ................................ 1-6
Lumbar support (if equipped) .......................... 1-7
Seat heater (if equipped) .............................. 1-7
Rear seats ..................................................... 1-9 Rear headrest .................................................... 1-9
Folding down the rear seat .............................. 1-10
Seatbelts ....................................................... 1-14 Seatbelt safety tips ........................................... 1-14
Emergency Locking Retractor (ELR) .............. 1-16
Automatic/Emergency Locking Retractor (A/ELR) ............................................................ 1-16
Seatbelt warning light and chime .................... 1-17
Fastening the seatbelt ...................................... 1-17
Seatbelt maintenance ....................................... 1-21
Seatbelt extender ......................................... 1-22
Front seatbelt pretensioners ....................... 1-24 System monitors ............................................... 1-25
System servicing .............................................. 1-26
Precautions against vehicle modification ...... 1-27
Child restraint systems ................................ 1-28 Where to place a child restraint system ......... 1-29
Choosing a child restraint system .................. 1-31
Installing child restraint systems with A/ELR seatbelt ............................................................ 1-32 Installation of child restraint systems by use
of lower and tether anchorages (LATCH) .... 1-40
Installing a booster seat ................................... 1-45
*SRS airbag (Supplemental Restraint System airbag) ........................................... 1-47Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints ..... 1-47
SRS frontal airbag ............................................ 1-52
SRS airbag system monitors ........................... 1-60
SRS airbag system servicing .......................... 1-61
Precautions against vehicle modification ...... 1-62

1-2
Seat, seatbelt and SRS airbags
Seat, seatbelt and SRS airbagsFront seats
y
Never adjust the seat while driving to avoid
the possibility of loss of vehicle control and of
personal injury. y Before adjusting the seat, make sure the
hands and feet of rear seat passengers are
clear of the adjusting mechanism. y Seatbelts provide maximum restraint when
the occupant sits well back and upright in the
seat. To reduce the risk of sliding under the
seatbelt in a collision, the front seatbacks
should be always used in the upright position
while the vehicle is running. If the front seat-
backs are not used in the upright position in a
collision, the risk of sliding under the lap belt
and of the lap belt sliding up over the abdomen
will increase, and both can result in serious in-
ternal injury or death.y The SRS airbags deploy with considerable
speed and force. Occupants who are out of
proper position when the SRS airbag deploys
could suffer very serious injuries. Because the
SRS airbag needs enough space for deploy-
ment, the driver should always sit upright and well back in the seat as far from the steering
wheel as practical while still maintaining full ve-
hicle control and the front passenger should
move the seat as far back as possible and situpright and well back in the seat.
Put children aged 12 and under in the rear seat
properly restrained at all times. The SRS airbag
deploys with considerable speed and force and
can injure or even kill children, especially if
they are 12 years of age and under and are not

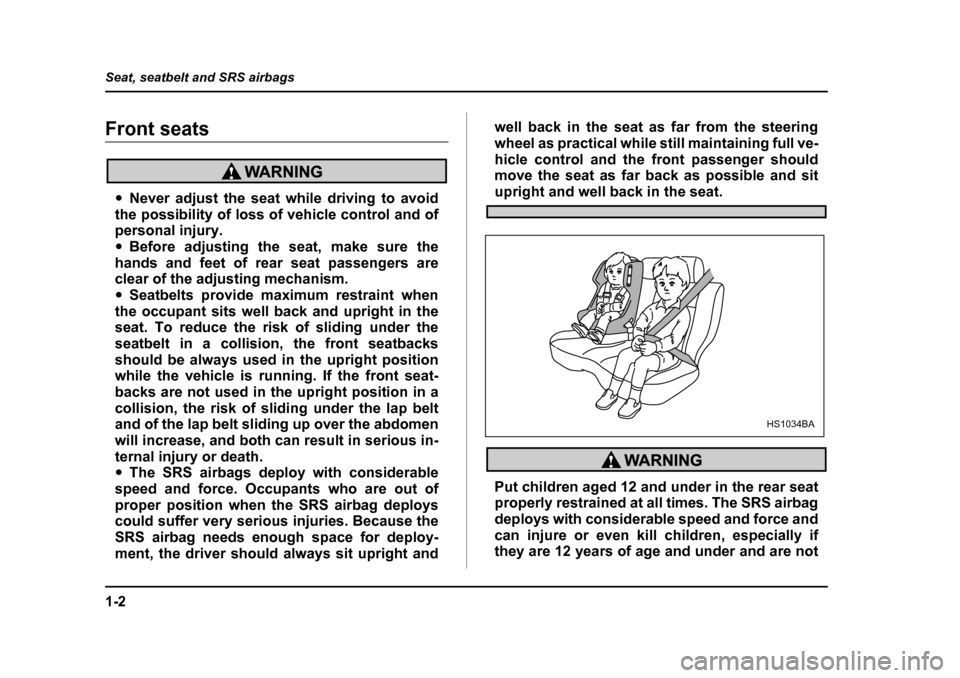

HS1034BA

1-3
Seat, seatbelt and SRS airbags
– CONTINUED –
restrained or improperly restrained. Because
children are lighter and weaker than adults,
their risk of being injured from deployment is
greater. For that reason, we strongly recom-
mend that ALL children (including those in
child seats and those that have outgrown child
restraint devices) sit in the REAR seat properly
restrained at all times in a child restraint device
or in a seatbelt, whichever is appropriate for the
child’s age, height and weight.
Secure ALL types of child restraint devices (in-
cluding forward facing child seat) in the REAR
seats at all times.
NEVER INSTALL A REARWARD FACING CHILDSEAT IN THE FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD TOO CLOSE
TO THE SRS AIRBAG.
According to accident statistics, children are
safer when properly restrained in the rear seat-
ing positions than in the front seating posi-
tions. For instructions and precautions con-
cerning child restraint systems, see the “Child
restraint systems” section in this chapter. „
Fore and aft adjustment
T Power seat (if equipped)

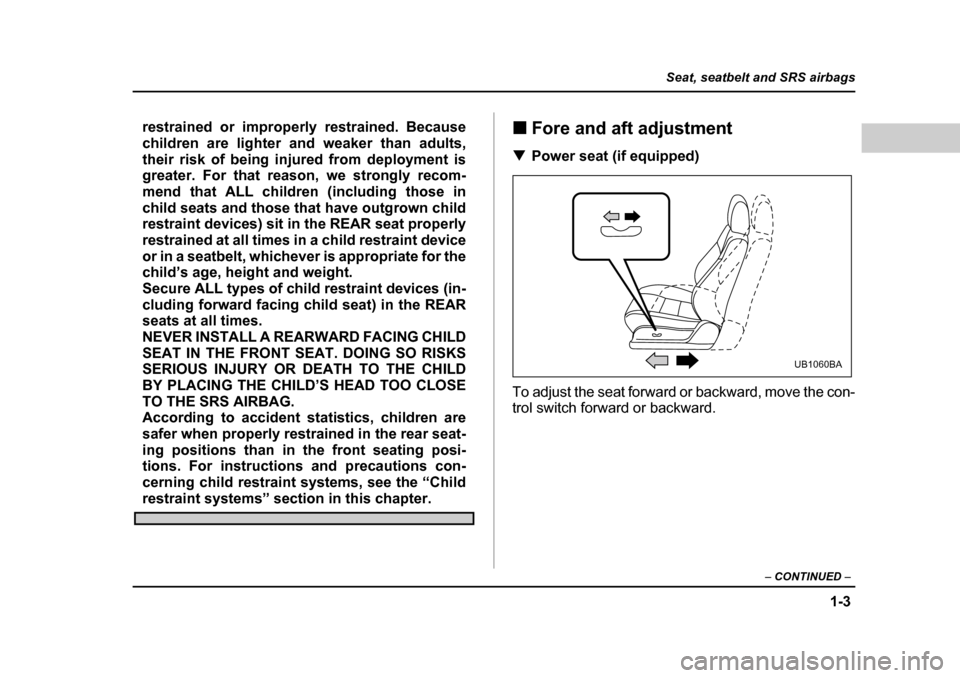

To adjust the seat forward or backward, move the con-
trol switch forward or backward.
UB1060BA

1-4
Seat, seatbelt and SRS airbags
T
Manual type

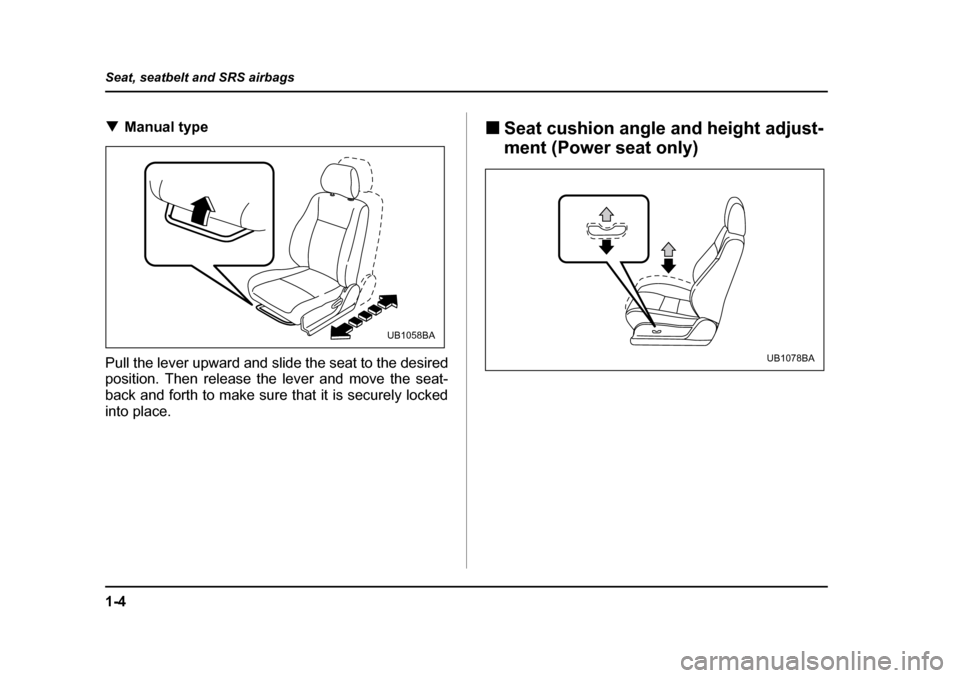

Pull the lever upward and slide the seat to the desired
position. Then release the lever and move the seat-
back and forth to make sure that it is securely locked
into place. „
Seat cushion angle and height adjust-
ment (Power seat only)
UB1058BA
UB1078BA

1-5
Seat, seatbelt and SRS airbags
– CONTINUED –
To adjust the angle and height of the seat cushion,
move the control switch in the corresponding direction. „
Reclining the seatback

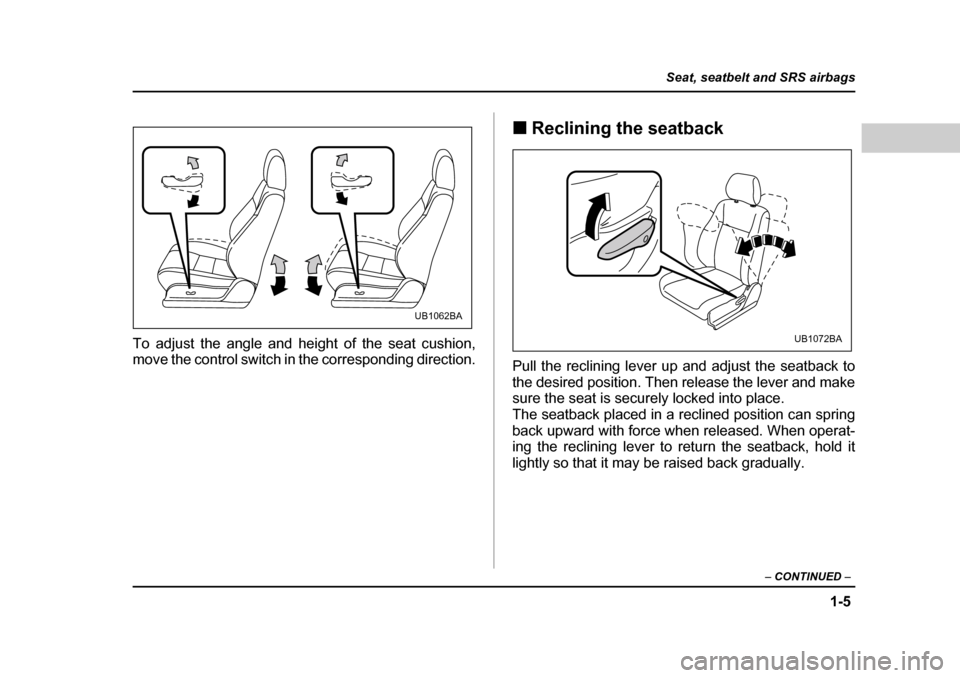

Pull the reclining lever up and adjust the seatback to
the desired position. Then release the lever and make
sure the seat is securely locked into place.
The seatback placed in a reclined position can spring
back upward with force when released. When operat-
ing the reclining lever to return the seatback, hold it
lightly so that it may be raised back gradually.
UB1062BA
UB1072BA
