Combination meter

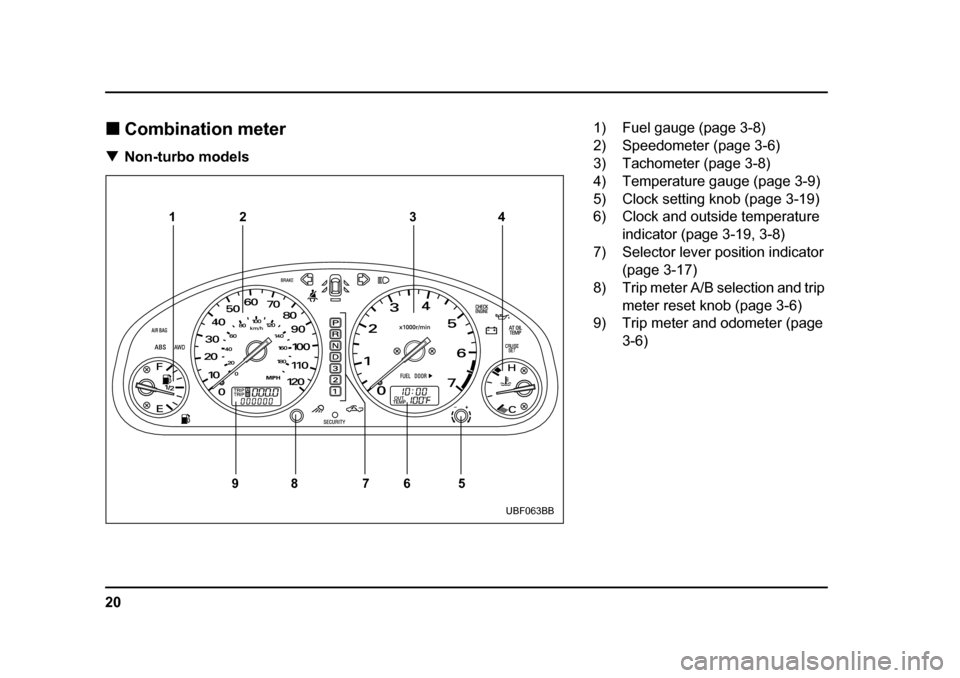

T Non-turbo models
12 3 4
5
6
7
8
9
UBF063BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Tachometer (page 3-8)
4) Temperature gauge (page 3-9)
5) Clock setting knob (page 3-19)
6) Clock and outside temperature
indicator (page 3-19, 3-8)
7) Selector lever po sition indicator
(page 3-17)
8) Trip meter A/B selection and trip
meter reset knob (page 3-6)
9) Trip meter and odometer (page
3-6)

21
–
CONTINUED –

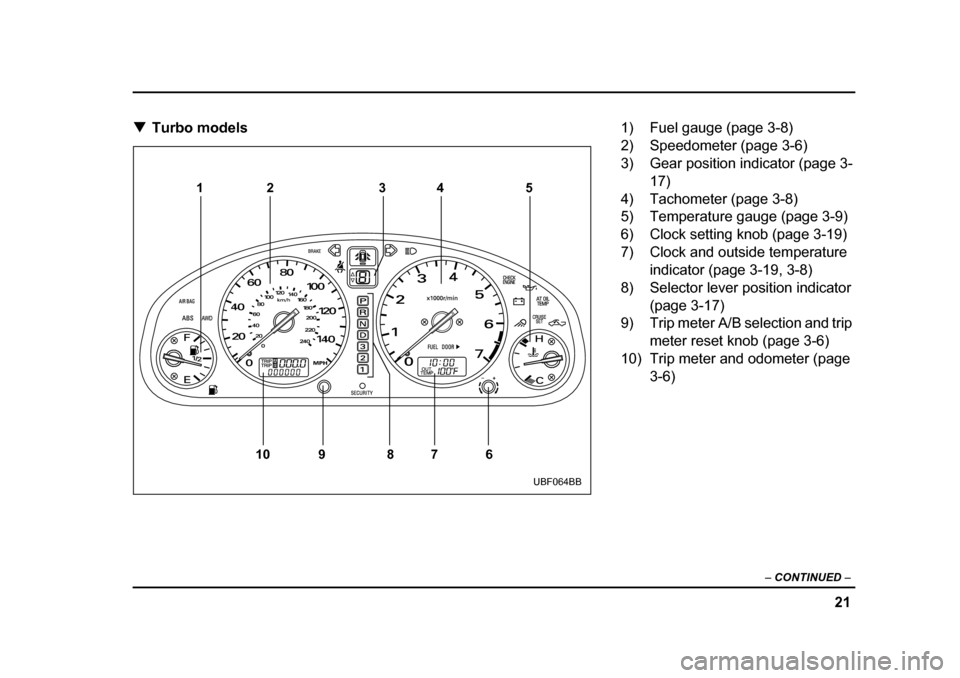

TTurbo models
12 4 35
6
7
8
9
10
UBF064BB
1) Fuel gauge (page 3-8)
2) Speedometer (page 3-6)
3) Gear position indicator (page 3-
17)
4) Tachometer (page 3-8)
5) Temperature gauge (page 3-9)
6) Clock setting knob (page 3-19)
7) Clock and outside temperature indicator (page 3-19, 3-8)
8) Selector lever position indicator
(page 3-17)
9) Trip meter A/B selection and trip
meter reset knob (page 3-6)
10) Trip meter and odometer (page 3-6)
