seat adjustment SUBARU BRZ 2013 1.G Owners Manual

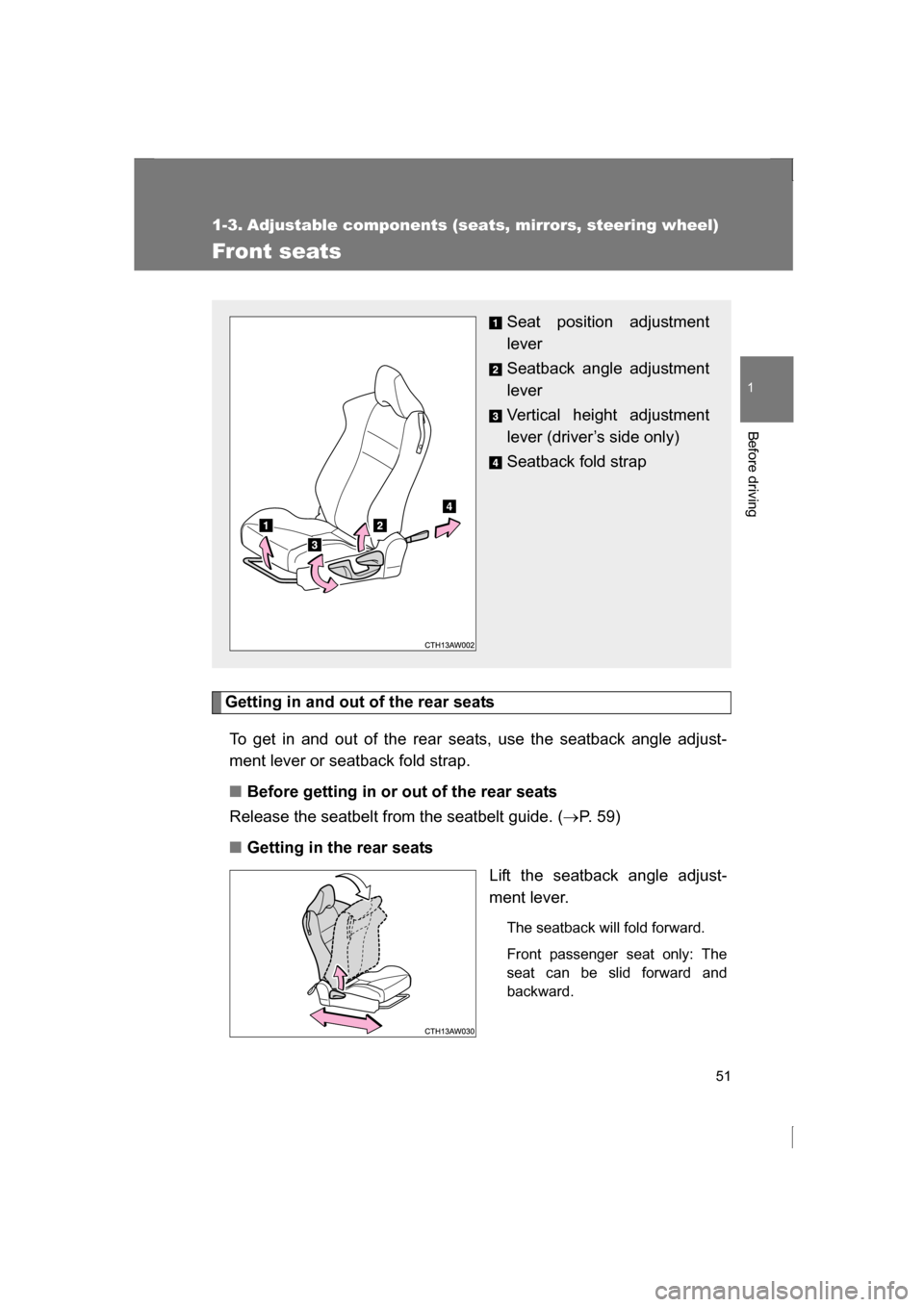

51
1
Before driving
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Getting in and out of the rear seatsTo get in and out of the rear seats, use the seatback angle adjust-
ment lever or seatback fold strap.
■Before getting in or out of the rear seats
Release the seatbelt from the seatbelt guide. ( →P. 5 9 )
■Getting in the rear seats
Lift the seatback angle adjust-
ment lever.
The seatback will fold forward.
Front passenger seat only: The
seat can be slid forward and
backward.
Seat position adjustment
lever
Seatback angle adjustment
lever
Vertical height adjustment
lever (driver’s side only)
Seatback fold strap

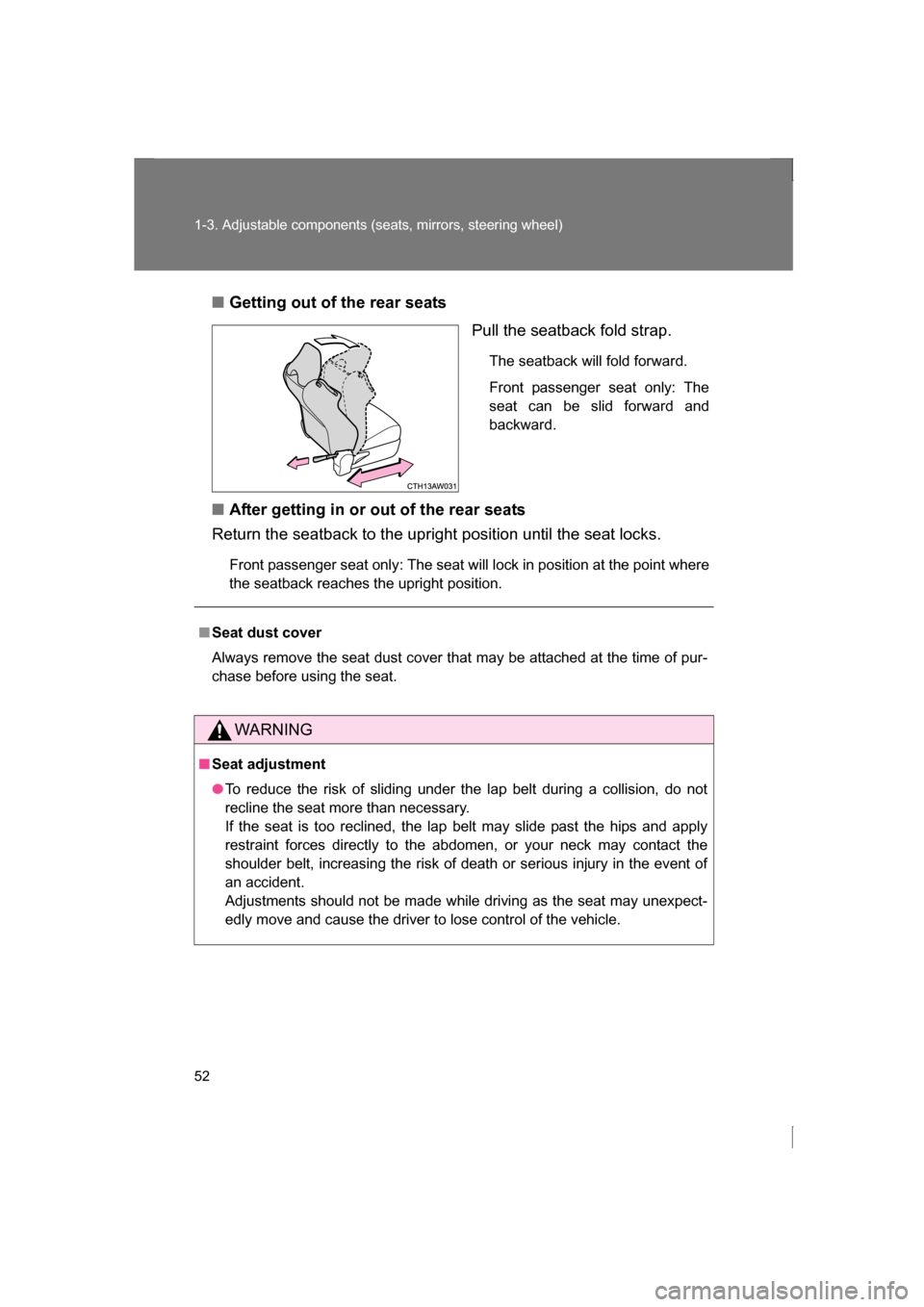

52
1-3. Adjustable components (seats, mirrors, steering wheel)
■Getting out of the rear seatsPull the seatback fold strap.
The seatback will fold forward.
Front passenger seat only: The
seat can be slid forward and
backward.
■After getting in or out of the rear seats
Return the seatback to the upright position until the seat locks.
Front passenger seat only: The seat will lock in position at the point where
the seatback reaches the upright position.
■Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.
WARNING
■Seat adjustment
●To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.

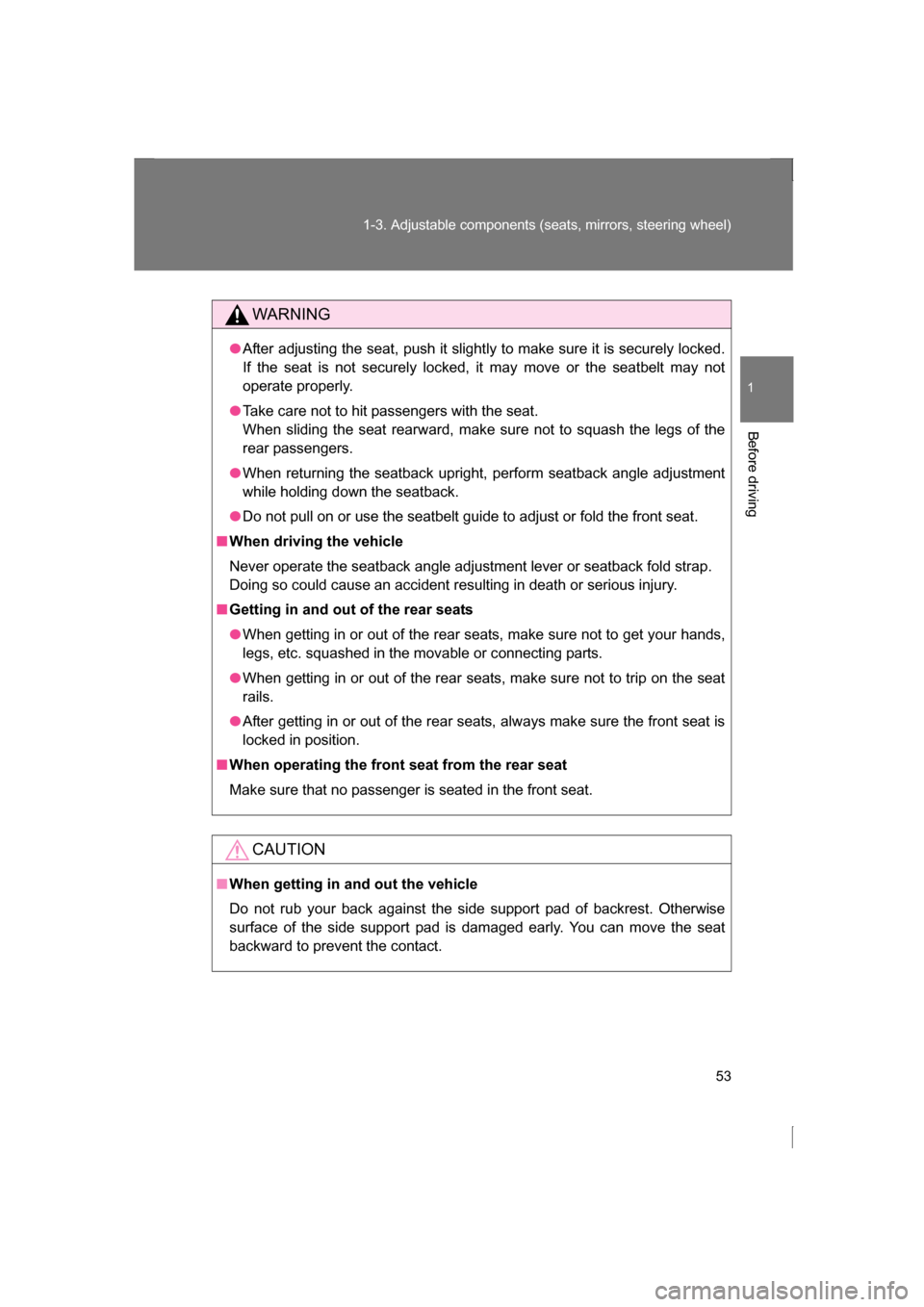

53
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
WARNING
●After adjusting the seat, push it slightly to make sure it is securely locked.
If the seat is not securely locked, it may move or the seatbelt may not
operate properly.
●Take care not to hit passengers with the seat.
When sliding the seat rearward, make sure not to squash the legs of the
rear passengers.
●When returning the seatback upright, perform seatback angle adjustment
while holding down the seatback.
●Do not pull on or use the seatbelt guide to adjust or fold the front seat.
■When driving the vehicle
Never operate the seatback angle adjustment lever or seatback fold strap.
Doing so could cause an accident resulting in death or serious injury.
■Getting in and out of the rear seats
●When getting in or out of the rear seats, make sure not to get your hands,
legs, etc. squashed in the movable or connecting parts.
●When getting in or out of the rear seats, make sure not to trip on the seat
rails.
●After getting in or out of the rear seats, always make sure the front seat is
locked in position.
■When operating the front seat from the rear seat
Make sure that no passenger is seated in the front seat.
CAUTION
■When getting in and out the vehicle
Do not rub your back against the side support pad of backrest. Otherwise
surface of the side support pad is damaged early. You can move the seat
backward to prevent the contact.

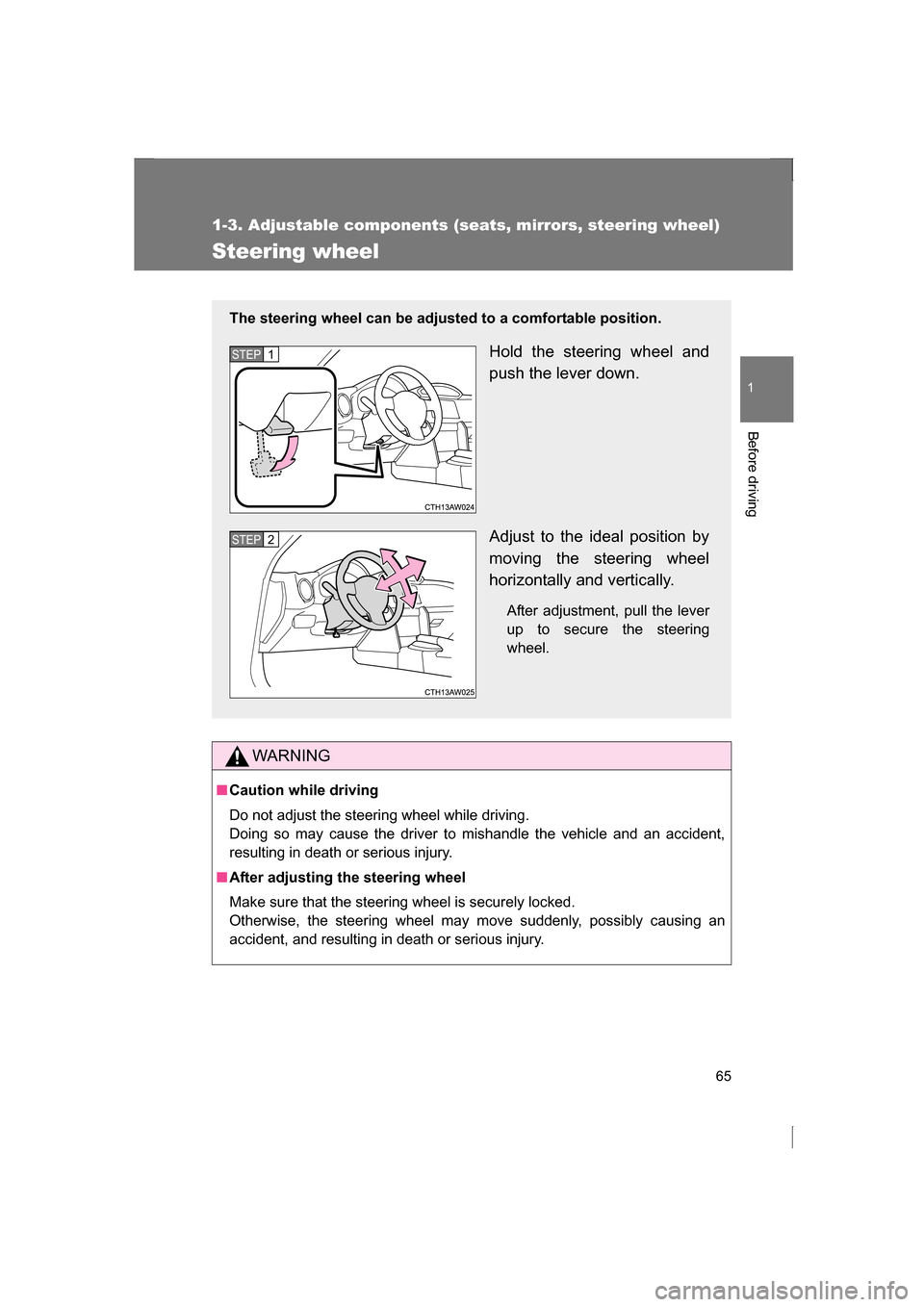

65
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Steering wheel
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel
horizontally and vertically.After adjustment, pull the lever
up to secure the steering
wheel.
STEP 1
STEP 2

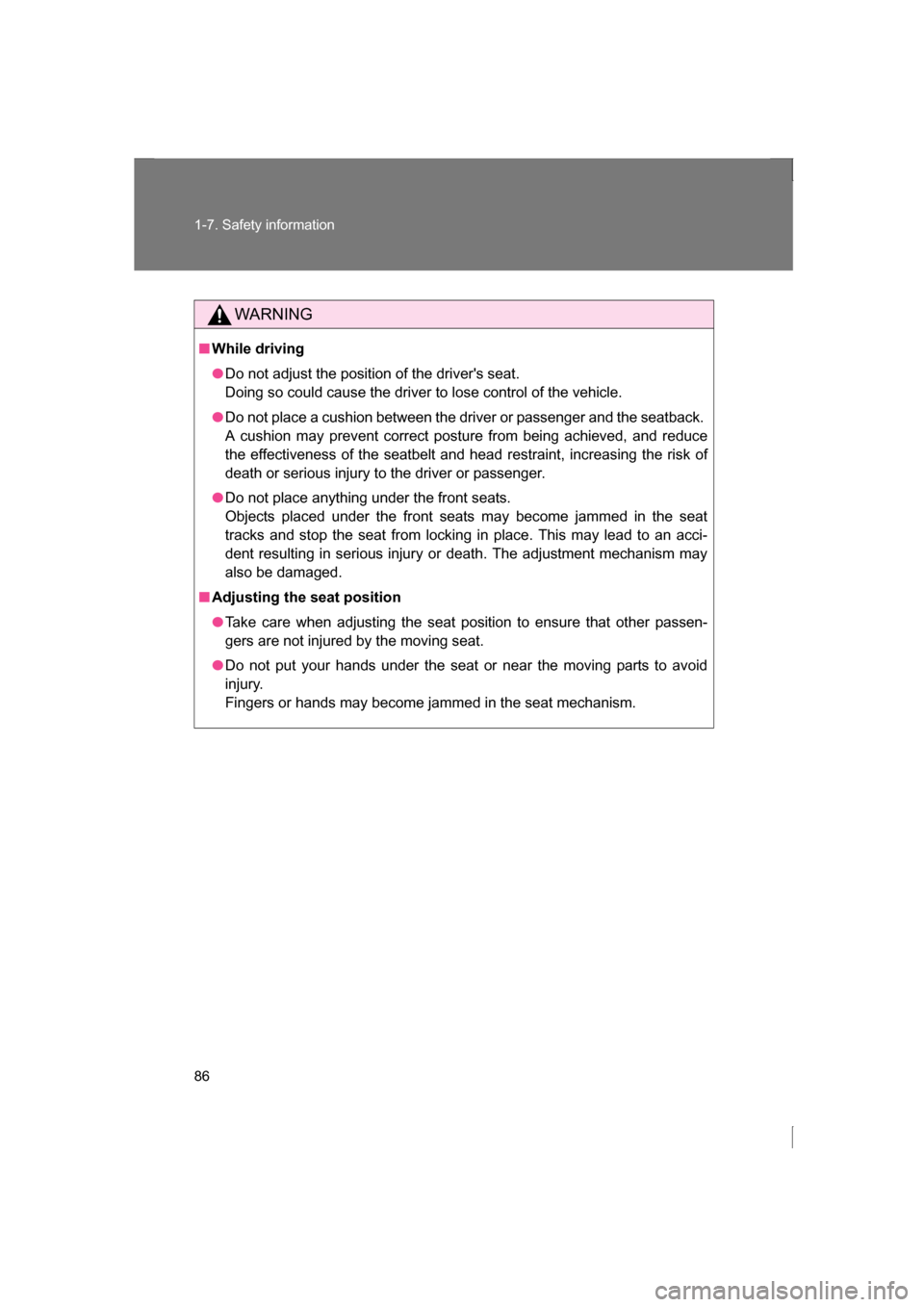

86
1-7. Safety information
WARNING
■While driving
●Do not adjust the position of the driver's seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seatbelt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent resulting in serious injury or death. The adjustment mechanism may
also be damaged.
■Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

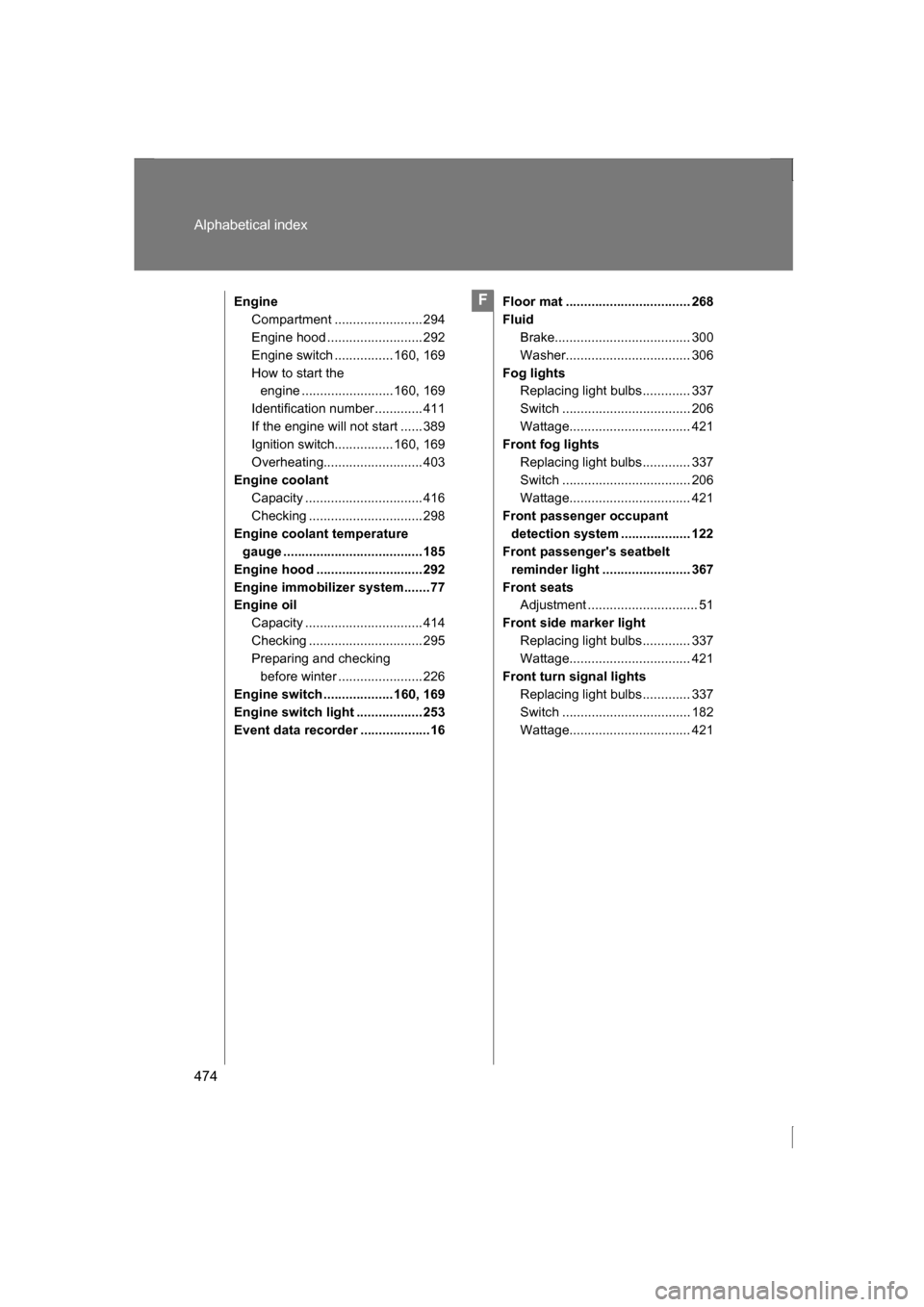

474
Alphabetical index
EngineCompartment ........................ 294
Engine hood .......................... 292
Engine switch ................160, 169
How to start the engine .........................160, 169
Identification number ............. 411
If the engine will not start ...... 389
Ignition switch................160, 169
Overheating........................... 403
Engine coolant Capacity ................................ 416
Checking ............................... 298
Engine coolant temperature gauge ...................................... 185
Engine hood ............................. 292
Engine immobilizer system....... 77
Engine oil Capacity ................................ 414
Checking ............................... 295
Preparing and checking
before winter ....................... 226
Engine switch ...................160, 169
Engine switch light .................. 253
Event data recorder ...................16 Floor mat .................................. 268 Fluid
Brake..................................... 300
Washer.................................. 306
Fog lights Replacing light bulbs ............. 337
Switch ................................... 206
Wattage................................. 421
Front fog lights
Replacing light bulbs ............. 337
Switch ................................... 206
Wattage................................. 421
Front passenger occupant
detection system ................... 122
Front passenger's seatbelt
reminder light ........................ 367
Front seats Adjustment .............................. 51
Front side marker light Replacing light bulbs ............. 337
Wattage................................. 421
Front turn signal lights Replacing light bulbs ............. 337
Switch ................................... 182
Wattage................................. 421F

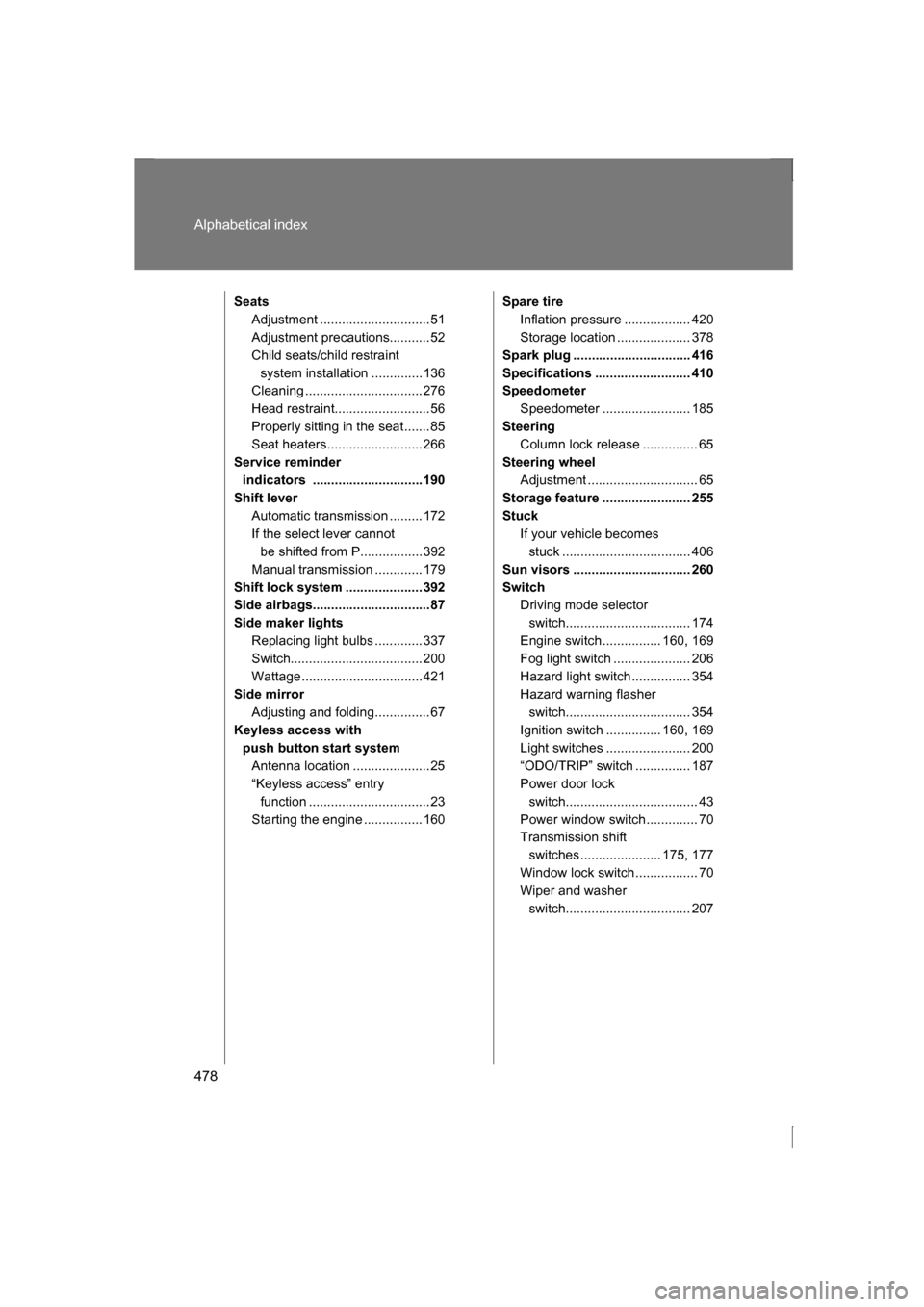

478
Alphabetical index
SeatsAdjustment ..............................51
Adjustment precautions...........52
Child seats/child restraint system installation ..............136
Cleaning ................................ 276
Head restraint..........................56
Properly sitting in the seat.......85
Seat heaters.......................... 266
Service reminder indicators ..............................190
Shift lever
Automatic transmission ......... 172
If the select lever cannot
be shifted from P.................392
Manual transmission ............. 179
Shift lock system ..................... 392
Side airbags................................87
Side maker lights Replacing light bulbs ............. 337
Switch.................................... 200
Wattage.................................421
Side mirror
Adjusting and folding...............67
Keyless access with
push button start system Antenna location .....................25
“Keyless access” entry function .................................23
Starting the engine ................ 160 Spare tire
Inflation pressure .................. 420
Storage location .................... 378
Spark plug ................................ 416
Specifications .......................... 410
Speedometer
Speedometer ........................ 185
Steering
Column lock release ............... 65
Steering wheel Adjustment .............................. 65
Storage feature ........................ 255
Stuck
If your vehicle becomes
stuck ................................... 406
Sun visors ................................ 260
Switch Driving mode selector
switch.................................. 174
Engine switch................ 160, 169
Fog light switch ..................... 206
Hazard light switch ................ 354
Hazard warning flasher switch.................................. 354
Ignition switch ............... 160, 169
Light switches ....................... 200
“ODO/TRIP” switch ............... 187
Power door lock
switch.................................... 43
Power window switch .............. 70
Transmission shift
switches ...................... 175, 177
Window lock switch ................. 70
Wiper and washer switch.................................. 207
