5
When trouble arises
411
5-2. Steps to take in an emergency

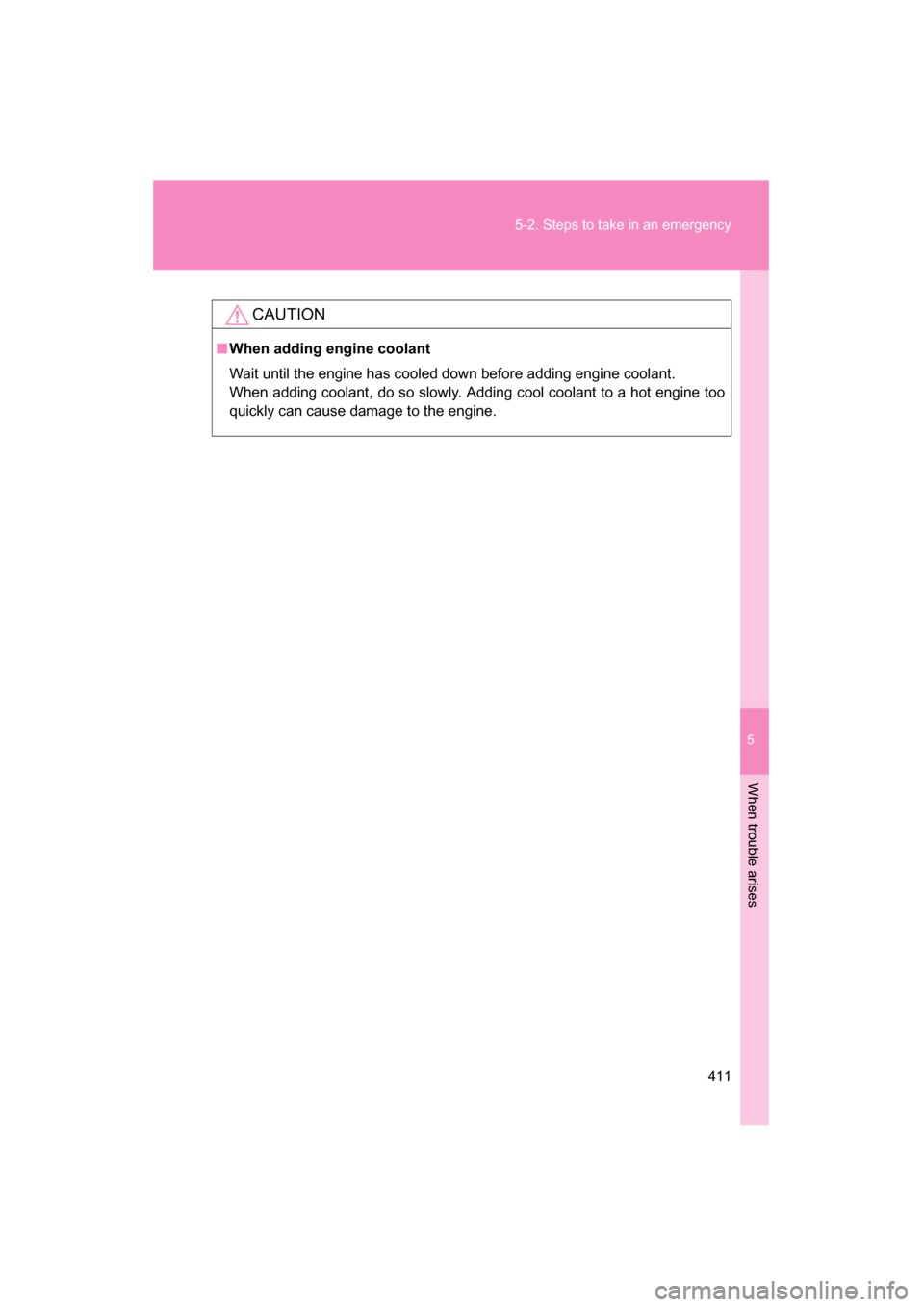

CAUTION
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.

412
5-2. Steps to take in an emergency

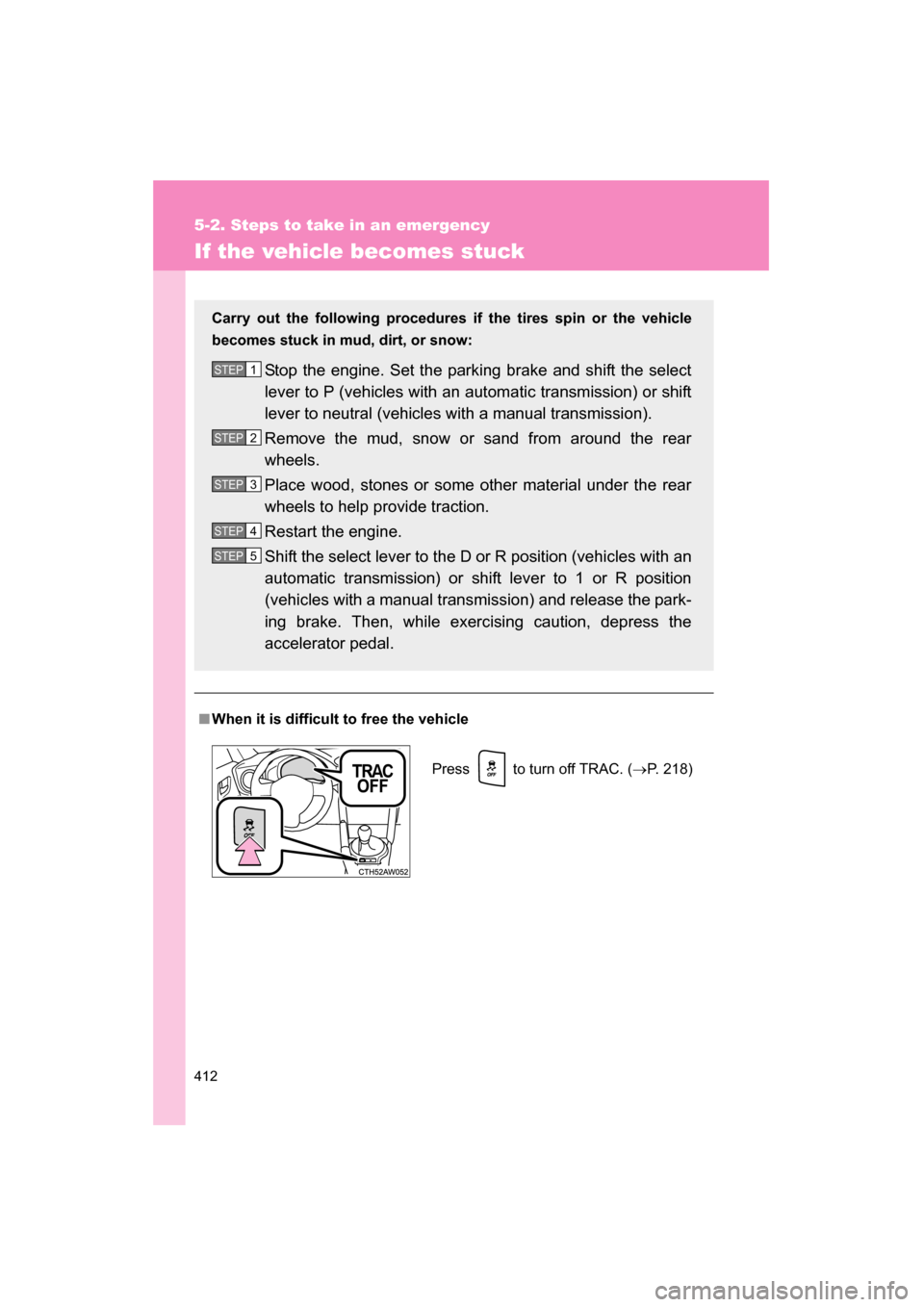

If the vehicle becomes stuck
■When it is difficult to free the vehicle
Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow:
Stop the engine. Set the parking brake and shift the select
lever to P (vehicles with an automatic transmission) or shift
lever to neutral (vehicles with a manual transmission).
Remove the mud, snow or sand from around the rear
wheels.
Place wood, stones or some other material under the rear
wheels to help provide traction.
Restart the engine.
Shift the select lever to the D or R position (vehicles with an
automatic transmission) or shift lever to 1 or R position
(vehicles with a manual transmission) and release the park-
ing brake. Then, while exercising caution, depress the
accelerator pedal.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Press to turn off TRAC. ( →P. 218)

5
When trouble arises
413
5-2. Steps to take in an emergency

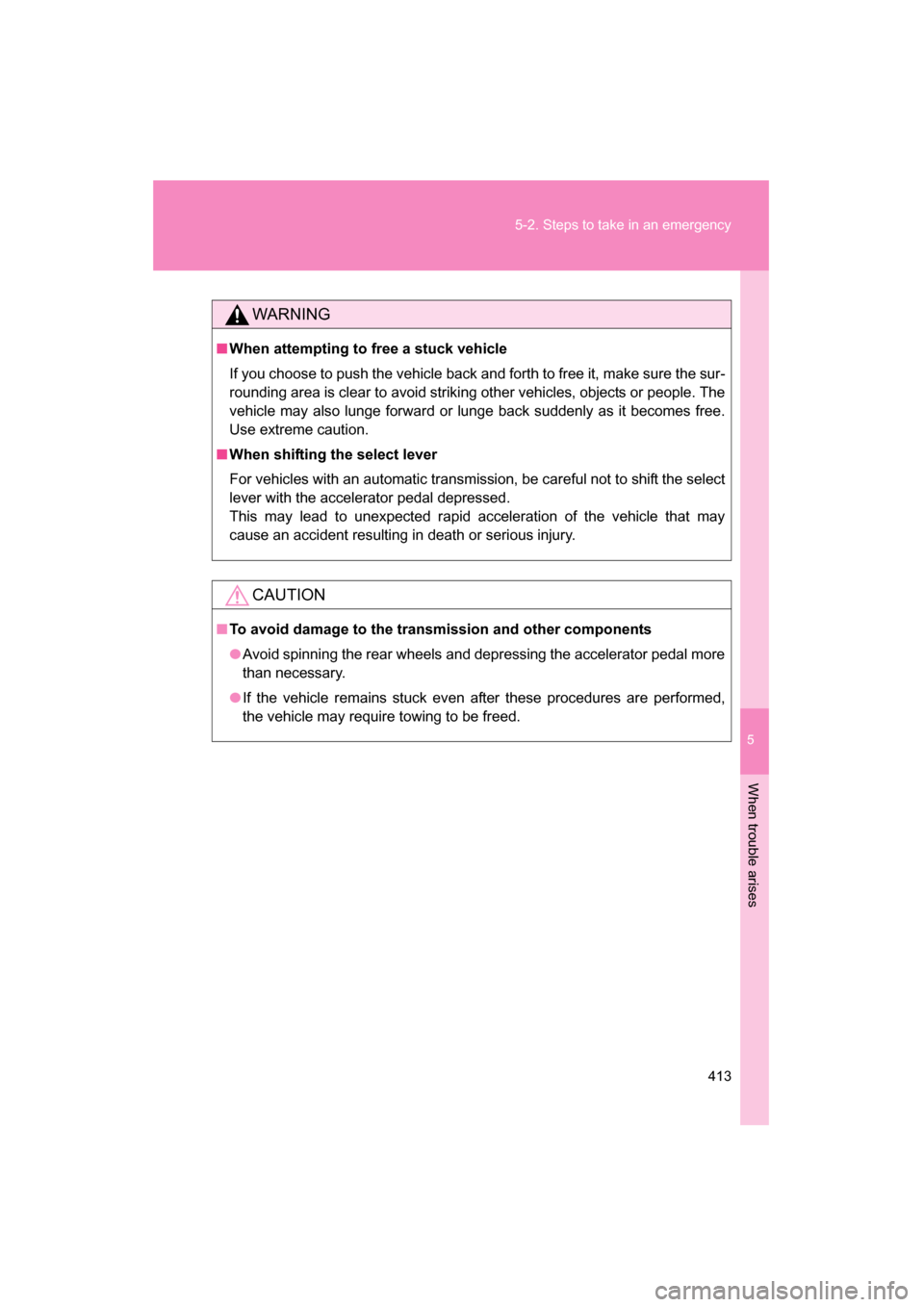

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or people. The
vehicle may also lunge forward or lunge back suddenly as it becomes free.
Use extreme caution.
■When shifting the select lever
For vehicles with an automatic transmission, be careful not to shift the select
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
CAUTION
■To avoid damage to the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more
than necessary.
●If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

414
5-2. Steps to take in an emergency

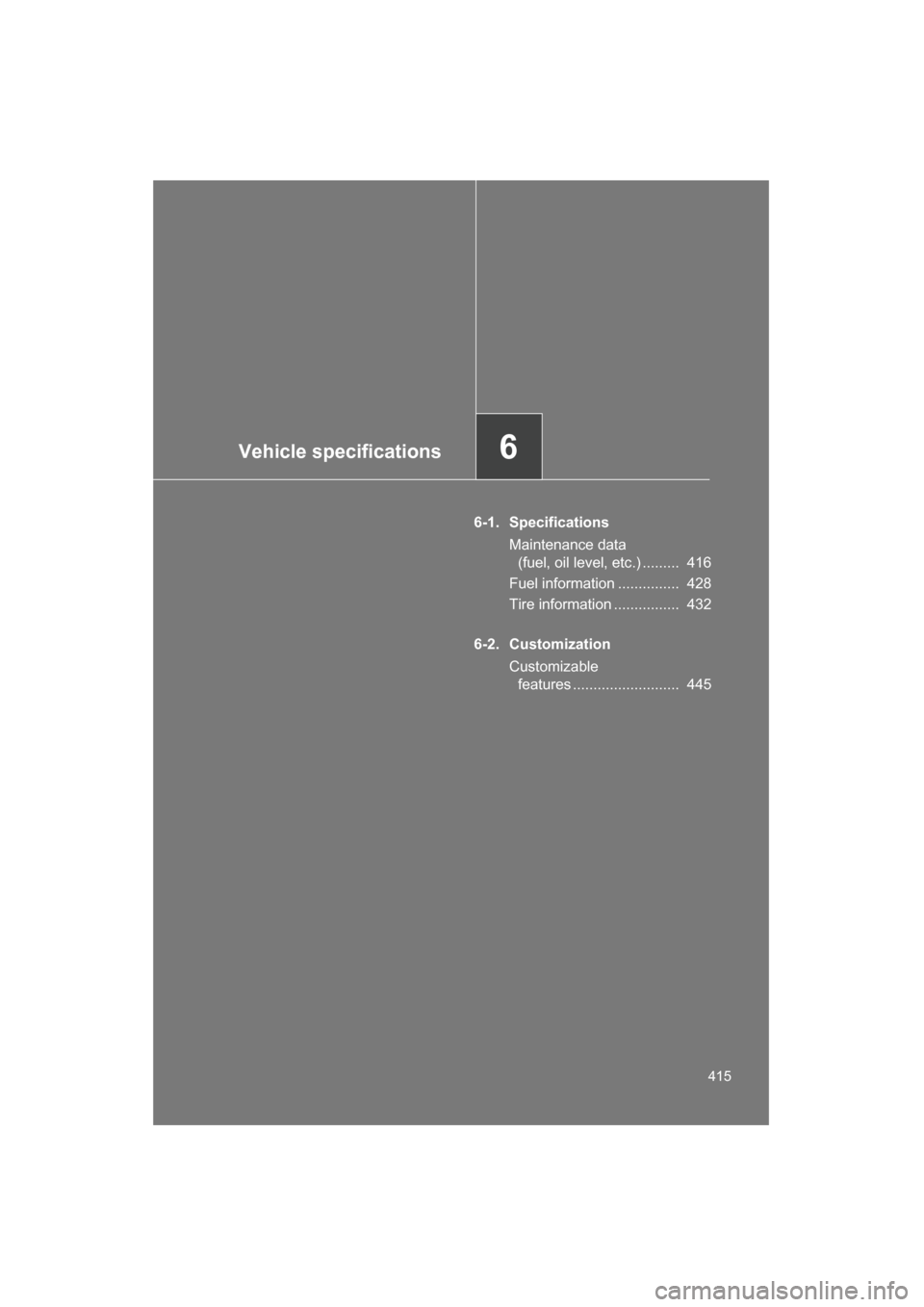

Vehicle specifications6
415
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 416
Fuel information ............... 428
Tire information ................ 432
6-2. Customization Customizable features .......................... 445

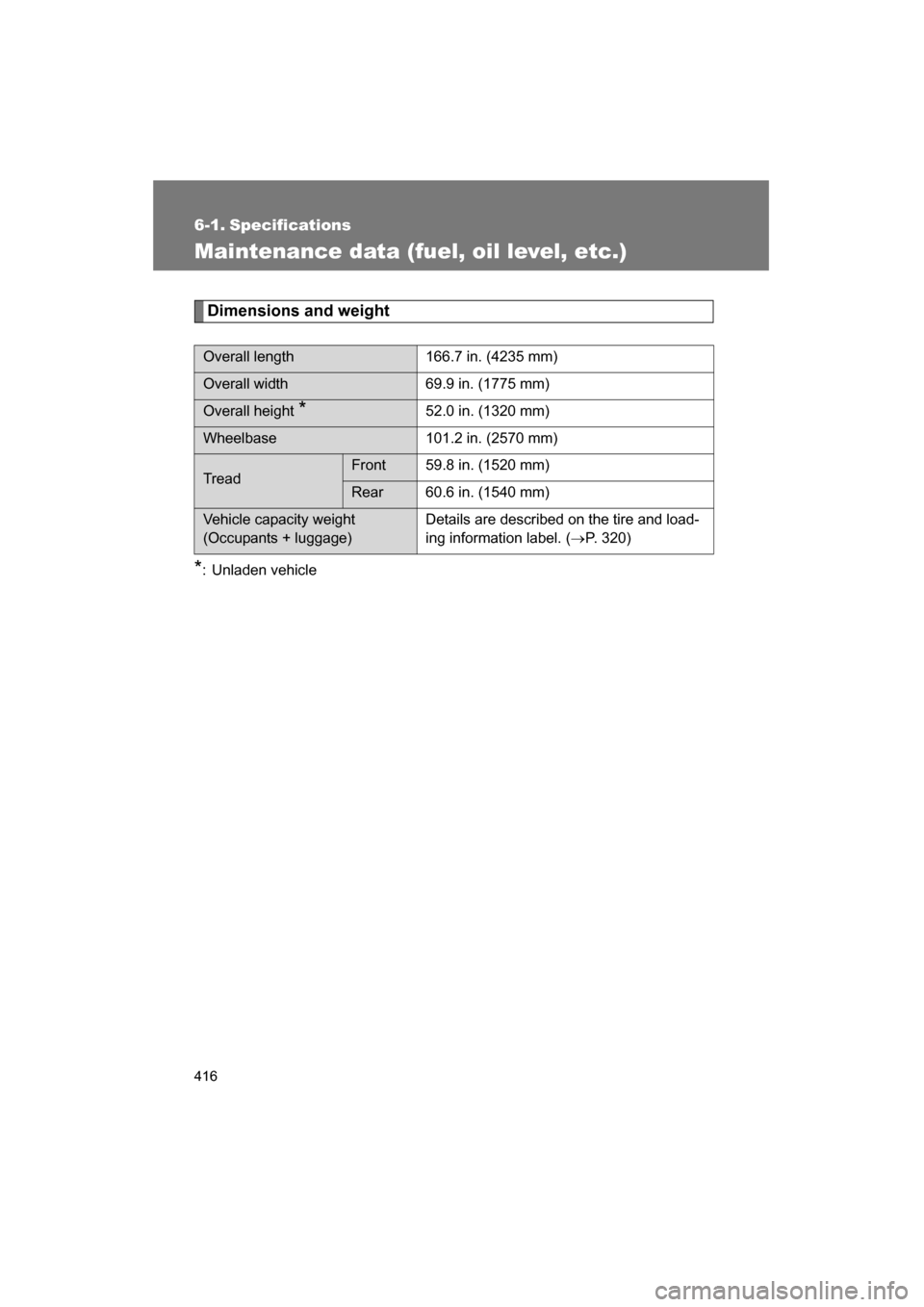

416
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
* : Unladen vehicle
Overall length 166.7 in. (4235 mm)
Overall width 69.9 in. (1775 mm)
Overall height
* 52.0 in. (1320 mm)
Wheelbase 101.2 in. (2570 mm)
TreadFront 59.8 in. (1520 mm)
Rear 60.6 in. (1540 mm)
Vehicle capacity weight
(Occupants + luggage) Details are described on the tire and load-
ing information label. (
→P. 320)

417
6-1. Specifications
6
Vehicle specifications

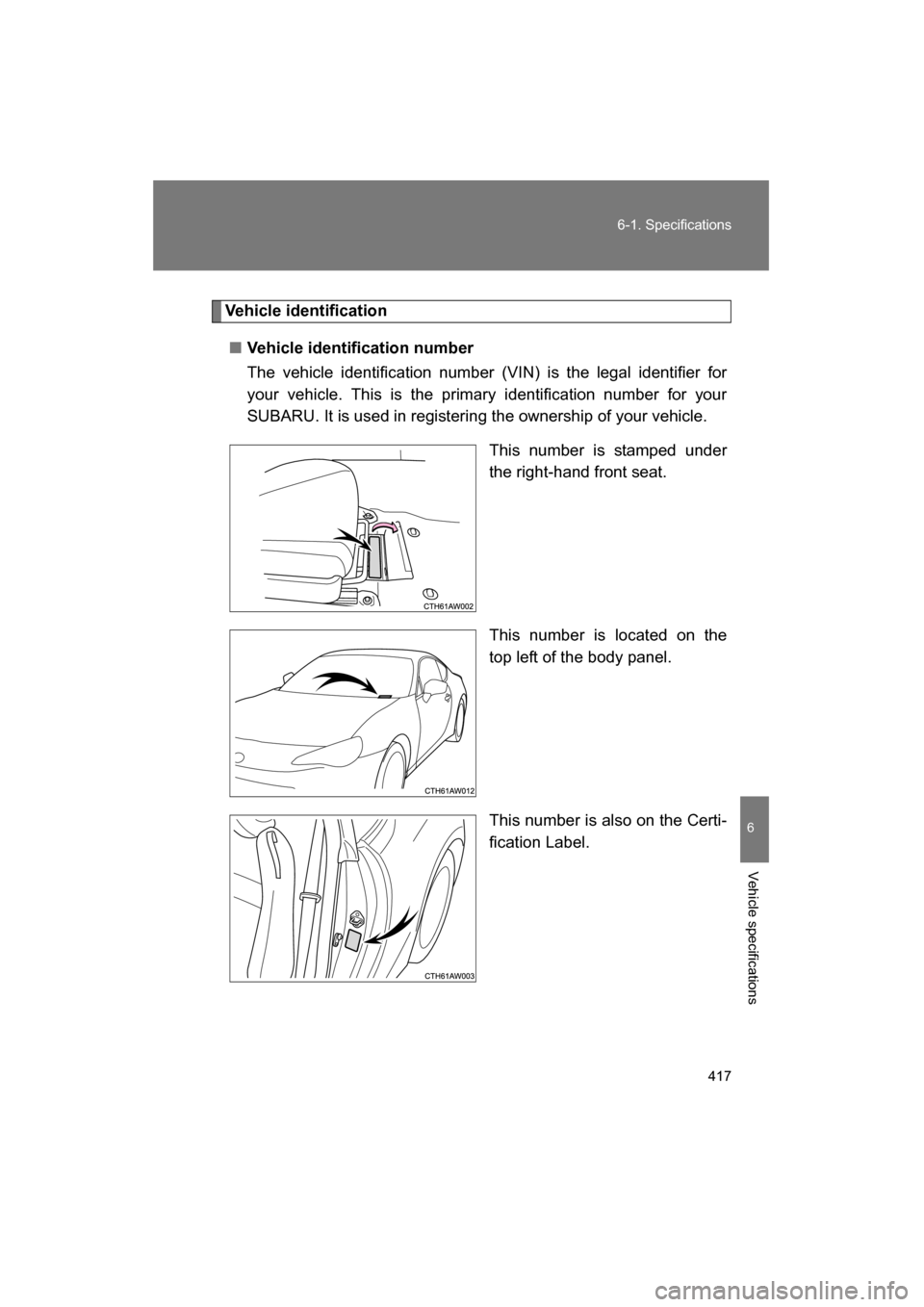

Vehicle identification
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
SUBARU. It is used in registering the ownership of your vehicle.This number is stamped under
the right-hand front seat.
This number is located on the
top left of the body panel.
This number is also on the Certi-
fication Label.

418
6-1. Specifications

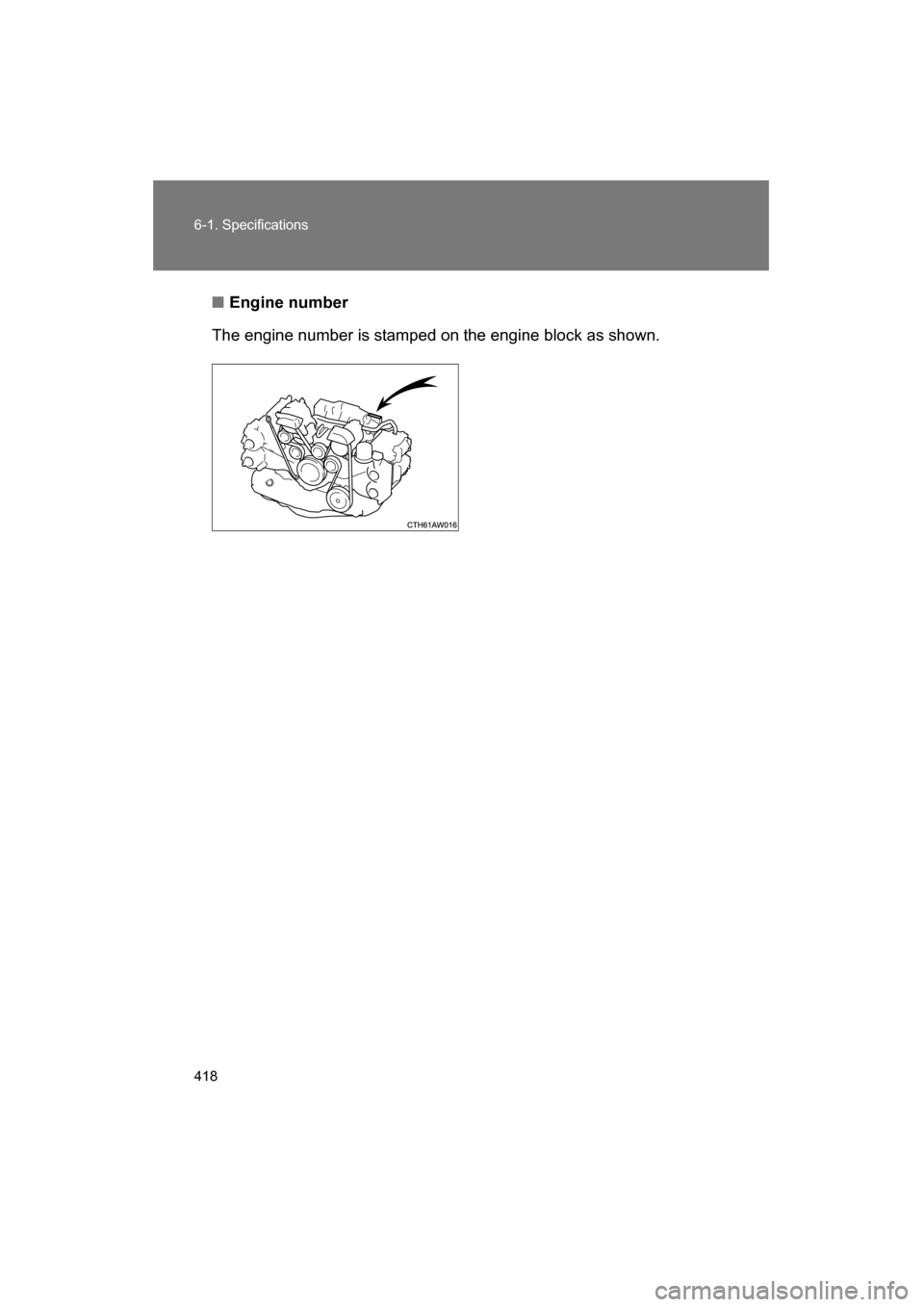

■Engine number
The engine number is stamped on the engine block as shown.

419
6-1. Specifications
6
Vehicle specifications

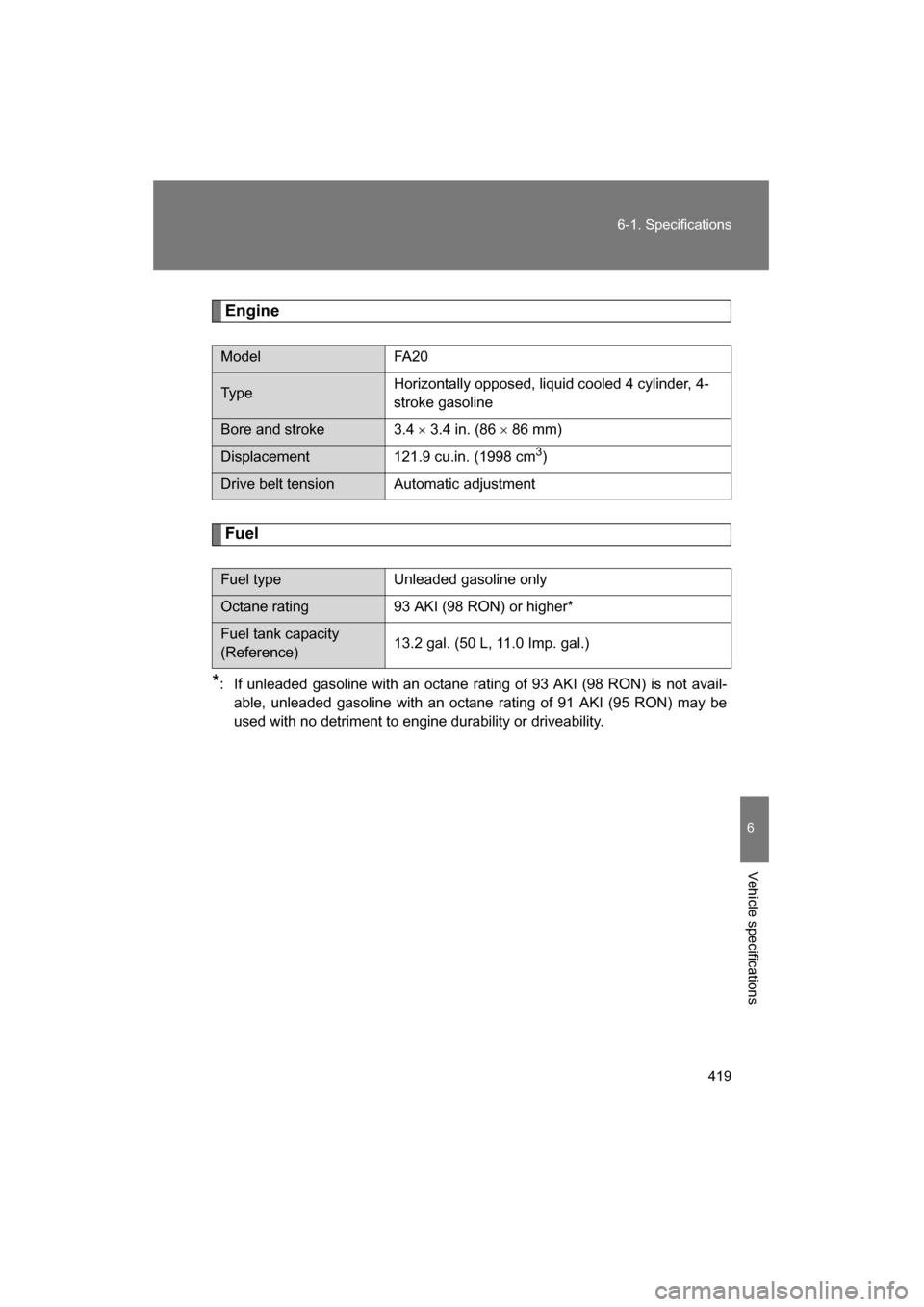

Engine
Fuel
* : If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 121.9 cu.in. (1998 cm 3
)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)

420
6-1. Specifications

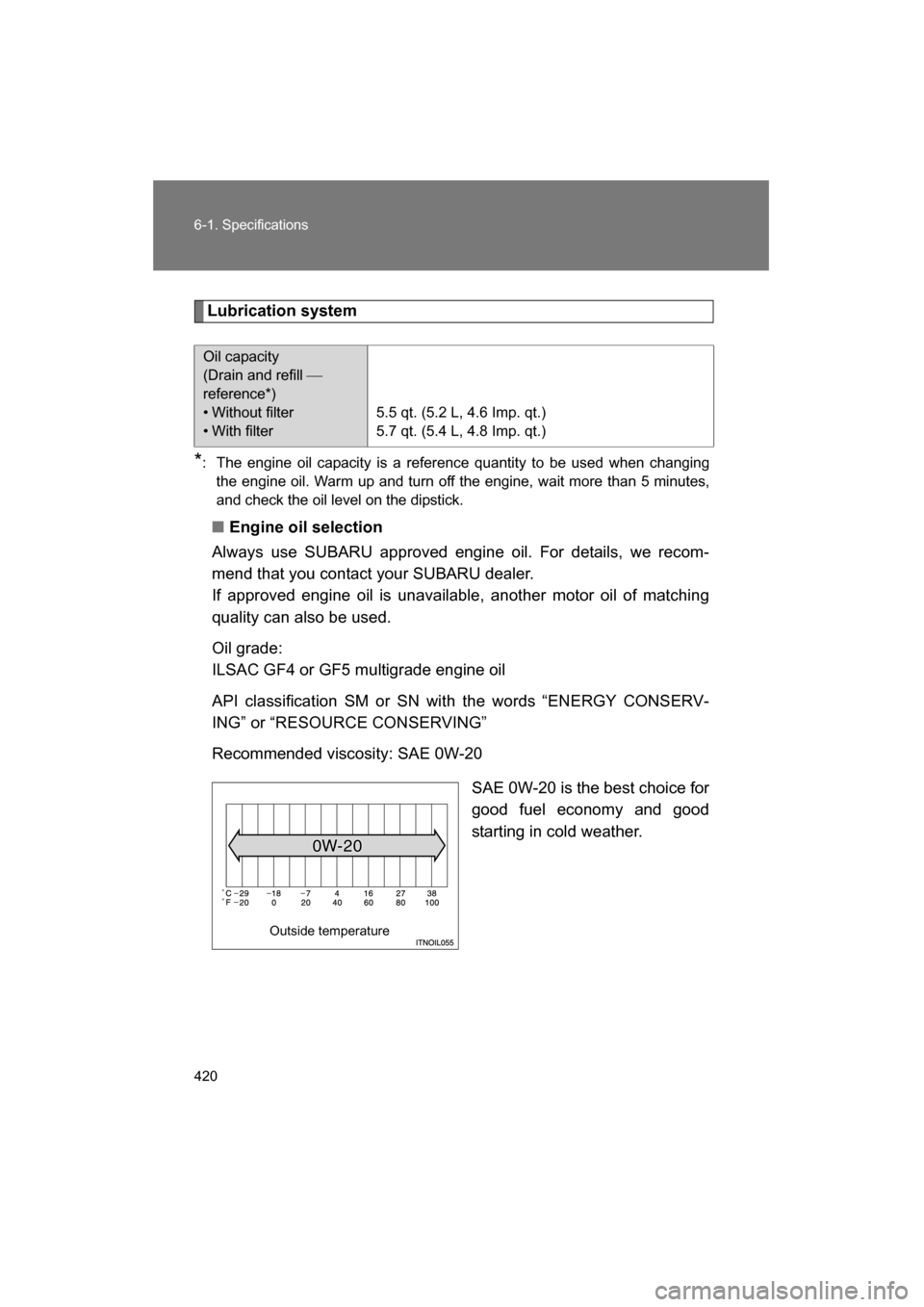

Lubrication system
* : The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
ILSAC GF4 or GF5 multigrade engine oil
API classification SM or SN with the words “ENERGY CONSERV-
ING” or “RESOURCE CONSERVING”
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
Oil capacity
(Drain and refill 
reference*)
