81
1
1-6. Security system
Before driving

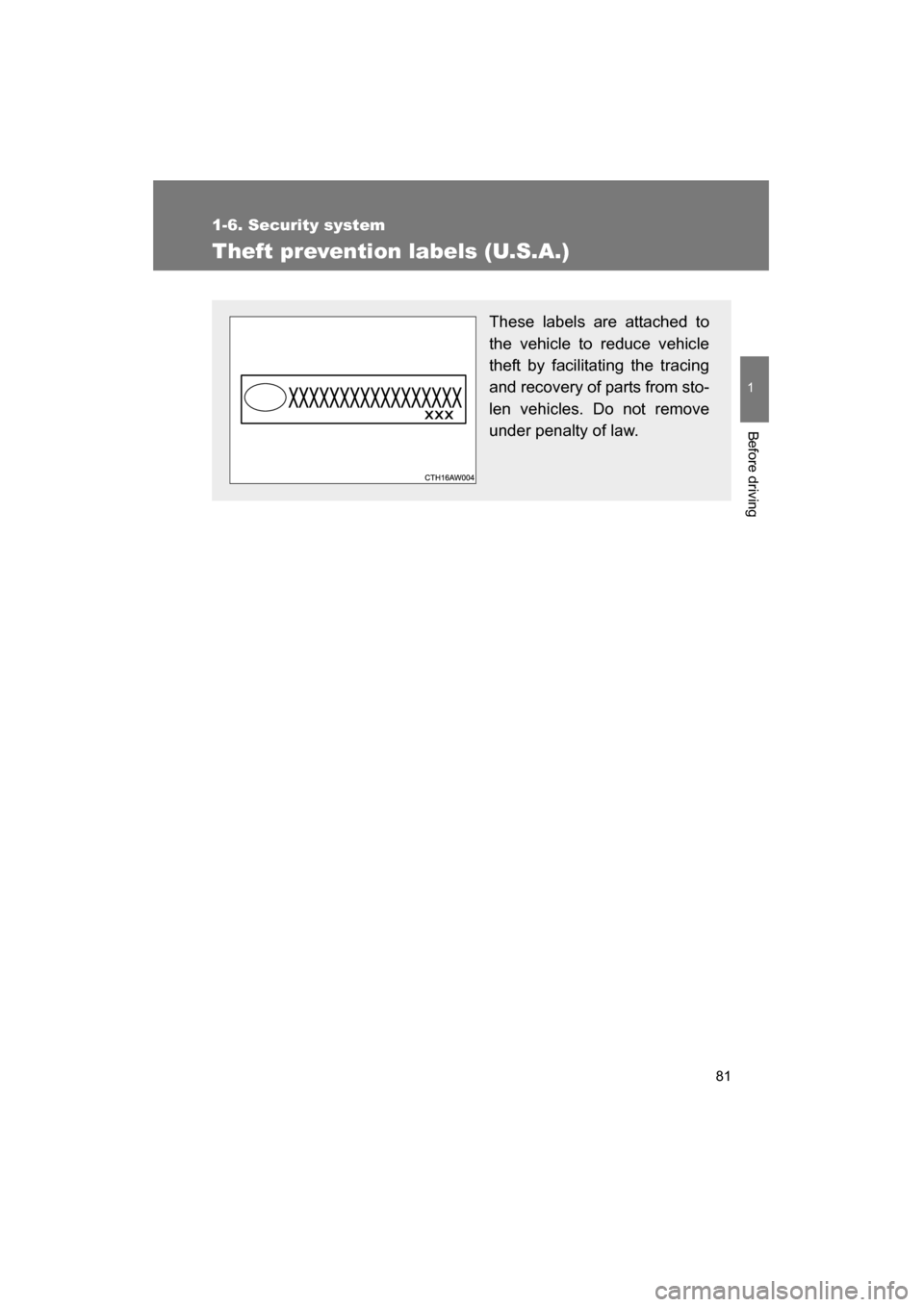

Theft prevention labels (U.S.A.)
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
under penalty of law.

82
1-6. Security system

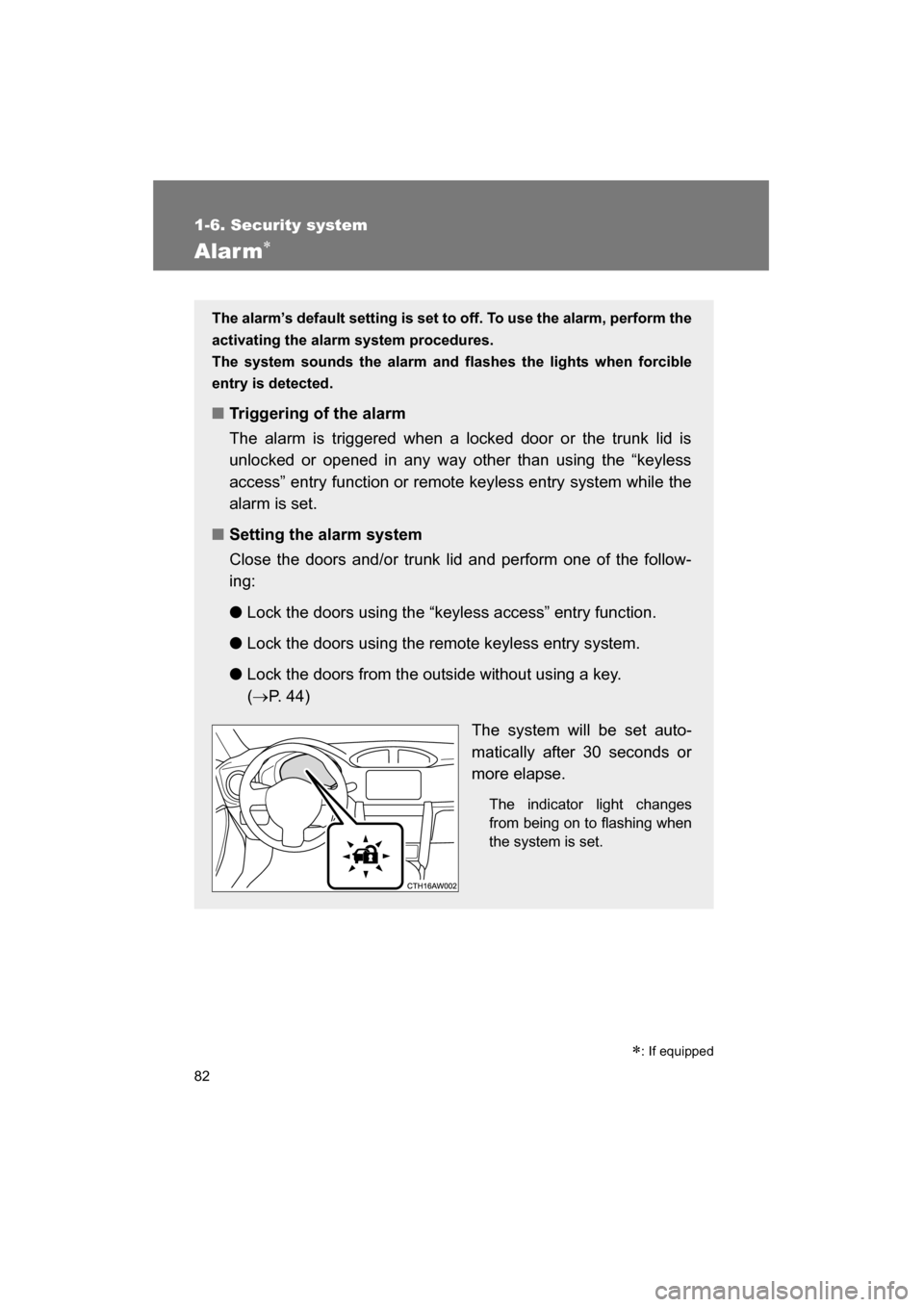

Alarm∗
The alarm’s default setting is set to off. To use the alarm, perform the
activating the alarm system procedures.
The system sounds the alarm and flashes the lights when forcible
entry is detected.
■Triggering of the alarm
The alarm is triggered when a locked door or the trunk lid is
unlocked or opened in any way other than using the “keyless
access” entry function or remote keyless entry system while the
alarm is set.
■Setting the alarm system
Close the doors and/or trunk lid and perform one of the follow-
ing: ●
Lock the doors using the “keyless access” entry function.
● Lock the doors using the remote keyless entry system.
● Lock the doors from the outside without using a key. (→ P. 44)
The system will be set auto-
matically after 30 seconds or
more elapse.The indicator light changes
from being on to flashing when
the system is set.
∗: If equipped

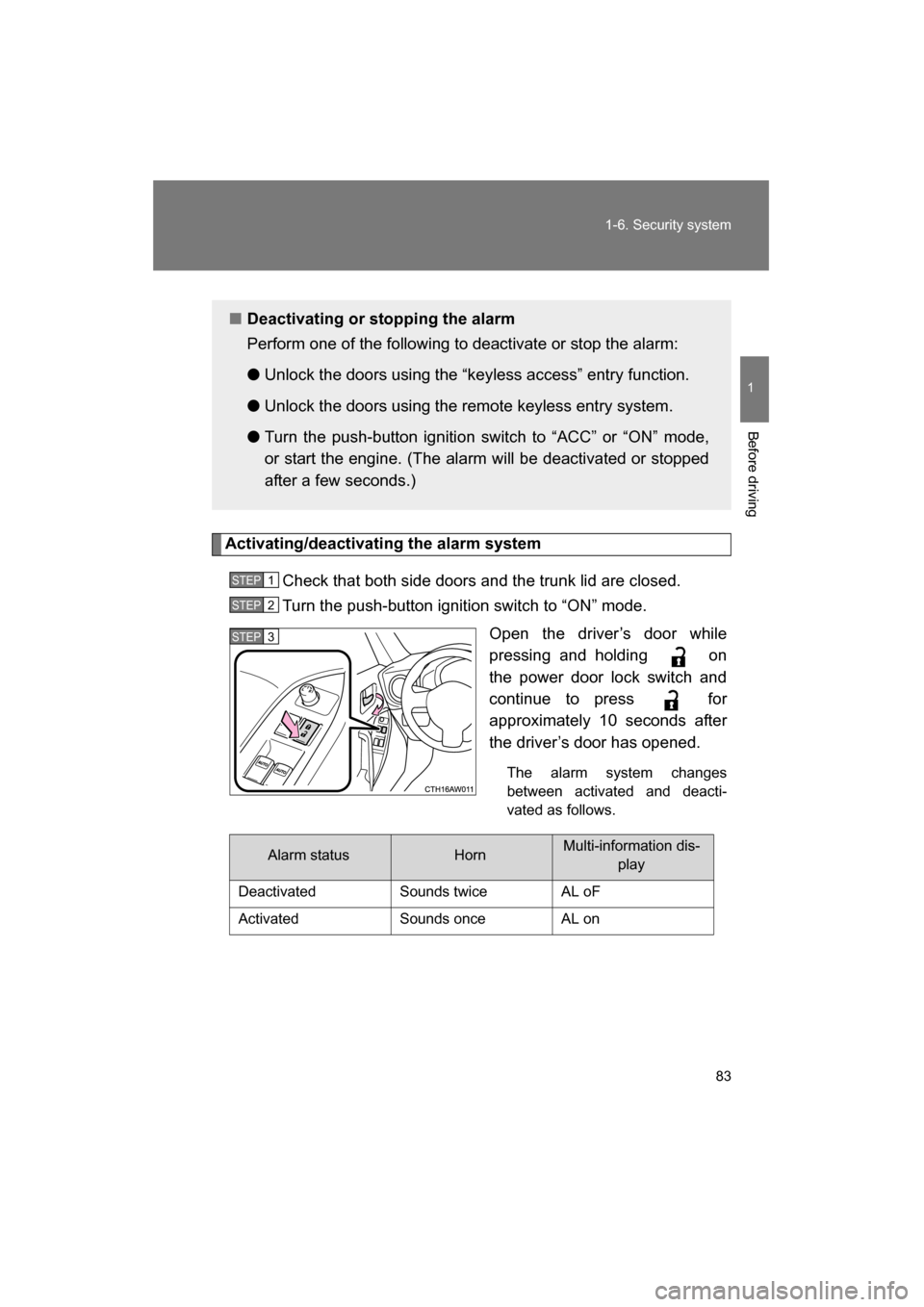

83
1-6. Security system
1
Before driving
Activating/deactivating the alarm systemCheck that both side doors and the trunk lid are closed.
Turn the push-button ignition switch to “ON” mode. Open the driver ’s door while
pressing and holding on
the power door lock switch and
continue to press for
approximately 10 seconds after
the driver’s door has opened.
The alarm system changes
between activated and deacti-
vated as follows.
■Deactivating or stopping the alarm
Perform one of the following to deactivate or stop the alarm: ●Unlock the doors using the “keyless access” entry function.
● Unlock the doors using the remote keyless entry system.
● Turn the push-button ignition switch to “ACC” or “ON” mode,
or start the engine. (The alarm will be deactivated or stopped
after a few seconds.)
STEP 1
STEP 2
STEP 3
Alarm statusHornMulti-information dis-
play
Deactivated Sounds twice AL oF
Activated Sounds once AL on

84
1-6. Security system

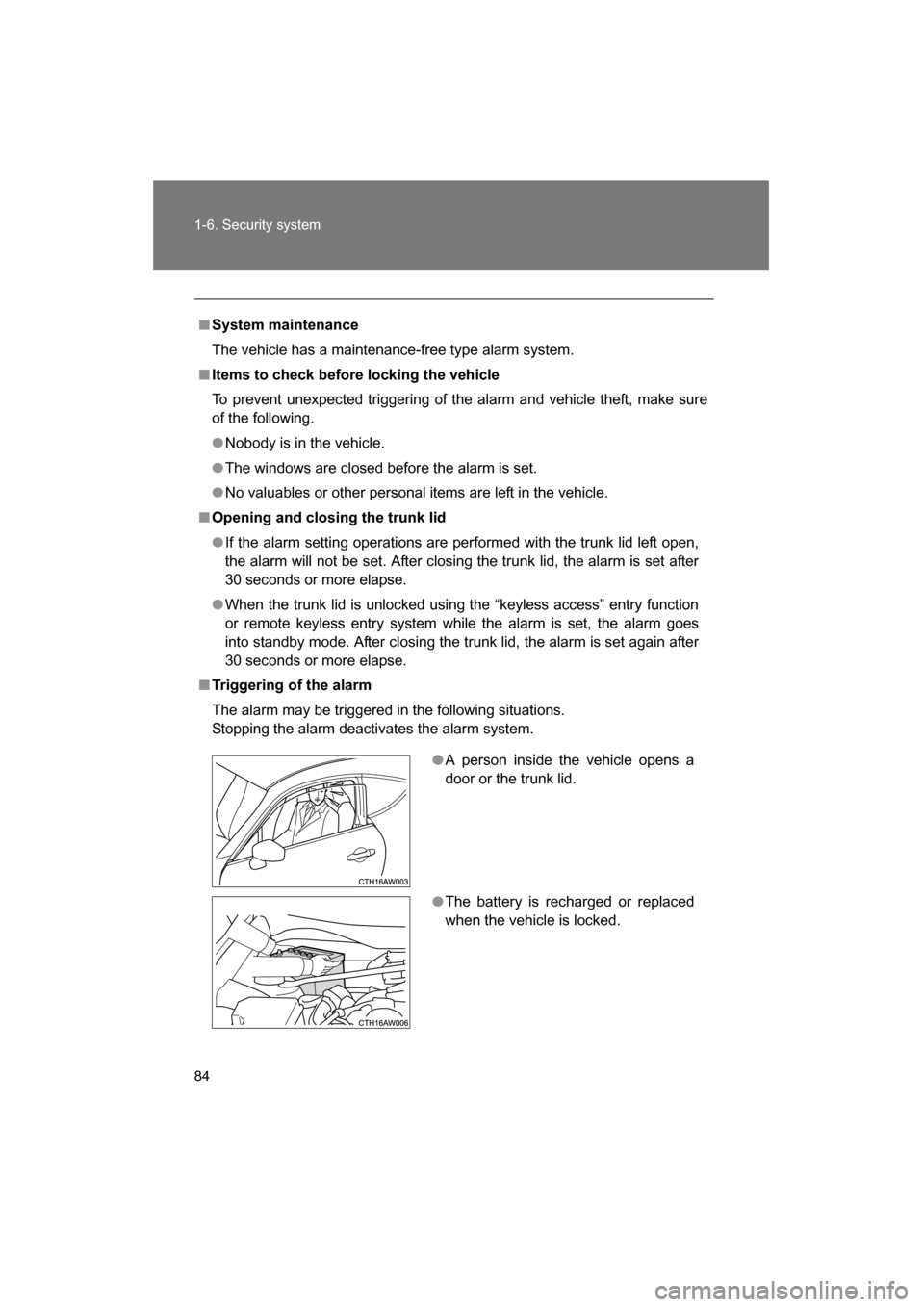

■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
●Nobody is in the vehicle.
●The windows are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Opening and closing the trunk lid
●If the alarm setting operations are pe rformed with the trunk lid left open,
the alarm will not be set. After closing the trunk lid, the alarm is set after
30 seconds or more elapse.
●When the trunk lid is unlocked using the “keyless access” entry function
or remote keyless entry system while the alarm is set, the alarm goes
into standby mode. After closing the trunk lid, the alarm is set again after
30 seconds or more elapse.
■Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
●A person inside the vehicle opens a
door or the trunk lid.
●The battery is recharged or replaced
when the vehicle is locked.

85
1-6. Security system
1
Before driving

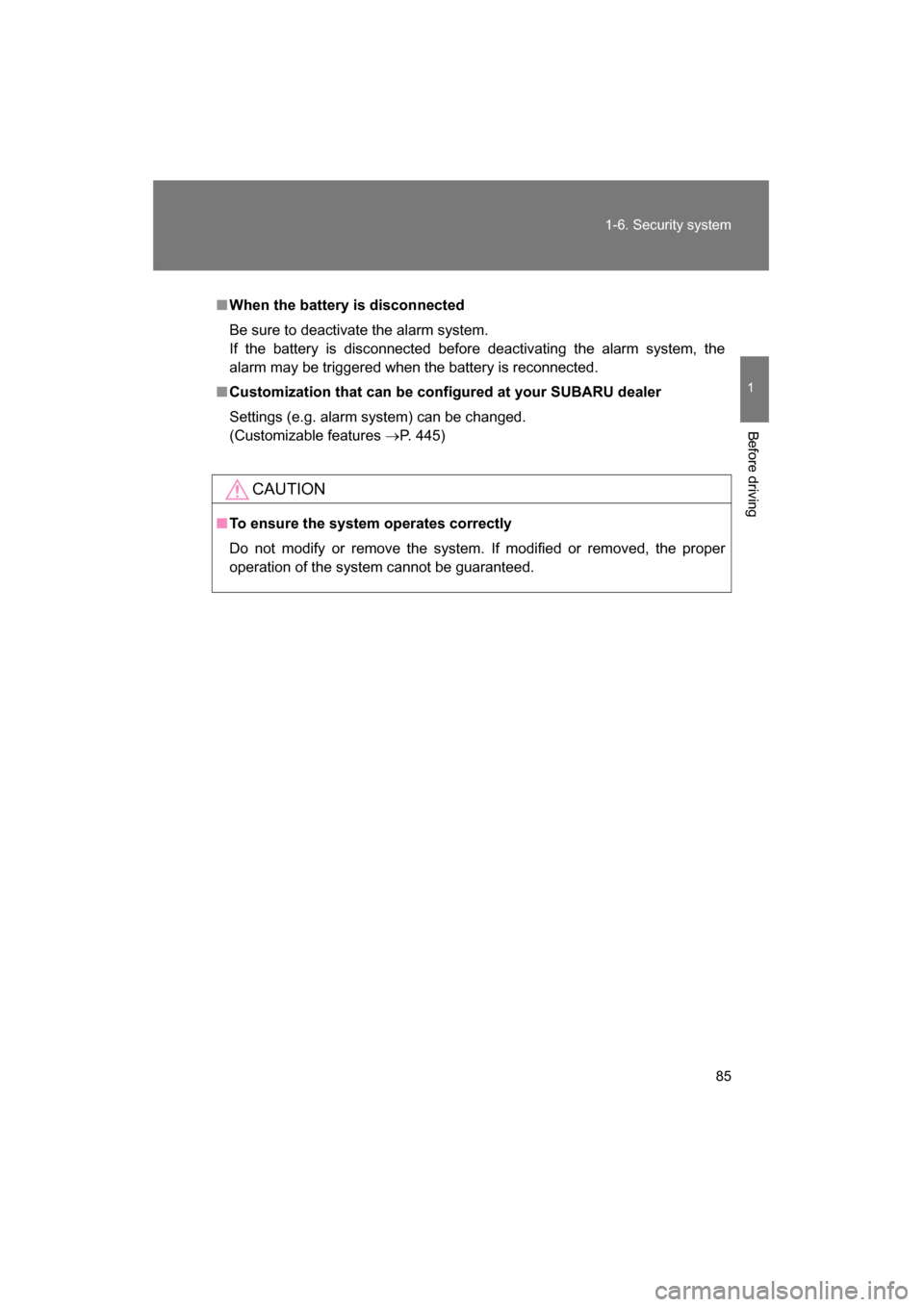

■When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the
alarm may be triggered when the battery is reconnected.
■Customization that can be configured at your SUBARU dealer
Settings (e.g. alarm system) can be changed.
(Customizable features →P. 445)
CAUTION
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

86
1-7. Safety information

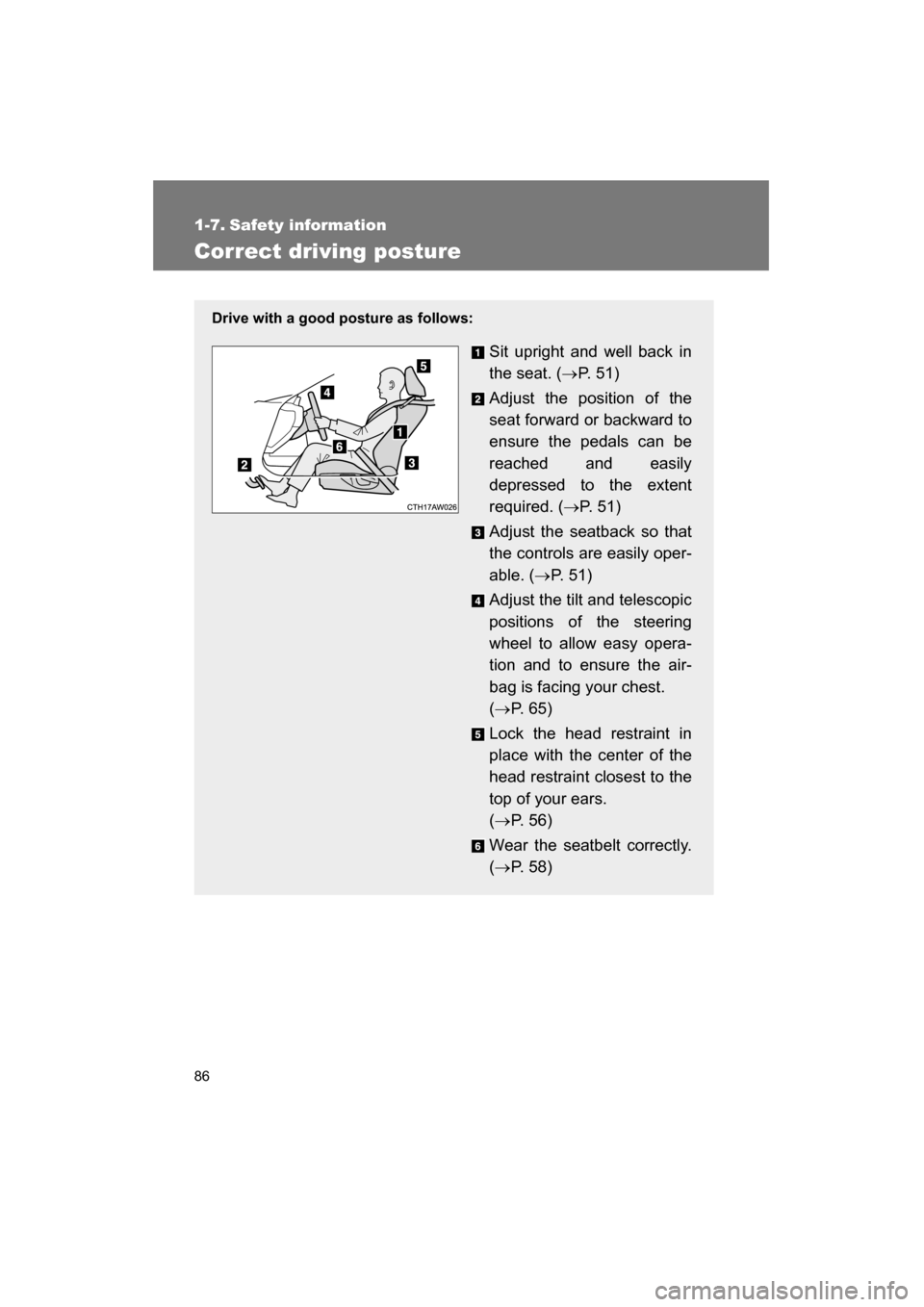

Correct driving posture
Drive with a good posture as follows:Sit upright and well back in
the seat. (→P. 5 1 )
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( →P. 51)
Adjust the seatback so that
the controls are easily oper-
able. ( →P. 5 1 )
Adjust the tilt and telescopic
positions of the steering
wheel to allow easy opera-
tion and to ensure the air-
bag is facing your chest. ( → P. 6 5 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( → P. 5 6 )
Wear the seatbelt correctly.( → P. 5 8 )

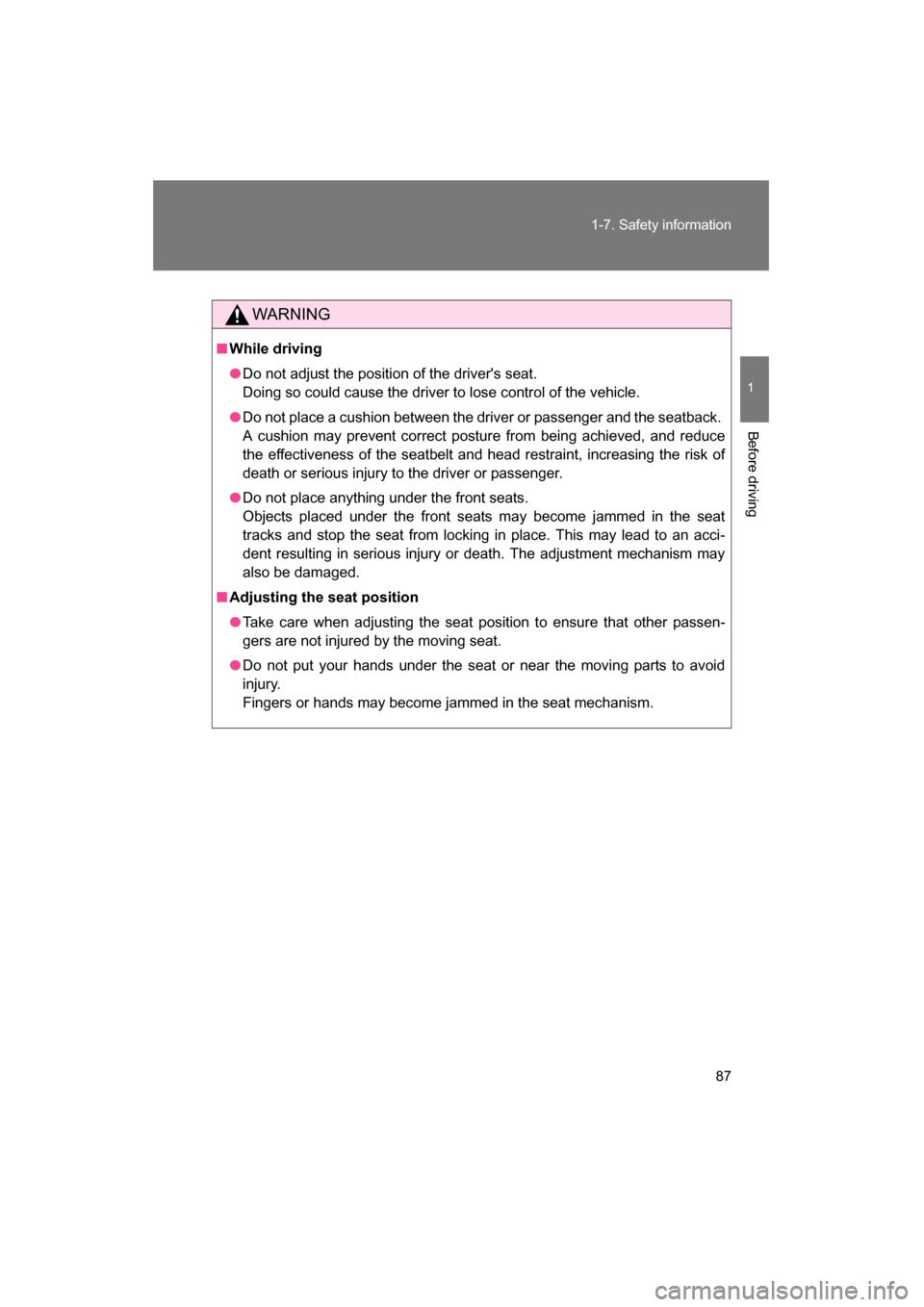

87
1-7. Safety information
1
Before driving
WARNING
■While driving
●Do not adjust the position of the driver's seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seatbelt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci-
dent resulting in serious injury or death. The adjustment mechanism may
also be damaged.
■Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.

88
1-7. Safety information

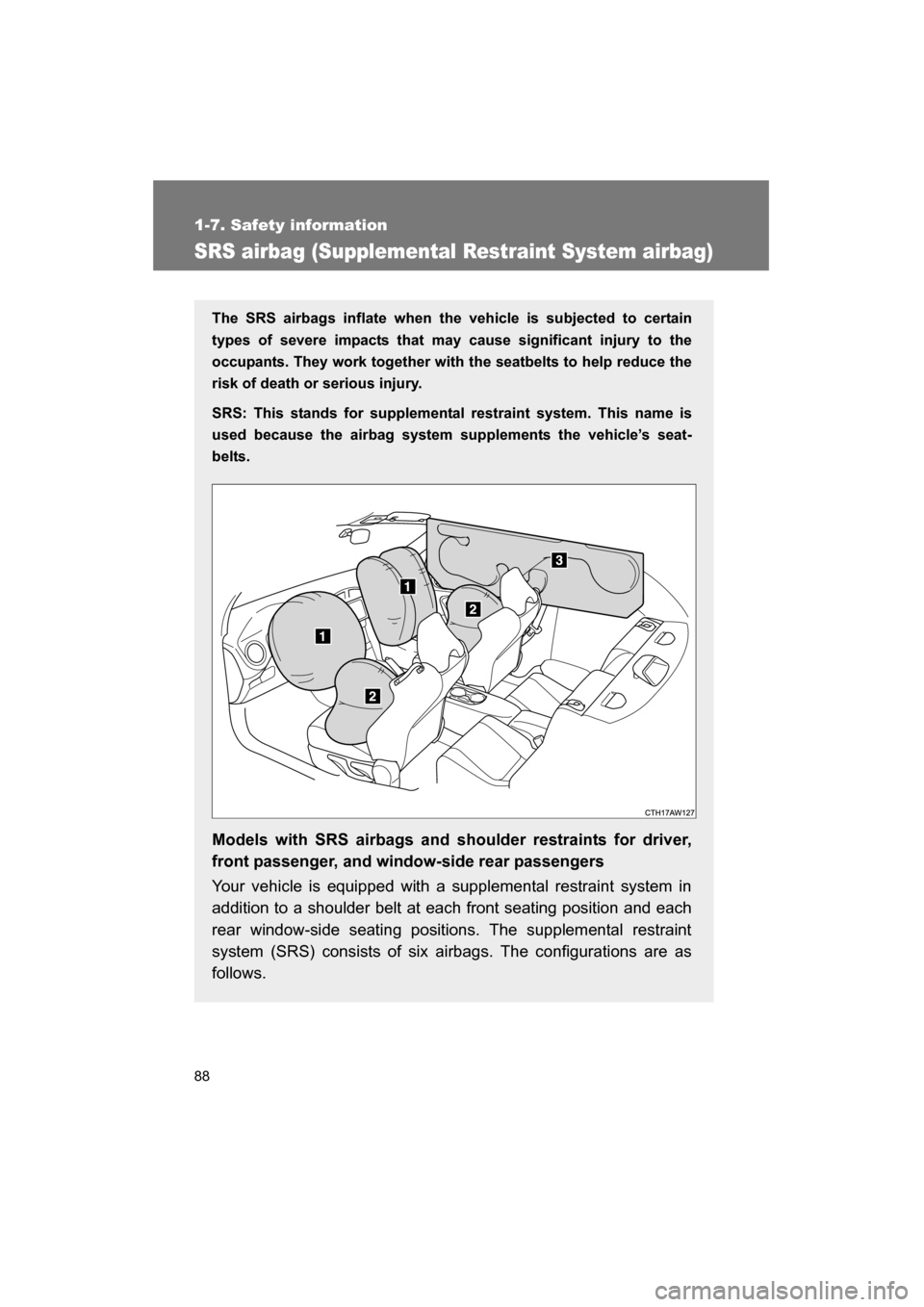

SRS airbag (Supplemental Restraint System airbag)
The SRS airbags inflate when the vehicle is subjected to certain
types of severe impacts that may cause significant injury to the
occupants. They work together with the seatbelts to help reduce the
risk of death or serious injury.
SRS: This stands for supplemental restraint system. This name is
used because the airbag system supplements the vehicle’s seat-
belts.
Models with SRS airbags and shoulder restraints for driver,
front passenger, and window-side rear passengers
Your vehicle is equipped with a supplemental restraint system in
addition to a shoulder belt at each front seating position and each
rear window-side seating positions. The supplemental restraint
system (SRS) consists of six airbags. The configurations are as
follows.

89
1-7. Safety information
1
Before driving

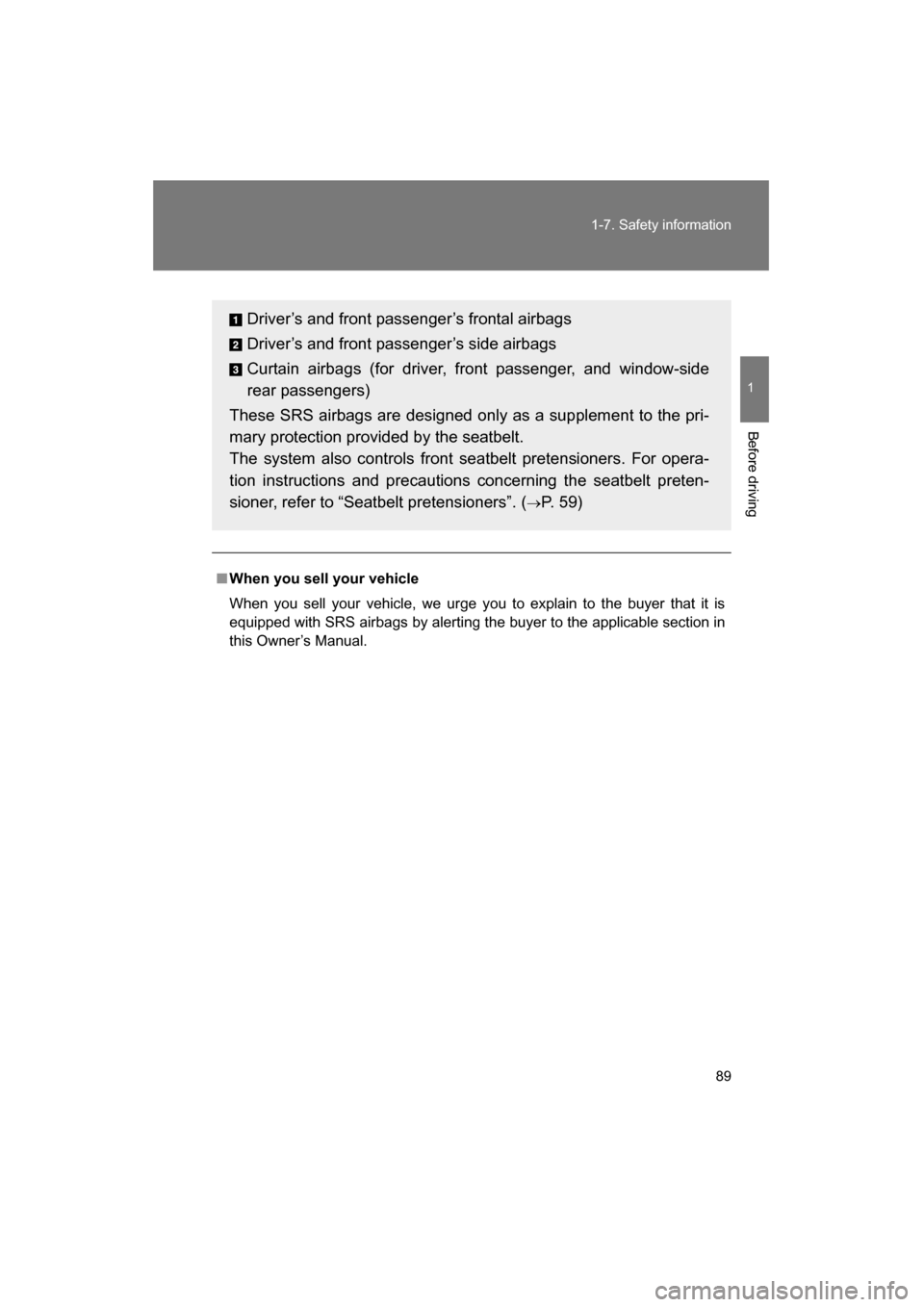

■When you sell your vehicle
When you sell your vehicle, we urge you to explain to the buyer that it is
equipped with SRS airbags by alerting the buyer to the applicable section in
this Owner’s Manual. Driver’s and front passenger’s frontal airbags
Driver’s and front passenger’s side airbags
Curtain airbags (for driver, front passenger, and window-side
rear passengers)
These SRS airbags are designed only as a supplement to the pri-
mary protection provided by the seatbelt.
The system also controls front seatbelt pretensioners. For opera-
tion instructions and precautions concerning the seatbelt preten-
sioner, refer to “Seatbelt pretensioners”. ( →P. 5 9 )

90
1-7. Safety information

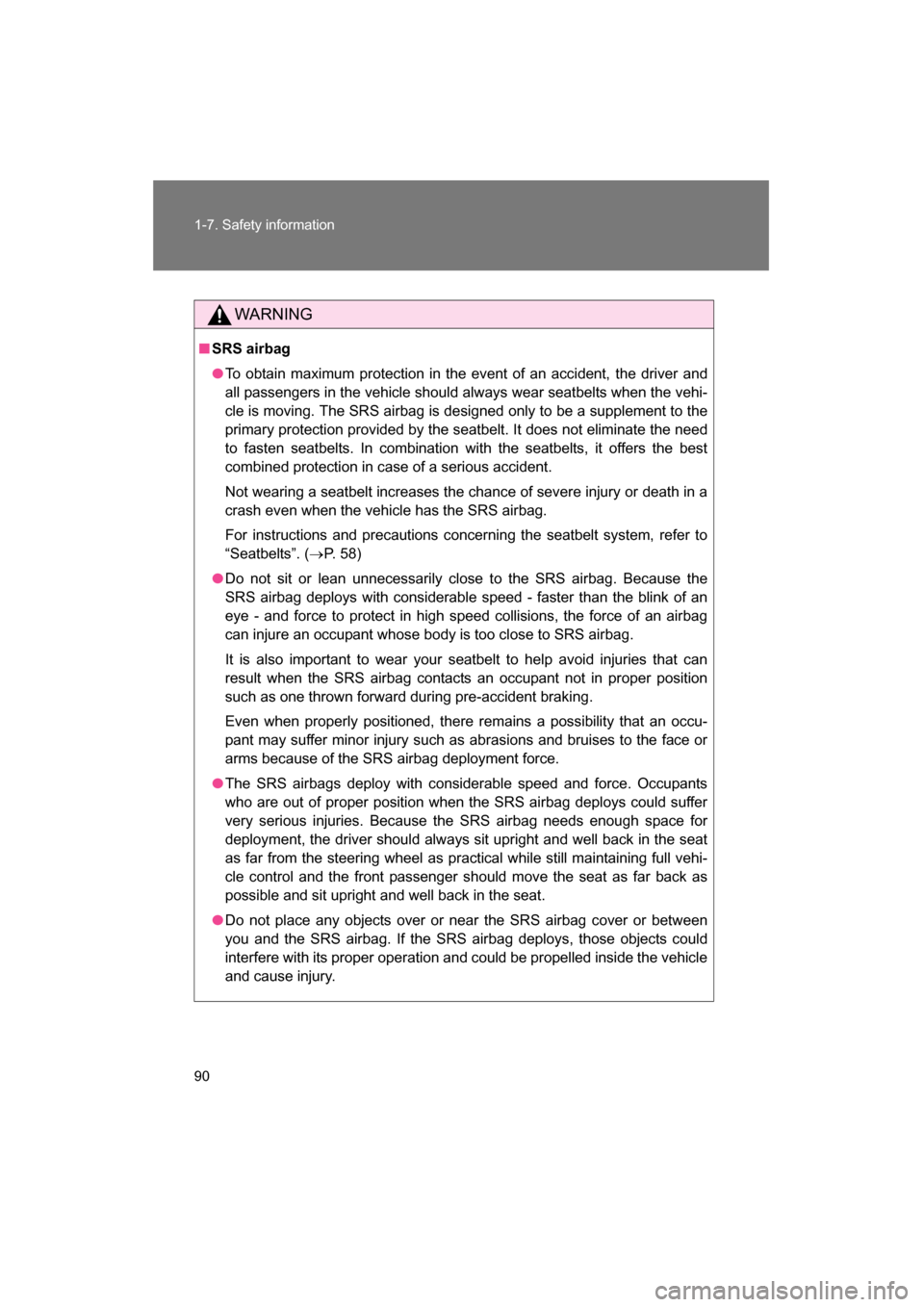

WARNING
■SRS airbag
●To obtain maximum protection in the event of an accident, the driver and
all passengers in the vehicle should always wear seatbelts when the vehi-
cle is moving. The SRS airbag is designed only to be a supplement to the
primary protection provided by the seatbelt. It does not eliminate the need
to fasten seatbelts. In combination with the seatbelts, it offers the best
combined protection in case of a serious accident.
Not wearing a seatbelt increases the chance of severe injury or death in a
crash even when the vehicle has the SRS airbag.
For instructions and precautions concerning the seatbelt system, refer to
“Seatbelts”. (→P. 58)
●Do not sit or lean unnecessarily close to the SRS airbag. Because the
SRS airbag deploys with considerable speed - faster than the blink of an
eye - and force to protect in high speed collisions, the force of an airbag
can injure an occupant whose body is too close to SRS airbag.
It is also important to wear your seatbelt to help avoid injuries that can
result when the SRS airbag contacts an occupant not in proper position
such as one thrown forward during pre-accident braking.
Even when properly positioned, there remains a possibility that an occu-
pant may suffer minor injury such as abrasions and bruises to the face or
arms because of the SRS airbag deployment force.
●The SRS airbags deploy with considerable speed and force. Occupants
who are out of proper position when the SRS airbag deploys could suffer
very serious injuries. Because the SRS airbag needs enough space for
deployment, the driver should always sit upright and well back in the seat
as far from the steering wheel as practical while still maintaining full vehi-
cle control and the front passenger should move the seat as far back as
possible and sit upright and well back in the seat.
●Do not place any objects over or near the SRS airbag cover or between
you and the SRS airbag. If the SRS airbag deploys, those objects could
interfere with its proper operation and could be propelled inside the vehicle
and cause injury.
