SUBARU BRZ 2020 Owners Manual

491
6-1. Specifications
6
Vehicle specifications
BRZ_U

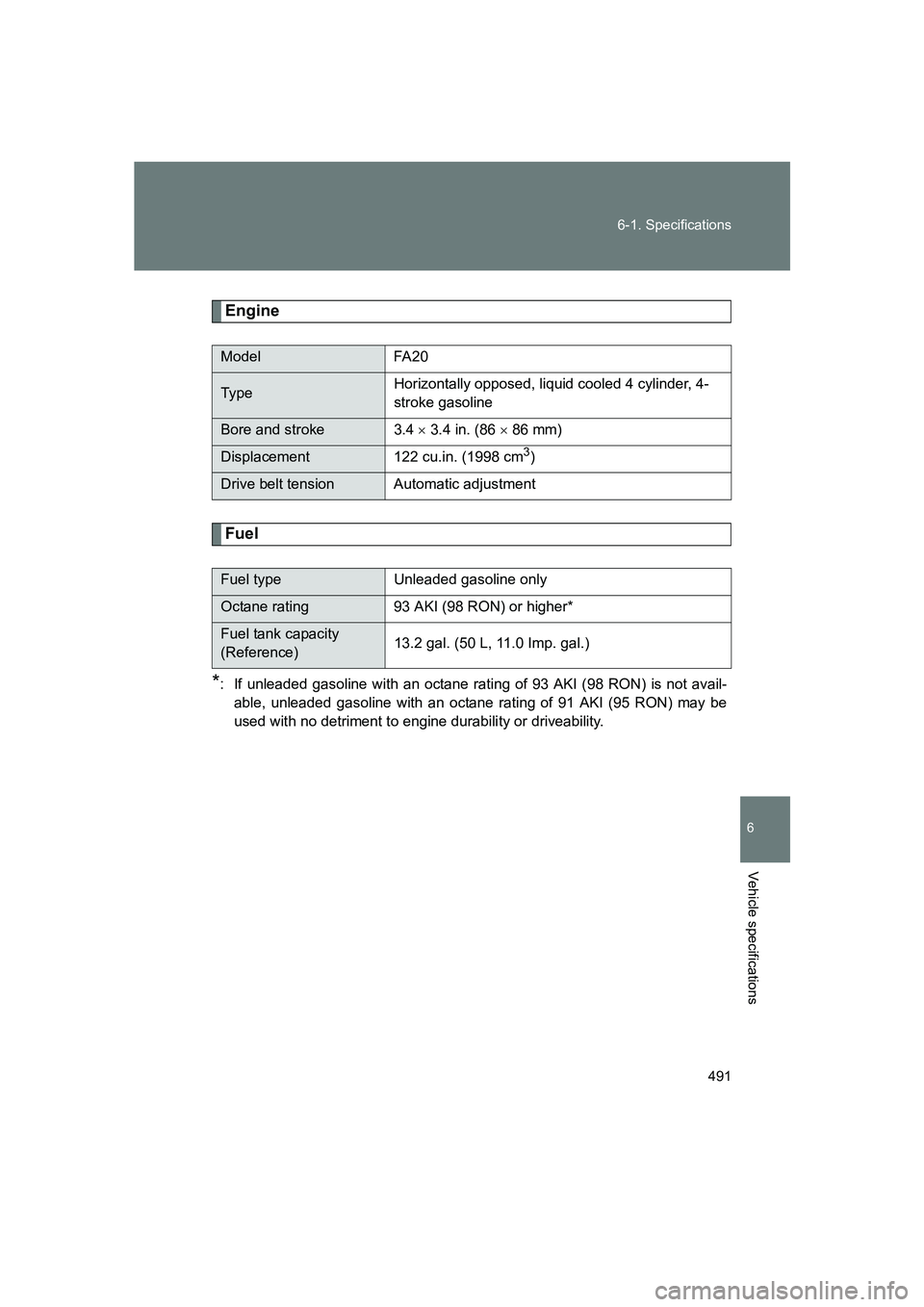

Engine
Fuel
*: If unleaded gasoline with an octane rating of 93 AKI (98 RON) is not avail-
able, unleaded gasoline with an octane rating of 91 AKI (95 RON) may be
used with no detriment to engine durability or driveability.
Model FA20
Ty p e Horizontally opposed, liquid cooled 4 cylinder, 4-
stroke gasoline
Bore and stroke 3.4
× 3.4 in. (86 × 86 mm)
Displacement 122 cu.in. (1998 cm3)
Drive belt tension Automatic adjustment
Fuel type Unleaded gasoline only
Octane rating 93 AKI (98 RON) or higher*
Fuel tank capacity
(Reference) 13.2 gal. (50 L, 11.0 Imp. gal.)

492 6-1. Specifications
BRZ_U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
■ Engine oil selection
Always use SUBARU approved engine oil. For details, we recom-
mend that you contact your SUBARU dealer.
If approved engine oil is unavailable, another motor oil of matching
quality can also be used.
Oil grade:
API grade
SN (Resource Conserving) or SN PLUS (Resource Conserving)
ILSAC multigrade engine oil
GF-5
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill 
reference*)
• Without filter
• With filter 5.5 qt. (5.2 L, 4.6 Imp. qt.)
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Outside temperature

493
6-1. Specifications
6
Vehicle specifications
BRZ_U

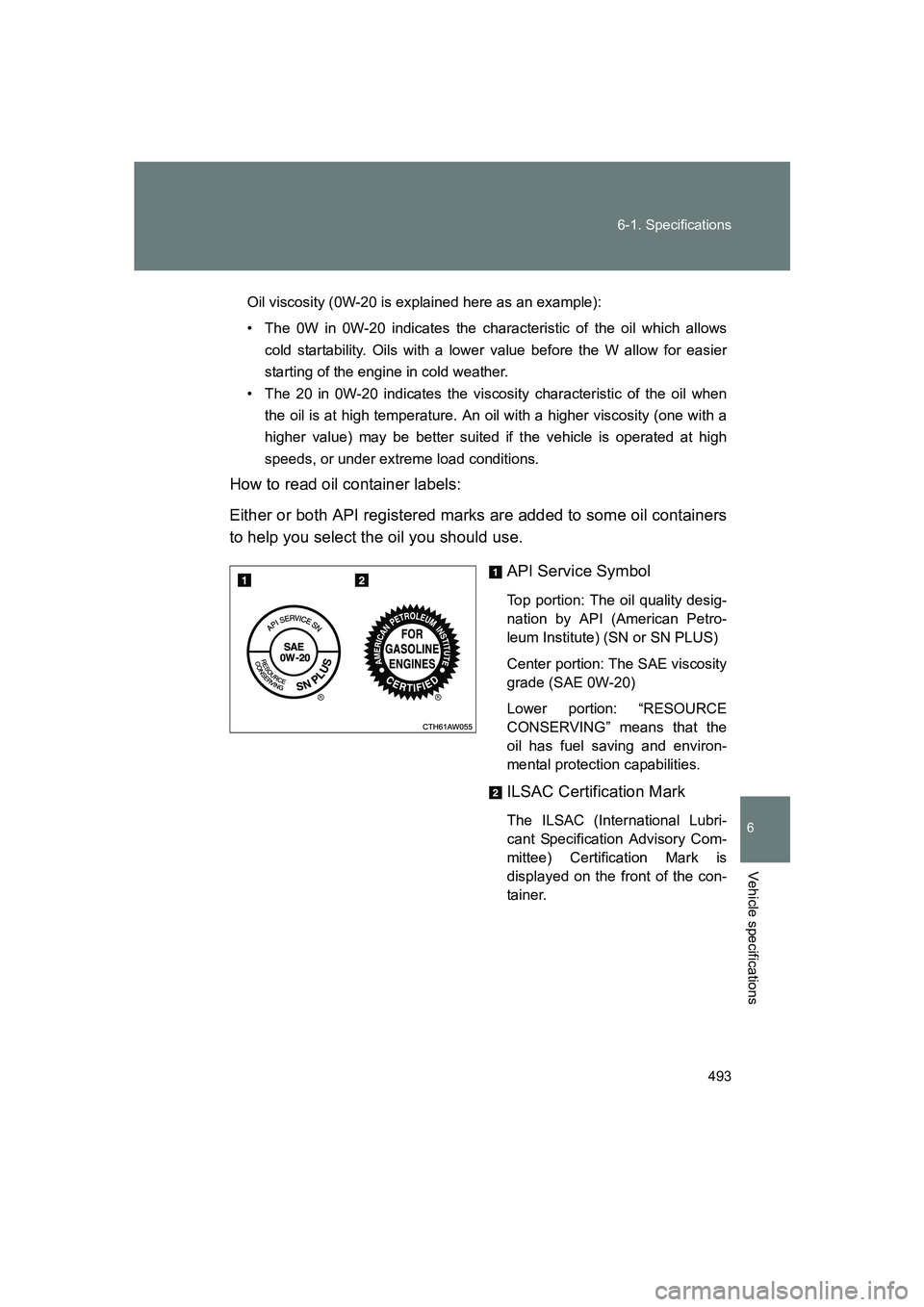

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SN or SN PLUS)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “RESOURCE
CONSERVING” means that the
oil has fuel saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Specification Advisory Com-
mittee) Certification Mark is
displayed on the front of the con-
tainer.

494 6-1. Specifications
BRZ_U

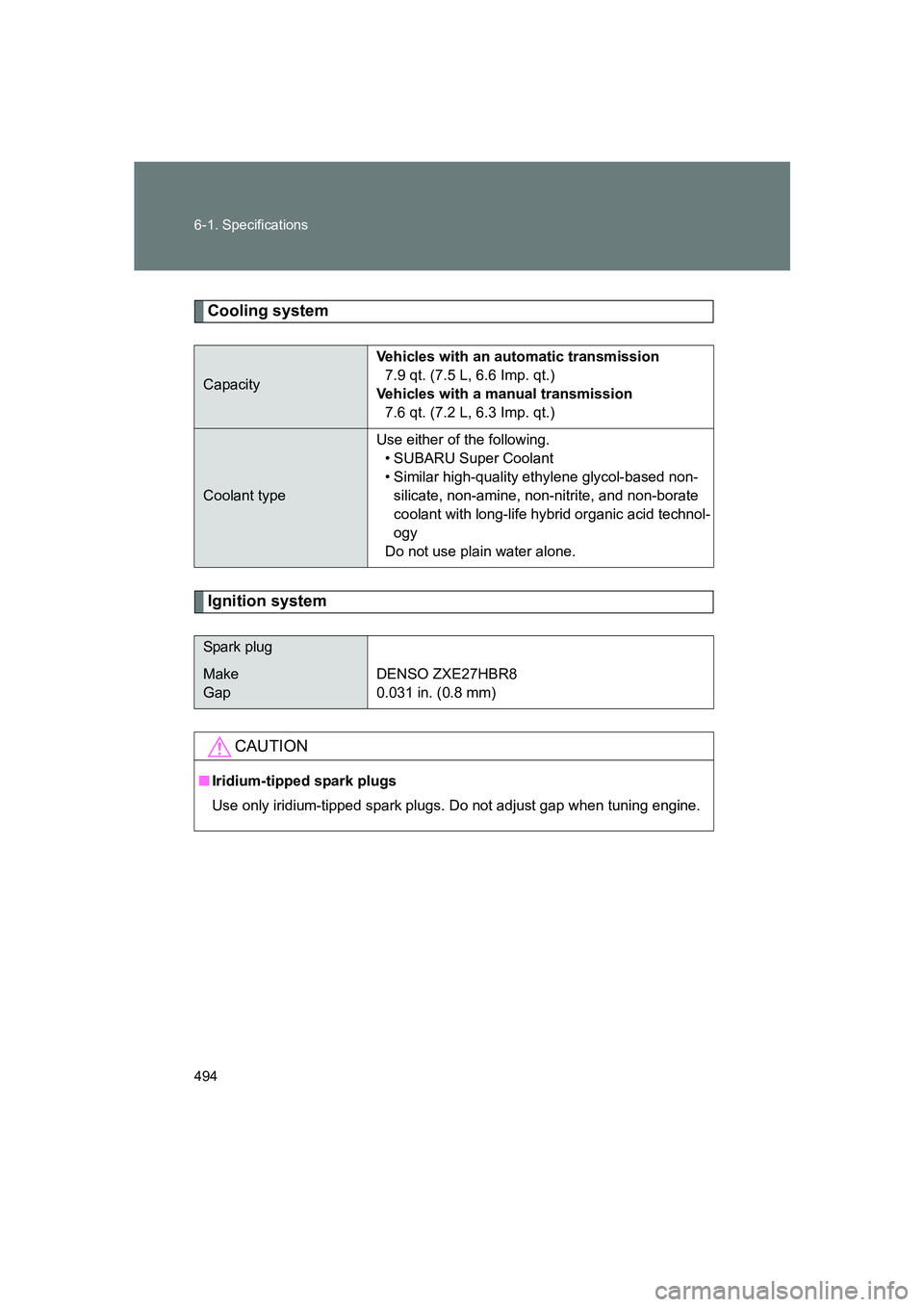

Cooling system
Ignition system
CapacityVehicles with an automatic transmission
7.9 qt. (7.5 L, 6.6 Imp. qt.)
Vehicles with a manual transmission 7.6 qt. (7.2 L, 6.3 Imp. qt.)
Coolant type Use either of the following.
• SUBARU Super Coolant
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy
Do not use plain water alone.
Spark plug
Make
Gap DENSO ZXE27HBR8
0.031 in. (0.8 mm)
CAUTION
■
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

495
6-1. Specifications
6
Vehicle specifications
BRZ_U

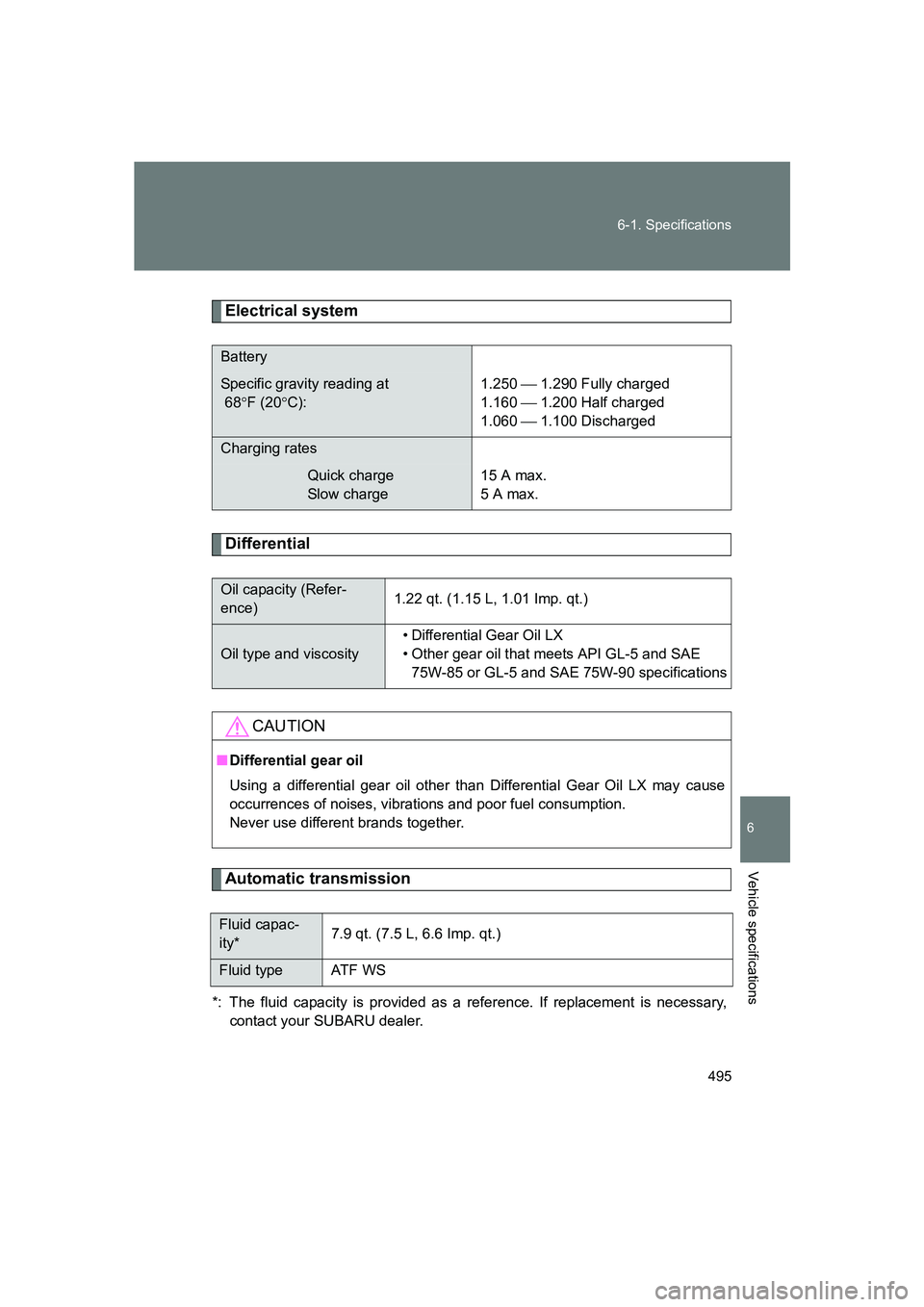

Electrical system
Differential
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary,
contact your SUBARU dealer.
Battery
Specific gravity reading at
68 °F (20 °C): 1.250
 1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge 15 A max.
5 A max.
Oil capacity (Refer-
ence)
1.22 qt. (1.15 L, 1.01 Imp. qt.)
Oil type and viscosity • Differential Gear Oil LX
• Other gear oil that meets API GL-5 and SAE
75W-85 or GL-5 and SAE 75W-90 specifications
CAUTION
■ Differential gear oil
Using a differential gear oil other than Differential Gear Oil LX may cause
occurrences of noises, vibrations and poor fuel consumption.
Never use different brands together.
Fluid capac-
ity* 7.9 qt. (7.5 L, 6.6 Imp. qt.)
Fluid type ATF WS

496 6-1. Specifications
BRZ_U

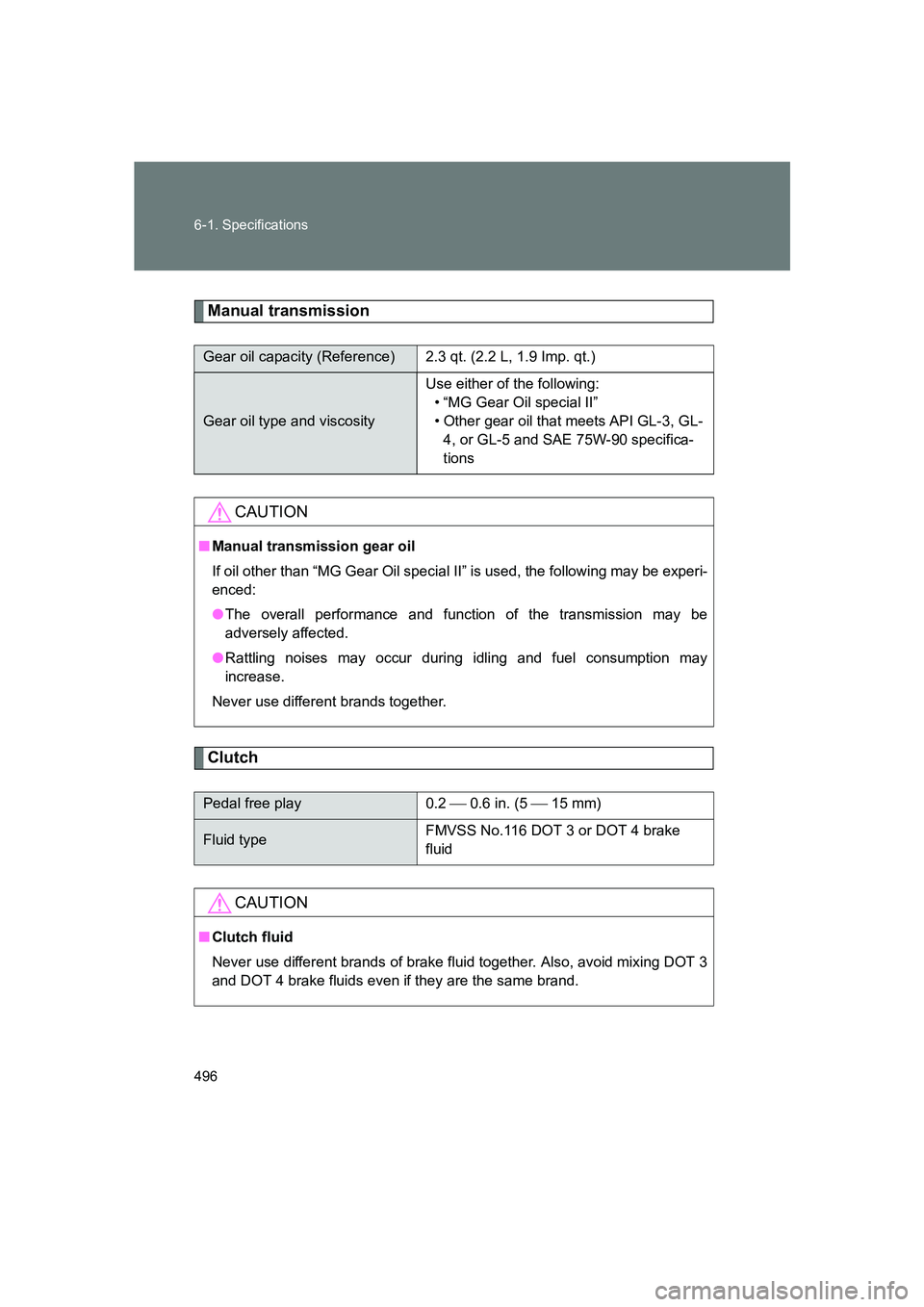

Manual transmission
Clutch
Gear oil capacity (Reference) 2.3 qt. (2.2 L, 1.9 Imp. qt.)
Gear oil type and viscosityUse either of the following:
• “MG Gear Oil special II”
• Other gear oil that meets API GL-3, GL-4, or GL-5 and SAE 75W-90 specifica-
tions
CAUTION
■ Manual transmission gear oil
If oil other than “MG Gear Oil special II” is used, the following may be experi-
enced:
●The overall performance and function of the transmission may be
adversely affected.
● Rattling noises may occur during idling and fuel consumption may
increase.
Never use different brands together.
Pedal free play 0.2  0.6 in. (5  15 mm)
Fluid type FMVSS No.116 DOT 3 or DOT 4 brake
fluid
CAUTION
■
Clutch fluid
Never use different brands of brake fluid together. Also, avoid mixing DOT 3
and DOT 4 brake fluids even if they are the same brand.

497
6-1. Specifications
6
Vehicle specifications
BRZ_U

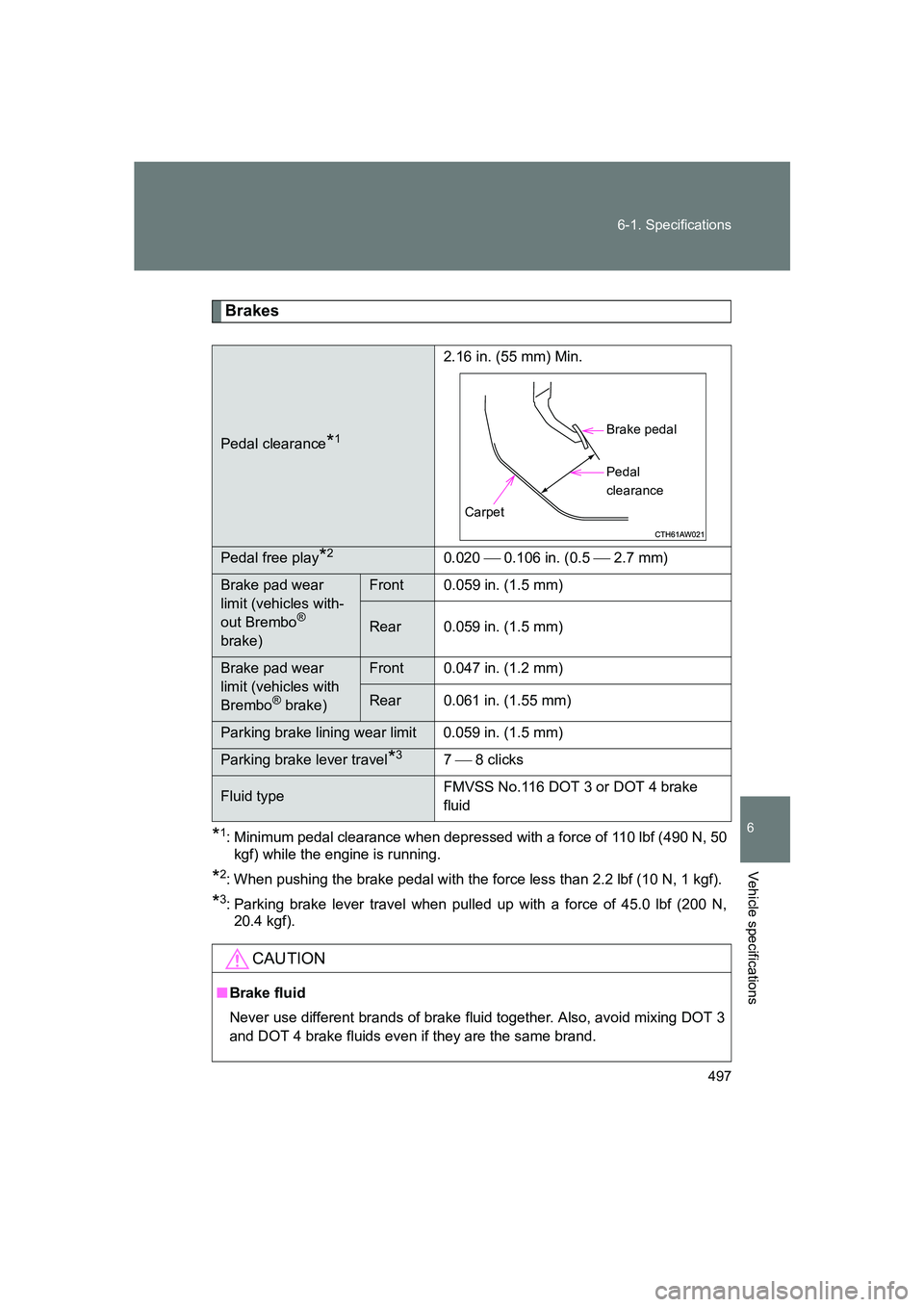

Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: When pushing the brake pedal with the force less than 2.2 lbf (10 N, 1 kgf).
*3: Parking brake lever travel when pulled up with a force of 45.0 lbf (200 N,20.4 kgf).
Pedal clearance*1
2.16 in. (55 mm) Min.
Pedal free play*20.020  0.106 in. (0.5  2.7 mm)
Brake pad wear
limit (vehicles with-
out Brembo
®
brake)
Front 0.059 in. (1.5 mm)
Rear 0.059 in. (1.5 mm)
Brake pad wear
limit (vehicles with
Brembo
® brake)
Front 0.047 in. (1.2 mm)
Rear 0.061 in. (1.55 mm)
Parking brake lining wear limit 0.059 in. (1.5 mm)
Parking brake lever travel*37  8 clicks
Fluid type FMVSS No.116 DOT 3 or DOT 4 brake
fluid
CAUTION
■
Brake fluid
Never use different brands of brake fluid together. Also, avoid mixing DOT 3
and DOT 4 brake fluids even if they are the same brand.
Brake pedal
Pedal
clearance
Carpet

498 6-1. Specifications
BRZ_U■

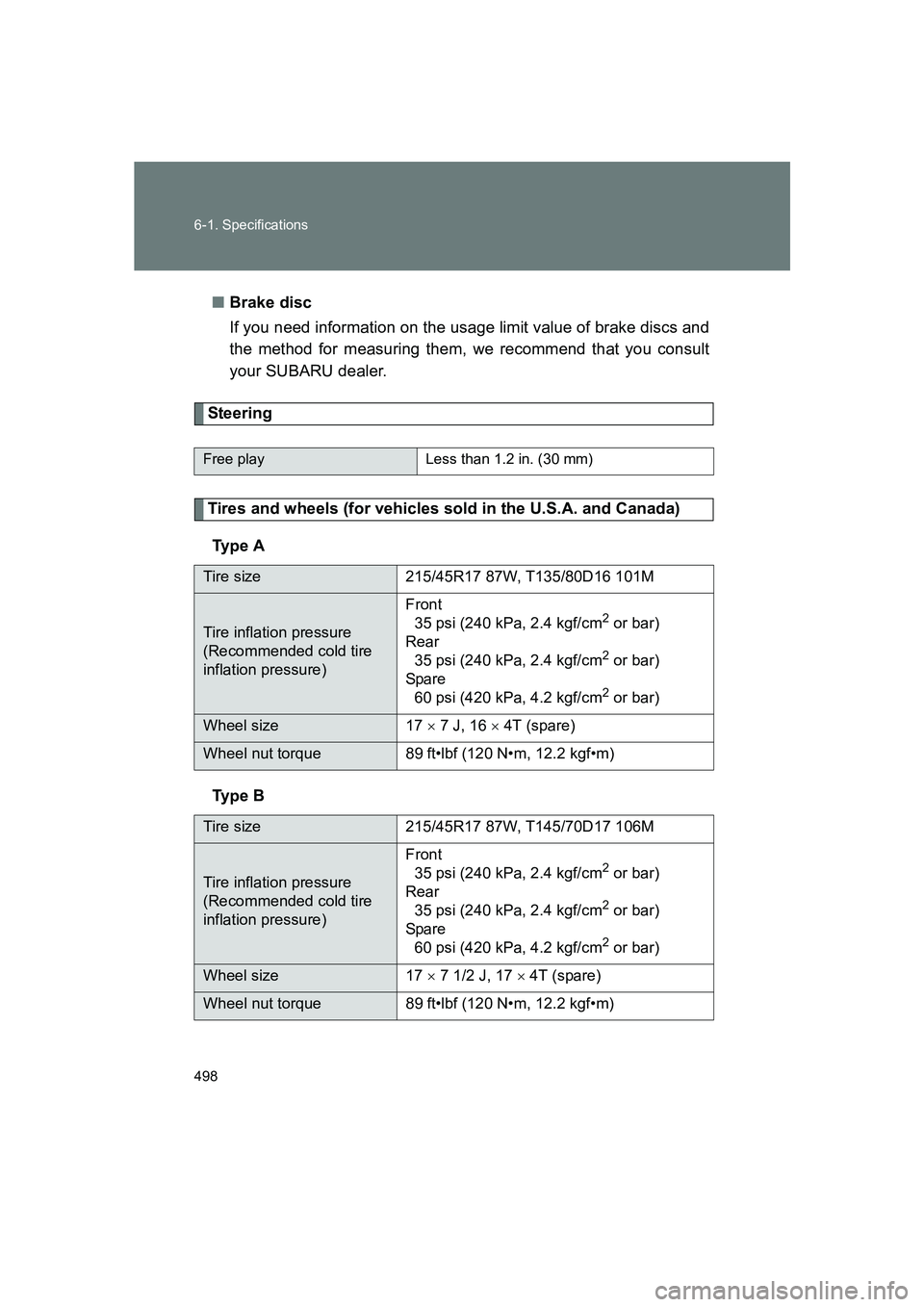

Brake disc
If you need information on the usage limit value of brake discs and
the method for measuring them, we recommend that you consult
your SUBARU dealer.
Steering
Tires and wheels (for vehicles sold in the U.S.A. and Canada)
Ty p e A
Ty p e B
Free play Less than 1.2 in. (30 mm)
Tire size 215/45R17 87W, T135/80D16 101M
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 J, 16 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/45R17 87W, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)Front
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spare 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 17 × 7 1/2 J, 17 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)

499
6-1. Specifications
6
Vehicle specifications
BRZ_U

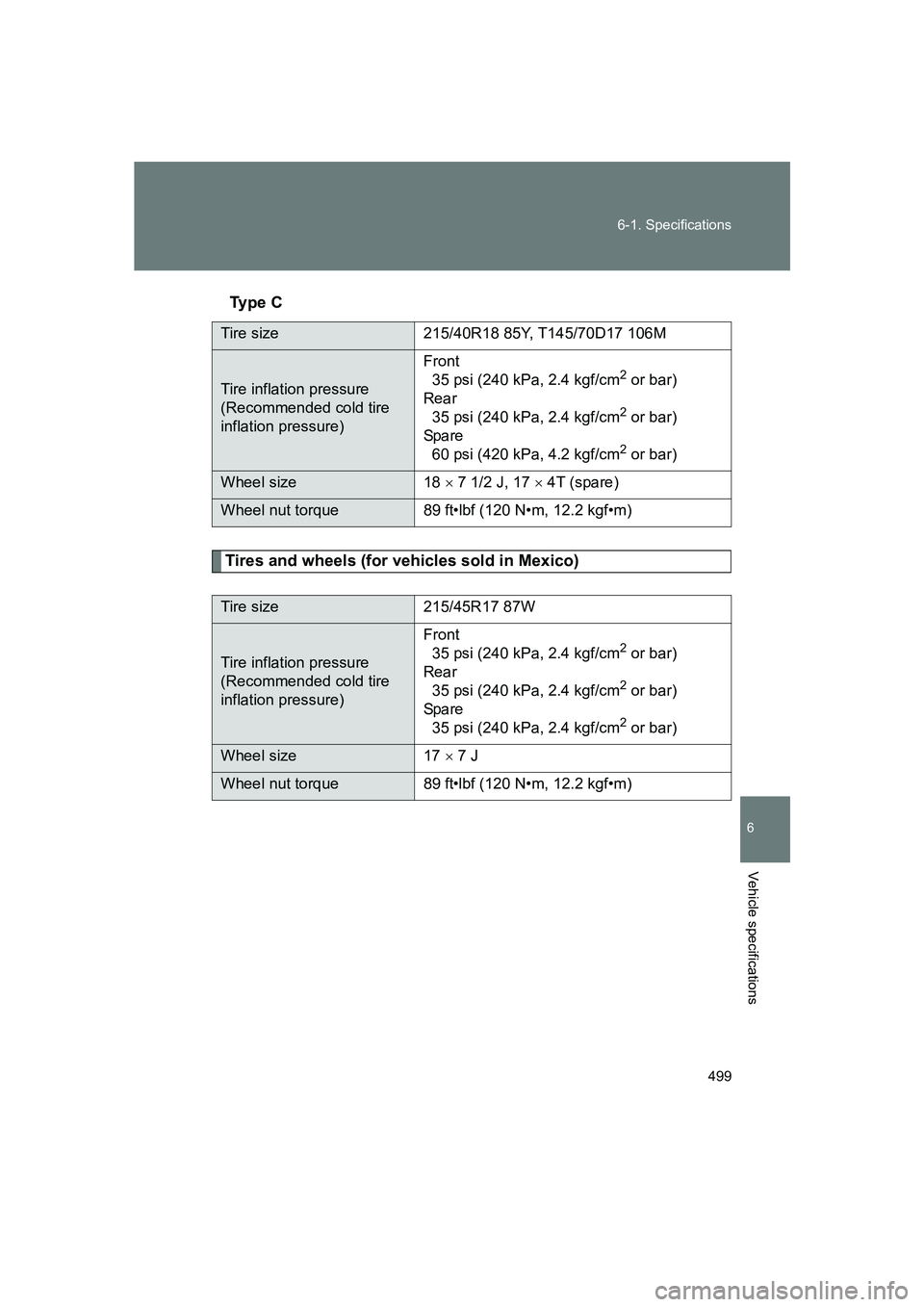

Ty p e C
Tires and wheels (for vehicles sold in Mexico)
Tire size 215/40R18 85Y, T145/70D17 106M
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front
35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spa re 60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size 18 × 7 1/2 J, 17 × 4T (spare)
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)
Tire size 215/45R17 87W
Tire inflation pressure
(Recommended cold tire
inflation pressure) Front
35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Rear 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Spa re 35 psi (240 kPa, 2.4 kgf/cm
2 or bar)
Wheel size 17 × 7 J
Wheel nut torque 89 ft•lbf (120 N•m, 12.2 kgf•m)

500 6-1. Specifications
BRZ_U

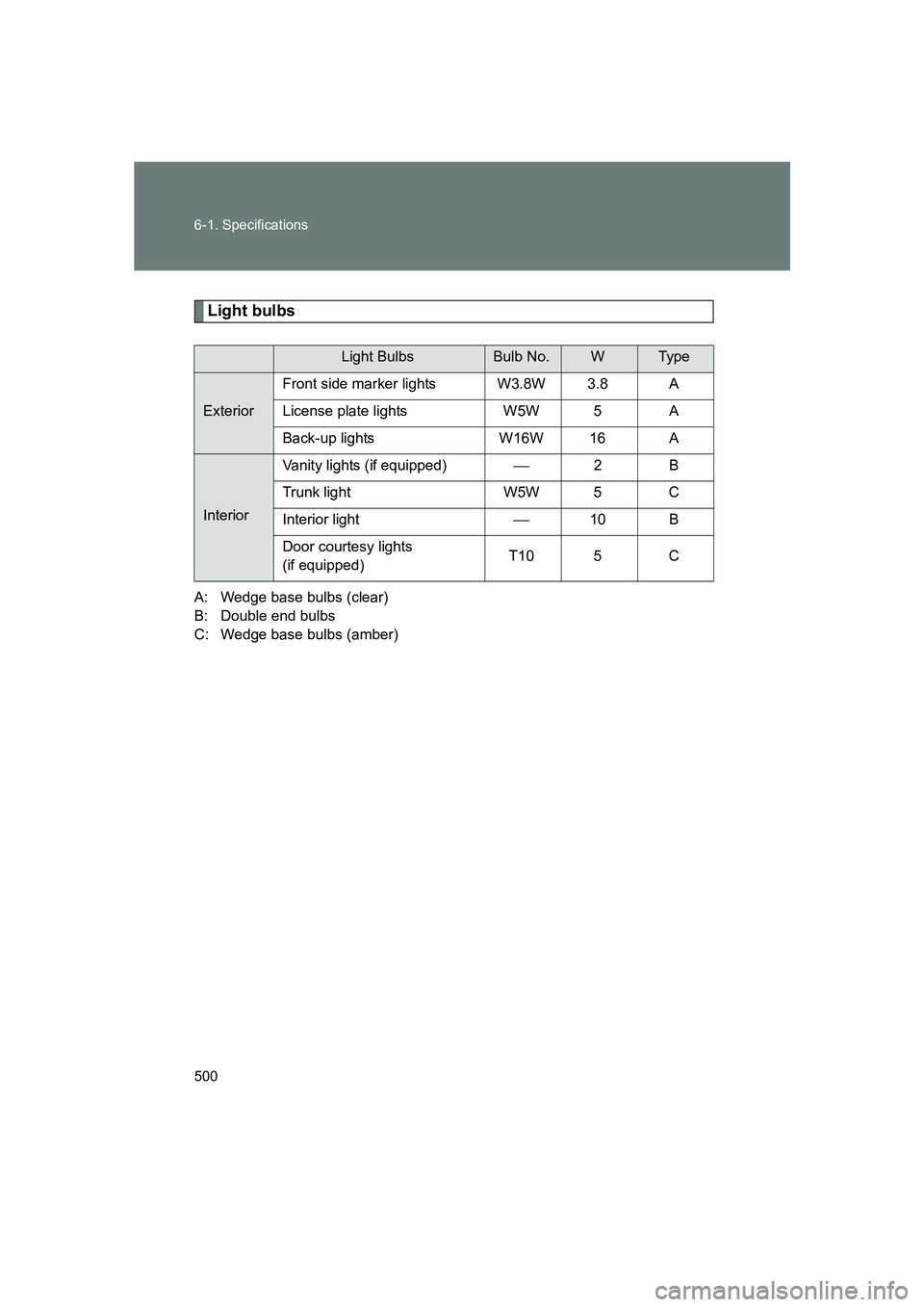

Light bulbs
A: Wedge base bulbs (clear)
B: Double end bulbs
C: Wedge base bulbs (amber)
Light BulbsBulb No.WTy p e
ExteriorFront side marker lights W3.8W 3.8 A
License plate lights W5W 5 A
Back-up lights W16W 16 A
InteriorVanity lights (if equipped)
2B
Trunk light W5W 5 C
Interior light 10 B
Door courtesy lights
(if equipped) T10 5 C
