2-1. Driving proceduresDriving the vehicle............... 156
Push-button ignition switch (vehicles with a keyless
access with push button
start system) ..................... 172
Engine (ignition) switch (vehicles without
a keyless access with
push button start
system) ............................. 182
Automatic transmission ....... 185
Manual Transmission .......... 192
Turn signal lever ................. 195
Parking brake ...................... 197
Horn .................................... 198
2-2. Instrument cluster Gauges and meters ............ 199
Indicators and warning lights ................................. 203
Multi-information display (monochrome display)
........ 210
Multi-information display (color display) ................... 218 2-3. Operating the lights and
windshield wipers
Headlight switch ................. 233
Fog light switch................... 239
Windshield wipers and washer.............................. 240
2-4. Using other driving systems
Cruise control ..................... 243
Rear view camera .............. 248
Driving assist systems ........ 257
Hill start assist .................... 264
2-5. Driving information Cargo and luggage ............. 269
Vehicle load limits............... 273
Winter driving tips ............... 274
Trailer towing ...................... 279
Dinghy towing ..................... 280
2When driving

BRZ_U
10*
1: If equipped
C

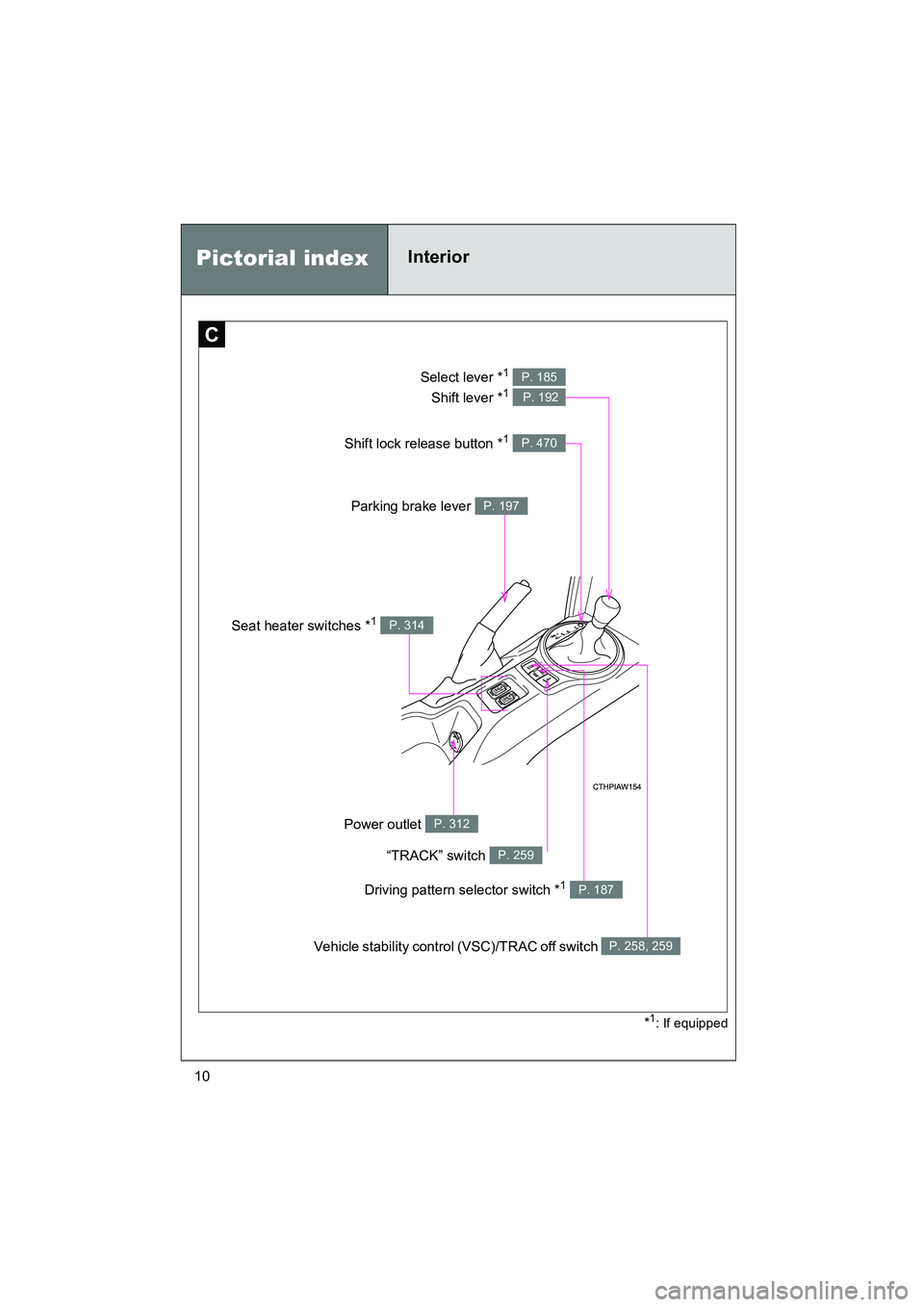

Pictorial indexInterior
Select lever *1
Shift lever *1
P. 185
P. 192
Parking brake lever P. 197
Vehicle stability control (VSC)/TRAC off switch P. 258, 259
Seat heater switches *1 P. 314
“TRACK” switch P. 259
Power outlet P. 312
Shift lock release button *1 P. 470
Driving pattern selector switch *1 P. 187

56

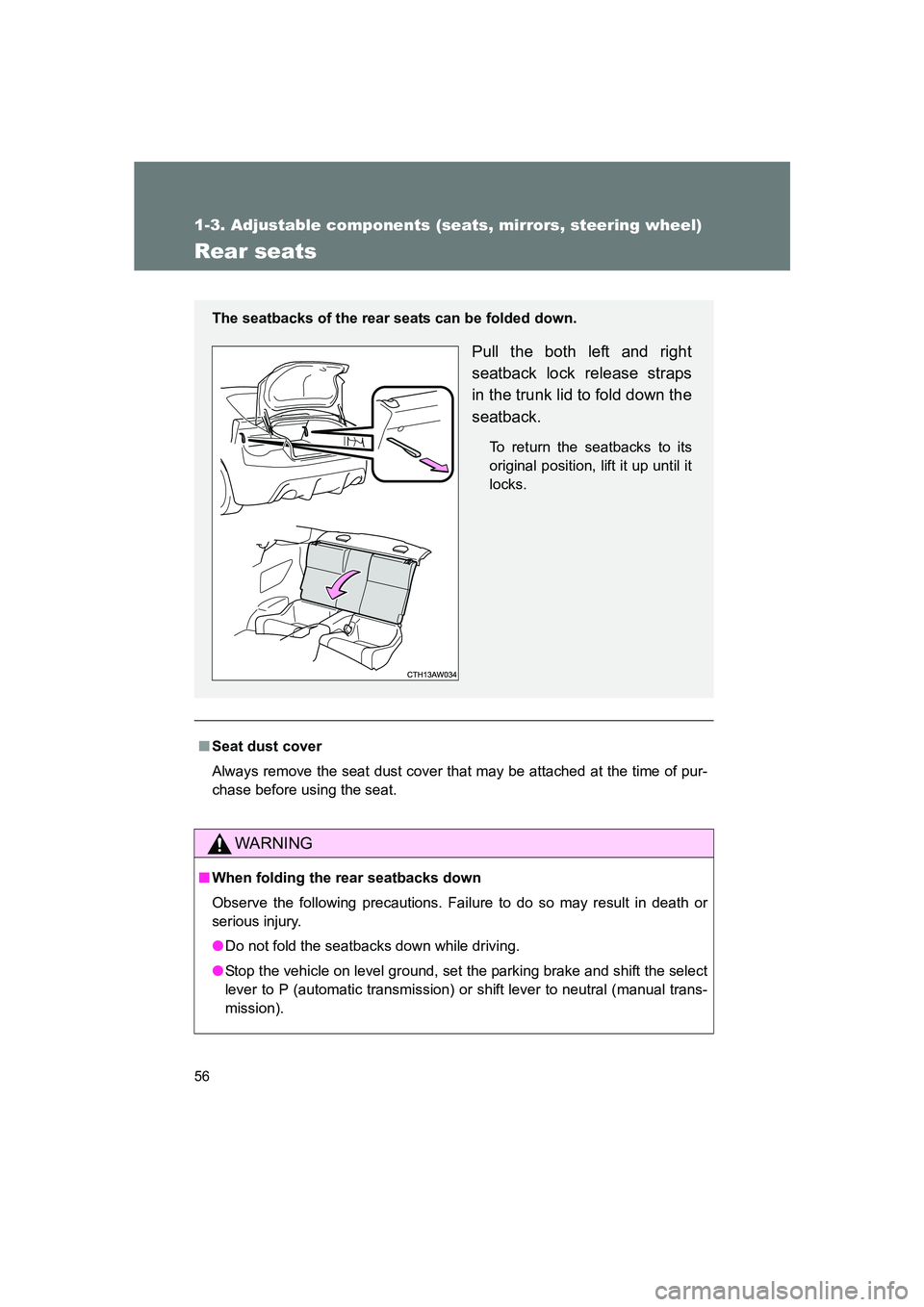

1-3. Adjustable components (seats, mirrors, steering wheel)
BRZ_U
Rear seats
■Seat dust cover
Always remove the seat dust cover that may be attached at the time of pur-
chase before using the seat.
WARNING
■When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the select
lever to P (automatic transmission) or shift lever to neutral (manual trans-
mission).
The seatbacks of the rear seats can be folded down.
Pull the both left and right
seatback lock release straps
in the trunk lid to fold down the
seatback.
To return the seatbacks to its
original position, lift it up until it
locks.

When driving2
155
BRZ_U

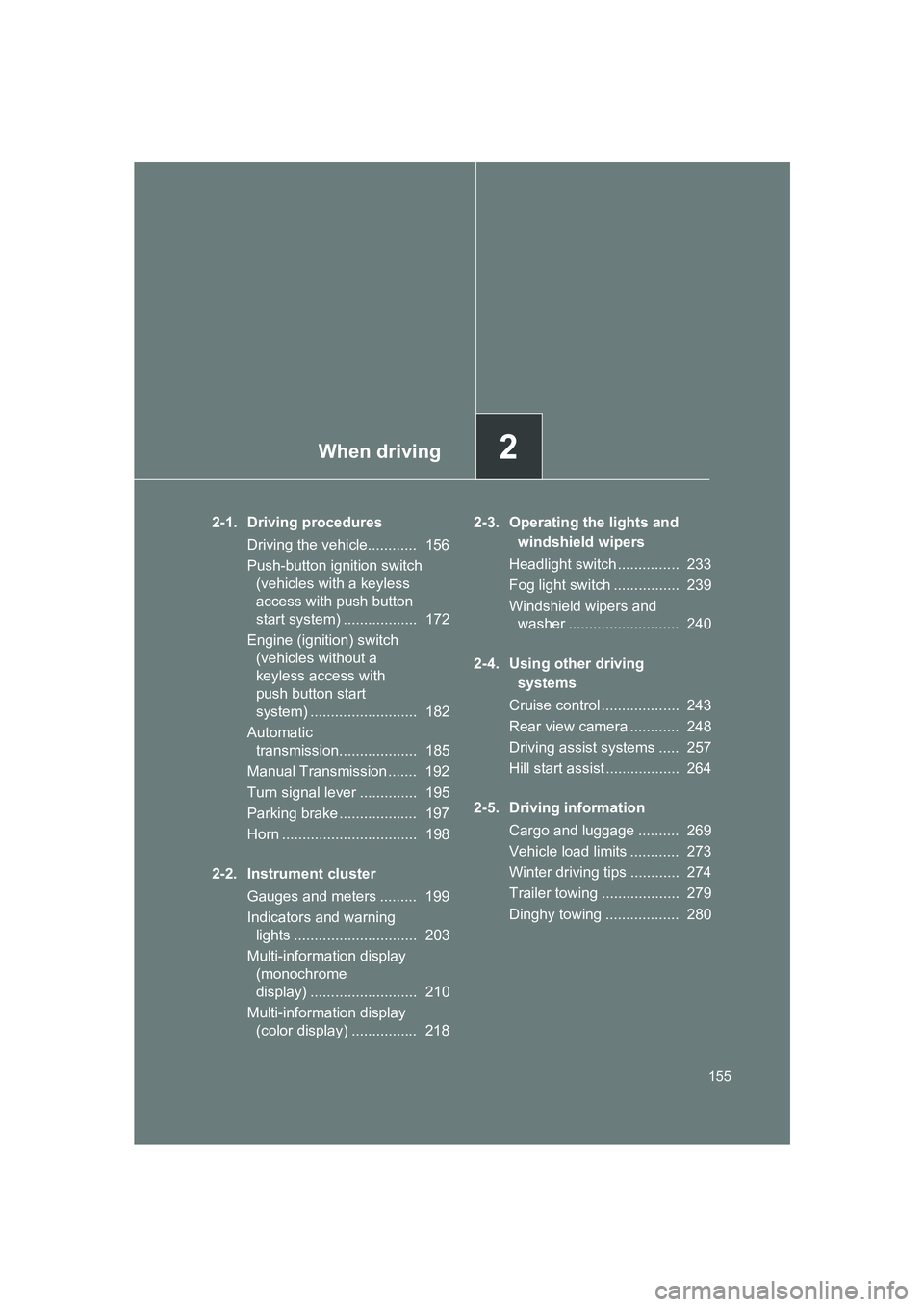

2-1. Driving proceduresDriving the vehicle............ 156
Push-button ignition switch (vehicles with a keyless
access with push button
start system) .................. 172
Engine (ignition) switch (vehicles without a
keyless access with
push button start
system) .......................... 182
Automatic transmission................... 185
Manual Transmission ....... 192
Turn signal lever .............. 195
Parking brake ................... 197
Horn ................................. 198
2-2. Instrument cluster Gauges and meters ......... 199
Indicators and warning lights .............................. 203
Multi-information display (monochrome
display) .......................... 210
Multi-information display (color display) ................ 218 2-3. Operating the lights and
windshield wipers
Headlight switch ............... 233
Fog light switch ................ 239
Windshield wipers and washer ........................... 240
2-4. Using other driving systems
Cruise control ................... 243
Rear view camera ............ 248
Driving assist systems ..... 257
Hill start assist .................. 264
2-5. Driving information Cargo and luggage .......... 269
Vehicle load limits ............ 273
Winter driving tips ............ 274
Trailer towing ................... 279
Dinghy towing .................. 280

156
BRZ_U

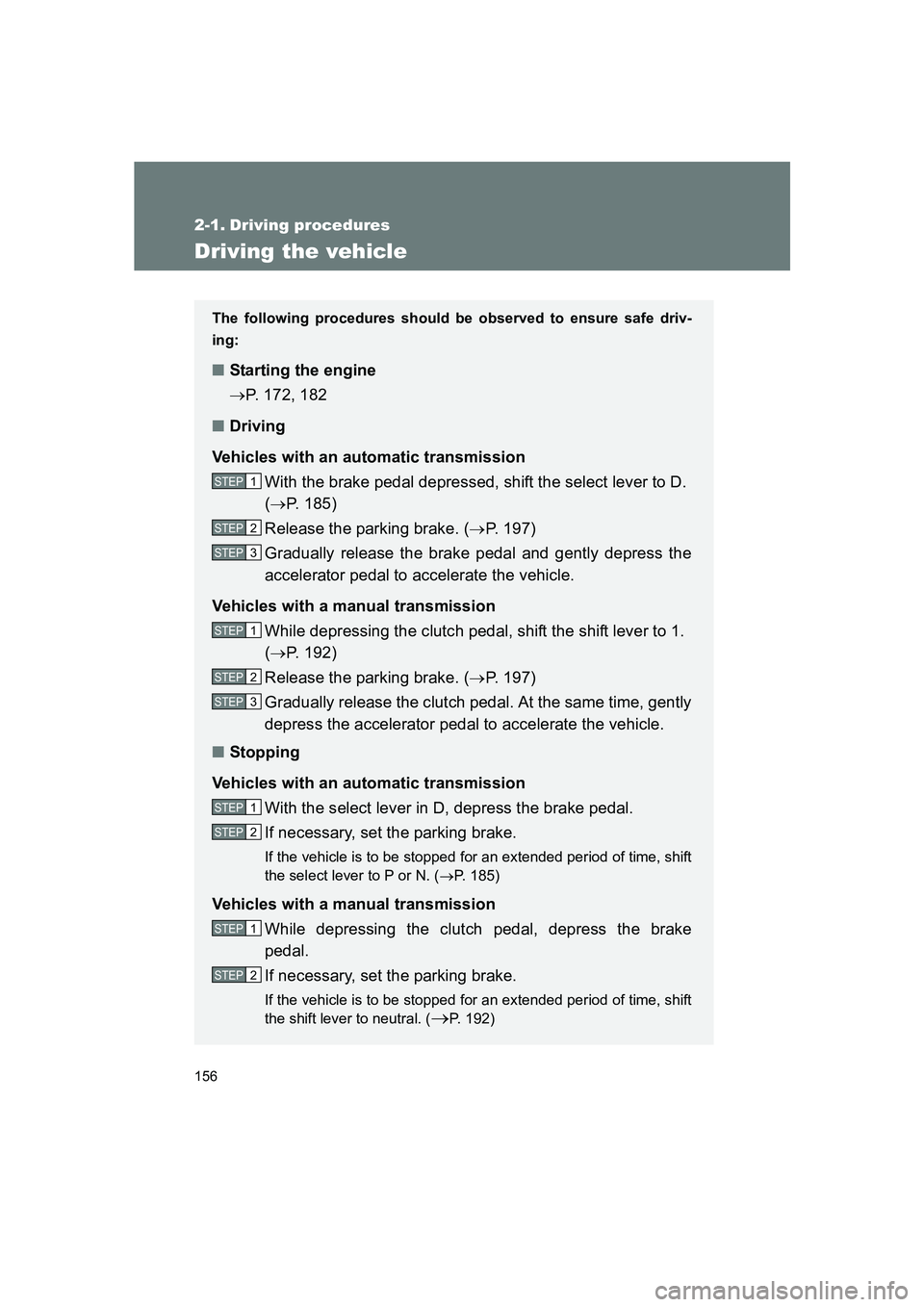

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
■Starting the engine
→P. 172, 182
■ Driving
Vehicles with an automatic transmission With the brake pedal depressed, shift the select lever to D.
(→ P. 185)
Release the parking brake. ( →P. 197)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission While depressing the clutch pedal, shift the shift lever to 1.
(→ P. 192)
Release the parking brake. ( →P. 197)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
■ Stopping
Vehicles with an automatic transmission With the select lever in D, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the select lever to P or N. ( →P. 185)
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to neutral. (
→P. 192)
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 1
STEP 2

157
2-1. Driving procedures
2
When driving
BRZ_U
■

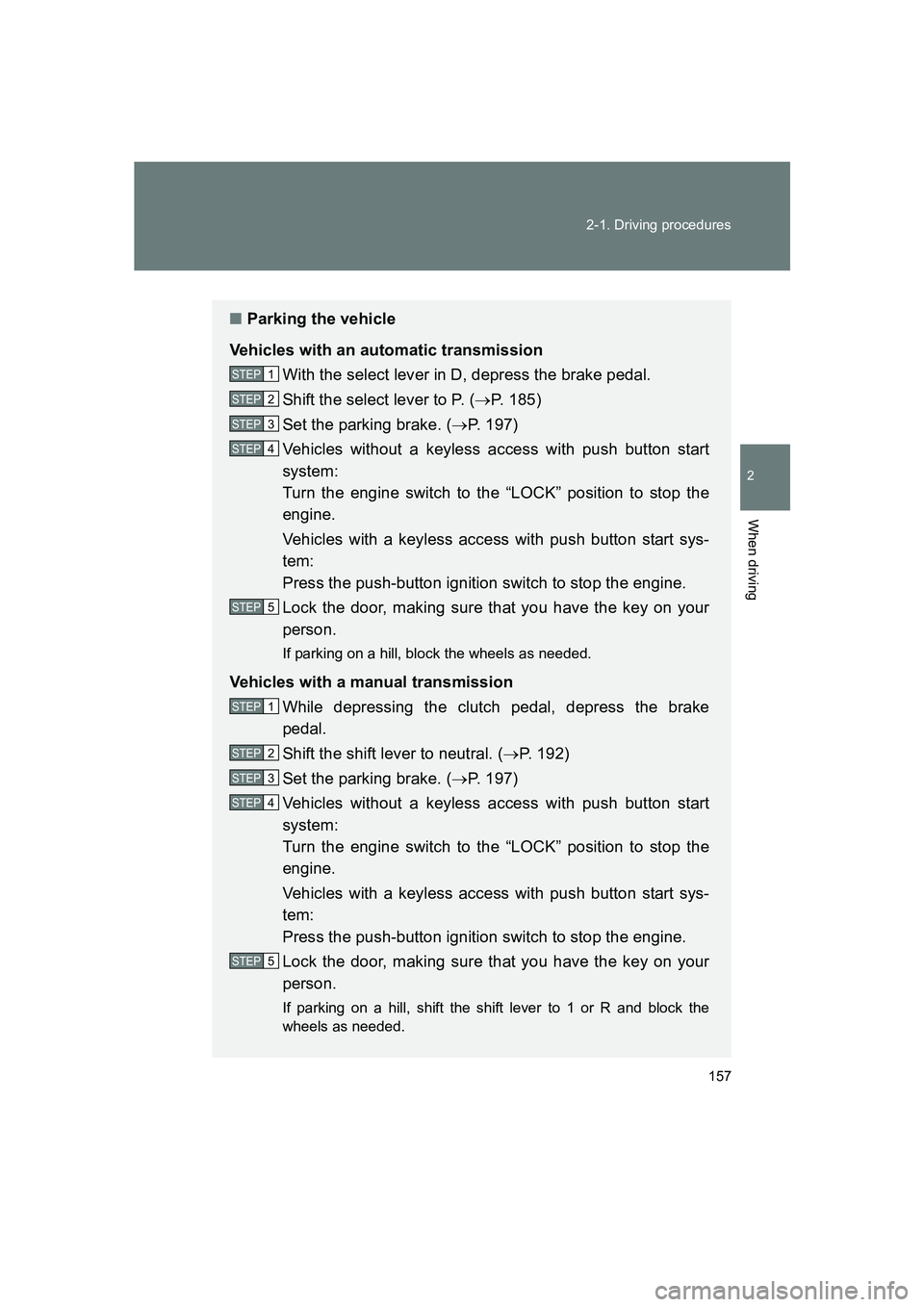

Parking the vehicle
Vehicles with an automatic transmission With the select lever in D, depress the brake pedal.
Shift the select lever to P. ( →P. 185)
Set the parking brake. ( →P. 197)
Vehicles without a keyless access with push button start
system:
Turn the engine switch to the “LOCK” position to stop the
engine.
Vehicles with a keyless access with push button start sys-
tem:
Press the push-button ignition switch to stop the engine.
Lock the door, making sure that you have the key on your
person.
If parking on a hill, block the wheels as needed.
Vehicles with a manual transmission While depressing the clutch pedal, depress the brake
pedal.
Shift the shift lever to neutral. ( →P. 192)
Set the parking brake. ( →P. 197)
Vehicles without a keyless access with push button start
system:
Turn the engine switch to the “LOCK” position to stop the
engine.
Vehicles with a keyless access with push button start sys-
tem:
Press the push-button ignition switch to stop the engine.
Lock the door, making sure that you have the key on your
person.
If parking on a hill, shift the shift lever to 1 or R and block the
wheels as needed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

158 2-1. Driving procedures
BRZ_U

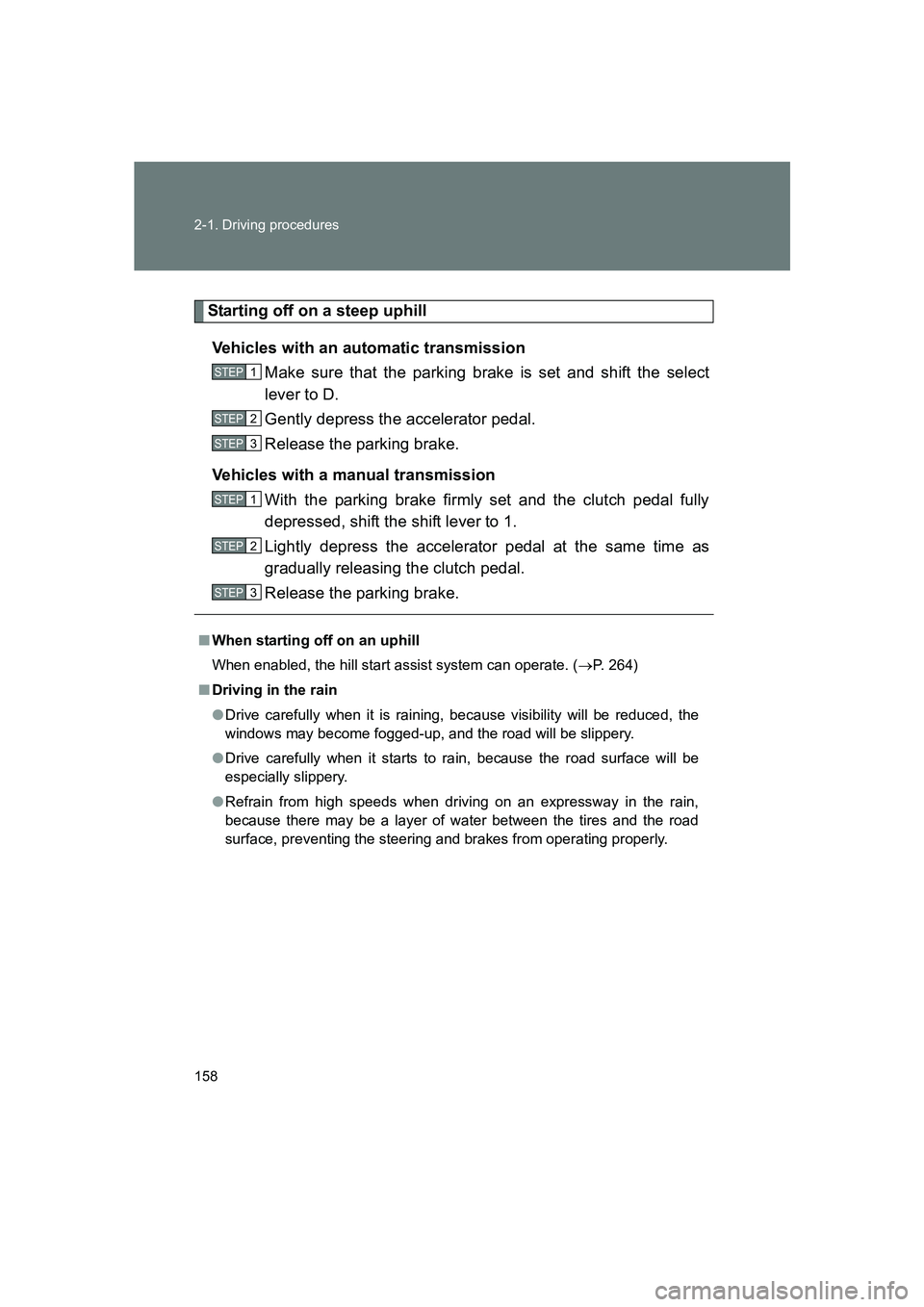

Starting off on a steep uphillVehicles with an automatic transmission Make sure that the parking brake is set and shift the select
lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Vehicles with a manual transmission With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
■When starting off on an uphill
When enabled, the hill start assist system can operate. ( →P. 264)
■ Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
● Drive carefully when it starts to rain, because the road surface will be
especially slippery.
● Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

160 2-1. Driving procedures
BRZ_U

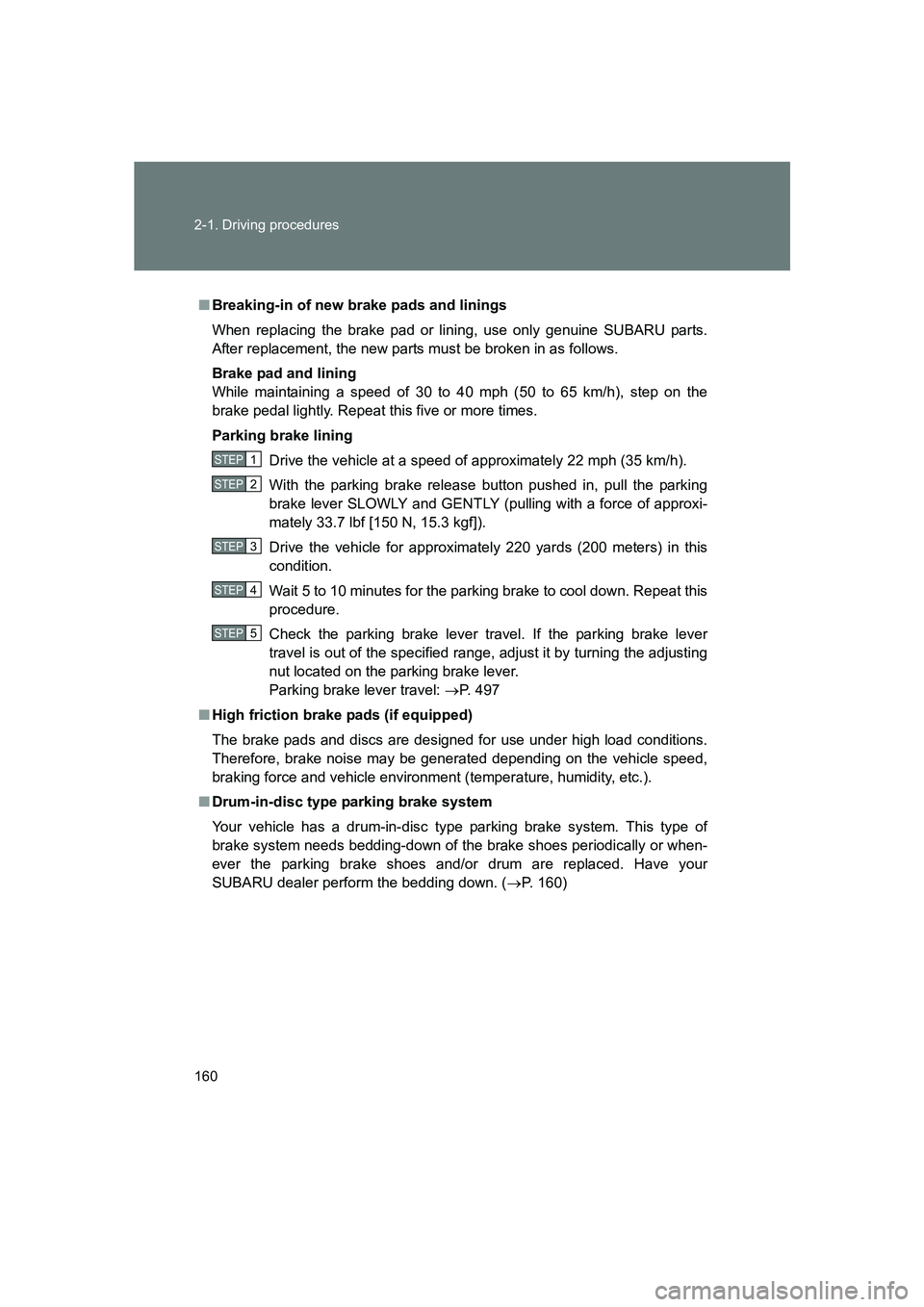

■Breaking-in of new brake pads and linings
When replacing the brake pad or lining, use only genuine SUBARU parts.
After replacement, the new parts must be broken in as follows.
Brake pad and lining
While maintaining a speed of 30 to 40 mph (50 to 65 km/h), step on the
brake pedal lightly. Repeat this five or more times.
Parking brake lining
Drive the vehicle at a speed of approximately 22 mph (35 km/h).
With the parking brake release button pushed in, pull the parking
brake lever SLOWLY and GENTLY (pulling with a force of approxi-
mately 33.7 lbf [150 N, 15.3 kgf]).
Drive the vehicle for approximately 220 yards (200 meters) in this
condition.
Wait 5 to 10 minutes for the parking brake to cool down. Repeat this
procedure.
Check the parking brake lever travel. If the parking brake lever
travel is out of the specified range, adjust it by turning the adjusting
nut located on the parking brake lever.
Parking brake lever travel: →P. 497
■ High friction brake pads (if equipped)
The brake pads and discs are desi gned for use under high load conditions.
Therefore, brake noise may be generated depending on the vehicle speed,
braking force and vehicle environment (temperature, humidity, etc.).
■ Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of
brake system needs bedding-down of t he brake shoes periodically or when-
ever the parking brake shoes and/or drum are replaced. Have your
SUBARU dealer perform the bedding down. ( →P. 160)
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

161
2-1. Driving procedures
2
When driving
BRZ_U
■

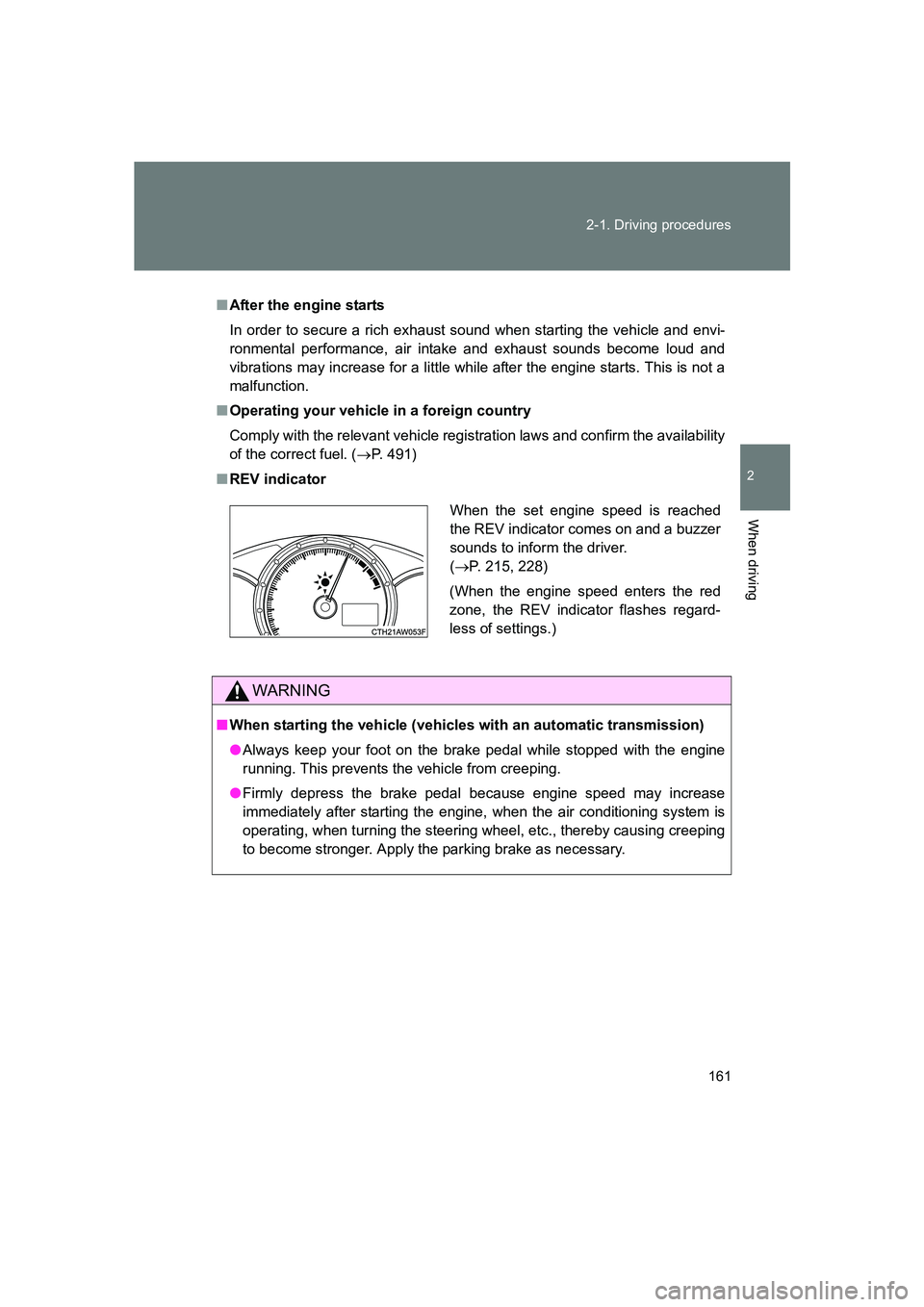

After the engine starts
In order to secure a rich exhaust sound when starting the vehicle and envi-
ronmental performance, air intake and exhaust sounds become loud and
vibrations may increase for a little while after the engine starts. This is not a
malfunction.
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( →P. 491)
■ REV indicator
WARNING
■When starting the vehicle (vehicles with an automatic transmission)
● Always keep your foot on the brake pedal while stopped with the engine
running. This prevents the vehicle from creeping.
● Firmly depress the brake pedal because engine speed may increase
immediately after starting the engine, when the air conditioning system is
operating, when turning the steering wheel, etc., thereby causing creeping
to become stronger. Apply the parking brake as necessary.
When the set engine speed is reached
the REV indicator comes on and a buzzer
sounds to inform the driver.
(→ P. 215, 228)
(When the engine speed enters the red
zone, the REV indicator flashes regard-
less of settings.)

165
2-1. Driving procedures
2
When driving
BRZ_U

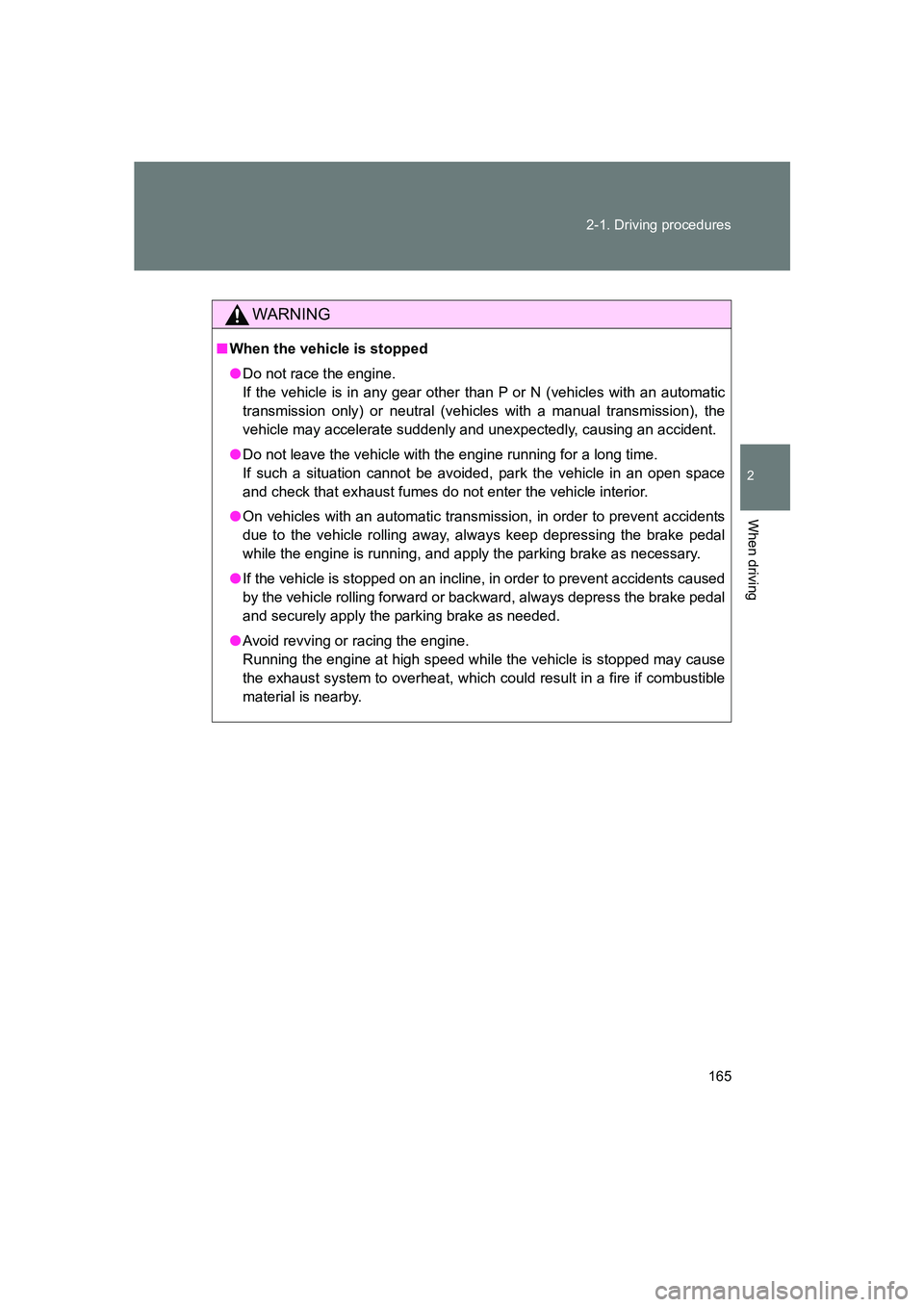

WARNING
■
When the vehicle is stopped
● Do not race the engine.
If the vehicle is in any gear other than P or N (vehicles with an automatic
transmission only) or neutral (vehicles with a manual transmission), the
vehicle may accelerate suddenly and unexpectedly, causing an accident.
● Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
● On vehicles with an automatic transmission, in order to prevent accidents
due to the vehicle rolling away, always keep depressing the brake pedal
while the engine is running, and apply the parking brake as necessary.
● If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or backward, always depress the brake pedal
and securely apply the parking brake as needed.
● Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
