center console SUBARU BRZ 2020 Quick Guide

ICON MODE FUNCTION
Ventilation Instrument panel outlets
Bi-Level Instrument panel outlets and foot outlets
FeetFoot outlets, both side outlets of the instrument panel
and some through windshield defroster outlets
Feet-DefrostWindshield defroster outlets, foot outlets and both side
outlets of the instrument panel
DefrostWindshield defroster outlets and both side outlets of
the instrument panel
7Air Conditioner Button:Press this button to activate or deactivate the air
conditioning.
8Defroster Button:Press this button to defrost or dehumidify the windshield and front
door windows. NOTE: The air conditioning may turn on to defrost the windshield
more quickly. However, the indicator on the air conditioner button will not illuminate.
9Rear Window Defogger Button:Press this button to turn on the defogger. It will
automatically turn off after about 15 minutes. If the window clears before, then press
the button again to turn it off. The outside mirror defogger will also activate.
Heated Seats(if equipped)
Switches are located on the center console
between the driver and passenger seats.
Choose low (bottom of switch) for normal
heating or high (top of switch) for rapid
heating. Choose the center position to turn off
the seat heaters.
GETTING COMFORTABLE
13

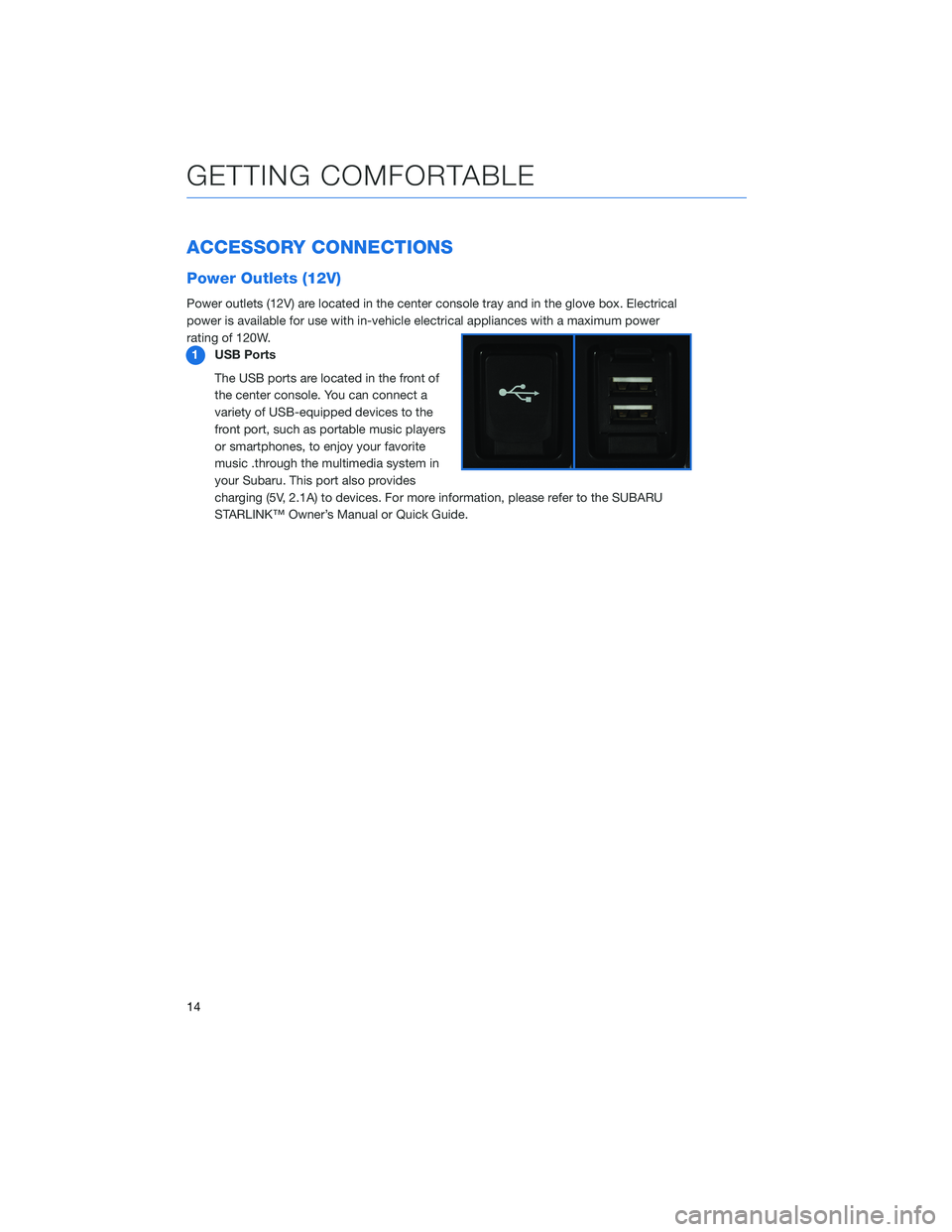

ACCESSORY CONNECTIONS
Power Outlets (12V)
Power outlets (12V) are located in the center console tray and in the glove box. Electrical
power is available for use with in-vehicle electrical appliances with a maximum power
rating of 120W.
1USB Ports
The USB ports are located in the front of
the center console. You can connect a
variety of USB-equipped devices to the
front port, such as portable music players
or smartphones, to enjoy your favorite
music .through the multimedia system in
your Subaru. This port also provides
charging (5V, 2.1A) to devices. For more information, please refer to the SUBARU
STARLINK™ Owner’s Manual or Quick Guide.
GETTING COMFORTABLE
14
