center console SUBARU CROSSTREK 2018 Quick Guide

4

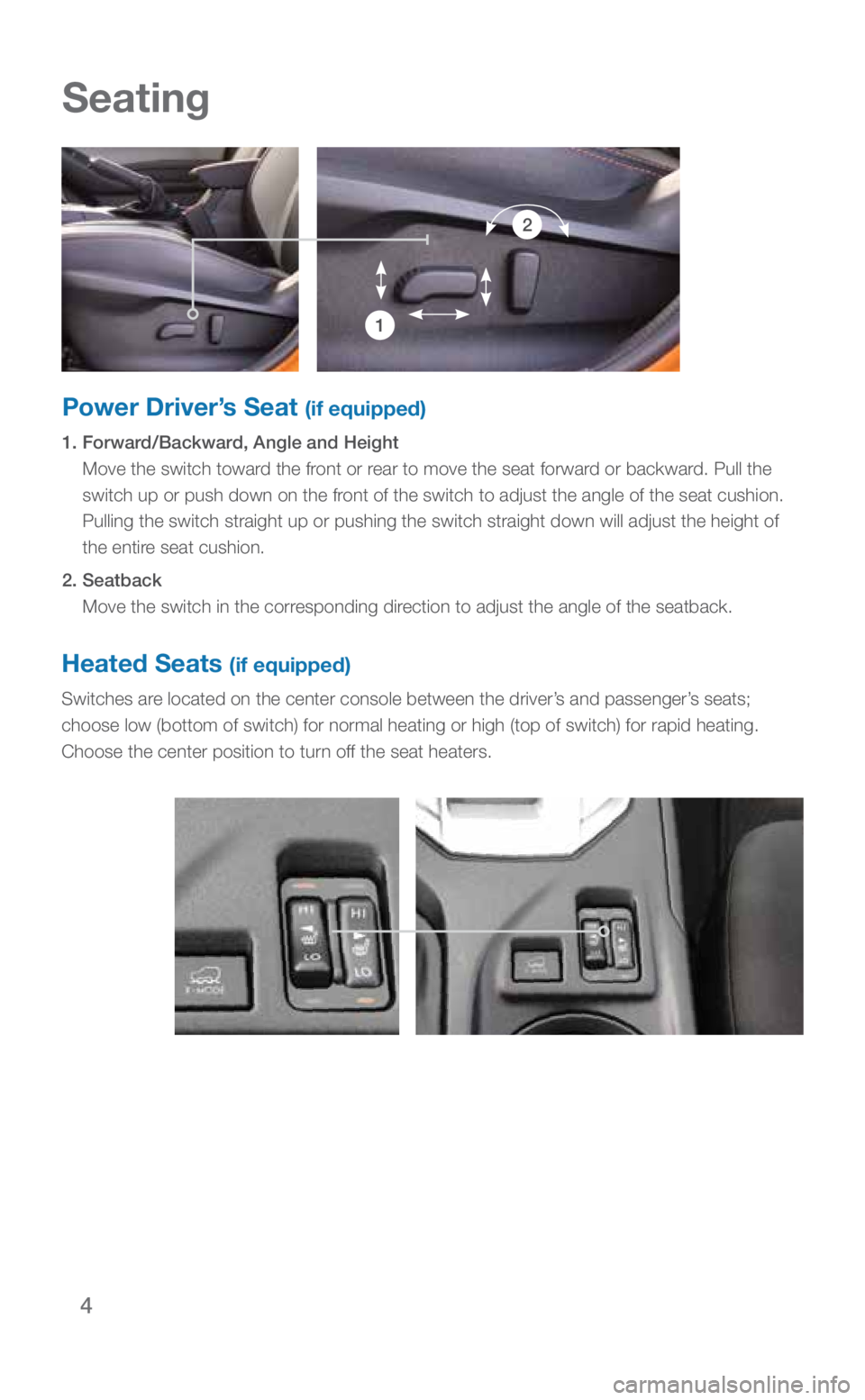

Power Driver’s Seat (if equipped)
1. Forward/Backward, Angle and Height
Move the switch toward the front or rear to move the seat forward or backward. Pull the
switch up or push down on the front of the switch to adjust the angle of the seat cushion.
Pulling the switch straight up or pushing the switch straight down will \
adjust the height of
the entire seat cushion.
2. Seatback Move the switch in the corresponding direction to adjust the angle of the seatback.
1
2
Heated Seats (if equipped)
Switches are located on the center console between the driver’s and passenger’s seats;
choose low (bottom of switch) for normal heating or high (top of swit\
ch) for rapid heating.
Choose the center position to turn off the seat heaters.
Seating
3053393_18b_Crosstrek_QG_071917.indd 47/19/17 3:55 PM

18
Controls
Steering Wheel Audio Controls (if equipped)
Controls
Talk switch; please refer to
the “Bluetooth audio” section
in your Owner’s Manual.
Press the button to select
the desired audio mode –
FM, AM, SAT, CD, AUX, MEDIA. With any of the radio modes
selected, press the left or
right arrow button to skip
through your presets. In CD
mode, press the buttons to
skip forward or back a track.
Push the switch
up (+) to increase
volume or down (–)
to decrease volume.
USB Port
The USB port is located in the front of the center console.
You can connect a portable music player to the USB
port and hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on the
audio system repeatedly until the USB mode is selected.
Auxiliary Input Jack
The 3.5mm auxiliary input jack is located in the
front of the center console. You can connect a
portable music player to the auxiliary jack and
hear the music stored on it through the vehicle
speakers. Press the “SOURCE” button located on
the audio system to select the auxiliary mode.
3053393_18b_Crosstrek_QG_071917.indd 187/19/17 3:55 PM
