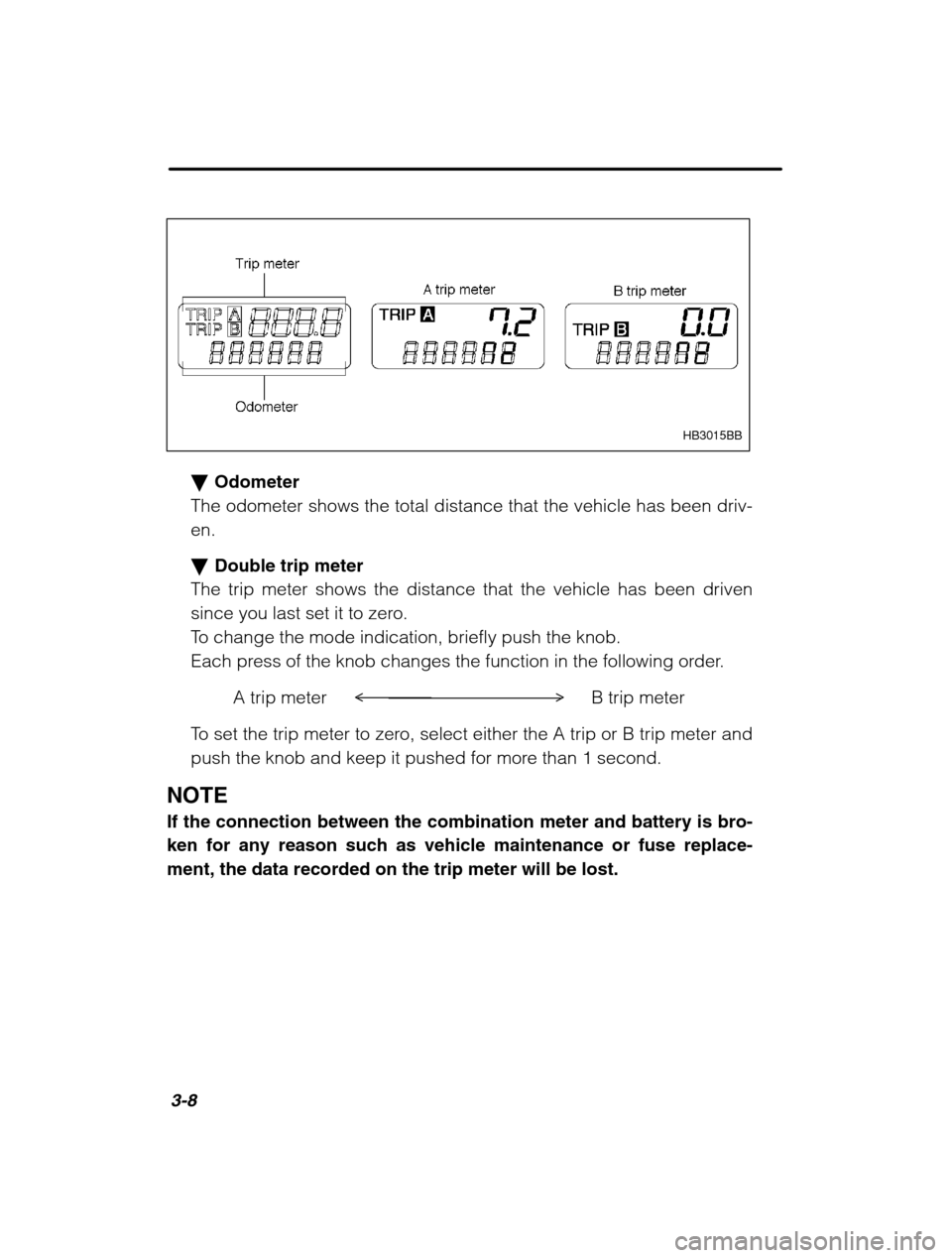

Odometer
The odometer shows the total distance that the vehicle has been driv- en. Double trip meter
The trip meter shows the distance that the vehicle has been driven
since you last set it to zero.
To change the mode indication, briefly push the knob.
Each press of the knob changes the function in the following order.
A trip meter B trip meter
To set the trip meter to zero, select either the A trip or B trip meter and
push the knob and keep it pushed for more than 1 second.
NOTE If the connection between the combination meter and battery is bro-
ken for any reason such as vehicle maintenance or fuse replace-ment, the data recorded on the trip meter will be lost.

Instruments and controls3-9
–
CONTINUED –
Tachometer
CAUTION
Do not operate the engine with the pointer of the tachometer in
the red zone. In this range, fuel injection will be cut by the enginecontrol module to protect the engine from overrevving. Theengine will resume running normally after the engine speed isreduced below the red zone.
The tachometer shows the engine speed in thousands of revolutions perminute. Outside temperature indicator (if equipped)
The outside temperature indicator shows the outside temperature in a
range from –22°F to 122 °F ( –30 °C to 50 °C).
The indicator can give a false reading under any of the following condi-tions: When there is too much sun.
During idling; while running at low speeds in a traffic jam; when the
engine is restarted immediately following a shutdown. When the actual outside temperature falls outside the specified indi-
cator range. For vehicles with an automatic climate control, outside temperature can be displayed on the climate control display panel. Refer to the“ Automatic climate control system ” in chapter 4.
Fuel gauge
The fuel gauge shows the approximate amount of fuel remaining in thetank.
The gauge does not return to “E” even though the ignition switch is in the
“ACC” or “LOCK” position.
The gauge may move slightly during braking, turning or acceleration dueto fuel level movement in the tank.

3-10
Temperature gauge
CAUTION
If the pointer exceeds the normal operating range, safely stop the
vehicle as soon as possible.
See “ In case of emergency ” in chapter 9.
HB2012BB
The temperature gauge shows engine coolant temperature when the
ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with the outside temper-
ature and driving conditions.
We recommend that you drive moderately until the pointer of the temper-
ature gauge reaches near the middle of the range. Engine operation is
optimum with the engine coolant at this temperature range and high rev-
ving operation when the engine is not warmed up enough should beavoided.
Warning and indicator lights
Several of the warning and indicator lights come on momentarily and
then go out when the ignition switch is initially turned to the “ON” posi-
tion. This permits checking the operation of the bulbs.
Apply the parking brake and turn the ignition switch to the “ON” position.
The following lights come on:

Instruments and controls3-11
–
CONTINUED –
Seatbelt warning light
SRS airbag system warning light
CHECK ENGINE warning light / Malfunction indicator lamp
Charge warning light
Oil pressure warning light
AT OIL temperature warning light (AT vehicles)
ABS warning light
VDC warning light (if equipped)VDC operation indicator light (if equipped)VDC OFF indicator light (if equipped)
Brake system warning light
If any lights fail to come on, it indicates a burned-out bulb or a malfunc-
tion of the corresponding system.
Consult your authorized SUBARU dealer for repair. Seatbelt warning light and chime
When the ignition switch is turned to the “ON” position, the seatbelt
warning light will come on and the reminder chime will sound for about
six seconds to remind the driver to fasten the seatbelt.
The seatbelt warning light remains on for about six seconds and turns off
automatically after six seconds.
The seatbelt reminder chime will turn off when the driver ’s side seatbelt is
buckled or it will turn off automatically after six seconds. SRS airbag system warning light AIRBAG
When the ignition switch is turned to the “ON” position, the SRS airbag
system warning light will come on for about six seconds and go out. This
shows the SRS frontal airbag and SRS side airbag (if equipped) and
seatbelt pretensioners are in normal operation.
If this light comes on while driving or remains illuminated even after a
period of about 6 seconds from when the ignition has been turned on, it
may indicate that the SRS frontal airbag system or SRS side airbag sys-
tem (if equipped) or seatbelt pretensioner system is not working proper-
ly. Contact your nearest SUBARU dealer immediately.

3-12
CHECK ENGINE warning light/Malfunction indicator lamp
CAUTION
If the CHECK ENGINE light comes on while you are driving, have
your vehicle checked/repaired by your SUBARU dealer as soonas possible. Continued vehicle operation without having the
emission control system checked and repaired as necessarycould cause serious damage, which may not be covered by your
vehicle’ s warranty.
If this light comes on steadily or blinks while the engine is running, it may
indicate that there is a problem or potential problem somewhere in the
emission control system. If the light comes on steadily:
If the light comes on steadily while driving or does not go out after the
engine starts, an emission control system malfunction has been de-tected.
You should have your vehicle checked by an authorized SUBARU
dealer immediately. NOTE This light also comes on when the fuel filler cap is not tightened until it clicks.
If you have recently refueled your vehicle, the cause of the CHECK
ENGINE warning light/malfunction indicator lamp coming on could be a
loose or missing fuel filler cap. Remove the cap and retighten it until it
clicks. Make sure nothing is interfering with the sealing of the cap.
Tightening the cap will not make the CHECK ENGINE warning light
turn off immediately. It may take several driving trips. If the light does
not go out, take your vehicle to your authorized SUBARU dealer
immediately. If the light is blinking:
If the light is blinking while driving, an engine misfire condition has

Instruments and controls3-13
–
CONTINUED –
been detected which may damage the emission control system.
To prevent serious damage to the emission control system, youshould do the following:Reduce vehicle speed.
Avoid hard acceleration.
Avoid steep uphill grades.
Reduce the amount of cargo, if possible.
Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking and come on
steadily after several driving trips. You should have your vehicle
checked by an authorized SUBARU dealer immediately.
Charge warning light
If this light comes on when the engine is running, it may indicate that the
charging system is not working properly. If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the alterna-
tor belt. If the belt is loose, broken or if the belt is in good condition but
the light remains on, contact your nearest SUBARU dealer immediately. Oil pressure warning light
CAUTION
Do not operate the engine with the oil pressure warning light on. This may cause serious engine damage.
If this light comes on when the engine is running, it may indicate that the
engine oil pressure is low and the lubricating system is not working prop-
erly.If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the engine
oil level. If the oil level is low, add oil immediately. If the engine oil is at
the proper level but the light remains on, contact your nearest SUBARU
dealer immediately.

3-14
AT OIL TEMPerature warning light
(for AT vehicles)
If this light comes on when the engine is running, it may indicate that the
automatic transmission fluid temperature is too hot.
If the light comes on while driving, it is unnecessary to stop the vehicle,
but avoid driving up steep grades or in stop and go traffic.
Automatic transmission control system warning
If the light flashes after the engine starts, it may indicate that the auto-
matic transmission control system is not working properly. Contact
your nearest SUBARU dealer for service immediately.
ABS warning light
The ABS warning light comes on when the ignition switch is turned to the
“ON” position and goes out after about two seconds.
This is an indication that the ABS system is working properly.
CAUTION
If the warning light behaves as follows, the ABS system may not
work properly.When the warning light is on, the ABS function shuts down; how-
ever, the conventional brake system continues to operate normal-
ly. The warning light does not come on when the ignition switch
is turned to the “ON” position.
The warning light comes on when the ignition switch is turned
to the “ON” position, but it does not go out even when the vehicle
speed exceeds approximately 8 mph (12 km/h). The warning light comes on during driving.
If these occur, have the ABS system repaired at the first available
opportunity by your SUBARU dealer.
NOTE
If the warning light behavior is as shown below, the ABS system may be considered normal.
(U.S.) (Canada)

Instruments and controls3-15
–
CONTINUED –
The warning light comes on right after the engine is started but
goes out immediately, remaining off. The warning light remains on after the engine has been started,
but it goes out when the vehicle speed reaches about 8 mph (12km/h). The warning light comes on during driving, but it goes out
immediately and remains off.
When driving with an insufficient battery voltage such as when the en-
gine is jump started, the ABS warning light may come on. This is due to
the low battery voltage and does not indicate a malfunction. When the
battery becomes fully charged, the light will go out. VDC (Vehicle Dynamics Control) warning light (if equipped)
This warning light comes on when the ignition switch is turned to the
“ON” position and goes out after the engine has started. It indicates that
the VDC system is operational.
The VDC system is probably inoperative under any of the following
conditions. Immediately have your vehicle checked at a SUBARU dealer. The VDC warning light does not come on when the ignition switch is
turned to the “ON” position.
The VDC warning light remains on after the engine has started and
stays lit even when the vehicle speed reaches about 8 mph (12 km/h). The VDC warning light comes on while the vehicle is running.
If the electrical circuit of the VDC system itself becomes faulty, the
VDC warning light only comes on. At this time, the ABS (Anti-lock Brake
System) remains fully operational. The warning light comes on when the electronic control system of the
ABS/VDC system becomes faulty.
The VDC system provides its ABS control through the electrical circuit of
the ABS system. Accordingly, if the ABS is inoperative, the VDC system
also becomes unable to provide ABS control. As a result, the VDC sys-
tem becomes inoperative, causing the VDC warning light to come on.
Though both the VDC and ABS systems are inoperative in this case, the
ordinary functions of the brake system are still available. You will be safe

3-16
while driving with this condition, but you should have your vehicle checked at a SUBARU dealer as soon as possible. NOTE
If the warning light behavior is as shown below, the VDC system may be considered normal.The warning light comes on right after the engine is started but
goes out immediately, remaining off. The warning light remains on after the engine has been started,
but it goes out when the vehicle speed reaches 8 mph about (12km/h). The warning light comes on during driving, but it goes out im-
mediately and remains off. Brake system warning light
WARNING
Driving with the brake system warning light on is dangerous.
This indicates your brake system may not be working properly. If the light remains on, have the brakes inspected by a SUBARU
dealer immediately. If at all in doubt about whether the brakes are operating prop-
erly, do not drive the vehicle. Have your vehicle towed to the
nearest SUBARU dealer for repair.
This light has the following two functions: Parking brake warning
The light comes on with the parking brake applied while the ignition switch is in the “ON” position. It goes out when the parking brake is
fully released. Brake fluid level warning
This light comes on when the brake fluid level has dropped to near the “MIN” level of the brake fluid reservoir with the ignition switch in
the “ON” position and with the parking brake fully released.
If the brake system warning light should come on while driving (with
the parking brake fully released and with the ignition switch posi- (U.S.)
(Canada)

Instruments and controls3-17
–
CONTINUED –

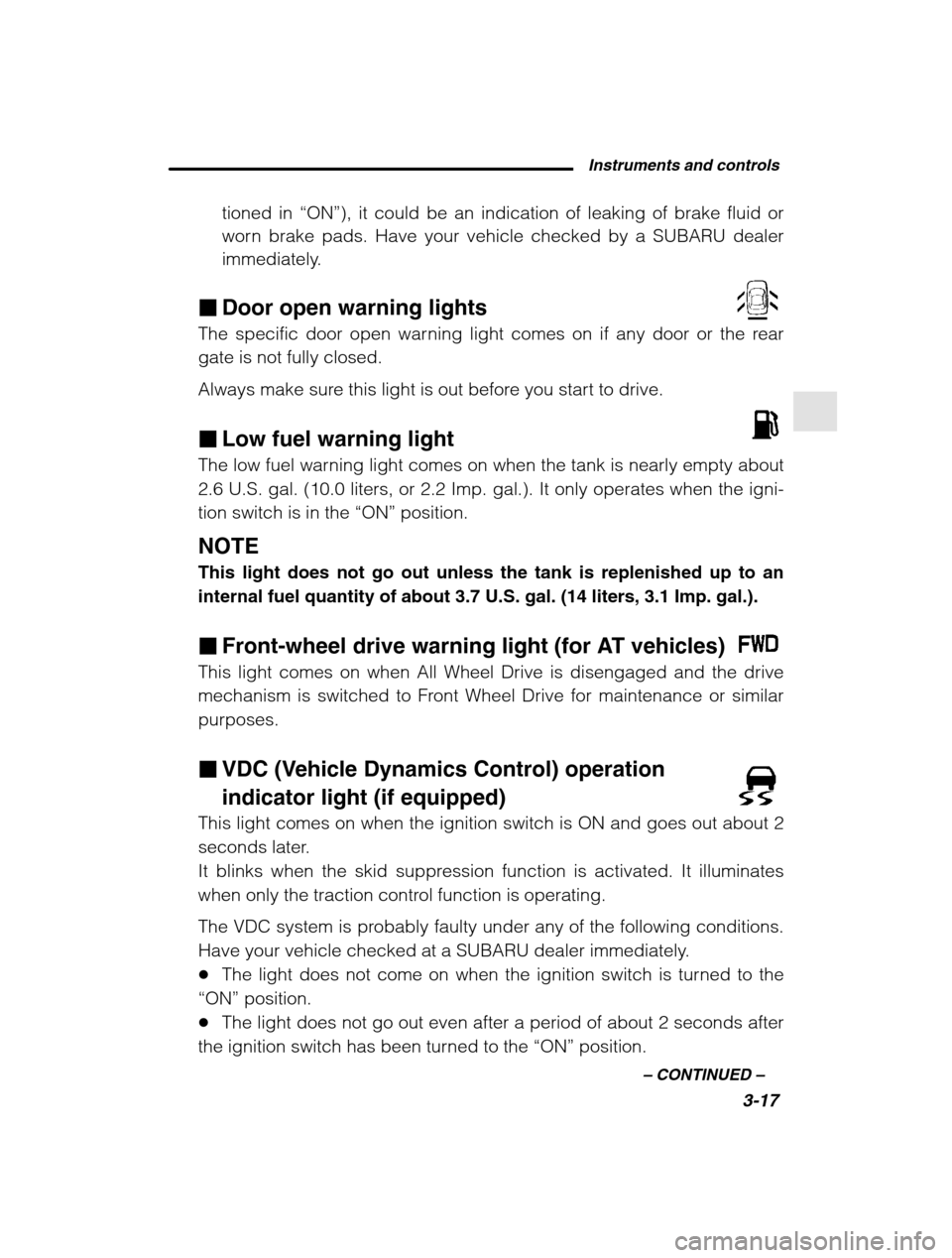

tioned in “ON”), it could be an indication of leaking of brake fluid or
worn brake pads. Have your vehicle checked by a SUBARU dealer
immediately.
Door open warning lights
The specific door open warning light comes on if any door or the rear gate is not fully closed.
Always make sure this light is out before you start to drive. Low fuel warning light
The low fuel warning light comes on when the tank is nearly empty about 2.6 U.S. gal. (10.0 liters, or 2.2 Imp. gal.). It only operates when the igni-
tion switch is in the “ON” position.
NOTE This light does not go out unless the tank is replenished up to an internal fuel quantity of about 3.7 U.S. gal. (14 liters, 3.1 Imp. gal.). Front-wheel drive warning light (for AT vehicles)
This light comes on when All Wheel Drive is disengaged and the drive
mechanism is switched to Front Wheel Drive for maintenance or similarpurposes. VDC (Vehicle Dynamics Control) operation indicator light (if equipped)
This light comes on when the ignition switch is ON and goes out about 2
seconds later.
It blinks when the skid suppression function is activated. It illuminates
when only the traction control function is operating.
The VDC system is probably faulty under any of the following conditions.
Have your vehicle checked at a SUBARU dealer immediately. The light does not come on when the ignition switch is turned to the
“ON” position.
The light does not go out even after a period of about 2 seconds after
the ignition switch has been turned to the “ON” position.
