3

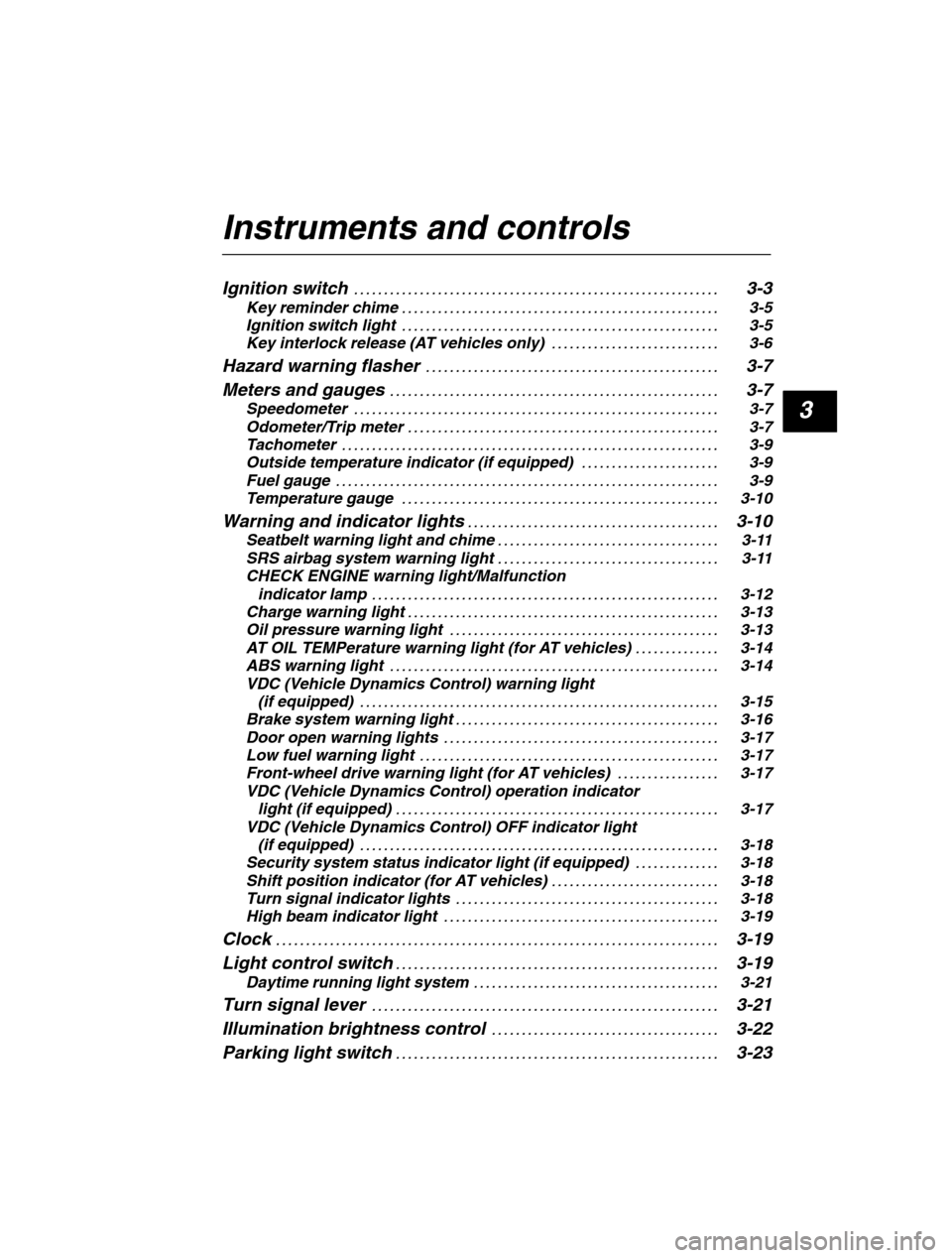

Instruments and controls Ignition switch3-3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key reminder chime 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch light 3-5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key interlock release (AT vehicles only) 3-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard warning flasher 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Meters and gauges 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Trip meter 3-7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature indicator (if equipped) 3-9 . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 3-9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Temperature gauge 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warning and indicator lights 3-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seatbelt warning light and chime 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS airbag system warning light 3-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CHECK ENGINE warning light/Malfunction indicator lamp 3-12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Charge warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil pressure warning light 3-13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AT OIL TEMPerature warning light (for AT vehicles) 3-14 . . . . . . . . . . . . . .
ABS warning light 3-14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) warning light (if equipped) 3-15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system warning light 3-16
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door open warning lights 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Low fuel warning light 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-wheel drive warning light (for AT vehicles) 3-17 . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) operation indicator light (if equipped) 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VDC (Vehicle Dynamics Control) OFF indicator light (if equipped) 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security system status indicator light (if equipped) 3-18 . . . . . . . . . . . . . .
Shift position indicator (for AT vehicles) 3-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal indicator lights 3-18
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High beam indicator light 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light control switch 3-19
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime running light system 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Turn signal lever 3-21
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination brightness control 3-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking light switch 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

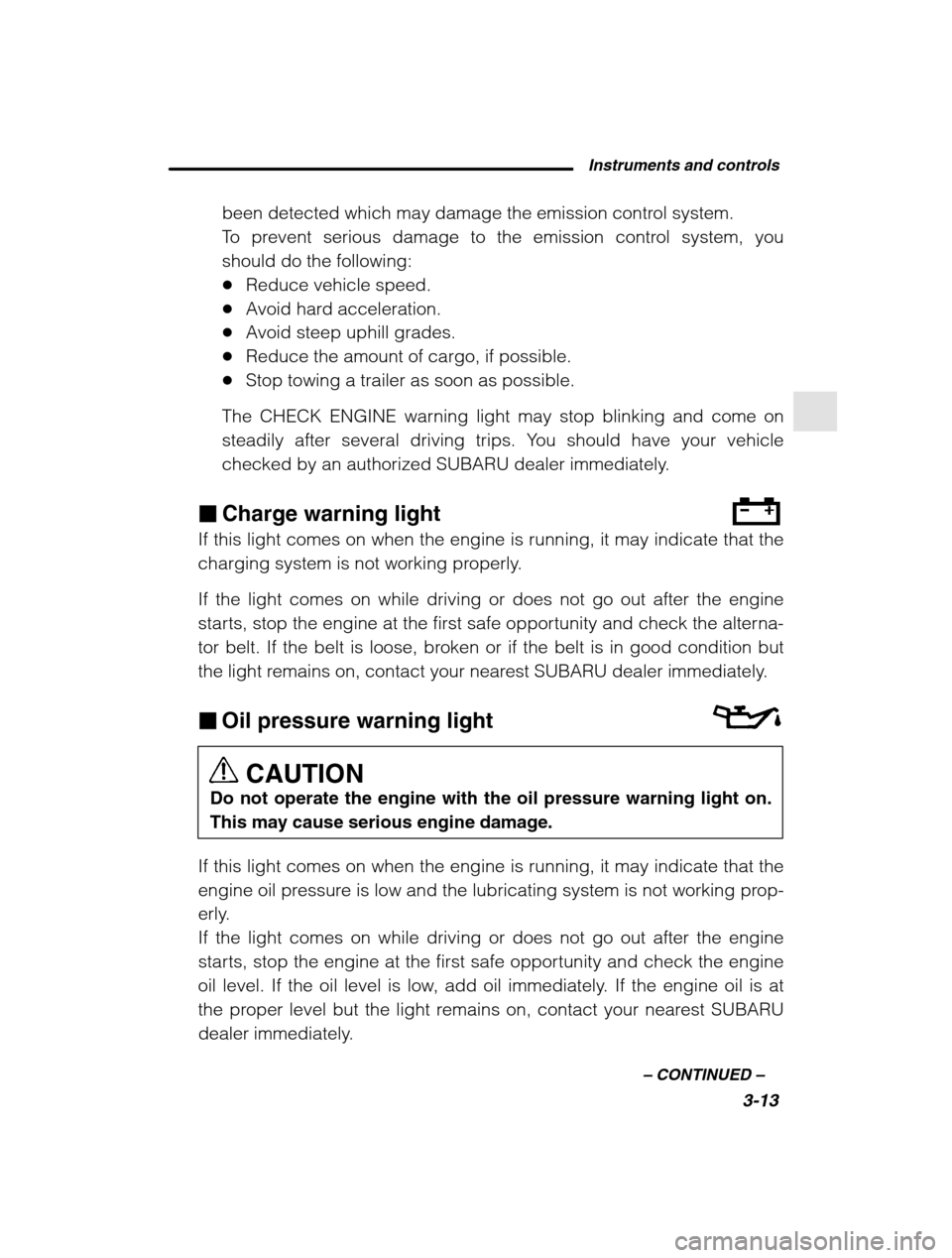

Instruments and controls3-13
–
CONTINUED –
been detected which may damage the emission control system.
To prevent serious damage to the emission control system, youshould do the following:Reduce vehicle speed.
Avoid hard acceleration.
Avoid steep uphill grades.
Reduce the amount of cargo, if possible.
Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking and come on
steadily after several driving trips. You should have your vehicle
checked by an authorized SUBARU dealer immediately.
Charge warning light
If this light comes on when the engine is running, it may indicate that the
charging system is not working properly. If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the alterna-
tor belt. If the belt is loose, broken or if the belt is in good condition but
the light remains on, contact your nearest SUBARU dealer immediately. Oil pressure warning light
CAUTION
Do not operate the engine with the oil pressure warning light on. This may cause serious engine damage.
If this light comes on when the engine is running, it may indicate that the
engine oil pressure is low and the lubricating system is not working prop-
erly.If the light comes on while driving or does not go out after the engine
starts, stop the engine at the first safe opportunity and check the engine
oil level. If the oil level is low, add oil immediately. If the engine oil is at
the proper level but the light remains on, contact your nearest SUBARU
dealer immediately.

9-14

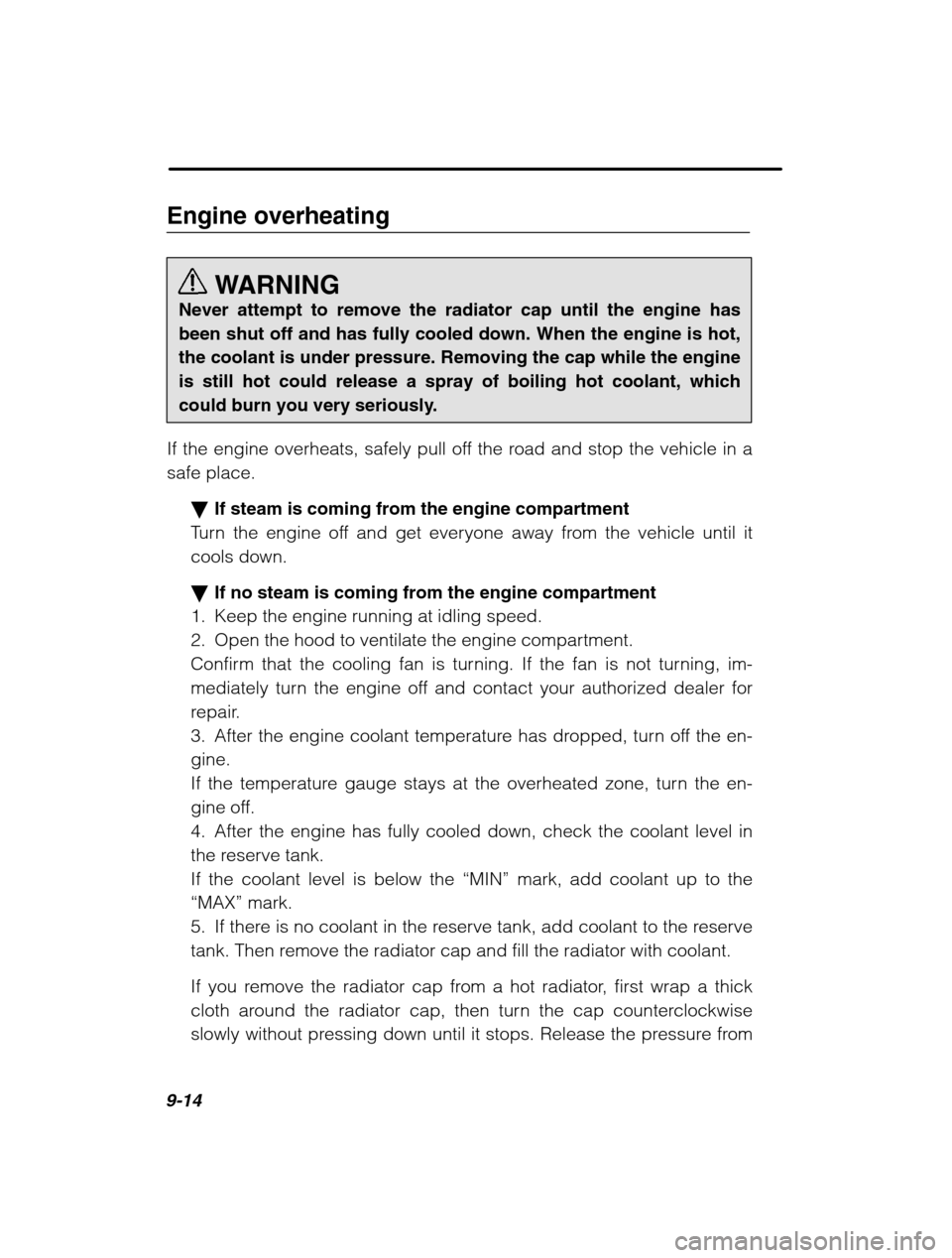

Engine overheatingWARNING
Never attempt to remove the radiator cap until the engine has been shut off and has fully cooled down. When the engine is hot,the coolant is under pressure. Removing the cap while the engineis still hot could release a spray of boiling hot coolant, which
could burn you very seriously.
If the engine overheats, safely pull off the road and stop the vehicle in asafe place. If steam is coming from the engine compartment
Turn the engine off and get everyone away from the vehicle until itcools down. If no steam is coming from the engine compartment
1. Keep the engine running at idling speed.
2. Open the hood to ventilate the engine compartment.
Confirm that the cooling fan is turning. If the fan is not turning, im-
mediately turn the engine off and contact your authorized dealer for
repair.
3. After the engine coolant temperature has dropped, turn off the en-gine.
If the temperature gauge stays at the overheated zone, turn the en-
gine off.
4. After the engine has fully cooled down, check the coolant level in
the reserve tank.If the coolant level is below the “MIN” mark, add coolant up to the
“MAX” mark.
5. If there is no coolant in the reserve tank, add coolant to the reserve
tank. Then remove the radiator cap and fill the radiator with coolant.
If you remove the radiator cap from a hot radiator, first wrap a thick
cloth around the radiator cap, then turn the cap counterclockwise
slowly without pressing down until it stops. Release the pressure from

11-4

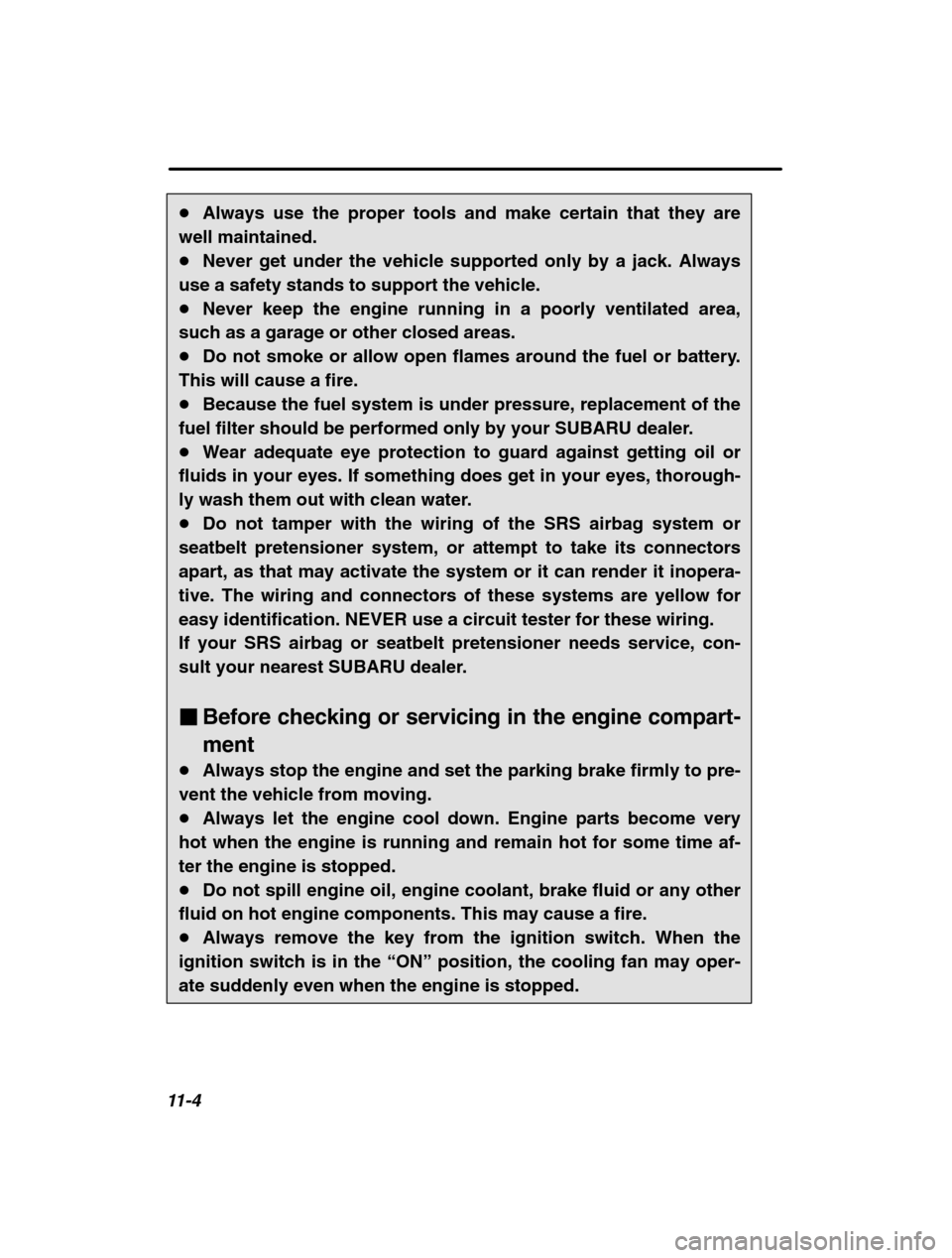

Always use the proper tools and make certain that they are
well maintained. Never get under the vehicle supported only by a jack. Always
use a safety stands to support the vehicle. Never keep the engine running in a poorly ventilated area,
such as a garage or other closed areas. Do not smoke or allow open flames around the fuel or battery.
This will cause a fire. Because the fuel system is under pressure, replacement of the
fuel filter should be performed only by your SUBARU dealer. Wear adequate eye protection to guard against getting oil or
fluids in your eyes. If something does get in your eyes, thorough-
ly wash them out with clean water. Do not tamper with the wiring of the SRS airbag system or
seatbelt pretensioner system, or attempt to take its connectorsapart, as that may activate the system or it can render it inopera-tive. The wiring and connectors of these systems are yellow for
easy identification. NEVER use a circuit tester for these wiring. If your SRS airbag or seatbelt pretensioner needs service, con-
sult your nearest SUBARU dealer. Before checking or servicing in the engine compart- ment
Always stop the engine and set the parking brake firmly to pre-
vent the vehicle from moving. Always let the engine cool down. Engine parts become very
hot when the engine is running and remain hot for some time af-ter the engine is stopped. Do not spill engine oil, engine coolant, brake fluid or any other
fluid on hot engine components. This may cause a fire. Always remove the key from the ignition switch. When the
ignition switch is in the “ON” position, the cooling fan may oper-
ate suddenly even when the engine is stopped.

11-14

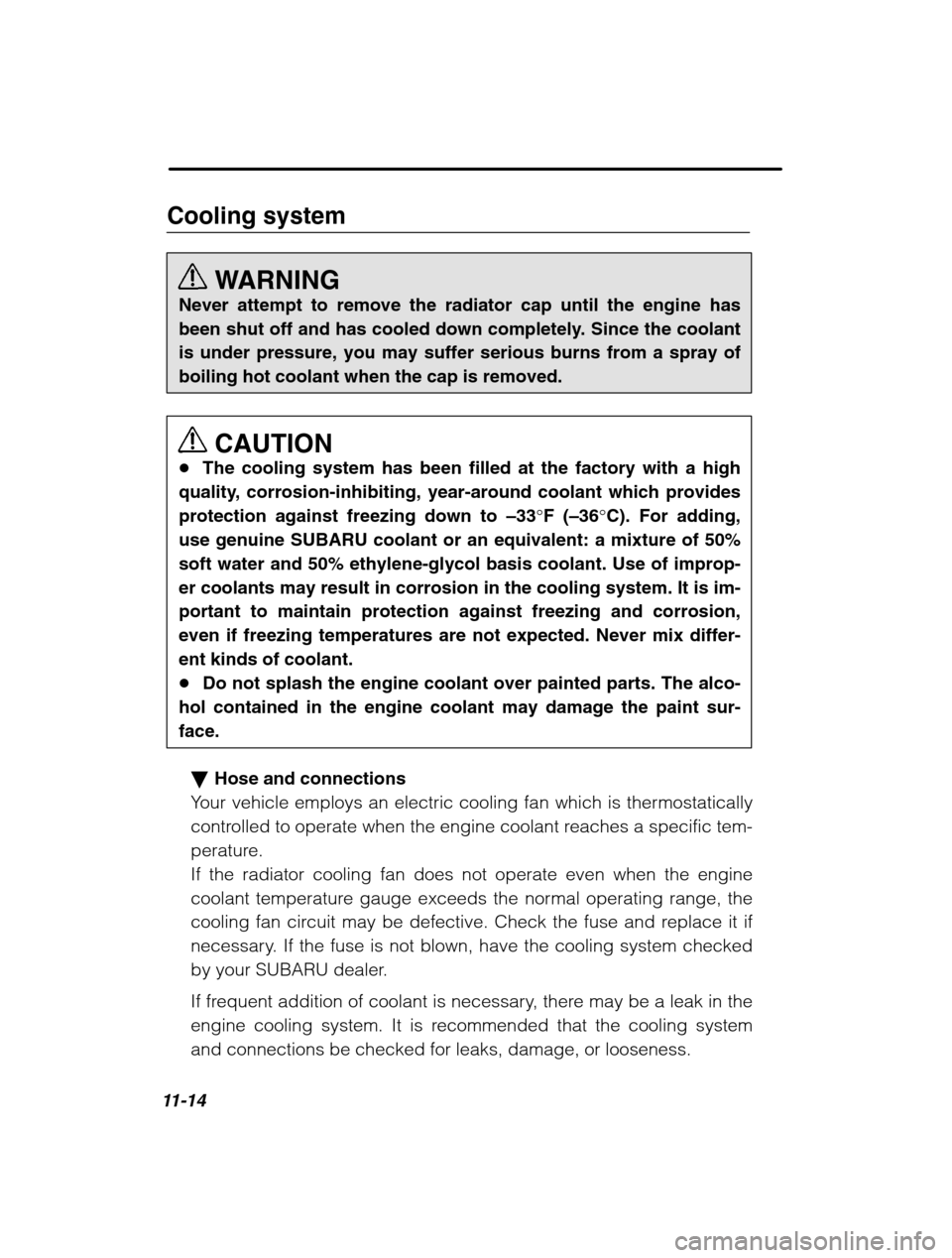

Cooling systemWARNING
Never attempt to remove the radiator cap until the engine has
been shut off and has cooled down completely. Since the coolantis under pressure, you may suffer serious burns from a spray ofboiling hot coolant when the cap is removed.
CAUTION
The cooling system has been filled at the factory with a high
quality, corrosion-inhibiting, year-around coolant which providesprotection against freezing down to –33°F ( –36 °C). For adding,
use genuine SUBARU coolant or an equivalent: a mixture of 50%
soft water and 50% ethylene-glycol basis coolant. Use of improp-er coolants may result in corrosion in the cooling system. It is im-portant to maintain protection against freezing and corrosion,even if freezing temperatures are not expected. Never mix differ-ent kinds of coolant. Do not splash the engine coolant over painted parts. The alco-
hol contained in the engine coolant may damage the paint sur-face.
Hose and connections
Your vehicle employs an electric cooling fan which is thermostatically
controlled to operate when the engine coolant reaches a specific tem-
perature.If the radiator cooling fan does not operate even when the engine
coolant temperature gauge exceeds the normal operating range, the
cooling fan circuit may be defective. Check the fuse and replace it if
necessary. If the fuse is not blown, have the cooling system checked
by your SUBARU dealer.
If frequent addition of coolant is necessary, there may be a leak in the
engine cooling system. It is recommended that the cooling systemand connections be checked for leaks, damage, or looseness.

11-16

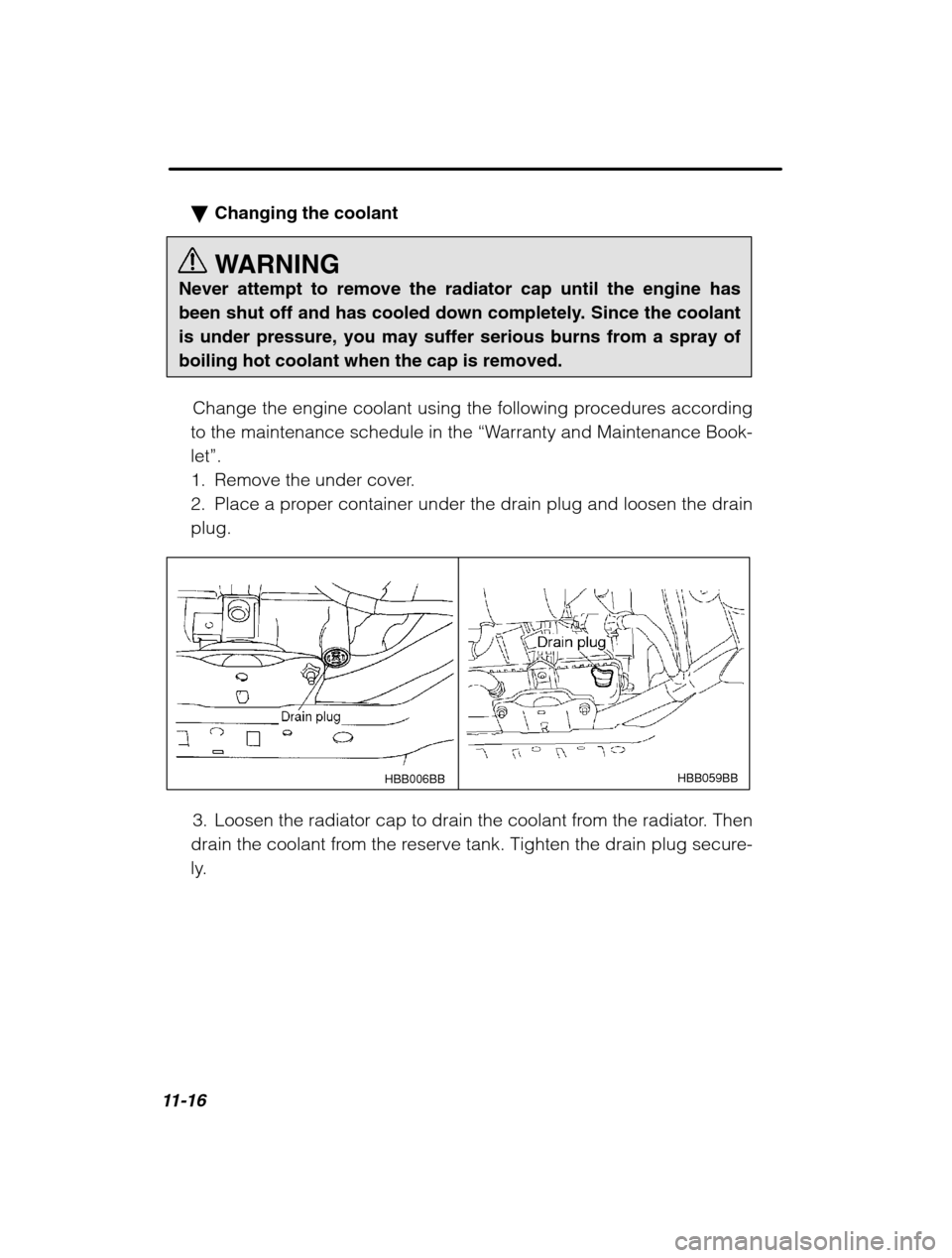

Changing the coolant
WARNING
Never attempt to remove the radiator cap until the engine has
been shut off and has cooled down completely. Since the coolantis under pressure, you may suffer serious burns from a spray ofboiling hot coolant when the cap is removed.
Change the engine coolant using the following procedures according
to the maintenance schedule in the “Warranty and Maintenance Book-
let”. 1. Remove the under cover.
2. Place a proper container under the drain plug and loosen the drainplug.
HBB059BB
HBB006BB
3. Loosen the radiator cap to drain the coolant from the radiator. Then
drain the coolant from the reserve tank. Tighten the drain plug secure-
ly.
