4
ual. This symbol means “Do not”, “Do not do this”, or
“Do not let this happen”, depending upon the context.Vehicle symbols
There are some of the symbols you may see on your vehicle.Mark Name CAUTION
Power door lock and unlock
Passenger’s windows lock and unlock Fuel
Front fog lights
Parking lights
Hazard warning flasher
Cigarette lighter

15
–
CONTINUED –
1
23
4
5

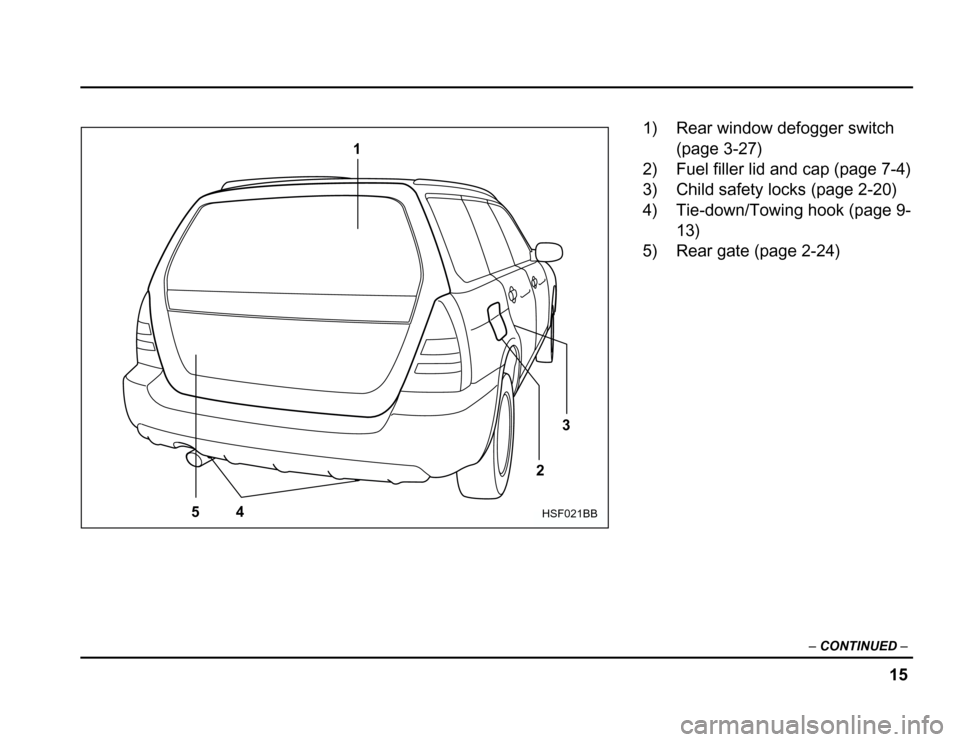

HSF021BB
1) Rear window defogger switch
(page 3-27)
2) Fuel filler lid and cap (page 7-4)
3) Child safety locks (page 2-20)
4) Tie-down/Towing hook (page 9-
13)
5) Rear gate (page 2-24)

20

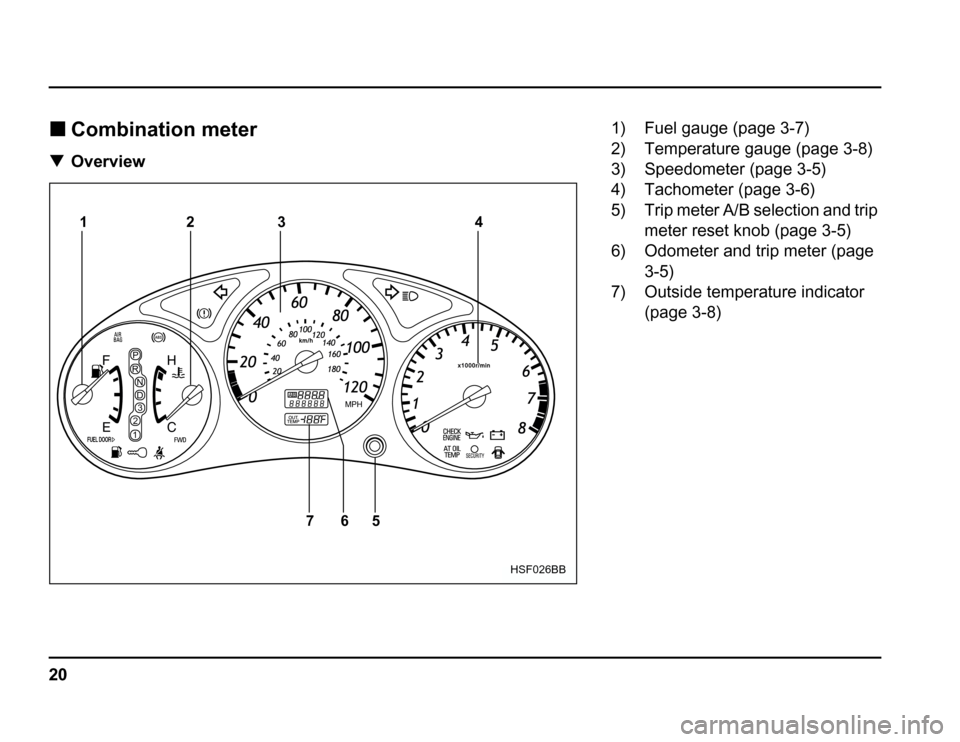

Combination meter
Overview
P
R N D3
2
1
FUEL DOORFUEL DOOR
H
MPH
EC
Fx1000r/minx1000r/min
km/hkm/h
23 4
1
5
6
7
HSF026BB
1) Fuel gauge (page 3-7)
2) Temperature gauge (page 3-8)
3) Speedometer (page 3-5)
4) Tachometer (page 3-6)
5) Trip meter A/B selection and trip
meter reset knob (page 3-5)
6) Odometer and trip meter (page
3-5)
7) Outside temperature indicator
(page 3-8)

21
–
CONTINUED –

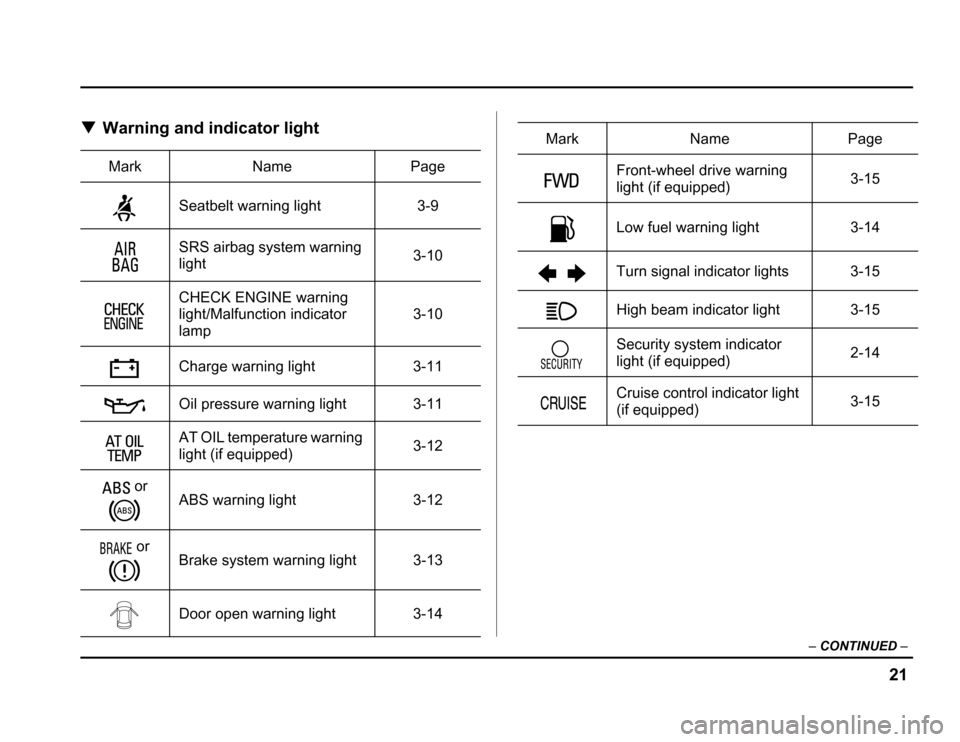

Warning and indicator light
Mark Name Page
Seatbelt warning light 3-9
SRS airbag system warning light 3-10
CHECK ENGINE warning
light/Malfunction indicatorlamp 3-10
Charge warning light 3-11
Oil pressure warning light 3-11
AT OIL temperature warning
light (if equipped) 3-12
or ABS warning light 3-12
or Brake system warning light 3-13
Door open warning light 3-14
Front-wheel drive warning
light (if equipped) 3-15
Low fuel warning light 3-14
Turn signal indicator lights 3-15
High beam indicator light 3-15
Security system indicator
light (if equipped) 2-14
Cruise control indicator light
(if equipped) 3-15
Mark Name Page

3-1
3
Instruments and controls
Ignition switch ............................................. 3-2 LOCK ................................................................ 3-2
ACC .................................................................. 3-3
ON ..................................................................... 3-3
START .............................................................. 3-3
Key reminder chime ........................................ 3-3
Key interlock release (AT vehicles only) ...... 3-4
Hazard warning flasher ............................... 3-5
Meters and gauges ...................................... 3-5 Speedometer ................................................... 3-5
Odometer/Trip meter ...................................... 3-5
Tachometer ...................................................... 3-6
Fuel gauge ....................................................... 3-7
Temperature gauge ......................................... 3-8
Ambient temperature gauge .......................... 3-9
Warning and indicator lights ...................... 3-9 Seatbelt warning light and chime .................. 3-9
SRS airbag system warning light .................. 3-10
CHECK ENGINE warning light/Malfunction
indicator lamp ................................................. 3-10
Charge warning light ...................................... 3-11
Oil pressure warning light .............................. 3-11
AT OIL TEMPerature warning light
(for AT vehicles) .............................................. 3-12
ABS warning light ........................................... 3-12
Brake system warning light ........................... 3-13
Door open warning lights ............................... 3-14
Low fuel warning light .................................... 3-14
Front-wheel drive warning light
(for AT vehicles) .............................................. 3-15
Shift position indicator (AT vehicles) ........... 3-15 Turn signal indicator lights ............................ 3-15
High beam indicator light ............................... 3-15
Cruise control indicator light ......................... 3-15
Clock ............................................................. 3-16
Light control switch ..................................... 3-17 Headlights ....................................................... 3-17
High/low beam change (dimmer) .................. 3-18
Headlight flasher ............................................. 3-18
Daytime running light system ....................... 3-19
Turn signal lever .......................................... 3-19
Illumination brightness control .................. 3-20
Parking light switch ..................................... 3-21
Fog light switch (if equipped) ..................... 3-21
Wiper and washer ........................................ 3-22 Windshield wiper and washer switches ....... 3-23
Rear window wiper and washer switch ........ 3-25
Windshield wiper deicer (if equipped) ....... 3-26
Rear window defogger switch .................... 3-27
Mirrors ........................................................... 3-29 Inside mirror .................................................... 3-29
Outside mirrors ............................................... 3-31
Tilt steering wheel ........................................ 3-33
Horn ............................................................... 3-34

3-7
Instruments and controls
–CONTINUED –
fuel injection will be cut by the engine control
module to protect the engine from overrevving.
The engine will resume running normally after
the engine speed is reduced below the red
zone.

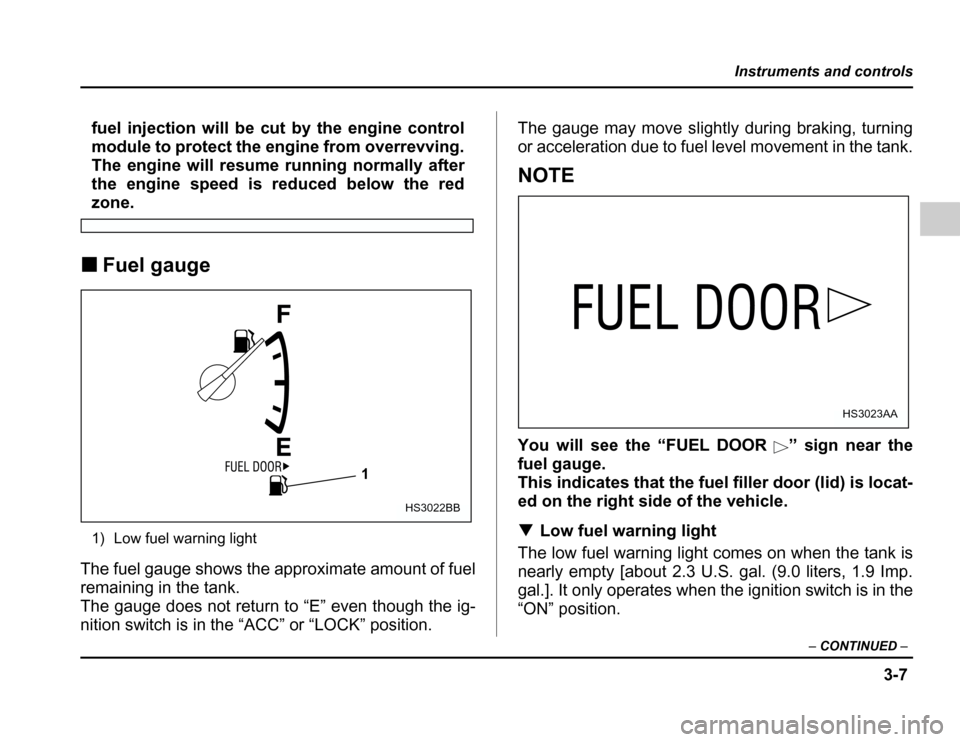

Fuel gauge
1) Low fuel warning light
The fuel gauge shows the approximate amount of fuel
remaining in the tank.
The gauge does not return to “E” even though the ig-
nition switch is in the “ACC” or “LOCK” position. The gauge may move slightly during braking, turning
or acceleration due to fuel level movement in the tank.
NOTE
You will see the “FUEL DOOR ” sign near the
fuel gauge.
This indicates that the fuel filler door (lid) is locat-
ed on the right side of the vehicle.
Low fuel warning light
The low fuel warning light comes on when the tank is
nearly empty [about 2.3 U.S. gal. (9.0 liters, 1.9 Imp.
gal.]. It only operates when the ignition switch is in the
“ON” position.
1
HS3022BB
HS3023AA

3-8
Instruments and controls
NOTE
This light does not go out unless the tank is re-
plenished up to an internal fuel quantity of about
4.0 U.S. gal. (15 liters, 3.3 Imp. gal.).

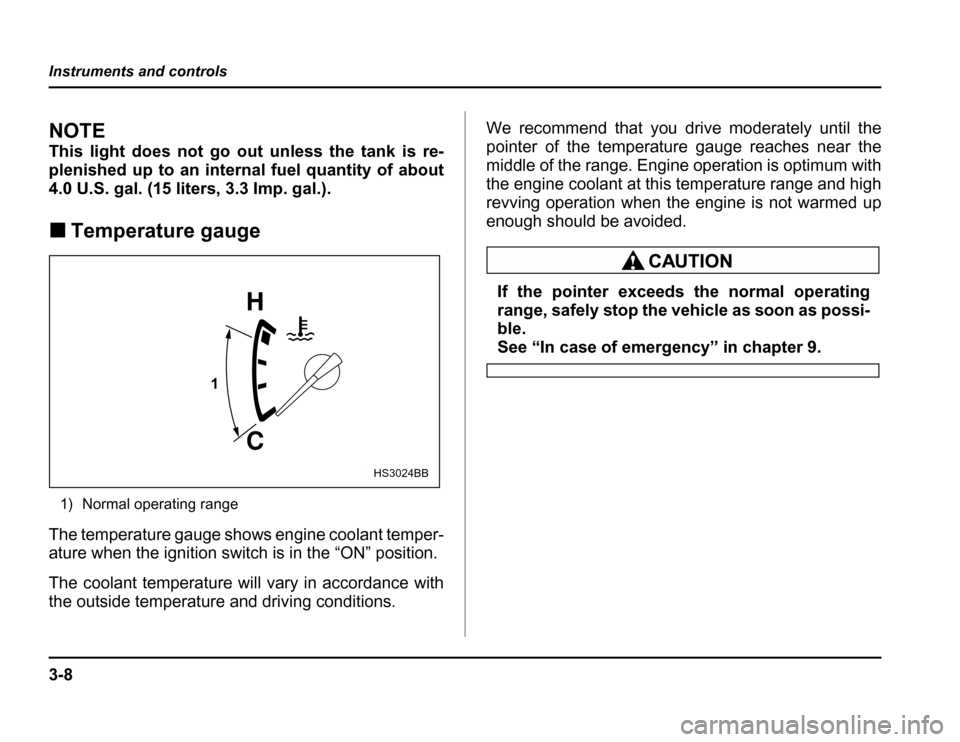

Temperature gauge
1) Normal operating range
The temperature gauge shows engine coolant temper-
ature when the ignition switch is in the “ON” position.
The coolant temperature will vary in accordance with
the outside temperature and driving conditions. We recommend that you drive moderately until the
pointer of the temperature gauge reaches near the
middle of the range. Engine operation is optimum with
the engine coolant at this temperature range and high
revving operation when the engine is not warmed up
enough should be avoided.
If the pointer exceeds the normal operating
range, safely stop the vehicle as soon as possi- ble.
See “In case of emergency” in chapter 9.
1
HS3024BB

3-11
Instruments and controls
–CONTINUED –
NOTE
This light also comes on when the fuel filler cap is
not tightened until it clicks.
If you have recently refueled your vehicle, the cause of
the CHECK ENGINE warning light/malfunction indica-
tor lamp coming on could be a loose or missing fuel fill-
er cap. Remove the cap and retighten it until it clicks.
Make sure nothing is interfering with the sealing of the
cap. Tightening the cap will not make the CHECK EN-
GINE warning light turn off immediately. It may take
several driving trips. If the light does not go out, take
your vehicle to your authorized SUBARU dealer im-
mediately. If the light is blinking:
If the light is blinking while driving, an engine misfire
condition has been detected which may damage the
emission control system.
To prevent serious damage to the emission control
system, you should do the following: Reduce vehicle speed.
Avoid hard acceleration.
Avoid steep uphill grades.
Reduce the amount of cargo, if possible.
Stop towing a trailer as soon as possible.
The CHECK ENGINE warning light may stop blinking and come on steadily after several driving trips. You
should have your vehicle checked by an authorized
SUBARU dealer immediately.
Charge warning light
If this light comes on when the engine is run-
ning, it may indicate that the charging system is not
working properly.
If the light comes on while driving or does not go out
after the engine starts, stop the engine at the first safe
opportunity and check the alternator belt. If the belt is
loose, broken or if the belt is in good condition but the
light remains on, contact your nearest SUBARU deal-
er immediately. Oil pressure warning light
If this light comes on when the engine is run-
ning, it may indicate that the engine oil pressure is low
and the lubricating system is not working properly.
If the light comes on while driving or does not go out
after the engine starts, stop the engine at the first safe
opportunity and check the engine oil level. If the oil lev-
el is low, add oil immediately. If the engine oil is at the
proper level but the light remains on, contact your
nearest SUBARU dealer immediately.

3-14
Instruments and controls
id level is below the “MIN” mark in the reservoir, do not
drive the vehicle. Have the vehicle towed to the near-
est SUBARU dealer for repair.
Electronic Brake Force Distribution (EBD) sys-
tem warning (for vehicles with EBD)
The brake system warning light also illuminates if a
malfanction occurs in the EBD system. In that event, it
comes on together with the ABS warning light.
The EBD system may be faulty if the brake system
warning light and ABS warning light illuminate simulta-
neously during driving.
Even if the EBD system fails, the conventional braking
system will still function. However, the rear wheels will
be more prone to locking when the brakes are applied
harder than usual and the vehicle’s motion may there-
fore become somewhat harder to control.
If the brake system warning light and ABS warning
light illuminate simultaneously, take the followingsteps:
1. Stop the vehicle in the nearest safe, flat place. If
you cannot avoid parking the vehicle on a slope, use
chocks to prevent the vehicle from moving.
2. Shut down the engine, then restart it.
3. Release the parking brake. If both warning lights go
out, the system is normal and no further action is nec- essary.
4. If both warning lights come on again and stay illu- minated after the engine has been restarted, shut
down the engine again, apply the parking brake, and
check the brake fluid level.
5. If the brake fluid level is not below the “MIN” mark,
the EBD system may be faulty. Drive carefully to the
nearest SUBARU dealer and have the system inspect-
ed.
6. If the brake fluid level is below the “MIN” mark, DO
NOT drive the vehicle. Instead, have the vehicle towed
to the nearest SUBARU dealer for repair.
Door open warning lights
The door open warning light comes on if any door or
the rear gate is not fully closed.
Always make sure this light is out before you start to drive. Low fuel warning light
The low fuel warning light comes on when the tank is
nearly empty about 2.3 U.S. gal. (9.0 liters, or 1.9 Imp.
gal.). It only operates when the ignition switch is in the
“ON” position.
NOTE
This light does not go out unless the tank is re-
plenished up to an internal fuel quantity of about

3-22
Instruments and controls
Wiper and washer
In freezing weather, do not use the windshield
washer until the windshield is sufficiently
warmed by the defroster.
Otherwise the washer fluid can freeze on the
windshield, blocking your view.

Do not operate the washer continuously for
more than ten seconds, or when the washer flu-
id tank is empty. This may cause overheating of
the washer motor. Check the washer fluid level
frequently, such as at fuel stops. Do not operate the wipers when the wind-
shield or rear window is dry. This may scratch
the glass, damage the wiper blades and cause
the wiper motor to b urn out. Before operating
the wiper on a dry windshield or rear window,
always use the windshield washer. In freezing weather, be sure that the wiper
blades are not frozen to the windshield or rear
window before switching on the wipers. At- tempting to operate the wiper with the blades
frozen to the window glass could cause not
only the wiper blades to be damaged but also
the wiper motor to burn out. If the wiper blade
is frozen to the window glass, be sure to oper-
ate the defroster, wind
shield wiper deicer (if
equipped) or rear window defogger before turn-
ingonthewiper. If the wipers stop during operation because
of ice or some other obstruction on the window,
the wiper motor could burn out even if the wiper
switch is turned off. If this occurs, promptly
stop the vehicle in a safe place, turn the ignition
switch to the “LOCK” position and clean the
window glass to allow p roper wiper operation.
Use clean water if windshield washer fluid is
unavailable. In areas where water freezes in
winter, use SUBARU Windshield Washer Fluid
or the equivalent. (See the “Windshield washer
fluid” section in chapter 11.)
Also, when driving the vehicle when there are
freezing temperatures, use non-freezing type
wiper blades. Do not clean the wiper blades with gasoline
or a solvent, such as paint thinner or benzene.
This will cause deterioration of the wiper
