SUBARU FORESTER 2005 SG / 2.G Owners Manual

2-1
2
Keys and doors
Keys ............................................................... 2-2 Key number ....................................................... 2-3
Immobilizer (if equipped) ............................. 2-3 Security ID plate ................................................ 2-4
Security indicator light ..................................... 2-5
Key replacement ............................................... 2-5
Door locks ..................................................... 2-6 Locking and unlocking from the outside ........ 2-6
Locking and unlocking from the inside .......... 2-7
Power door locking switches ...................... 2-8
Remote keyless entry system (if equipped) .............................................. 2-9Locking the doors ............................................. 2-10
Unlocking the doors ......................................... 2-10
Illuminated entry ............................................... 2-11
Vehicle finder function ..................................... 2-11
Sounding a panic alarm ................................... 2-11
Selecting audible signal operation .................. 2-11
Replacing the battery ....................................... 2-11
Replacing lost transmitters .............................. 2-13
Security system (if equipped) ..................... 2-17 System operation .............................................. 2-17
Arming the system ............................................ 2-17
Disarming the system ....................................... 2-19
Valet mode ......................................................... 2-20
Passive arming .................................................. 2-20
Child safety locks ......................................... 2-23
Windows ........................................................ 2-24 Power windows ................................................. 2-24
Rear gate ....................................................... 2-27 Moonroof (if equipped) ................................. 2-28
To open the moonroof ...................................... 2-28
To close the moonroof ..................................... 2-29
Anti-entrapment function ................................. 2-29

2-2
Keys and doors
Keys and doorsKeys
Vehicle with immobilizer system
A) Master key (Black)
B) Submaster key (Black)
C) Valet key (Gray)
D) Key number plate
E) Security ID plate Vehicle without immobilizer system
A) Master key
B) Submaster key
C) Valet key
D) Key number plate
Three types of keys are provided for your vehicle:
Master key, submaster key and valet key.
The master key and submaster key fit all locks on your vehicle. y Ignition switch
y Driver’s door
y Glove box
AB C
DE
UG2044BD
AB
C
D
HS2011BC

2-3
Keys and doors
– CONTINUED –
The valet key fits only the ignition switch and door lock.
You can keep the glove box locked when you leave
your vehicle and valet key at a parking facility.
Do not attach a large key holder or key case to
either key. If it banged against your knees while
you were driving, it could turn the ignition switch from the ON position to the ACC or OFF
position, thereby stopping the engine.
„ Key number
The key number is stamped on the key number plate
attached to the key set. Write down the key number
and keep it in another safe place, not in the vehicle.
This number is needed to make a replacement key if
you lose your key or lock it inside the vehicle.
For information on making replacement keys for vehi-
cles with the simmobilizer system, refer to the “Immo-
bilizer (if equipped)” in this chapter.
Immobilizer (if equipped)
The immobilizer system is designed to prevent unau-
thorized persons from starting the engine. Only keys
registered with your vehicle’s immobilizer system can
be used to operate your vehicle. Even if an unregis-
tered key fits into the ignition switch and can be turned
to the “START” position, the engine will automatically
stop after several seconds.
Each immobilizer key contains a transponder in which
the key’s ID code is stored. When a key is inserted into
the ignition switch and turned to the “ON” position, the
transponder transmits the key’s ID code to the immo-
bilizer system’s receiver. If the transmitted ID code
matches the ID code registered in the immobilizer sys-
tem, the system allows the engine to be started. Since
the ID code is transmitted and acted upon almost in-
stantly, the immobilizer system does not impede nor-
mal starting of the engine.
If the engine fails to start, pull out the key once before
trying again. (Refer to the “Ignition switch” section
[chapter 3].)
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada. Oper- ation is subject to the following two conditions: (1)
This device may not cause harmful interference,

2-4
Keys and doors
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE
To protect your vehicle from theft, please pay
close attention to the following security precau-
tions: y
Never leave your vehicle unattended with its
keys inside. y Before leaving your vehicle, close all windows
and lock the doors and rear gate. y Do not leave spare keys or any record of your
key number in the vehicle.
y Do not place the key under direct sunlight or
anywhere it may become hot. y Do not get the key wet. If the key gets wet,
wipe it dry with a cloth immediately. „
Security ID plate
A) Key number plate
B) Security ID plate
The security ID is stamped on the security ID plate at-
tached to the key set. Write down the security ID and
keep it in another safe place, not in the vehicle. This
number is needed to make a replacement key if you
lose your key or lock it inside the vehicle.
This number is also needed for replacement or repair
of the engine control module and immobilizer control module.
A B
UB2534BB

2-5
Keys and doors
– CONTINUED –
„Security indicator light
The security indicator light deters potential thieves by
indicating that the vehicle is equipped with an immobi-
lizer system. It begins flashing about 60 seconds after
the ignition switch is turned from the “ON” position to
the “ACC” or “LOCK” position or immediately after the
key is pulled out.
If the security indicator light does not flash, the immo-
bilizer system may be faulty. If this occurs, contact
your SUBARU dealer as soon as possible.
In case an unauthorized key is used (e.g. an imitation
key), the security indicator light comes on.
NOTE
Even if the security indicator light flashes irregu-
larly or its fuse blows (the light does not flash if its
fuse is blown), the immobilizer system will func-
tion normally. „ Key replacement
Your key number plate and security ID plate will be re-
quired if you ever need a replacement key made. Any
new key must be registered for use with your vehicle’s
immobilizer system before it can be used. Up to four
keys can be registered for use with one vehicle.
For security, all the keys registered with your vehicle’s immobilizer system will have their ID codes erased
and re-registered when a new key is made. Therefore,
all of your vehicle’s keys must be presented when a
new key is registered. Any key that is not re-registered
when a new key is made cannot be used after the oth-
er keys are re-registered. For information on replace-
ment keys and on the registration of keys with your im-
mobilizer system, contact your SUBARU dealer.

2-6
Keys and doors
Door locks „

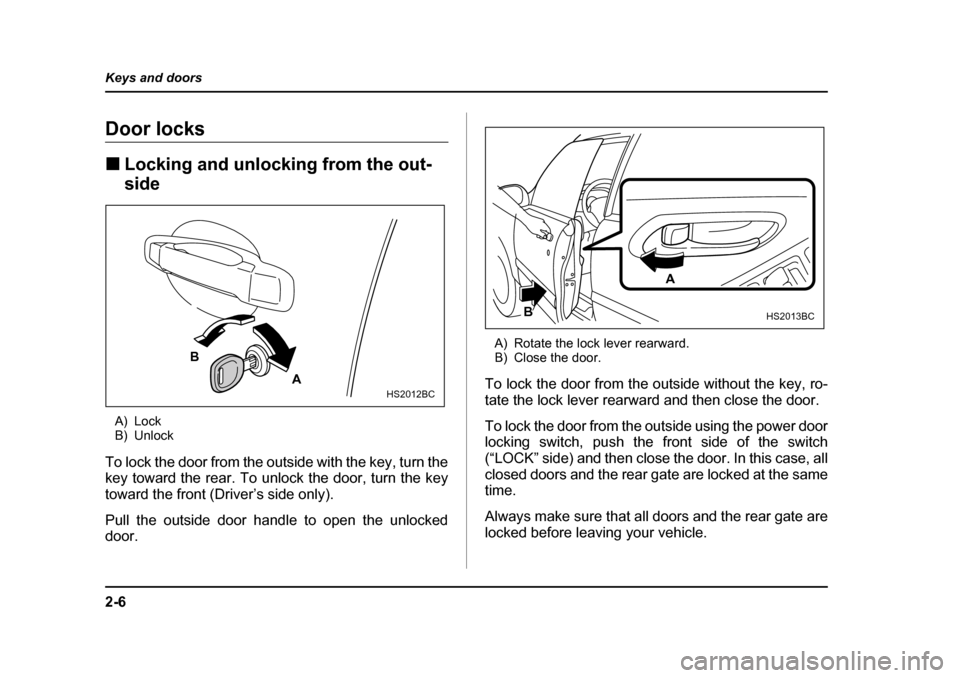

Locking and unlocking from the out- side
A) Lock
B) Unlock
To lock the door from the outside with the key, turn the
key toward the rear. To unlock the door, turn the key
toward the front (Driver’s side only).
Pull the outside door handle to open the unlocked
door. A) Rotate the lock lever rearward.
B) Close the door.
To lock the door from the outside without the key, ro-
tate the lock lever rearward and then close the door.
To lock the door from the outside using the power door
locking switch, push the front side of the switch
(“LOCK” side) and then close the door. In this case, all
closed doors and the rear gate are locked at the same time.
Always make sure that all doors and the rear gate are
locked before leaving your vehicle.
A
BHS2012BC
A
B
HS2013BC

2-7
Keys and doors
– CONTINUED –
NOTE
Make sure that you do not leave the key inside the
vehicle when locking the doors from the outside
without the key. „Locking and unlocking from the inside
A) Lock
B) Unlock
To lock the door from the inside, rotate the lock lever
rearward. To unlock the door from the inside, rotate
the lock lever forward.
The red mark on the lock lever appears when the door is unlocked.
Pull the inside door handle to open an unlocked door.
Always make sure that all doors and the rear gate are
closed before starting to drive.
Keep all doors locked when you drive, especial-
ly when small children are in your vehicle.
Along with the proper use of seatbelts and child
restraints, locking the doors reduces the
chance of being thrown out of the vehicle in an
accident.
It also helps prevent passengers from falling
out if a door is accidentally opened, and intrud-
ers from unexpectedly opening doors and en-
tering your vehicle.
HS2014BC
A
B

2-8
Keys and doors
Power door locking switches
A) Lock
B) Unlock
All doors and the rear gate can be locked and un-
locked by the power door locking switches located at
the driver’s side and the front passenger’s side doors.
To lock the doors, push the front side of the switch.
To unlock the doors, push the rear side of the switch.
When you close the doors after you set the door locks,
the doors remain locked.NOTE
Make sure that you do not leave the key inside the
vehicle before locking the doors from the outside
using power door locking switches.
A
B
HS2015BC

2-9
Keys and doors
– CONTINUED –
Remote keyless entry system (if
equipped)
Two transmitters are provided for your vehicle.
The remote keyless entry system has the following
functions. yLocking and unlocking the doors and rear gate with-
out a key y Sounding a panic alarm
y Arming and disarming the security system (if your
vehicle is equipped with an optional security system).
See the next section “Security system (if equipped)”
for detailed information.
This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada. Oper-
ation is subject to the following two conditions: (1)
This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved
by the party responsible for compliance could
void the user’s authority to operate the equipment.
The operable distance of the keyless entry system is
approximately 30 feet (10 meters). However, this dis- tance will vary depending on environmental condi-
tions. The system’s operable distance will be shorter
in areas near a facility or electronic equipment emitting
strong radio waves such as a power plant, broadcast
station, TV tower, or remote controller of home elec-
tronic appliances.
The keyless entry system does not operate when the key is inserted in the ignition switch to prevent acci-
dental lockout.
y
Do not expose the transmitter to severe
shocks, such as those experienced as a result
of dropping or throwing. y Do not take the transmitter apart except when
replacing the battery.y Do not get the transmitter wet. If it gets wet,
wipe it dry with a cloth immediately.
