TWarning and indicator light
Mark Name Page
Seatbelt warning light 3-13
SRS airbag system warning light 3-13
CHECK ENGINE warning
light/Malfunction indicator lamp 3-13
Charge warning light 3-14
Oil pressure warning light 3-15
AT OIL temperature warning
light (AT vehicles) 3-15
or ABS warning light 3-15
or Brake system warning light 3-18
Door open warning light 3-19
All-Wheel Drive warning
light (AT vehicles) 3-19
Low fuel warning light 3-19
Turn signal indicator lights 3-21
High beam indicator light 3-21 Security indicator light (if equipped) 2-17
Cruise control indicator light (if equipped) 3-21
Cruise control set indicator
light (if equipped) 3-21
Vehicle Dynamics Control
operation indicator light (if equipped) 3-20
Vehicle Dynamics Control
warning light/Vehicle Dy-
namics Control OFF indica-
tor light (if equipped) 3-16
Mark Name Page

29
–
CONTINUED –

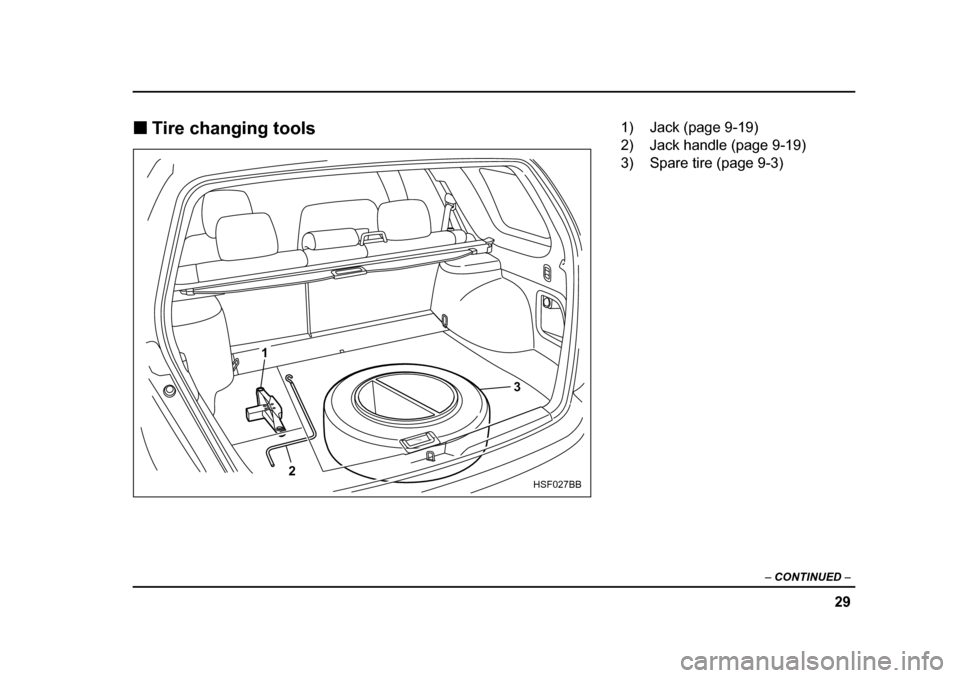

„Tire changing tools
3
1
2
HSF027BB
1) Jack (page 9-19)
2) Jack handle (page 9-19)
3) Spare tire (page 9-3)

30
„

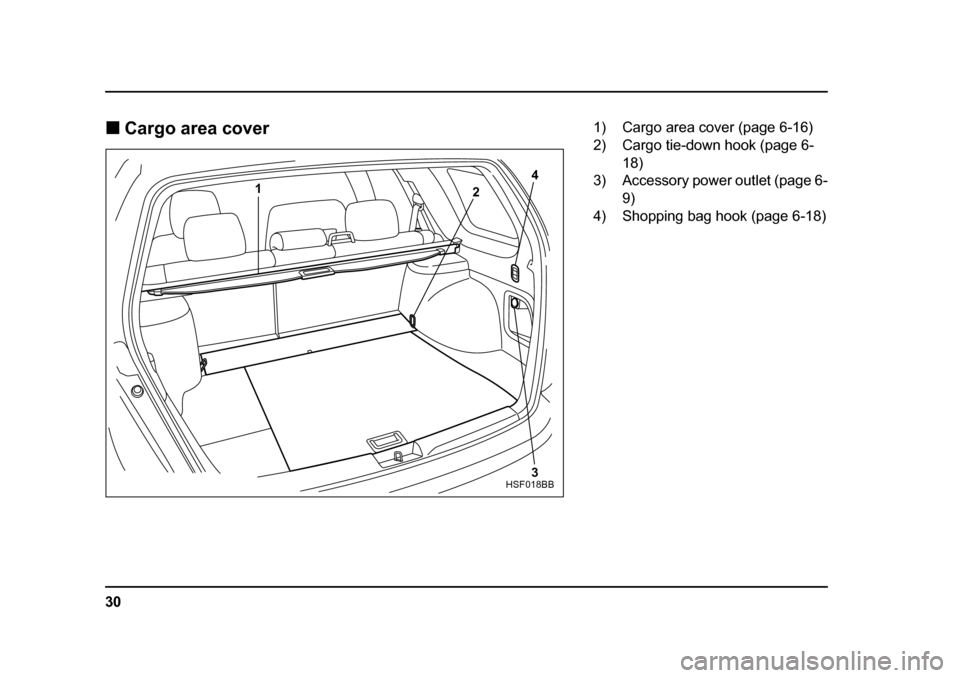

Cargo area cover
4
2
1
3
HSF018BB
1) Cargo area cover (page 6-16)
2) Cargo tie-down hook (page 6-18)
3) Accessory power outlet (page 6-
9)
4) Shopping bag hook (page 6-18)

1-1
1
Seat, seatbelt and SRS airbags
Front seats .................................................... 1-2 Manual seat ....................................................... 1-3
Power seat (if equipped) .................................. 1-5
Lumbar support ................................................ 1-7
Head restraint adjustment ................................ 1-8
Active head restraint ........................................ 1-9
Seat heater (if equipped) .............................. 1-10
Rear seats ..................................................... 1-11 Head restraint adjustment ................................ 1-12
Folding down the rear seatback ...................... 1-13
Seatbelts ....................................................... 1-14 Seatbelt safety tips ........................................... 1-14
Emergency Locking Retractor (ELR) .............. 1-15
Automatic/Emergency Locking Retractor (A/ELR) ............................................................ 1-16
Seatbelt warning light and chime .................... 1-16
Fastening the seatbelt ...................................... 1-16
Seatbelt maintenance ....................................... 1-29
Seatbelt extender ......................................... 1-29
Front seatbelt pretensioners ....................... 1-31 System monitors ............................................... 1-32
System servicing .............................................. 1-33
Precautions against vehicle modification ...... 1-34
Child restraint systems ................................ 1-35 Where to place a child restraint system ......... 1-37
Choosing a child restraint system .................. 1-38
Installing child restraint systems with A/ELR seatbelt ............................................................ 1-39
Installing a booster seat ................................... 1-44 Installation of child restraint systems by use
of lower and tether anchorages (LATCH) .... 1-45
Top tether anchorages ..................................... 1-50
*SRS airbag (Supplemental Restraint System airbag) ........................................... 1-53Vehicle with driver’s and front passenger’s SRS airbags and lap/shoulder restraints ..... 1-53
SRS frontal airbag ............................................ 1-57
SRS side airbag (if equipped) .......................... 1-65
SRS airbag system monitors ........................... 1-73
SRS airbag system servicing .......................... 1-75
Precautions against vehicle modification ...... 1-76

1-2
Seat, seatbelt and SRS airbags
Seat, seatbelt and SRS airbagsFront seats
y
Never adjust the seat while driving to avoid
the possibility of loss of vehicle control and of
personal injury. y Before adjusting the seat, make sure the
hands and feet of rear seat passengers are
clear of the adjusting mechanism. y Seatbelts provide maximum restraint when
the occupant sits well back and upright in the
seat. To reduce the risk of sliding under the
seatbelt in a collision, the front seatbacks
should be always used in the upright position
while the vehicle is running. If the front seat-
backs are not used in the upright position in a
collision, the risk of sliding under the lap belt
and of the lap belt sliding up over the abdomen
will increase, and both can result in serious in-
ternal injury or death.
Put children aged 12 and under in the rear seat
properly restrained at all times. The SRS airbag
deploys with considerable speed and force and
can injure or even kill children, especially if
they are 12 years of age and under and are not
restrained or improperly restrained. Because
children are lighter and weaker than adults,
their risk of being injured from deployment is
greater. For that reason, we strongly recom-
mend that ALL children (including those in
child seats and those that have outgrown child
restraint devices) sit in the REAR seat properly
HS1034BA

1-3
Seat, seatbelt and SRS airbags
– CONTINUED –
restrained at all times in a child restraint device
or in a seatbelt, whichever is appropriate for the
child’s age, height and weight. Secure ALL
types of child restraint devices (including for-
ward facing child seat) in the REAR seats at alltimes.
NEVER INSTALL A REARWARD FACING CHILD SEAT IN THE FRONT SEAT. DOING SO RISKS
SERIOUS INJURY OR DEATH TO THE CHILD
BY PLACING THE CHILD’S HEAD TOO CLOSE
TO THE SRS AIRBAG.
According to accident statistics, children are
safer when properly restrained in the rear seat-
ing positions than in the front seating posi-
tions. For instructions and precautions con-
cerning child restraint systems, see the “Child
restraint systems” section in this chapter. „
Manual seat

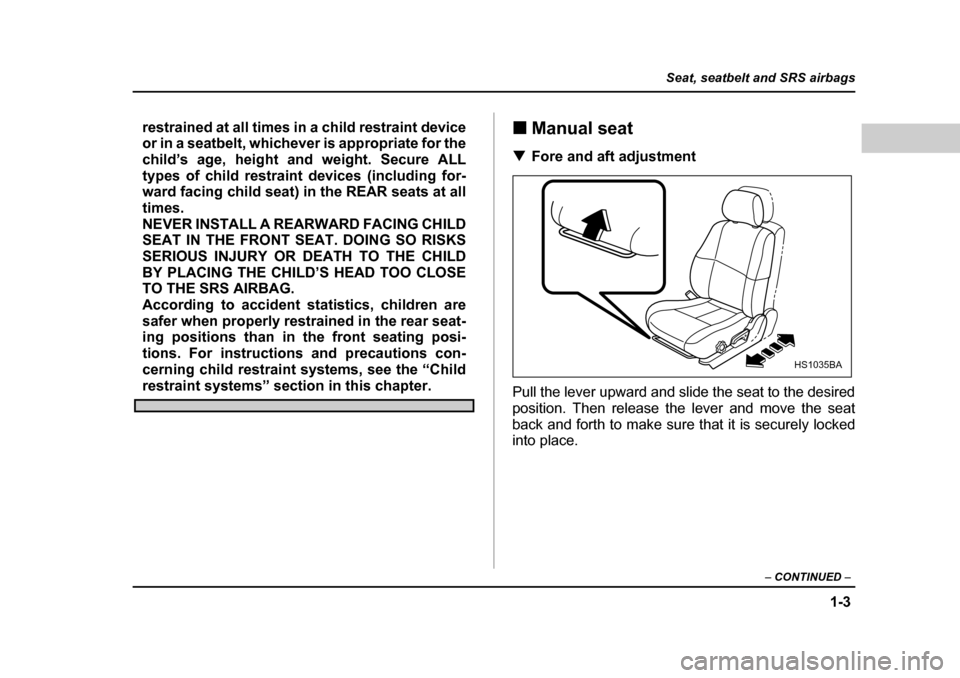

T Fore and aft adjustment
Pull the lever upward and slide the seat to the desired
position. Then release the lever and move the seat
back and forth to make sure that it is securely locked
into place.
HS1035BA

1-4
Seat, seatbelt and SRS airbags
T
Reclining the seatback
Pull the reclining lever up and adjust the seatback to
the desired position. Then release the lever and make
sure the seatback is securely locked into place.
The seatback placed in a reclined position can spring
back upward with force when released. When operat-
ing the reclining lever to return the seatback, hold it
lightly so that it may be raised back gradually.
To prevent the passenger from sliding under
the seatbelt in the event of a collision, always
put the seatback in the upright position while
the vehicle is in motion. Also, do not place ob-
jects such as cushions between the passenger
and the seatback. If you do so, the risk of slid-
ing under the lap belt and of the lap belt sliding
up over the abdomen will increase, and both
can result in serious internal injury or death.
HS1036BA
HS1037BA

1-5
Seat, seatbelt and SRS airbags
– CONTINUED –

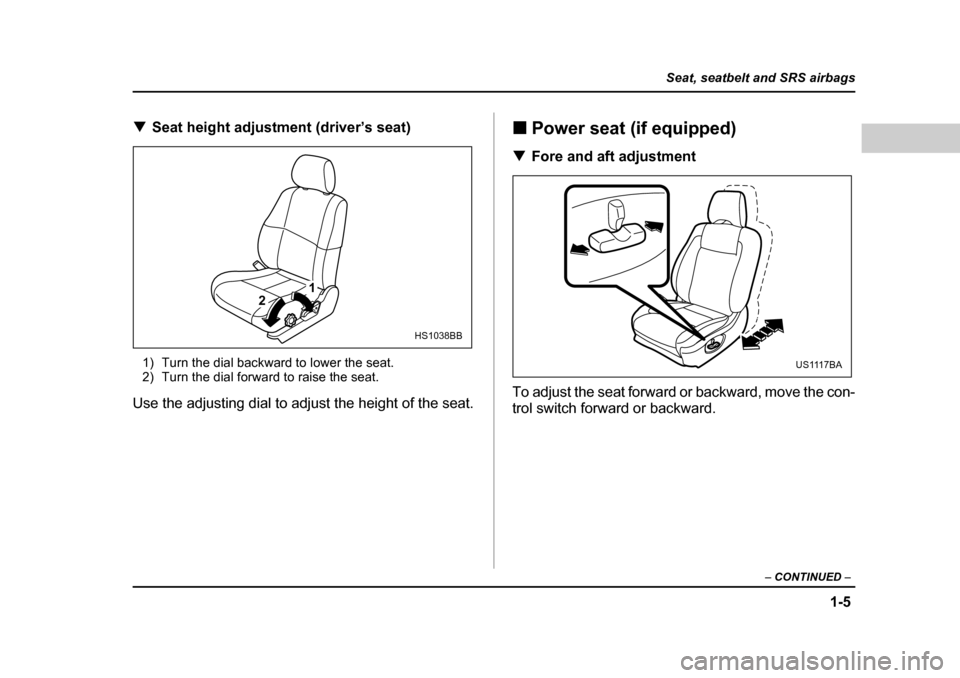

TSeat height adjustment (driver’s seat)
1) Turn the dial backward to lower the seat.
2) Turn the dial forward to raise the seat.
Use the adjusting dial to adjust the height of the seat. „
Power seat (if equipped)
T Fore and aft adjustment
To adjust the seat forward or backward, move the con-
trol switch forward or backward.
2 1
HS1038BB
US1117BA

1-6
Seat, seatbelt and SRS airbags
T
Seat cushion angle adjustment
To adjust the seat cushion angle, pull up or push down
the front end of the control switch. T

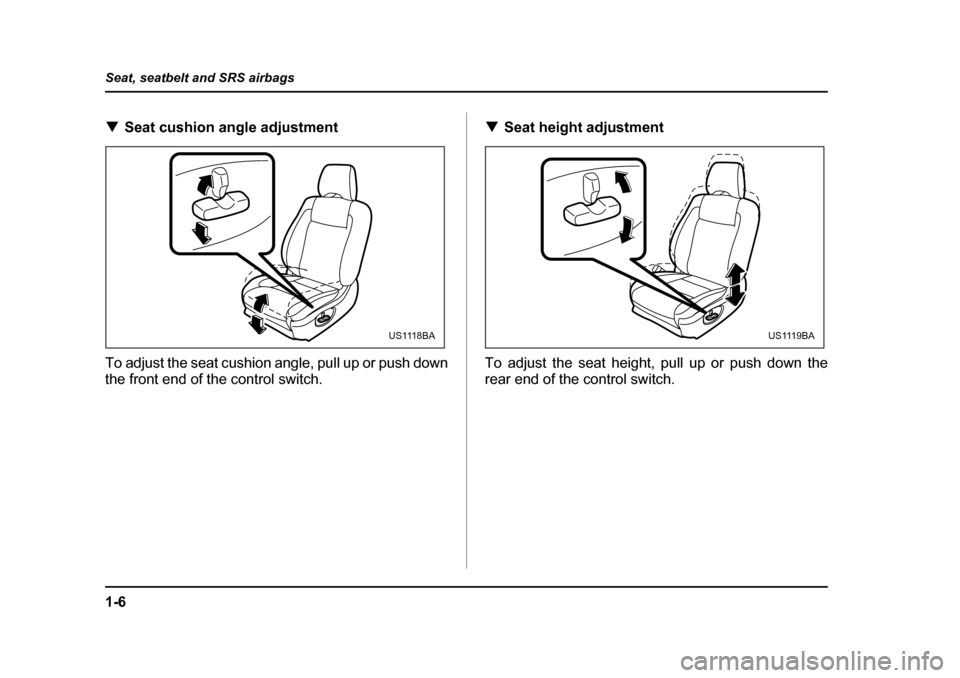

Seat height adjustment
To adjust the seat height, pull up or push down the
rear end of the control switch.
US1118BAUS1119BA

1-7
Seat, seatbelt and SRS airbags
– CONTINUED –
TReclining the seatback
To adjust the angle of the seatback, move the control
switch forward or backward.
NOTE
While adjusting the seatback, you can not at the
same time adjust the seat position or the seat
cushion angle and height. „

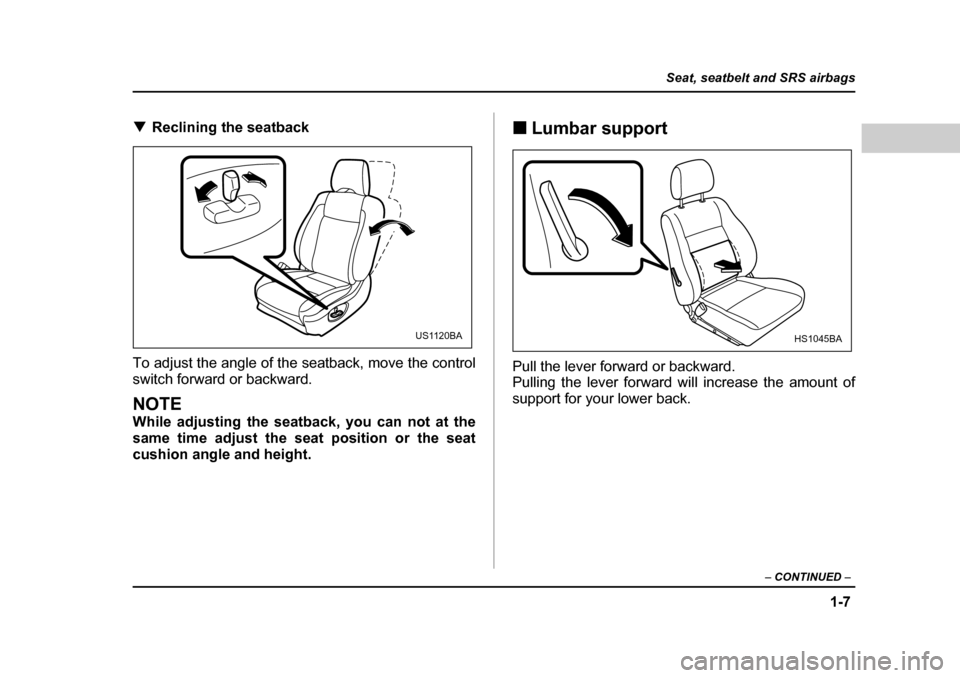

Lumbar support
Pull the lever forward or backward.
Pulling the lever forward will increase the amount of
support for your lower back.
US1120BAHS1045BA
