SUBARU FORESTER 2006 Owners Manual

ProCarManuals.com

2

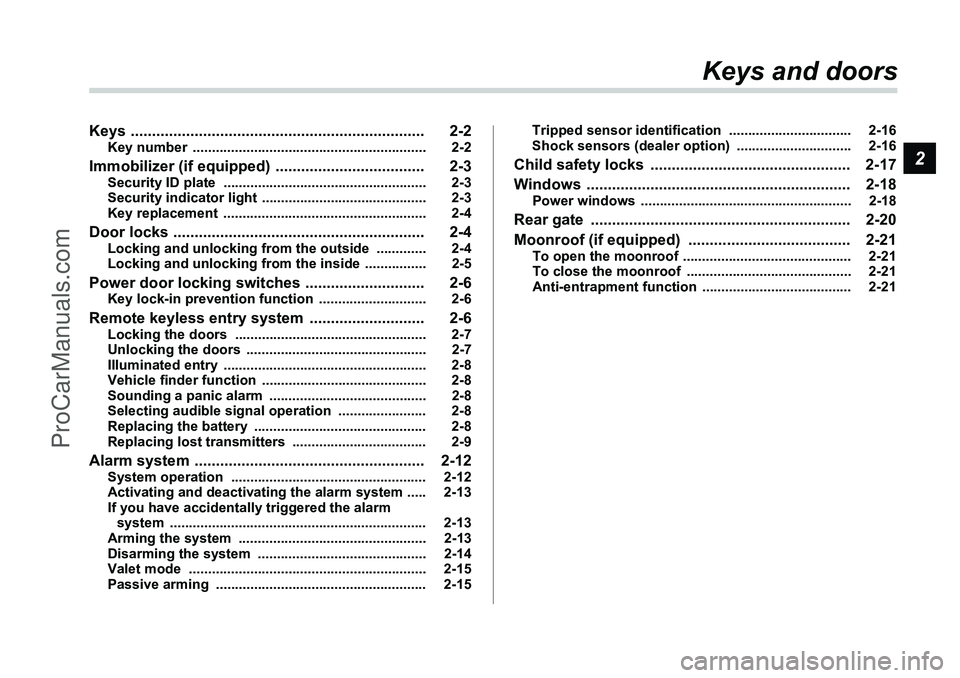

Keys and doors
Keys ...................................................................\
.. 2-2
Key number ............................................................. 2-2
Immobilizer (if equipped) ................................... 2-3
Security ID plate ..................................................... 2-3
Security indicator light ........................................... 2-3
Key replacement ..................................................... 2-4
Door locks ........................................................... 2-4
Locking and unlocking from the outside ............. 2-4
Locking and unlocking from the inside ................ 2-5
Power door locking switches ............................ 2-6
Key lock-in prevention function ............................ 2-6
Remote keyless entry system ........................... 2-6

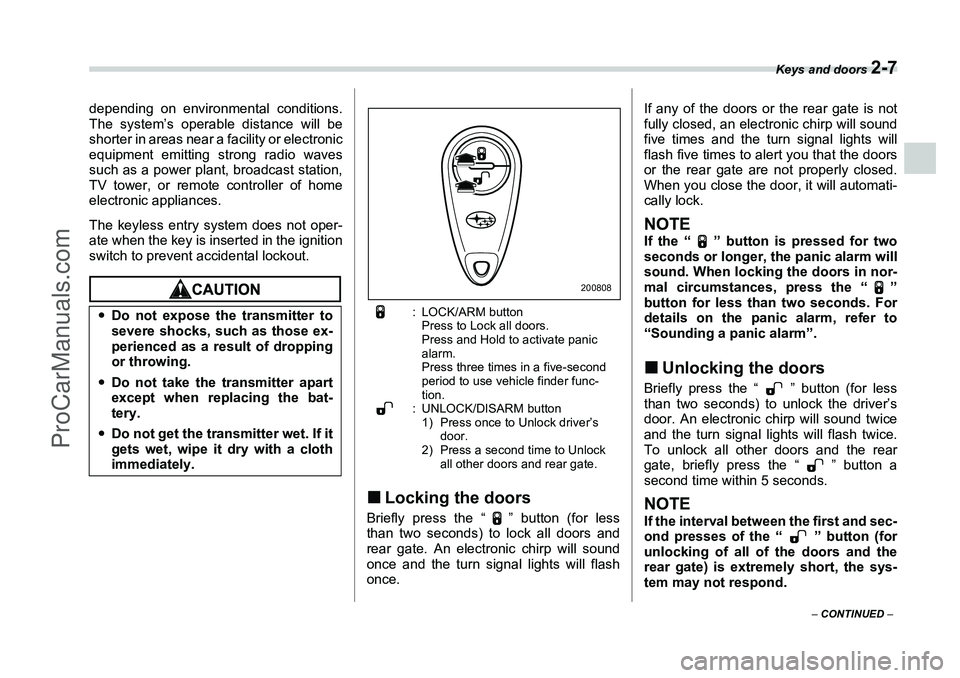

Locking the doors .................................................. 2-7
Unlocking the doors ............................................... 2-7

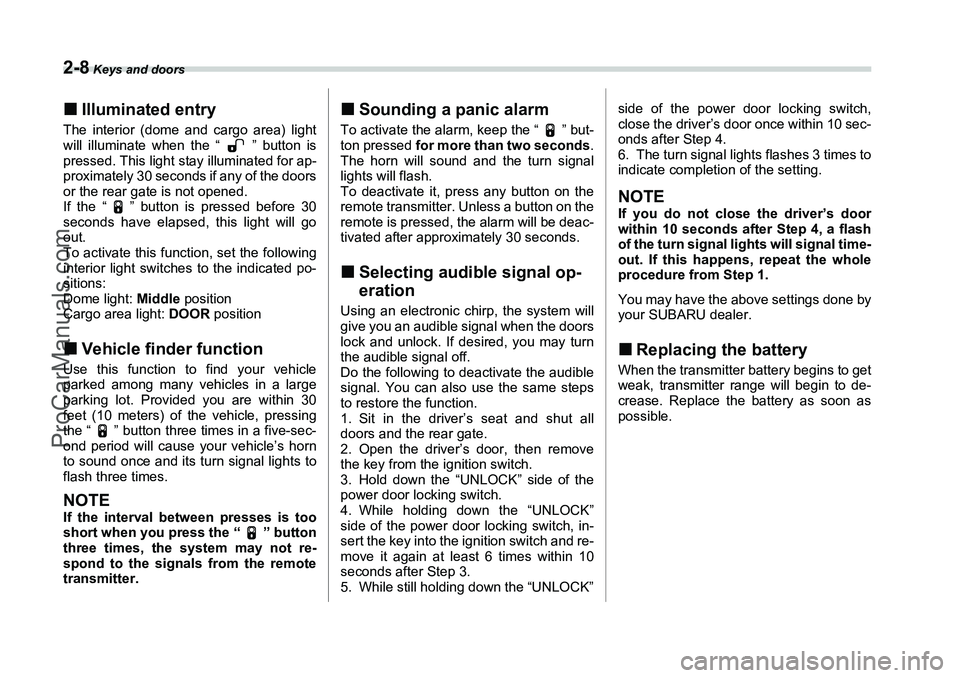

Illuminated entry ..................................................... 2-8
Vehicle finder function ........................................... 2-8
Sounding a panic alarm ......................................... 2-8
Selecting audible signal operation ....................... 2-8

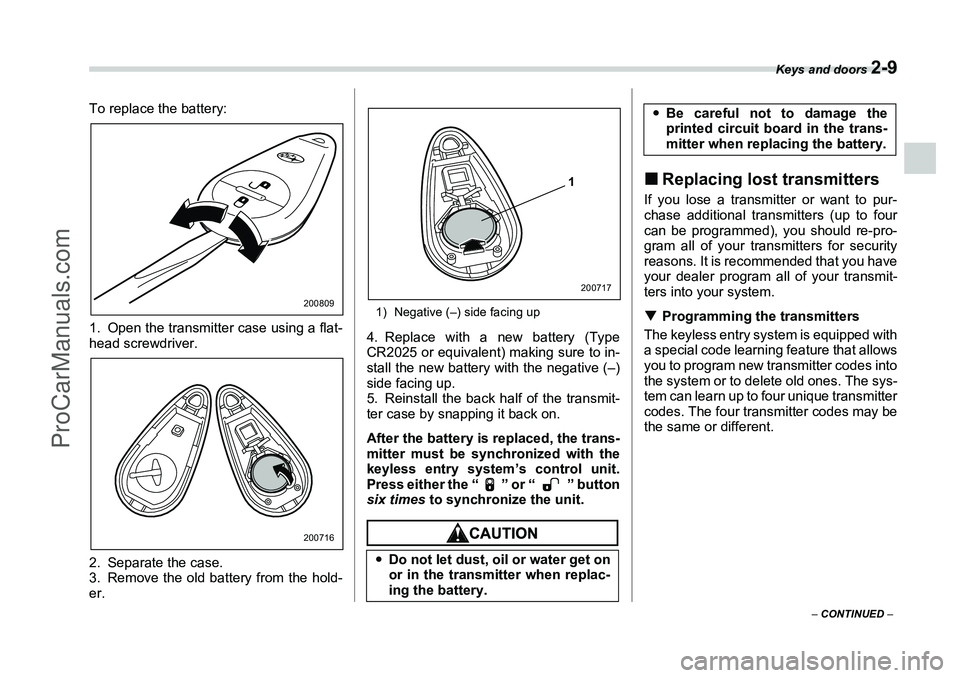

Replacing the battery ............................................. 2-8
Replacing lost transmitters ................................... 2-9
Alarm system ...................................................... 2-12
System operation ................................................... 2-12
Activating and deactivating the alarm system ..... 2-13
If you have accidentally triggered the alarm system ................................................................... 2-13
Arming the system ................................................. 2-13
Disarming the system ............................................ 2-14
Valet mode .............................................................. 2-15
Passive arming ....................................................... 2-15 Tripped sensor identification ................................ 2-16
Shock sensors (dealer option) .............................. 2-16
Child safety locks ............................................... 2-17
Windows .............................................................. 2-18
Power windows ....................................................... 2-18
Rear gate ............................................................. 2-20
Moonroof (if equipped) ...................................... 2-21
To open the moonroof ............................................ 2-21
To close the moonroof ........................................... 2-21
Anti-entrapment function ....................................... 2-21
ProCarManuals.com

2-2
Keys and doors
Keys and doors

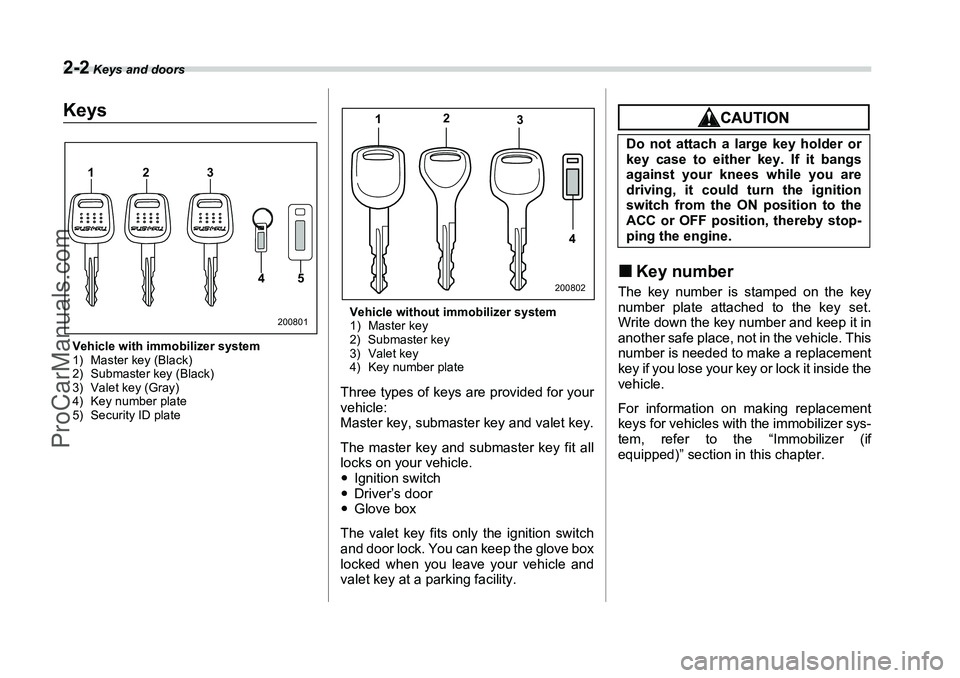

KeysVehicle with immobilizer system
1) Master key (Black)
2) Submaster key (Black)
3) Valet key (Gray)
4) Key number plate
5) Security ID plateVehicle without immobilizer system
1) Master key
2) Submaster key
3) Valet key
4) Key number plate
Three types of keys are provided for your
vehicle:
Master key, submaster key and valet key.
The master key and submaster key fit all
locks on your vehicle.
y
Ignition switch
y Driver’s door
y Glove box
The valet key fits only the ignition switch
and door lock. You can keep the glove box
locked when you leave your vehicle and
valet key at a parking facility.
„ Key numberThe key number is stamped on the key
number plate attached to the key set.
Write down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside the
vehicle.
For information on making replacement
keys for vehicles with the immobilizer sys-
tem, refer to the “Immobilizer (if
equipped)” section in this chapter.
12 3
45
200801
12
3
4
200802
Do not attach a large key holder or
key case to either key. If it bangs
against your knees while you are
driving, it could turn the ignition
switch from the ON position to the
ACC or OFF position, thereby stop-
ping the engine.
ProCarManuals.com

Keys and doors
2-3
– CONTINUED –

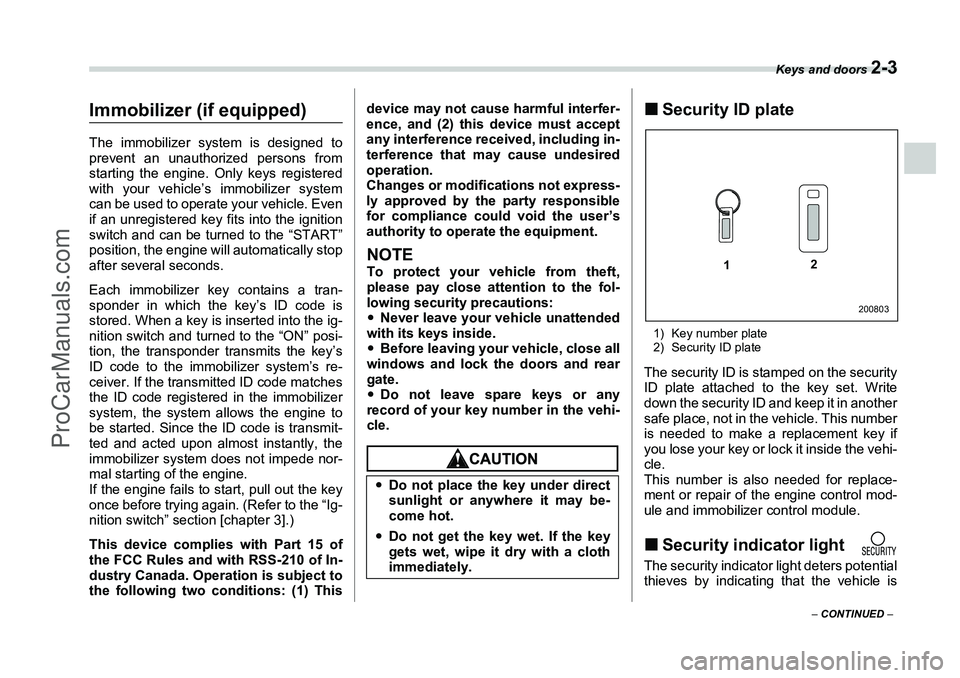

Immobilizer (if equipped)The immobilizer system is designed to
prevent an unauthorized persons from
starting the engine. Only keys registered
with your vehicle’s immobilizer system
can be used to operate your vehicle. Even
if an unregistered key fits into the ignition
switch and can be turned to the “START”
position, the engine will automatically stop
after several seconds.
Each immobilizer key contains a tran-
sponder in which the key’s ID code is
stored. When a key is inserted into the ig-
nition switch and turned to the “ON” posi-
tion, the transponder transmits the key’s
ID code to the immobilizer system’s re-
ceiver. If the transmitted ID code matches
the ID code registered in the immobilizer
system, the system allows the engine to
be started. Since the ID code is transmit-
ted and acted upon almost instantly, the
immobilizer system does not impede nor-
mal starting of the engine.
If the engine fails to start, pull out the key
once before trying again. (Refer to the “Ig-
nition switch” section [chapter 3].)
This device complies with Part 15 of
the FCC Rules and with RSS-210 of In-
dustry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
NOTETo protect your vehicle from theft,
please pay close attention to the fol-
lowing security precautions:
y
Never leave your vehicle unattended
with its keys inside.
y Before leaving your vehicle, close all
windows and lock the doors and rear
gate.
y Do not leave spare keys or any
record of your key number in the vehi-
cle.
„ Security ID plate1) Key number plate
2) Security ID plateThe security ID is stamped on the security
ID plate attached to the key set. Write
down the security ID and keep it in another
safe place, not in the vehicle. This number
is needed to make a replacement key if
you lose your key or lock it inside the vehi-
cle.
This number is also needed for replace-
ment or repair of the engine control mod-
ule and immobilizer control module.„Security indicator light The security indicator light deters potential
thieves by indicating that the vehicle is
y
Do not place the key under direct
sunlight or anywhere it may be-
come hot.
y Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.
1 2
200803
ProCarManuals.com

2-4
Keys and doors

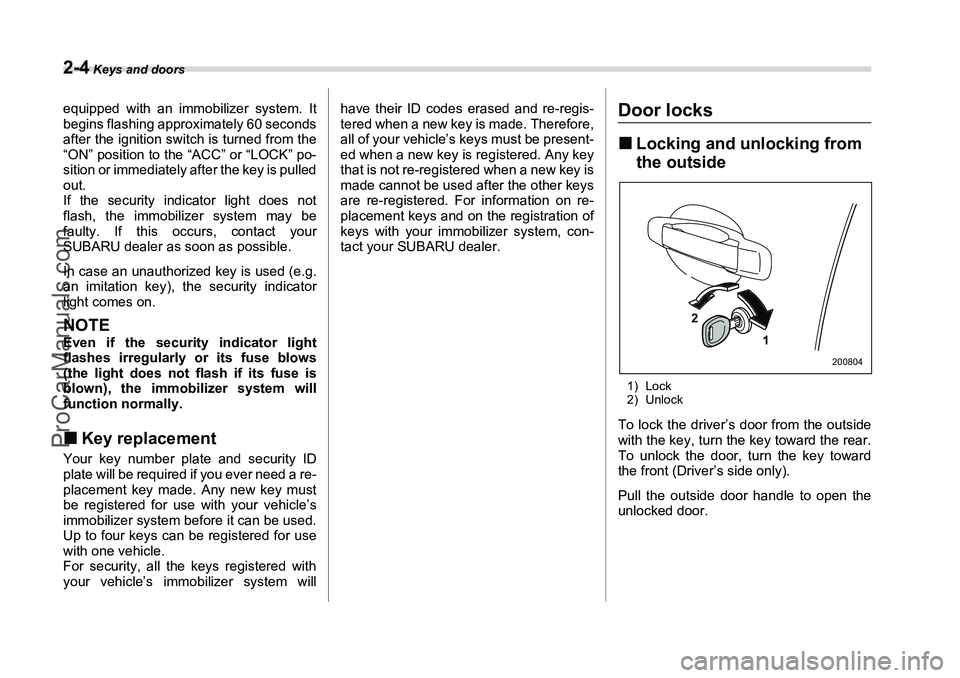

equipped with an immobilizer system. It
begins flashing approximately 60 seconds
after the ignition switch is turned from the
“ON” position to the “ACC” or “LOCK” po-
sition or immediately after the key is pulled
out.
If the security indicator light does not
flash, the immobilizer system may be
faulty. If this occurs, contact your
SUBARU dealer as soon as possible.
In case an unauthorized key is used (e.g.
an imitation key), the security indicator
light comes on.NOTEEven if the security indicator light
flashes irregularly or its fuse blows
(the light does not flash if its fuse is
blown), the immobilizer system will
function normally.„Key replacementYour key number plate and security ID
plate will be required if you ever need a re-
placement key made. Any new key must
be registered for use with your vehicle’s
immobilizer system before it can be used.
Up to four keys can be registered for use
with one vehicle.
For security, all the keys registered with
your vehicle’s immobilizer system will have their ID codes erased and re-regis-
tered when a new key is made. Therefore,
all of your vehicle’s keys must be present-
ed when a new key is registered. Any key
that is not re-registered when a new key is
made cannot be used after the other keys
are re-registered. For information on re-
placement keys and on the registration of
keys with your immobilizer system, con-
tact your SUBARU dealer.
Door locks„
Locking and unlocking from
the outside1) Lock
2) UnlockTo lock the driver’s door from the outside
with the key, turn the key toward the rear.
To unlock the door, turn the key toward
the front (Driver’s side only).
Pull the outside door handle to open the
unlocked door.
2
1
200804
ProCarManuals.com

Keys and doors
2-5

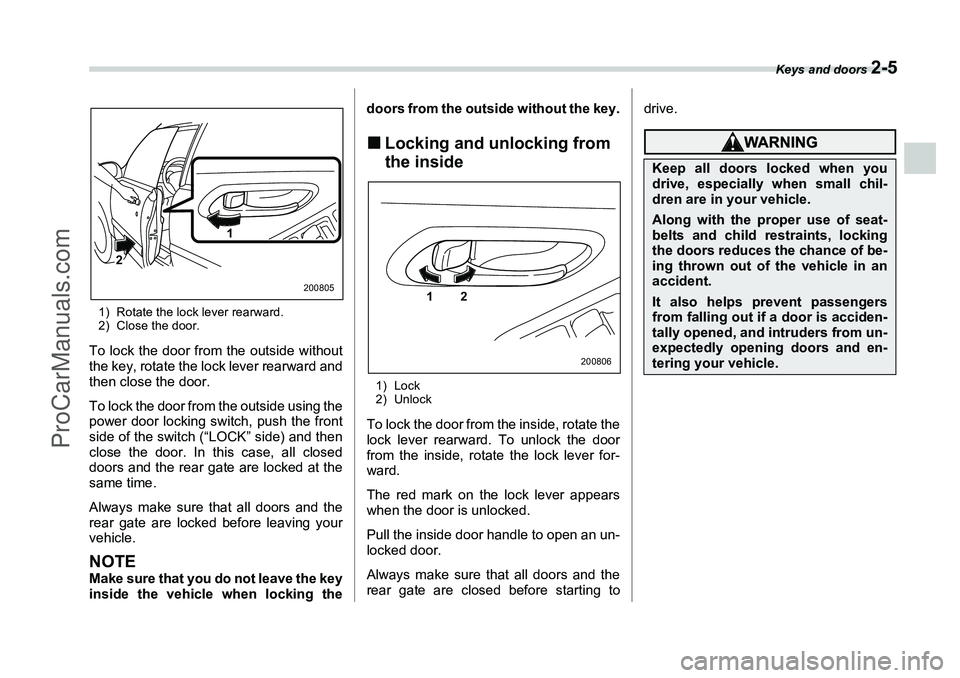

1) Rotate the lock lever rearward.
2) Close the door.To lock the door from the outside without
the key, rotate the lock lever rearward and
then close the door.
To lock the door from the outside using the
power door locking switch, push the front
side of the switch (“LOCK” side) and then
close the door. In this case, all closed
doors and the rear gate are locked at the
same time.
Always make sure that all doors and the
rear gate are locked before leaving your
vehicle.NOTEMake sure that you do not leave the key
inside the vehicle when locking thedoors from the outside without the key.
„
Locking and unlocking from
the inside1) Lock
2) UnlockTo lock the door from the inside, rotate the
lock lever rearward. To unlock the door
from the inside, rotate the lock lever for-
ward.
The red mark on the lock lever appears
when the door is unlocked.
Pull the inside door handle to open an un-
locked door.
Always make sure that all doors and the
rear gate are closed before starting to drive.
1
2
200805
1 2
200806
Keep all doors locked when you
drive, especially when small chil-
dren are in your vehicle.Along with the proper use of seat-
belts and child restraints, locking
the doors reduces the chance of be-
ing thrown out of the vehicle in an
accident.It also helps prevent passengers
from falling out if a door is acciden-
tally opened, and intruders from un-
expectedly opening doors and en-
tering your vehicle.
ProCarManuals.com

2-6
Keys and doors

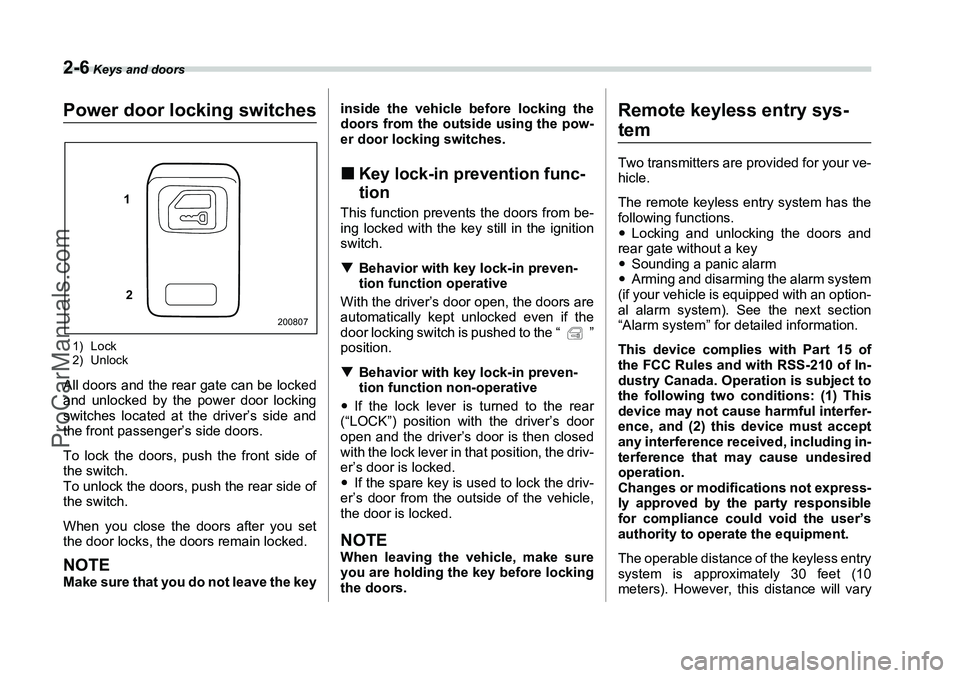

Power door locking switches1) Lock
2) UnlockAll doors and the rear gate can be locked
and unlocked by the power door locking
switches located at the driver’s side and
the front passenger’s side doors.
To lock the doors, push the front side of
the switch.
To unlock the doors, push the rear side of
the switch.
When you close the doors after you set
the door locks, the doors remain locked.NOTEMake sure that you do not leave the keyinside the vehicle before locking the
doors from the outside using the pow-
er door locking switches.
„
Key lock-in prevention func-
tionThis function prevents the doors from be-
ing locked with the key still in the ignition
switch.
T Behavior with key lock-in preven-
tion function operative
With the driver’s door open, the doors are
automatically kept unlocked even if the
door locking switch is pushed to the “ ”
position.
T Behavior with key lock-in preven-
tion function non-operative
y If the lock lever is turned to the rear
(“LOCK”) position with the driver’s door
open and the driver’s door is then closed
with the lock lever in that position, the driv-
er’s door is locked.
y If the spare key is used to lock the driv-
er’s door from the outside of the vehicle,
the door is locked.NOTEWhen leaving the vehicle, make sure
you are holding the key before locking
the doors.
Remote keyless entry sys-temTwo transmitters are provided for your ve-
hicle.
The remote keyless entry system has the
following functions.
y Locking and unlocking the doors and
rear gate without a key
y Sounding a panic alarm
y Arming and disarming the alarm system
(if your vehicle is equipped with an option-
al alarm system). See the next section
“Alarm system” for detailed information.
This device complies with Part 15 of
the FCC Rules and with RSS-210 of In-
dustry Canada. Operation is subject to
the following two conditions: (1) This
device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
The operable distance of the keyless entry
system is approximately 30 feet (10
meters). However, this distance will vary
1
2
200807
ProCarManuals.com

Keys and doors
2-7
– CONTINUED –
depending on environmental conditions.
The system’s operable distance will be
shorter in areas near a facility or electronic
equipment emitting strong radio waves
such as a power plant, broadcast station,
TV tower, or remote controller of home
electronic appliances.
The keyless entry system does not oper-
ate when the key is inserted in the ignition
switch to prevent accidental lockout.
: LOCK/ARM button
Press to Lock all doors.
Press and Hold to activate panic
alarm.
Press three times in a five-second
period to use vehicle finder func-
tion.
: UNLOCK/DISARM button
1) Press once to Unlock driver’s door.
2) Press a second time to Unlock all other doors and rear gate.
„Locking the doorsBriefly press the “ ” button (for less
than two seconds) to lock all doors and
rear gate. An electronic chirp will sound
once and the turn signal lights will flash
once. If any of the doors or the rear gate is not
fully closed, an electronic chirp will sound
five times and the turn signal lights will
flash five times to alert you that the doors
or the rear gate are not properly closed.
When you close the door, it will automati-
cally lock.
NOTEIf the “ ” button is pressed for two
seconds or longer, the panic alarm will
sound. When locking the doors in nor-
mal circumstances, press the “ ”
button for less than two seconds. For
details on the panic alarm, refer to
“Sounding a panic alarm”.„
Unlocking the doorsBriefly press the “ ” button (for less
than two seconds) to unlock the driver’s
door. An electronic chirp will sound twice
and the turn signal lights will flash twice.
To unlock all other doors and the rear
gate, briefly press the “ ” button a
second time within 5 seconds.NOTEIf the interval between the first and sec-
ond presses of the “ ” button (for
unlocking of all of the doors and the
rear gate) is extremely short, the sys-
tem may not respond.
y
Do not expose the transmitter to
severe shocks, such as those ex-
perienced as a result of dropping
or throwing.
y Do not take the transmitter apart
except when replacing the bat-
tery.
y Do not get the transmitter wet. If it
gets wet, wipe it dry with a cloth
immediately.
200808
ProCarManuals.com

2-8
Keys and doors
„Illuminated entryThe interior (dome and cargo area) light
will illuminate when the “ ” button is
pressed. This light stay illuminated for ap-
proximately 30 seconds if any of the doors
or the rear gate is not opened.
If the “ ” button is pressed before 30
seconds have elapsed, this light will go
out.
To activate this function, set the following
interior light switches to the indicated po-
sitions:
Dome light: Middle position
Cargo area light: DOOR position„Vehicle finder functionUse this function to find your vehicle
parked among many vehicles in a large
parking lot. Provided you are within 30
feet (10 meters) of the vehicle, pressing
the “ ” button three times in a five-sec-
ond period will cause your vehicle’s horn
to sound once and its turn signal lights to
flash three times.NOTEIf the interval between presses is too
short when you press the “ ” button
three times, the system may not re-
spond to the signals from the remote
transmitter.
„Sounding a panic alarmTo activate the alarm, keep the “ ” but-
ton pressed for more than two seconds .
The horn will sound and the turn signal
lights will flash.
To deactivate it, press any button on the
remote transmitter. Unless a button on the
remote is pressed, the alarm will be deac-
tivated after approximately 30 seconds.„ Selecting audible signal op-
erationUsing an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off.
Do the following to deactivate the audible
signal. You can also use the same steps
to restore the function.
1. Sit in the driver’s seat and shut all
doors and the rear gate.
2. Open the driver’s door, then remove
the key from the ignition switch.
3. Hold down the “UNLOCK” side of the
power door locking switch.
4. While holding down the “UNLOCK”
side of the power door locking switch, in-
sert the key into the ignition switch and re-
move it again at least 6 times within 10
seconds after Step 3.
5. While still holding down the “UNLOCK” side of the power door locking switch,
close the driver’s door once within 10 sec-
onds after Step 4.
6. The turn signal lights flashes 3 times to
indicate completion of the setting.
NOTEIf you do not close the driver’s door
within 10 seconds after Step 4, a flash
of the turn signal lights will signal time-
out. If this happens, repeat the whole
procedure from Step 1.
You may have the above settings done by
your SUBARU dealer.„
Replacing the batteryWhen the transmitter battery begins to get
weak, transmitter range will begin to de-
crease. Replace the battery as soon as
possible.
ProCarManuals.com

Keys and doors
2-9
– CONTINUED –
To replace the battery:
0
1. Open the transmitter case using a flat-
head screwdriver.
2. Separate the case.
3. Remove the old battery from the hold-
er.
1) Negative (–) side facing up4. Replace with a new battery (Type
CR2025 or equivalent) making sure to in-
stall the new battery with the negative (–)
side facing up.
5. Reinstall the back half of the transmit-
ter case by snapping it back on.
After the battery is replaced, the trans-
mitter must be synchronized with the
keyless entry system’s control unit.
Press either the “ ” or “ ” button
six times to synchronize the unit.
„Replacing lost transmittersIf you lose a transmitter or want to pur-
chase additional transmitters (up to four
can be programmed), you should re-pro-
gram all of your transmitters for security
reasons. It is recommended that you have
your dealer program all of your transmit-
ters into your system.
T Programming the transmitters
The keyless entry system is equipped with
a special code learning feature that allows
you to program new transmitter codes into
the system or to delete old ones. The sys-
tem can learn up to four unique transmitter
codes. The four transmitter codes may be
the same or different.
200809200716
y Do not let dust, oil or water get on
or in the transmitter when replac-
ing the battery.
1200717
yBe careful not to damage the
printed circuit board in the trans-
mitter when replacing the battery.
ProCarManuals.com
